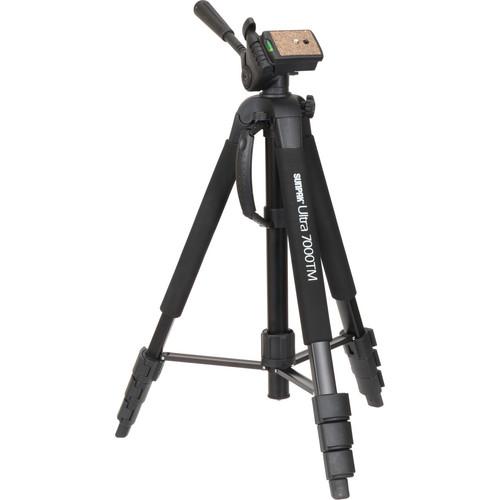

User Manual for Sunpak Ultra 7000TM Tri-Monopod with 3-Way, Pan-and-Tilt Head Click to enlarge the picture
Contents of the user manual for the Sunpak Ultra 7000TM Tri-Monopod with 3-Way,
- Product category: Tripods with Heads Sunpak
- Brand: Sunpak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunpak Tripods with Heads
|
User manual for the Sunpak Ultra 7000TM Tri-Monopod with 3-Way, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunpak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunpak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunpak product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More wzusrtwbrdydrzfxccbdrbvucvs This Ultra 7000TM Tri-Monopod from Sunpak supports up to 12.3 lb, measures 22.5 when folded, and includes a three-way, pan-and-tilt head with quick release plate. Its 4-section legs each feature flip locks for fast deployment, and can be positioned for a minimum height of 21.5" to a maximum height of 59.0", or 70.0" with its column fully raised. The push-and-pull column enables rapid height adjustments and an integrated center brace allows the legs to be spread simultaneously as well as uniformly. While the center column includes an integrated handle, foam covers on all of the legs also provide a secure and comfortable grip while moving the tripod, and rubber feet help to enhance stability on a wide variety of surfaces.
Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the quick release plate. It is secured to the pan-and-tilt head using a cam lock and features its own bubble level, which can supplement the tripod's built-in bubble level. The head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation. Each of these three movements function independently of each other and can be locked into place.
For added versatility, the column serves to house a 5-section monopod with a rubber foot that is attached to the base of the pan-and-tilt head. When removed from the tripod's column, the monopod and the head support up to 12.3 lb and measures 17.5" while folded. The monopod consists of five sections, which utilize a single twist lock within its base for rapid deployment, and with the pan-and-tilt head, can be positioned for a minimum height of 18.0" to a maximum height of 65.0".
An additional quick release plate is provided, enabling easy substitution of multiple cameras, lenses, or sport optics with the Ultra 7000TM Tri-Monopod. - Use and Handling
-
- Supports up to 12.3 lb
- Push-and-pull, center column for rapid positioning
- Can be set for a minimum height of 21.5", to a maximum height of 59.0", or 70.0" with its column fully raised
- Legs each feature 4 sections, flip locks for fast deployment
- Center brace allows legs to be spread simultaneously as well as uniformly and provides additional support
- Integrated handle on center column, foam covers on all of the legs also provide a secure and comfortable grip
- Rubber feet help to enhance stability on a wide variety of surfaces
- Built-in tripod bubble level
- Weighs 4.1 lb, measures 22.5" when folded
- Tripod column houses a 5-section monopod with a rubber foot that is attached to the base of the pan-and-tilt head
- Single twist lock within base of monopod for rapid deployment
- Monopod and the head support up to 12.3 lb and measures 17.5" while removed from tripod column and folded
- With pan-and-tilt head, monopod can be positioned for a minimum height of 18.0" to a maximum height of 65.0"
- Construction Details
-
- Aluminum-alloy legs
- Three-way, pan-and-tilt head
- Quick release plate with 1/4"-20 mount, bubble level, and anti-slip, cork surface
UPC: 090729611007 In the Box Sunpak Ultra 7000TM Tri-Monopod with 3-Way, Pan-and-Tilt Head 2 x 620-731 Quick Release Plate with Bubble Level Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunpak Ultra 7000TM Tri-Monopod with 3-Way, Pan-and-Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunpak Ultra 7000 Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 1/4"-20 Thread | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 12.3 lb / 5.6 kg | | Maximum Working Height | 70" / 177.8 cm | | Minimum Working Height | 21.5" / 54.6 cm | | Folded Length | 22.5" / 57.2 cm | | Materials | Aluminum Alloy | | Weight | 4.1 lb / 1.9 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | No | | Leg Sections | 4 | | Bubble Level | Yes | | | | Center Column Features | Center Brace | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 23.5 x 5.0 x 5.0" |
