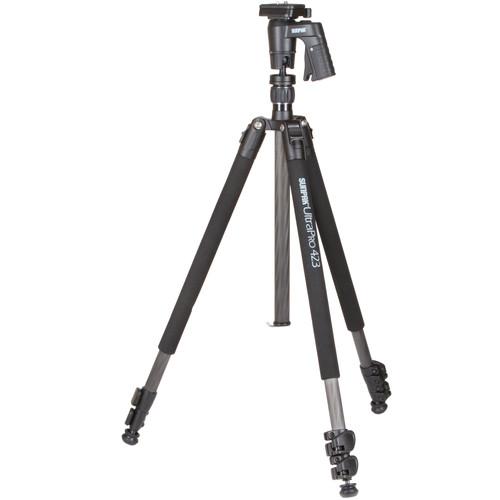

Product description Time-Lapse Tips and Tools Read More This UltraPRO 423 Tripod Kit from Sunpak supports up to 16 lb, measures 24.5" when folded, and includes both long and short push-and-pull center columns, as well as a 620-CPG Pistol Grip Ball Head. Each of its three-section carbon fiber legs help maximize durability while limiting weight. They feature an independent spread as well as flip locks for rapid deployment, and can be positioned for a minimum height of 10.8" when its short center column is in use, or 19.1" when its long center column is in use. This tripod kit provides a maximum height of 49.5", or 55.3" with its short center column fully raised, and 64.8" with its long center column fully raised.
Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the 620-749 quick release plate, which is secured to the tripod head using a quick release cam lock. Using the Pistol Grip Ball Head's squeeze trigger, the tripod head's integrated ball-and-socket joint can be quickly swiveled 360°, tilted down to a 90° angle, or returned to its upright position.
For added versatility, the center columns are reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them. Foam covers on each of the legs provide a secure and comfortable grip while moving the tripod, and rubber feet, each with a twist-out metal spike, further enhance stability on a wide variety of surfaces, including soft and uneven soil.

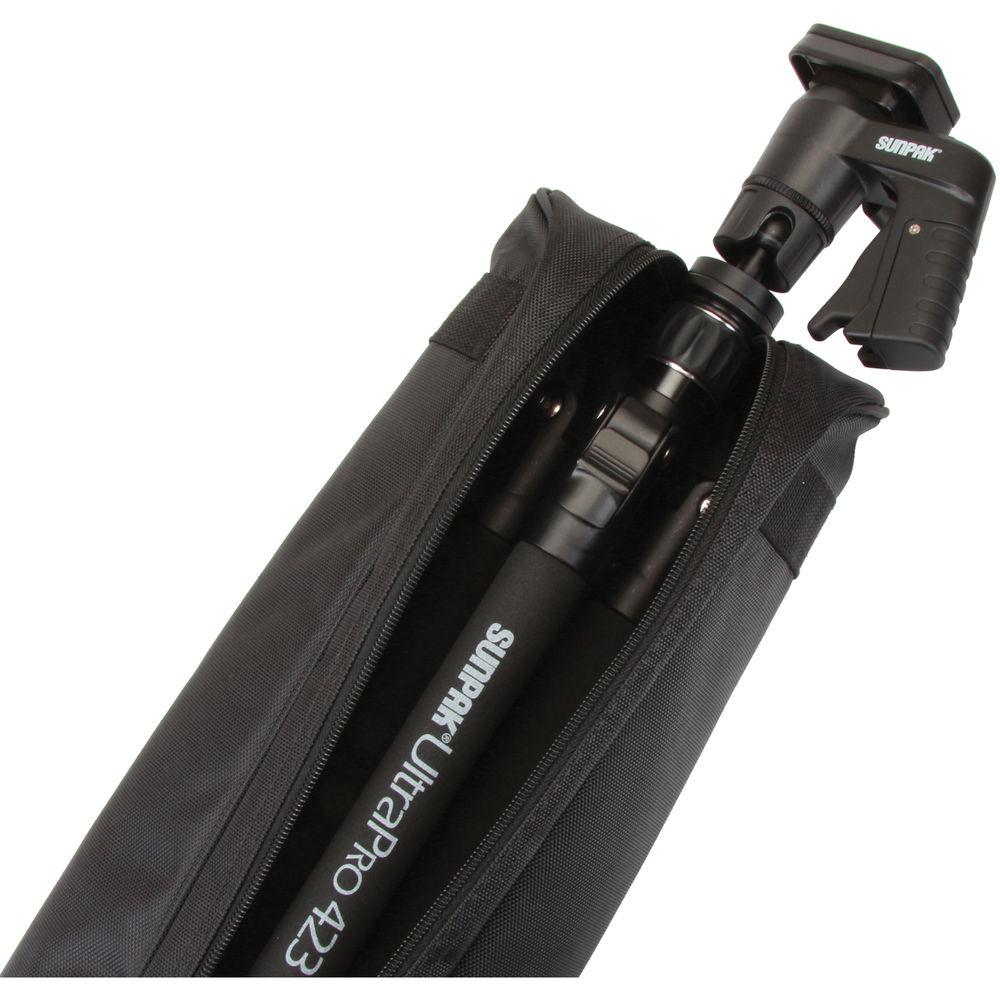

A carry bag with a handle and shoulder strap is included for storage or transport. - General Use and Handling
-
- Supports up to 16 lb

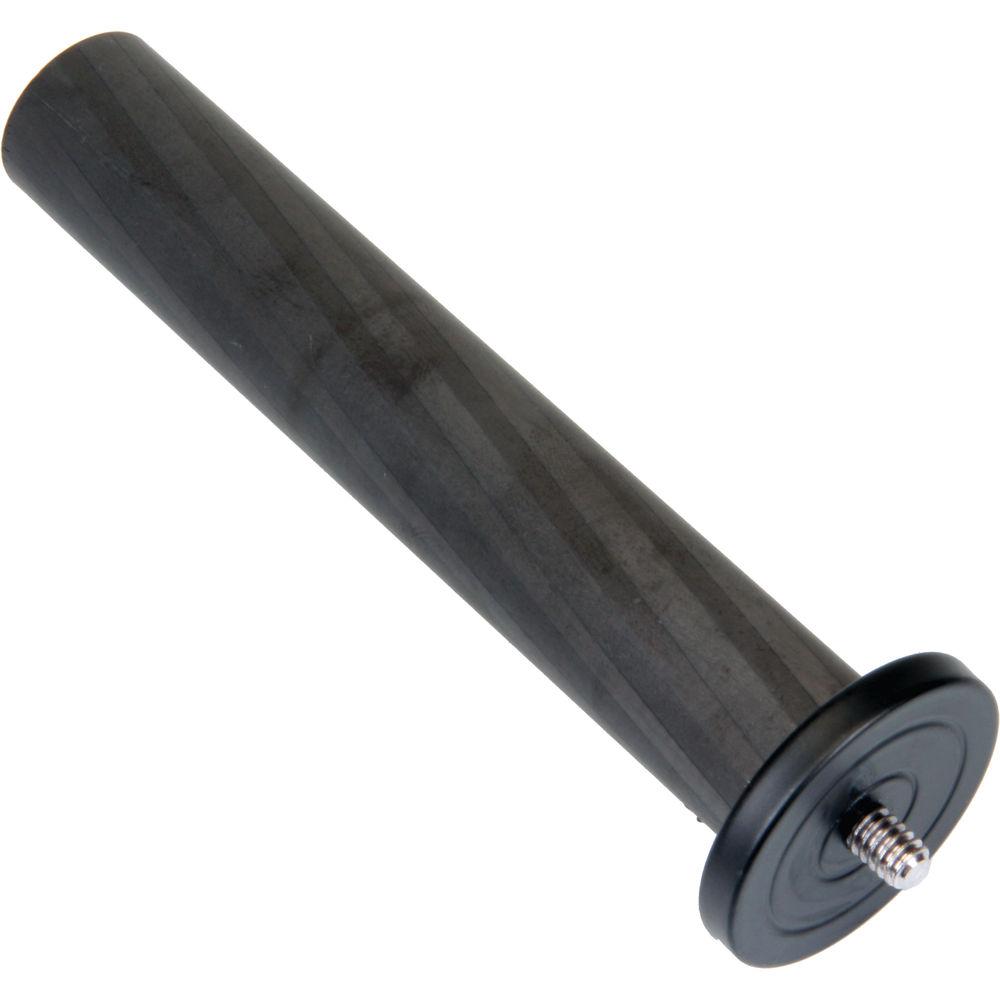

- Long and short, push-and-pull, rapid center columns with ballast hook for rapid camera, lens, or sport optic positioning
- Can be set for a minimum height of 10.8" when its short center column is in use, or 19.1" when its long center column is in use
- Can be set for a maximum height of 49.5", or 55.3" with its short center column fully raised, and 64.8" with its long center column fully raised
- Short and long center columns are reversible, facilitating low-angle photography where the camera is positioned among the tripod's legs instead of above them

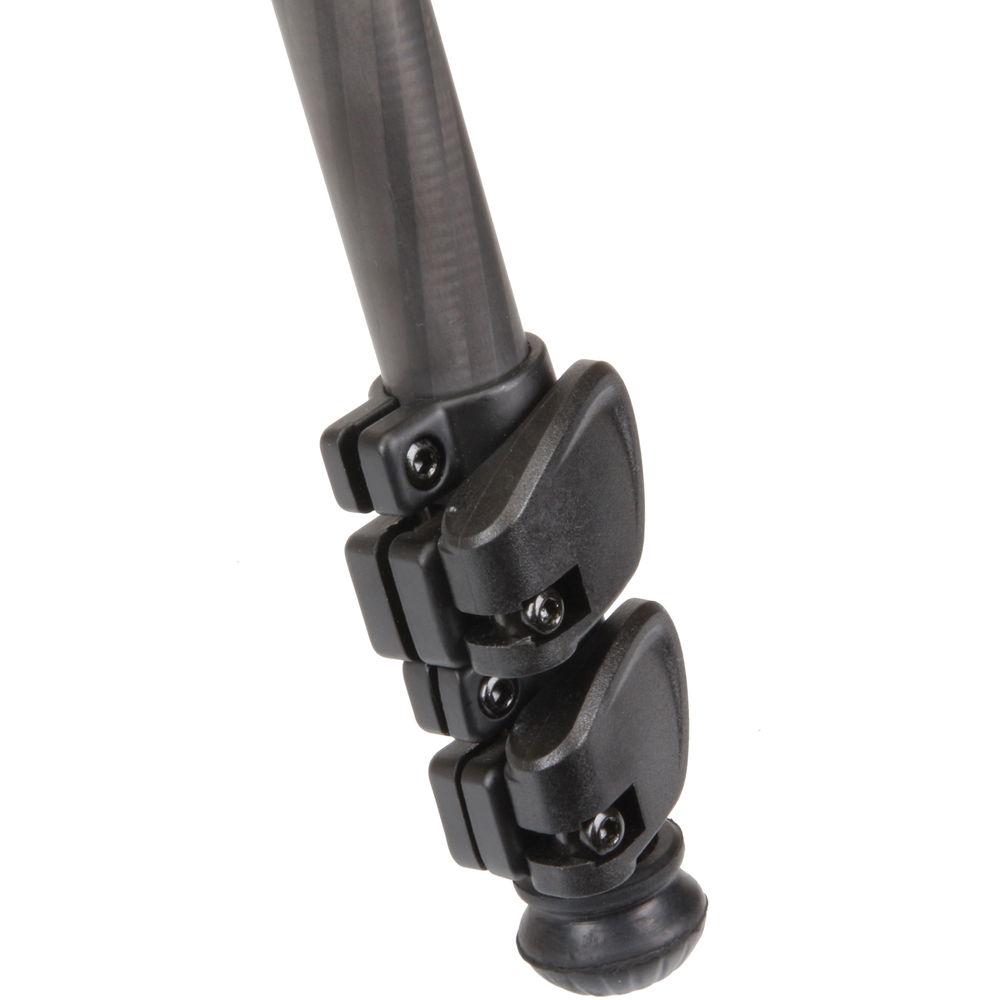

- Carbon fiber legs help maximize durability while limiting weight; each features three sections, has flip locks for rapid deployment, and can be independently spread
- Legs can be locked at 25°, 46°, 66°, or 88° angles
- Foam covers on each of the legs provide a secure and comfortable grip
- Rubber feet with twist-out metal spikes further enhance stability on a wide variety of surfaces, including soft and uneven soil

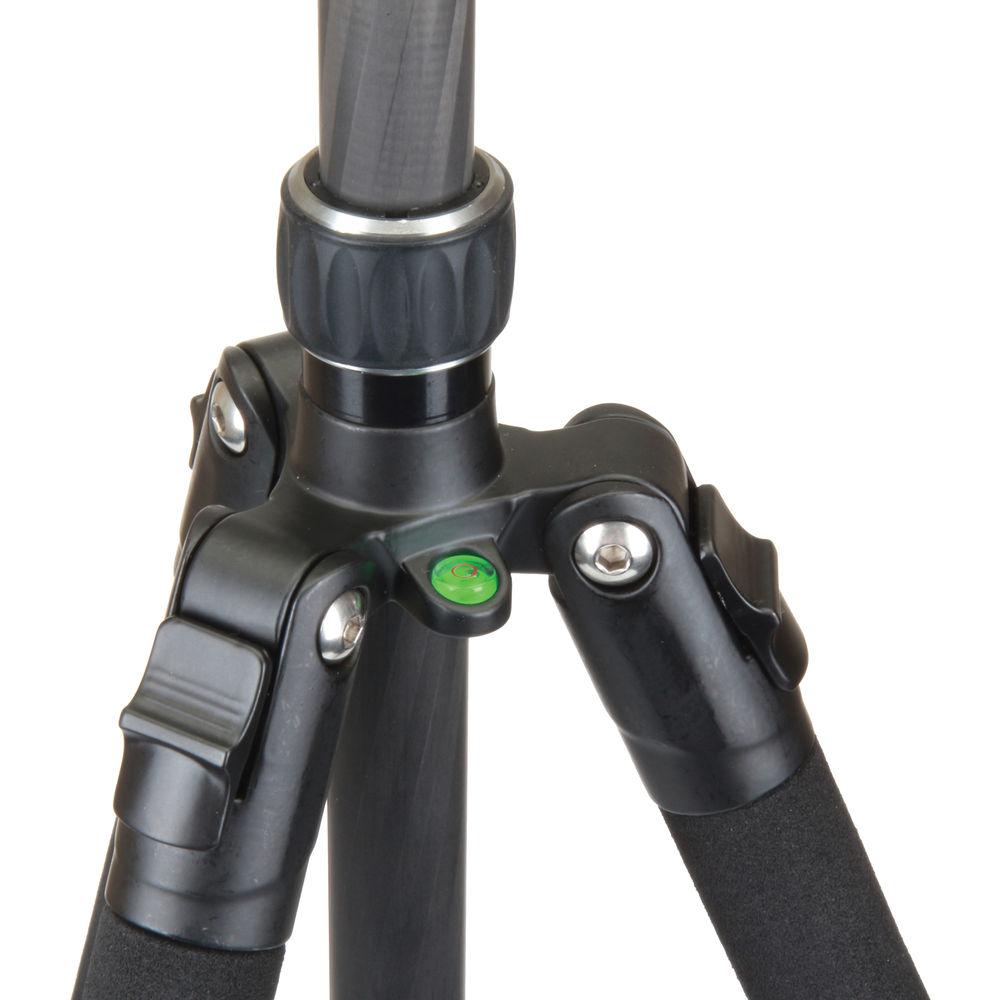

- Built-in tripod bubble level and 1/4"-20 mount for direct attachment to accessories with 1/4"-20 female threads
- Weighs 3.4 lb, and measures 24.5" when all three legs are reversed 180° and folded
- Pistol Grip
-

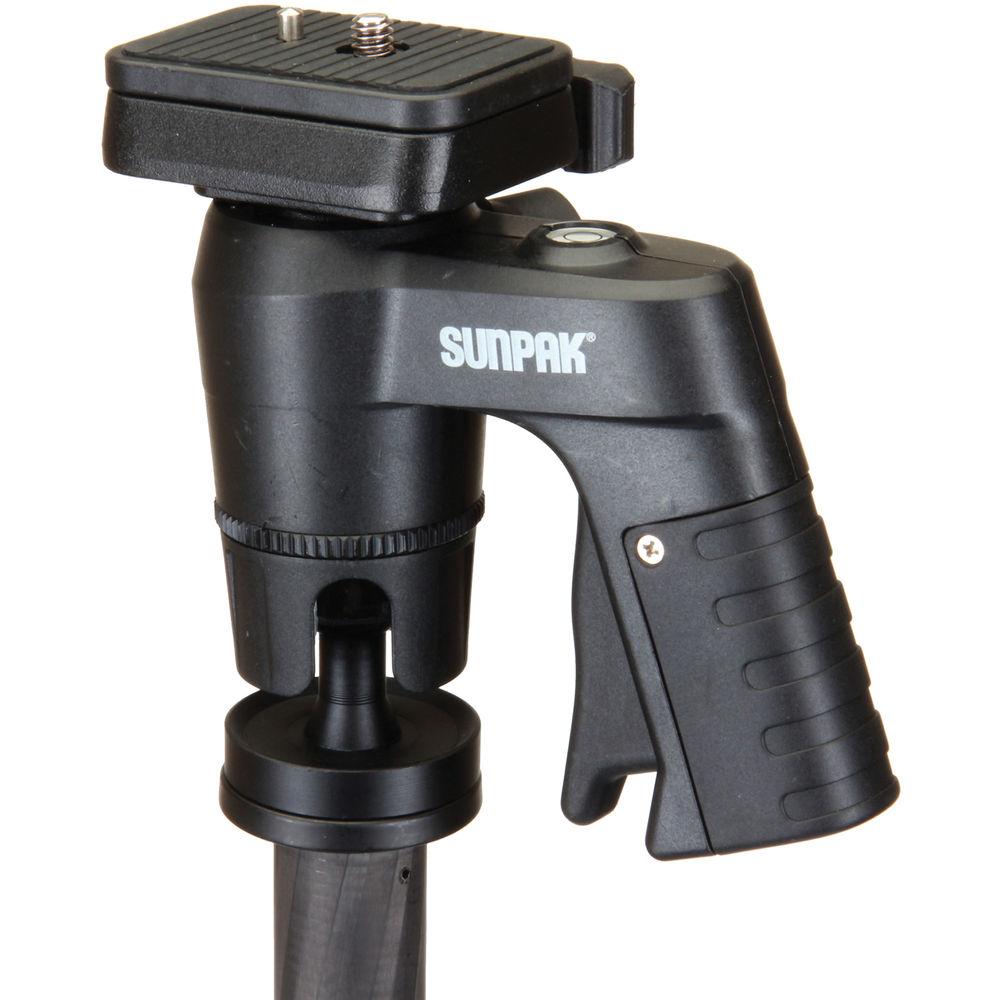

- Aluminum alloy pistol grip ball head with quick release cam lock and included 620-749 Quick Release Plate
- Compatible with tripods or support systems that feature a 1/4"-20 mount
- Uses a ball-and-socket joint to help maximize pan-and-tilt flexibility
- Handle with squeeze-trigger allows ball-and-socket joint to provide 360° of swivel control, tilt down to a 90° angle, and can be locked into place by releasing the trigger
- Quick release plate with 1/4"-20 mount, anti-twist index pin, and rubberized anti-slip surface
UPC: 090729611458 In the Box Sunpak UltraPRO 423 Tripod Kit with 620-CPG Pistol Grip Ball Head Compact Pistol Grip Ball Head w/ Quick Release Plate Long Center Column Short Center Column Tripod Bag Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunpak UltraPRO 423 Tripod Kit with 620-CPG Pistol Grip Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunpak Ultra Pro 423 Specs | | | Head Type | Pistol Grip Head | | Base Mount | 1/4"-20 Thread | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 16 lb / 7.3 kg | | Maximum Working Height | 64.8" / 164.6 cm | | Max Height without Center Column | 49.5" / 125.7 cm | | Minimum Working Height | 10.8" / 27.4 cm | | Folded Length | 24.5" / 62.2 cm | | Materials | Carbon Fiber | | Weight | 3.4 lb / 1.5 kg | | | | Leg Lock Type | Flip Lock | | Leg Positions | 4 Positions | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Feet Features | Retractable, Spiked | | | | Center Column Features | Ballast Hook | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 28.9 x 5.4 x 4.9" |
