Sunwayfoto DDP-64M Indexing Rotator

Search your instruction manual in PDF to download

User Manual for Sunwayfoto DDP-64M Indexing Rotator

Click to enlarge the picture
Sunwayfoto DDP-64M Indexing Rotator Contents of the user manual for the Sunwayfoto DDP-64M Indexing Rotator
  • Product category: Panoramic & Time Lapse Heads Sunwayfoto
  • Brand: Sunwayfoto
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sunwayfoto Panoramic & Time Lapse Heads

Sunwayfoto DDP-64M Indexing Rotator Sunwayfoto DDP-64M Indexing Rotator
User manual for the Sunwayfoto DDP-64M Indexing Rotator contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sunwayfoto product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sunwayfoto user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sunwayfoto product will considerably shorten its lifespan!



Product description

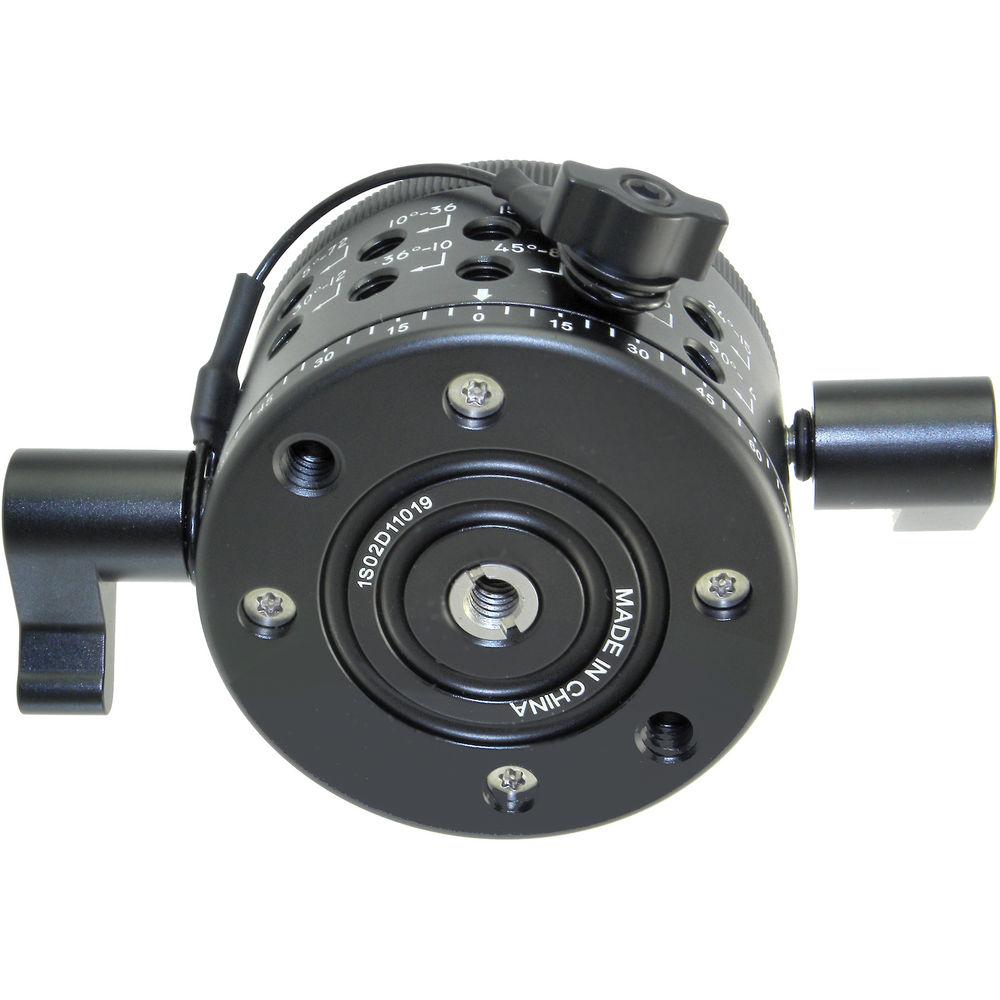

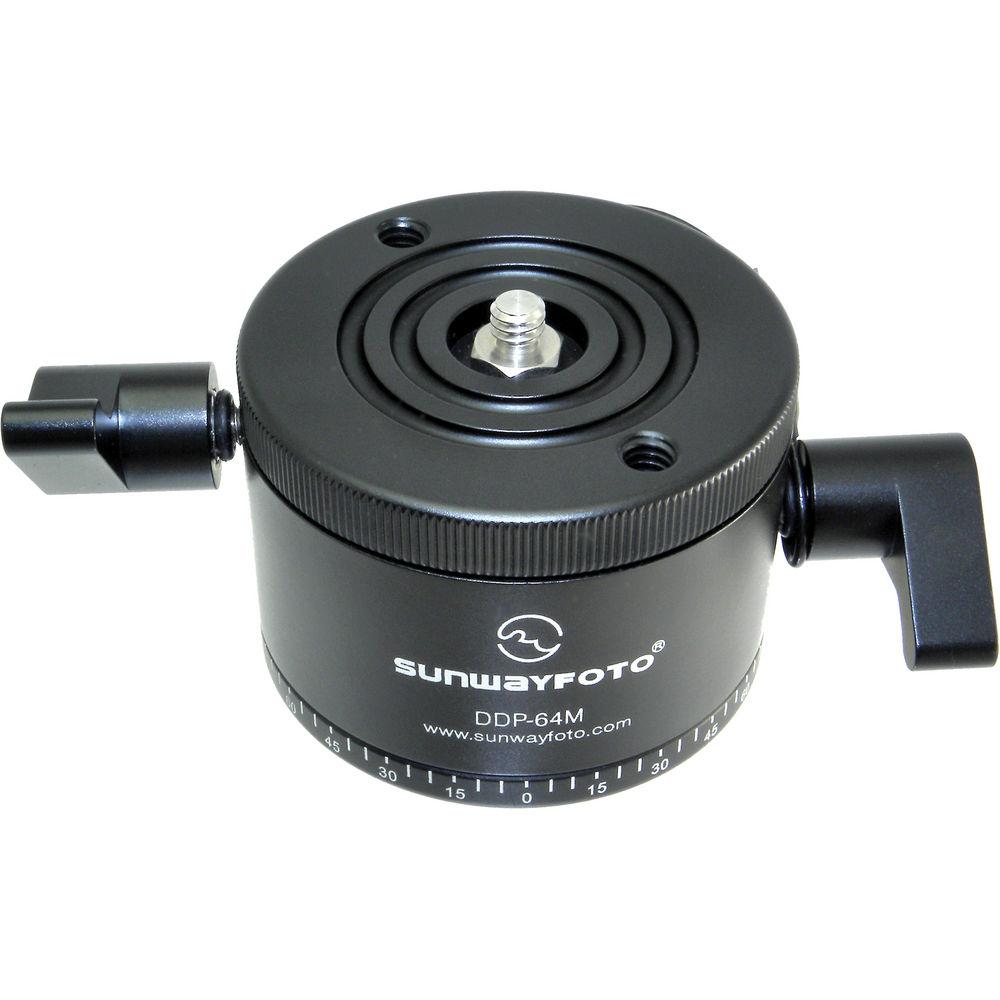

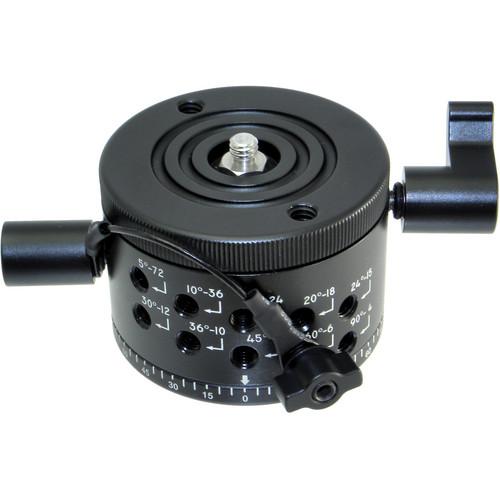

Time-Lapse Tips and Tools Read More rqbwdsrr The Sunwayfoto DDP-64M Indexing Rotator is a rotating head that allows you to pan at precise degree increments. This enables you to capture a series of photos – at stop intervals that range from 5° to 90° – that you'll later stitch into a panoramic masterpiece (possibly involving high-dynamic range capture as well). Remove and insert the attached key to easily change the detent (stop) interval. The DDP-64M features independent locks for the top platform and for the pan base. You can also use this indexing rotator as a traditional panning base. With a 22 lb load capacity, the DDP-64M supports most camera/lens combinations.
  • There are 10 options for detent (stop) configuration: degree increments of 5 (72 stops), 10 (36 stops), 15 (24 stops), 20 (18 stops), 24 (15 stops), 30 (12 stops), 36 (10 stops), 45 (8 stops), 60 (6 stops), or 90 (4 stops)
  • All-metal construction, anodized to a scratch-resistant black finish
  • Control lever is also metal, with no plastic or rubber
  • Lubricated bearings for smooth rotation
  • Laser-engraved index marks
In the Box Sunwayfoto DDP-64M Indexing Rotator
  • 1/4"-20 Adapter Bushing
  • 1 Year Limited Warranty + 18 Additional Months upon Online Registration
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Sunwayfoto DDP-64M Indexing Rotator in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Sunwayfoto DDP-64M Indexing Rotator can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Sunwayfoto DDP-64M Indexing Rotator can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Sunwayfoto DDP-64M Indexing Rotator can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Sunwayfoto DDP-64M Indexing RotatorDownload PDF User Manual - https://www.search-manual.com/ upload/ sunwayfoto-ddp-64m-indexing-rotator-274628-user-manual.pdf
    (PDF file, 0.58 MB)


    Technical parameters

    Sunwayfoto DDP-64M Specs

    Load Capacity 22 lb (10 kg)
    Thread Size 3/8"-16 (1/4"-20 adapter bushing is included)
    Diameter 2.52" (64mm)
    Height 1.81" (46mm)
    Weight 0.73 lb (330 g)
    Package Weight 1.46 lb
    Box Dimensions (LxWxH) 5.8 x 4.7 x 3.8"

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4.0 of 5

    This product has already been rated by 28 owners. Add your rating and experience with the product.
