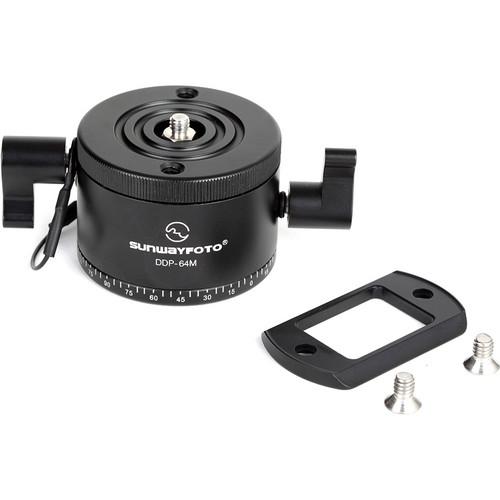

User Manual for Sunwayfoto DDP-64MX Indexing Rotator for Panoramas Click to enlarge the picture
Contents of the user manual for the Sunwayfoto DDP-64MX Indexing Rotator for Panoramas
- Product category: Panoramic & Time Lapse Heads Sunwayfoto
- Brand: Sunwayfoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunwayfoto Panoramic & Time Lapse Heads
|
User manual for the Sunwayfoto DDP-64MX Indexing Rotator for Panoramas contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunwayfoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunwayfoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunwayfoto product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More The DDP-64MX Indexing Rotator for Panoramas from Sunwayfoto has ten different selectable click options - 5, 10, 15, 20, 24, 30, 36, 45, 60 and 90°. This rotator also has 64mm foot footprint (diameter), and is best suited for ultra wide fisheye lenses when capturing full 360 x 180° and HDR panoramas.
The modular design of the DDP-62MX adds an Arca-Swiss dovetail plate to the rotator. Without the dovetail you can mount the unit directly onto a tripod, however once you add the dovetail the rotator gains the Arca-Swiss quick release on the base, and it can fit into any Arca style clamp or tripod head.
Combining CNC machined aircraft aluminum parts, with a compact and durable design, the DDP-64MX also provides for very precise, fluid rotation required of professional photographers. You can also change click stops on-the-fly, which is ideal in time-sensitive situations when shooting must be completed quickly. These include shooting high resolution multi-image mosaics, or shooting the same scene at different focal lengths. - For 360 x 180° Spherical & HDR Panoramas
- With precision CNC machined components, precisely engraved marking & lubricated bearings for smooth rotation allow full spherical panoramas to be quickly and accurately captured
- 64mm Diameter/Nadir Footprint
- Diameter of 64 mm provides sufficient precision and stability while keeping the nadir footprint small
- Arca-Swiss Dovetail Plate Included
- Adding an Arca-Swiss dovetail plate to the rotator adds a quick release base that can fit into any Arca style clamp or tripod head. Without the dovetail you can mount the unit directly onto a tripod, though there may then be fewer applications available to you
- 10x Detent Interval Options
- Ten different degree stop increments: 4, 6, 8, 10, 12, 15, 18, 24, 36 & 72 stops (90, 60, 45, 36, 30, 24, 20, 15, 10 & 5°). The detent interval (click-stop) option can also be changed in seconds, with a knob for locking rotation
- Up to 22lb Supported Weight Capacity
- This rotator supports 22 lb of weight
In the Box Sunwayfoto DDP-64MX Indexing Rotator for Panoramas 2 x Locking Knobs 2 x Dovetail Screws Dovetail Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunwayfoto DDP-64MX Indexing Rotator for Panoramas in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunwayfoto DDP-64MX Specs | Click-Stops | 4, 6, 8, 10, 12, 15, 18, 24, 36 & 72 stops | | Degree Stops | 90, 60, 45, 36, 30, 24, 20, 15, 10 & 5° | | Mounting Thread | Top: 1/4"-20
Bottom: UNC 3/8
Optional dovetail plate retains access to bottom 3/8" socket | | Load Capacity | Approximately 22 lb (10 kg) | | Dimensions (Diam. x H) | 2.5 x 1.8" (6.4 x 4.6 cm) | | Weight | 12 oz (350 g) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 5.6 x 4.5 x 3.8" |
