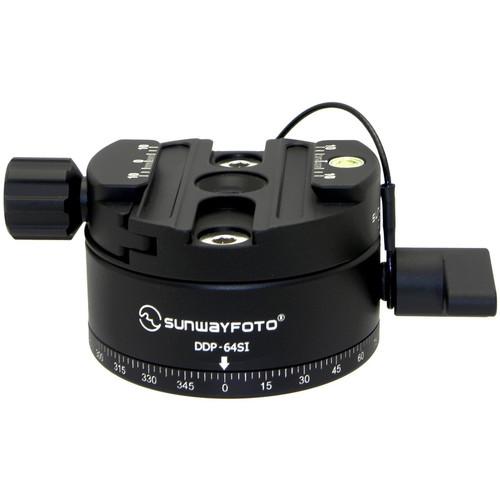

Product description Time-Lapse Tips and Tools Read More The DDP-64SI and DDY-64I Indexing Rotator Combo from Sunwayfoto helps to create spherical or HDR panoramas or can be used as a conventional panning base, which has four detent intervals of 18, 30, 35, and 90°. Moreover, the laser-engraved index marks show your 360° of rotation, which is secured with the rotation locking knob.The Rotator has a weight capacity of 17.6 lb, and the dovetail mount is Arca-type compatible with most plates on the market. The Rotator Combo is made of CNC machined T6061 aluminum with a black anodized finish, making it corrosion- and scratch-resistant. The hollowed out design of the rotator makes it lightweight and portable. - DDP-64SI Indexing Rotator for Panoramas The DDP-64SI Indexing Rotator for Panoramas from Sunwayfoto has 4 different selectable click options - 18, 30, 45 and 90°. This rotator also has 64mm footprint (diameter), and is best suited for ultra wide fisheye lenses when capturing full 360 x 180° spherical or HDR panoramas.
Combining CNC machined aircraft aluminum parts, with a compact and durable design, the DDP-64SI also provides for very precise, fluid rotation required of professional photographers. You can also change click stops on-the-fly, which is ideal in time-sensitive situations when shooting must be completed quickly. These include shooting high resolution multi-image mosaics, or shooting the same scene at different focal lengths. - For 360 x 180° Spherical & HDR Panoramas
- With precision CNC machined components, laser engraved markings and lubricated bearings for smooth rotation, allow full spherical panoramas to be quickly and accurately captured
- 64mm Diameter/Nadir Footprint
- Diameter of 64 mm provides sufficient precision and stability while keeping the nadir footprint small
- 4x Detent Interval Options
- Four different degree stop increments: 20, 12, 8 & 4 stops (18, 30, 45 & 90°). The detent interval (click stop) option can also be changed in seconds, with a knob for locking rotation
- Up to 17.6lb Supported Weight Capacity
- More than 17.6 lb of weight is supported

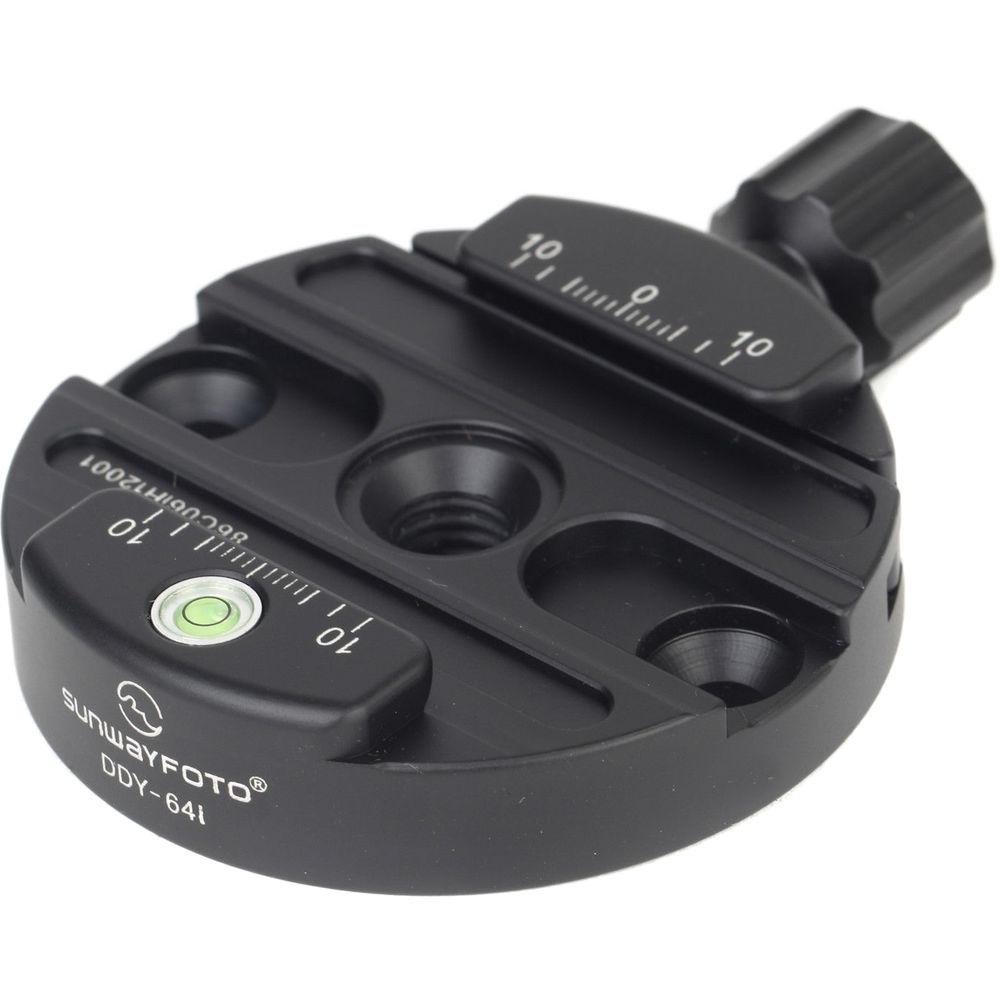

- Discal Clamp 64mm The Discal Clamp 64mm from Sunwayfoto is a Swiss-Arca-compatible integral screw-knob clamp with an anodized black finish. It has a captive knob, safety-stop grooves, and a hollowed-out design that reduces the weight of the clamp. You can use an M6 screw to mount it to an AS-style ball head, and it will accept any standard Arca-Swiss quick-release plate. This Discal Clamp also has an integrated bubble level.
- CNC-machined integral screw-knob clamp
- Lightweight hollow design

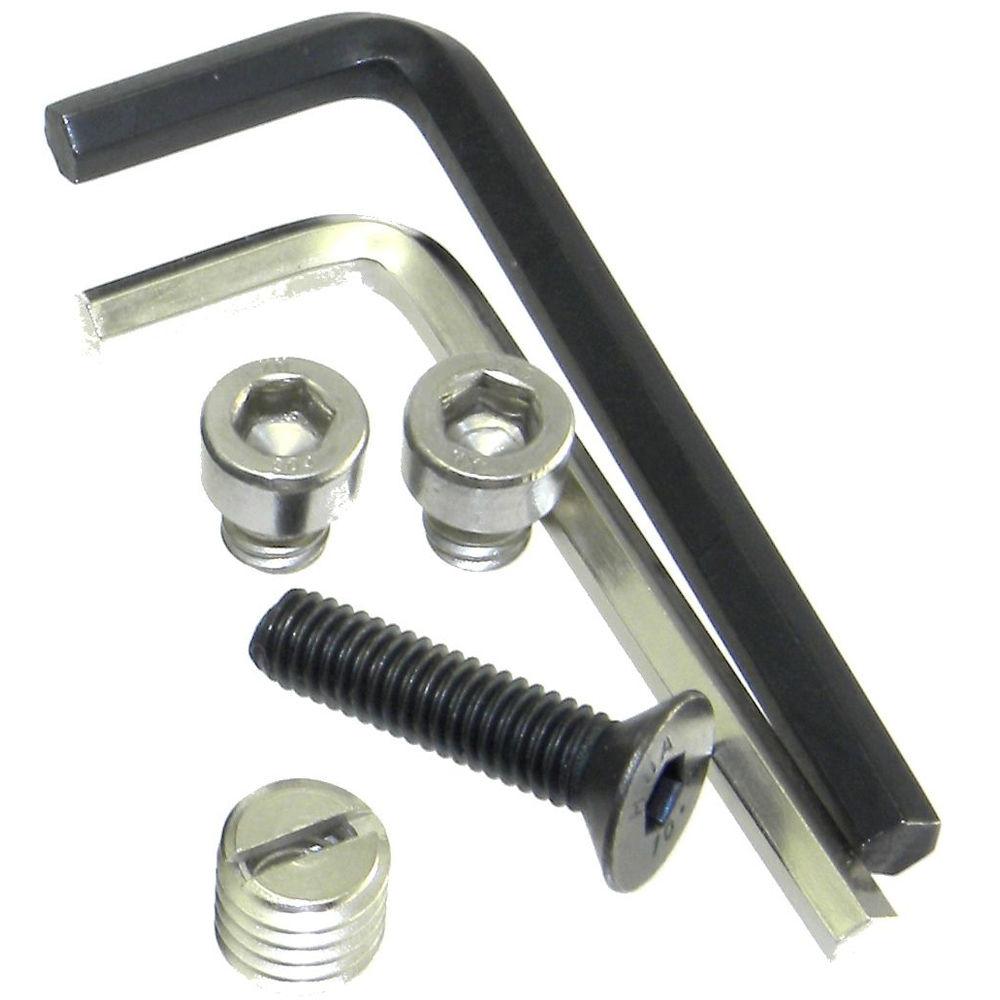

In the Box Bundle Items DDP-64SI Indexing Rotator for Panoramas - Limited 1-Year Extendable to 6 Years with Registration
Discal Clamp 64mm utrxcxtaayvq - 1-Year Limited Warranty + Additional 18 Months with Online Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunwayfoto DDP-64SI and DDY-64I Indexing Rotator Combo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DDP-64SI Indexing Rotator for Panoramas
| Click-Stops | 20, 12, 8 & 4 stops | | Degree Stops | 18°, 30°, 45° or 90°, respectively | | Mounting Thread | Top: 1/4"-20
Bottom: UNC 3/8 | | Load Capacity | Approximately 17.6 lb (8 kg) | | Height | 1" (25.8 mm) | | Diameter | 2.5" (64 mm) | | Weight | 6.7 oz (190 g) | | | | Box Dimensions (LxWxH) | 5.6 x 4.6 x 2.8" | - Discal Clamp 64mm
| | | Locking Method | Screw Knob | | Assembly Dimensions | L: 3.2 x W: 2.5 x H: 0.6" / L: 8.1 x W: 6.4 x H: 1.6 cm | | | | Quick Release Type | Arca-Type | | Tripod Mounting Thread | 1 x 3/8"-16 Female | | Weight | 2.8 oz / 79.4 g | | | | Box Dimensions (LxWxH) | 5.1 x 4.5 x 1.2" |
