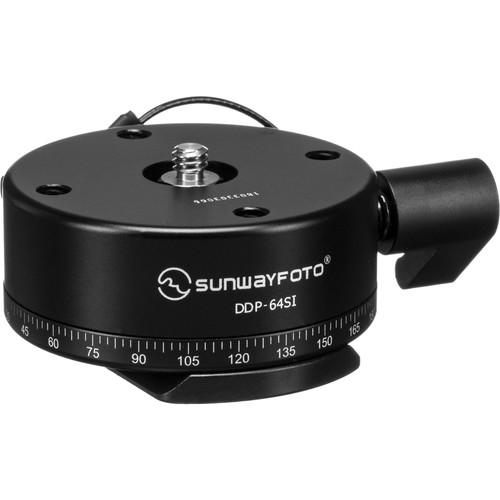

Product description Time-Lapse Tips and Tools Read More The DDP-64SiX Indexing Rotator for Panoramas from Sunwayfoto has four selectable click-stop increments, including 18, 12, 8, and 4 stops that correspond to stopping every 20°, 30°, 45° or 90°, respectively. This improved model now lines up the index mark on the base with the mounting holes on the top.
The modular design of the DDP-64SiX adds an Arca-Swiss dovetail plate to the rotator. Without the dovetail you can mount the unit directly onto a tripod, however once you add the dovetail the rotator gains the Arca-Swiss quick release on the base, and it can fit into any Arca style clamp or tripod head.
Combining CNC machined aluminum parts, with a compact and durable design, the DDP-64SiX also provides for very precise, fluid rotation required of many photographers. You can also change click stops on-the-fly, which is ideal in time-sensitive situations when shooting must be completed quickly. These include shooting high resolution multi-image mosaics, or shooting the same scene at different focal lengths. - For 360 x 180° Spherical & HDR Panoramas
- With precision CNC machined components, precisely engraved marking & lubricated bearings for smooth rotation allow full spherical panoramas to be quickly and accurately captured
- Four Detent Intervals: 18, 30, 45 & 90°

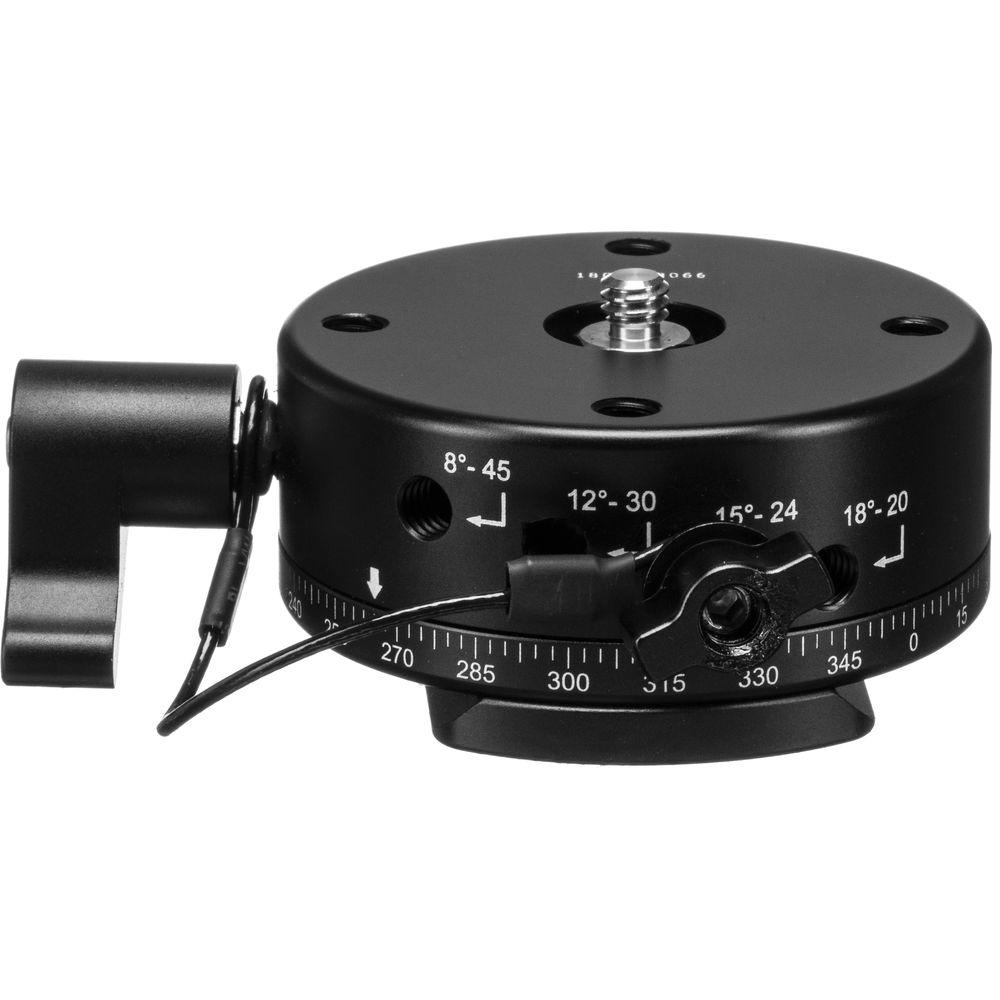

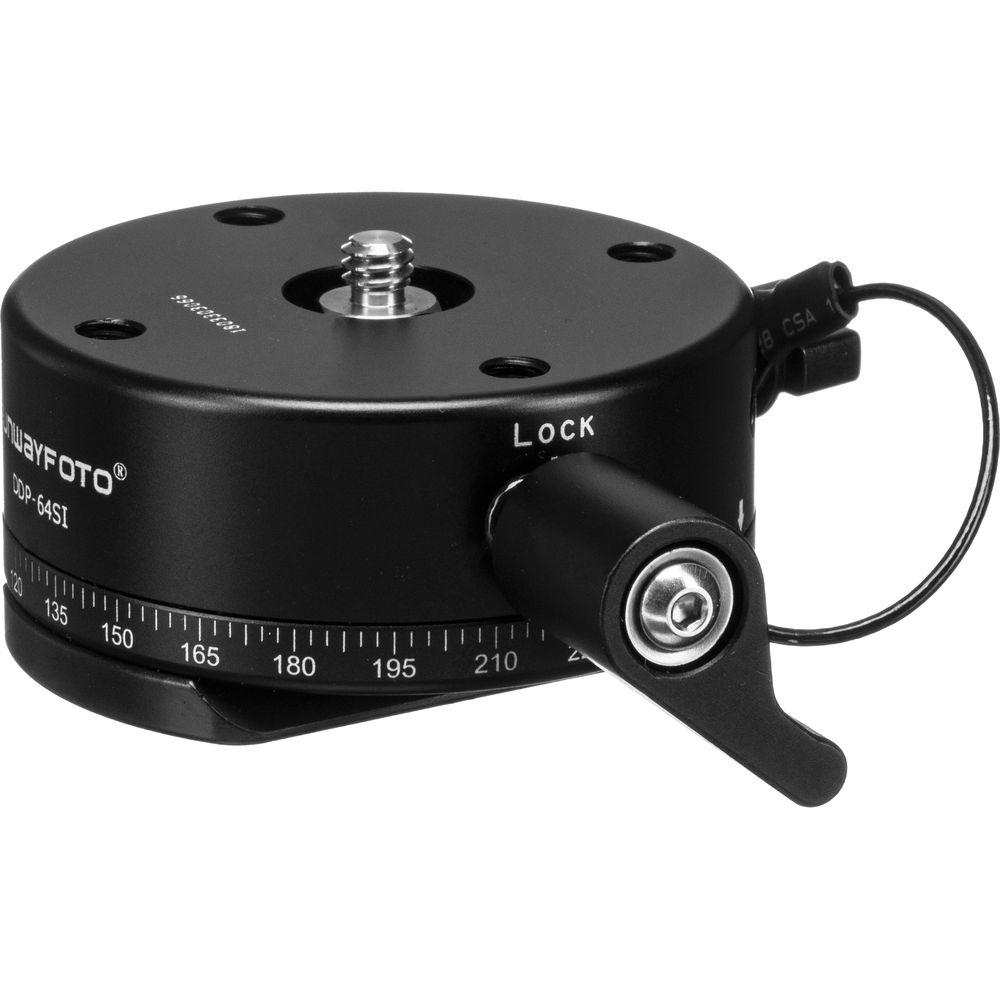

- With four different click-stop increments (detent intervals), including 20x, 12x, 8x & 4x, you can set your rotator to stop every 18°, 30°, 45° or 90°, respectively. This detent interval can also be changed in seconds, with a knob for locking rotation
- 64mm Diameter/Nadir Footprint
- Diameter of 64 mm provides sufficient precision and stability while keeping the nadir footprint small

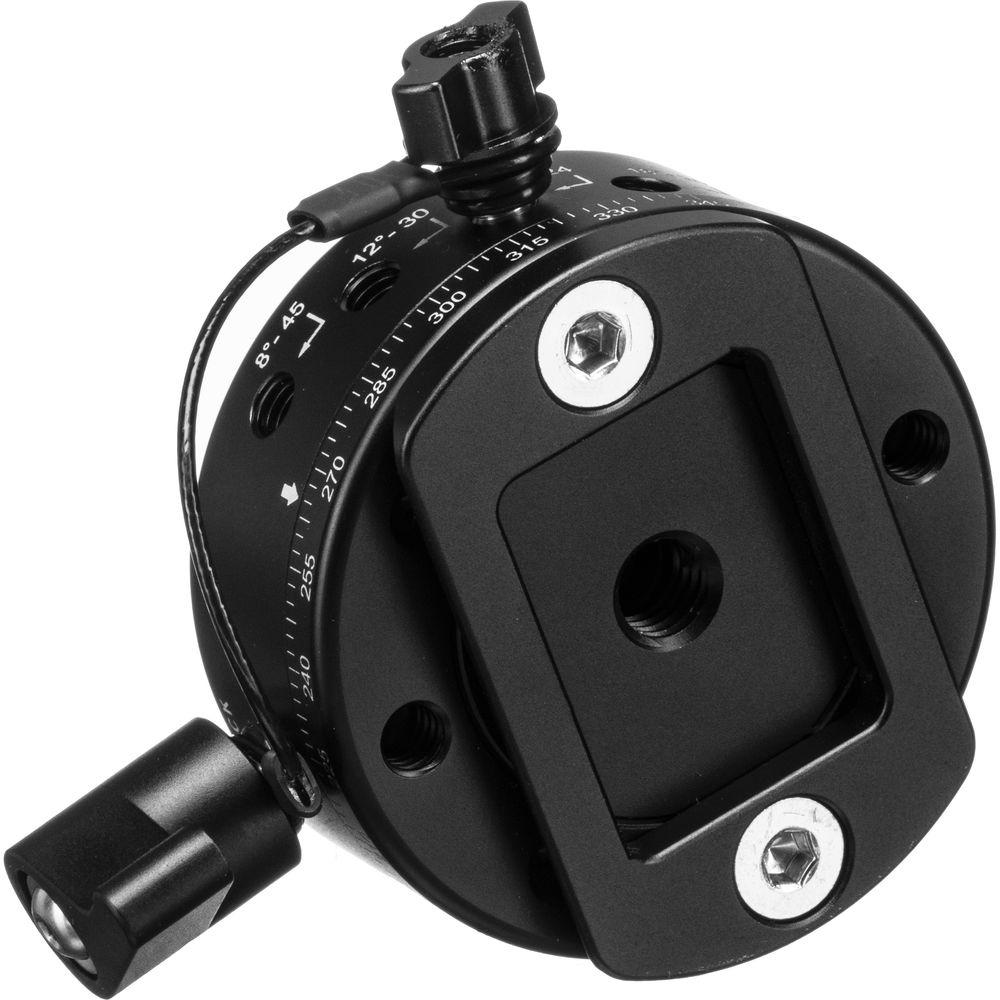

- Arca-Swiss Dovetail Plate Included
- Adding an Arca-Swiss dovetail plate to the rotator adds a quick release base that can fit into any Arca style clamp or tripod head. Without the dovetail you can mount the unit directly onto a tripod, though there may then be fewer applications available to you
- Up to 17.6lb Supported Weight Capacity
- More than 17 lb of weight is supported

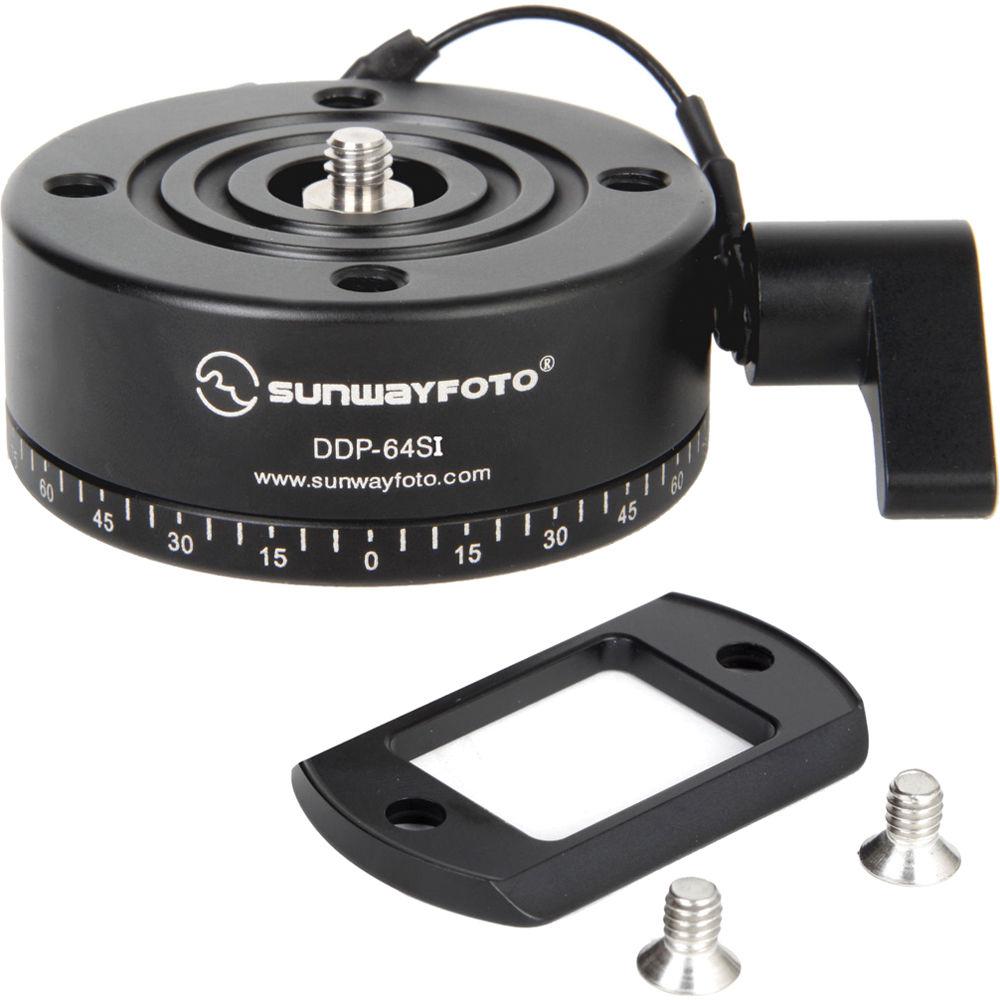

In the Box Sunwayfoto DDP-64SiX Indexing Rotator for Panoramas 2 x Dovetail Screws Dovetail Plate Limited 1-Year Warranty Extendable to 6 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunwayfoto DDP-64SiX Indexing Rotator for Panoramas in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunwayfoto DDP-64SIX Specs | Degree Stops | 20° (18 stops), 30° (12 stops), 45° (8 stops), 90° (4 stops | | Mounting Thread | Top: 1/4"-20
Bottom: 3.8"-16 | | Load Capacity | 22 lb (10 kg) | | Height | 1" (26 mm) | | Weight | 7.4 oz (210 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 5.6 x 4.5 x 2.8" |
