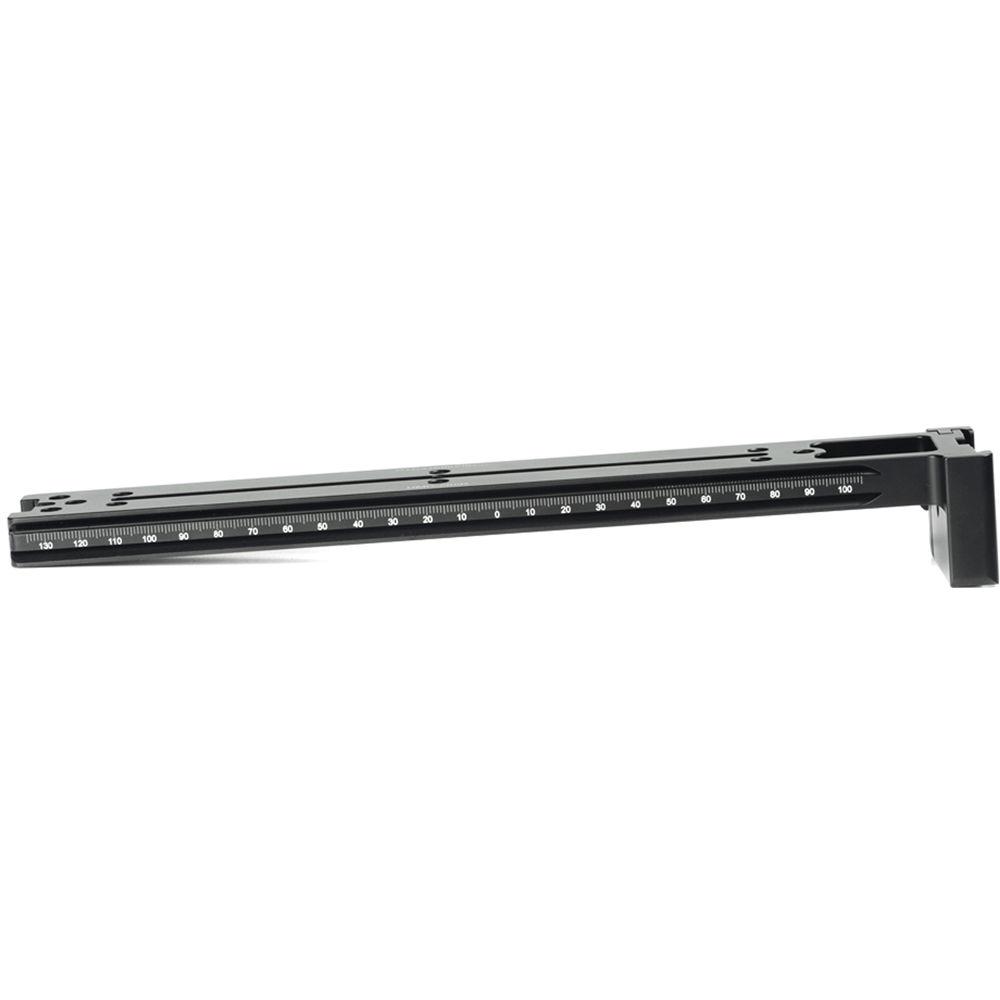

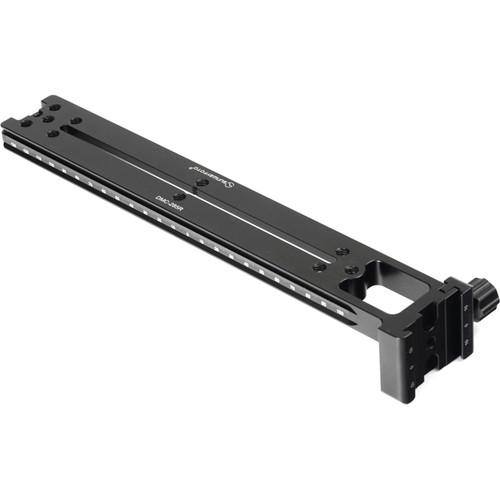

Product description The DMC-285R Vertical Rail with "On-End" Clamp from Sunwayfoto is a modular component that can be used in combination with other, separately-available Sunwayfoto rails, clamps, and lens supports. Together, they create a stable platform for a camera and a telephoto lens, which can then be mounted to an Arca-type tripod head. At one end of the DMC-285R vertical rail is a built-in, side-facing Arca-type clamp. A lens with an attached lens foot that has a 1/4"-20 female accessory thread along its bottom can be mounted onto the DMC-285R vertical rail so that the front of the lens's barrel points in the same direction as the clamp. An included 1/4"-20 screw threads into the DMC-285R vertical rail's center slot, creating a 1/4"-20 lens mount. That mount can then be moved up to 193mm within the center slot for optimal positioning before it is screwed into a lens foot or lens foot collar.
The Arca-type clamp built into the end of the DMC-285R vertical rail provides a connection point for Sunwayfoto Y-Type lens supports that feature an Arca-type compatible design. When placed within a DMC-285R vertical rail's clamp, a Y-Type lens support is able to physically brace the front of a telephoto lens's barrel. In such instances where the telephoto lens's barrel is not directly held up by the user, the Y-Type lens support serves to eliminate the potential for vibrations to affect the front of the lens, helping to maintain image sharpness. Additionally, a Sunwayfoto subtend clamp can be used to connect another Sunwayfoto vertical rail with "on end" clamp holding a Y-Type lens support to the other end of the DMC-285R vertical rail. The camera attached to the telephoto lens can then be braced as well, further ensuring that the weight of the entire camera and lens combination is evenly distributed.
Alternatively, the DMC-285R vertical rail can be used as a replacement component for Sunwayfoto panoramic head kits that include a DMC-200 Vertical Rail with "On-End" Clamp. When part of a panoramic head kit, a Sunwayfoto DMC-200 vertical rail's end clamp allows the rail to serve as a sliding, vertical arm. As a replacement vertical arm, the DMC-285R vertical rail provides 285mm of height, 85mm more than a DMC-200 vertical rail. The additional height can help ensure that a camera and lens used with the DMC-285R vertical rail produces images that are properly aligned with a panoramic subject, while fully applying the resolution of the camera's sensor in the portrait orientation.
For direct attachment to accessories such as a tripod or straps that feature 1/4"-20 mounts, the DMC-285R vertical rail is tapped with eleven 1/4"-20 female accessory threads. Two retaining screws are included, one for use along the end opposite of the DMC-285R vertical rail's built-in clamp, the other as a spare. Should the clamp holding a DMC-285R vertical rail within an Arca-type tripod head be opened, an installed retaining screw helps prevent the vertical rail from accidentally sliding off. -
- Modular rail that can be used in combination with other, separately-available Sunwayfoto rails, clamps, and lens supports
- Helps create a stable platform for a camera and a telephoto lens, which can then be mounted to an Arca-type tripod head
- Built-in, side-facing Arca-type clamp
- Lens with an attached lens foot that has a 1/4"-20 female accessory thread along its bottom can be mounted onto the rail so that the front of the lens's barrel points in the same direction as the clamp
- Included 1/4"-20 screw threads into rail's center slot, creating 1/4"-20 lens mount with 193mm of movement along length of rail, allowing connection to a compatible lens foot or lens foot collar
- Built-in clamp can hold a Sunwayfoto Y-Type lens support that features an Arca-type compatible design
- Addition of Y-Type lens support braces the front of a telephoto lens's barrel, helping to eliminate the potential for vibrations to affect the front of the lens, maintaining image sharpness
- Can be combined with another rail and Y-Type lens support assembly to also brace a camera used with a telephoto lens
- Replacement component for Sunwayfoto panoramic head kits that use a DMC-200 Vertical Rail with "On-End" Clamp as a panoramic head vertical arm
- As vertical arm, provides 285mm of height, 85mm more than a DMC-200 vertical rail
- Additional height can help ensure that a camera and lens produces images that are properly aligned with a panoramic subject, while fully applying the resolution of the camera's sensor in the portrait orientation
- 230mm center finder rulers demarcated up to 105mm towards clamp and 125mm away from clamp
- Center finder rulers engraved on two sides to maintain visibility for precise positioning on a tripod head or of compatible Arca-type clamps
- Built-in clamp features 20mm center finder rulers that are engraved on two sides to maintain visibility for precise positioning of compatible Arca-type accessories
- Includes two retaining screws, one for use along the end opposite of the rail's built-in clamp, the other as a spare
- If clamp holding the rail within a Arca-type tripod head is opened, an installed retaining screw can help prevent the rail from accidentally sliding off
- Eleven 1/4"-20 female accessory threads for direct connection to a 1/4"-20 mount
- Wrist-strap eyelet
- 4mm hex key to fasten the rail to a lens foot or lens collar foot using the 1/4"-20 screw
- 2.5mm hex key to install a retaining screw

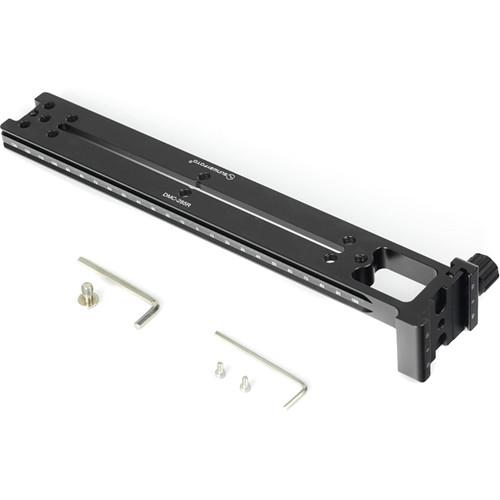

In the Box Sunwayfoto DMC-285R Vertical Rail with "On-End" Clamp 1/4"-20 Screw 2 x Retaining Screws 4mm Hex Key 2.5mm Hex Key Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunwayfoto DMC-285R Vertical Rail with "On-End" Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunwayfoto DMC-285R Specs | | | Assembly Dimensions | L: 11.2 x W: 2.8 x H: 1.5" / L: 285.0 x W: 71.0 x H: 38.0 mm | | | | Quick Release Type | Arca-Type | | Material | Aluminum | | Weight | 8.9 oz / 252.3 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 12.7 x 4.2 x 2.3" |
