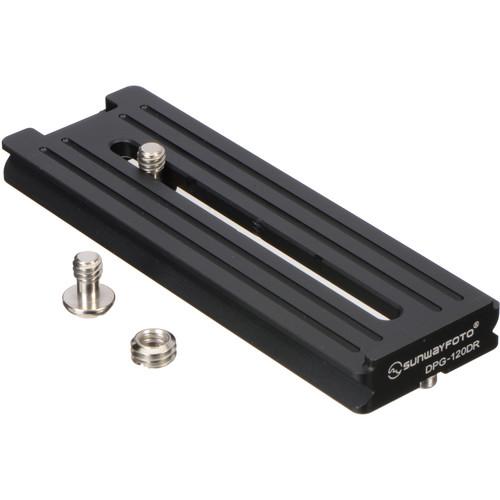

User Manual for Sunwayfoto DPG-120DR Universal Quick Release Plate Click to enlarge the picture
Contents of the user manual for the Sunwayfoto DPG-120DR Universal Quick Release Plate
- Product category: Tripods & Support Sunwayfoto
- Brand: Sunwayfoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunwayfoto Tripods & Support
|
User manual for the Sunwayfoto DPG-120DR Universal Quick Release Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunwayfoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunwayfoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunwayfoto product will considerably shorten its lifespan!
|
Product description The DPG-120DR Universal Quick Release Plate from Sunwayfoto is made to fit most full-sized cameras and long lenses. Machined from T6061 aerospace-grade aluminum alloy, the plate features a longer 4.7" designed to maximize contact on the camera or lens for greater stability. At one end is a flange to minimize shifting when the camera is used vertically. At the other end is a handy strap slot. The 1/4"-20 camera screw groove is 3.4" long for maximum flexibility and versatility. The underside of the plate offers another safety feature—2 tapped screw holes for the included safety screws that prevent the plate from sliding off of the quick release base. - CNC Machined from T6061 aerospace-grade aluminum alloy, durable Military Specification Type III - hard anodized body
- Longer design maximizes the contact area with lens or camera to enhance the stability
- Rear flange design prevents shifting when used in vertical direction
- Mounting hole for straps added for easy carrying
- The screw hole of the DPG-120DR is within the sliding groove
- All metal construction without any rubber parts. Screw holes for safety screws are added at the bottom for M3 screws
In the Box Sunwayfoto DPG-120DR Universal Quick Release Plate 2 x Allen Wrenches 2 x Camera Screws (1/4"-20) 2 x Safety Screws Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunwayfoto DPG-120DR Universal Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunwayfoto DPG-120DR Specs | Material | 6061T651 aluminum alloy | | Dimensions | Overall: 4.7 x 1.5 x 0.4" (120 x 39 x 10 mm)
Groove length: 3.4" (87 mm)
Screw: 1/4"-20 | | Weight | 2.46 oz (70 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.3 x 4.5 x 1.1" |
