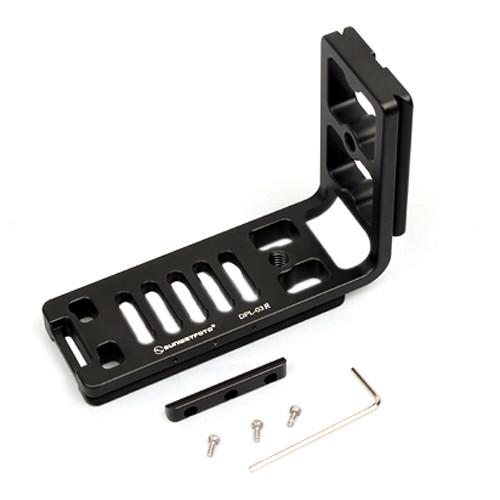

User Manual for Sunwayfoto DPL-03R - Universal L-Bracket Quick Release Plate Click to enlarge the picture
Contents of the user manual for the Sunwayfoto DPL-03R - Universal L-Bracket Quick
- Product category: Tripods & Support Sunwayfoto
- Brand: Sunwayfoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunwayfoto Tripods & Support
|
User manual for the Sunwayfoto DPL-03R - Universal L-Bracket Quick contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunwayfoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunwayfoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunwayfoto product will considerably shorten its lifespan!
|
Product description The Sunwayfoto DPL-03R Universal L-Bracket Quick Release Plate enables fast changes between portrait and landscape orientation without the need to readjust your head and completely recompose the shot. Because there are dovetail grooves on both the horizontal and vertical elements, you can simply release the bracket from any Arca-type quick release clamp, tilt it 90°, and lock the bracket back in place. Using an L-bracket also facilitates a sturdier base of support than tilting an entire head to a 90° position.Machined from solid aluminum alloy, the DPL-03 features several 1/4"-20 screw slots so that you can select the proper side-to-side position of your camera. To keep the camera from twisting, there's a removable flange on one side, and a slot on the plate lets you attach a strap. - The camera can be mounted in several horizontal positions to achieve proper balance, at holes 1.58-3.0" from the vertical element of the bracket
- The flange includes mounting hardware for attaching and detaching it from the bracket
- High-quality anodizing ensures a scratch-free finish
- The strap hole provides a spot for fastening a camera strap, for carrying the camera comfortably and securely while it's mounted to the bracket
- Standard screw mounting holes on both the horizontal and vertical segments of the bracket
In the Box Sunwayfoto DPL-03R - Universal L-Bracket Quick Release Plate 1/4"-20 Camera Screw Removable Flange 3 x Screws for Flange Hex Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunwayfoto DPL-03R - Universal L-Bracket Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunwayfoto DPL-03R Specs | Mounting Screw | 1 x 1/4"-20 Male | | Length | 4.3" / 110.00 mm | | Width | 1.5" / 39.00 mm | | Height | 3.1" / 80.00 mm | | Weight | 2.8 oz / 79.4 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.6 x 4.6 x 2.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
