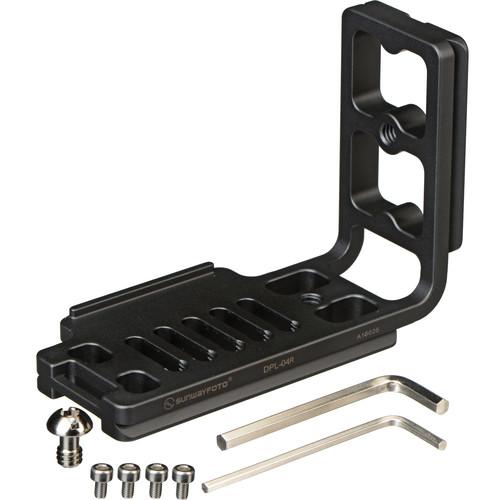

User Manual for Sunwayfoto DPL-04R Universal L-Bracket Click to enlarge the picture
Contents of the user manual for the Sunwayfoto DPL-04R Universal L-Bracket
- Product category: Tripods & Support Sunwayfoto
- Brand: Sunwayfoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunwayfoto Tripods & Support
|
User manual for the Sunwayfoto DPL-04R Universal L-Bracket contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunwayfoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunwayfoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunwayfoto product will considerably shorten its lifespan!
|
Product description The DPL-04R Universal L-Bracket from Sunwayfoto is an Arca-type and RRS lever compatible bracket CNC machined from aluminum. It has a wide 2" (50mm) base for increased stability, and a strap slot for a neck or wrist strap to make carrying the camera with the QR plate attached easy and comfortable.
An L-bracket can maximize the stability and efficiency of using a ballhead when changing from horizontal to vertical orientation, eliminating major positioning shifts. This bracket has five screw mounting holes that allow you to adjust the mounting position in the range of 1.6 to 3.0" from the screw hole to the side of the vertical plate. - CNC precision machined from aluminum
- 2" wide base provides more stability
- Standard 1/4"-20 screw mounting holes on both the horizontal and vertical segments of the bracket
- High-quality anodizing ensures a scratch-resistant finish
- Smooth corners and good flange design prevent your camera from twisting
- Safety-stop screws prevent accidental release from clamp
In the Box Sunwayfoto DPL-04R Universal L-Bracket 1/4"-20 Mounting Screw 2 x Safety-Stop Screws Hex Key Limited 1-Year Warranty Extendable to 6 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunwayfoto DPL-04R Universal L-Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunwayfoto DPL-04R Specs | Mounting Screw | 1 x 1/4"-20 Male | | Tripod Mounting Thread | 2 x 1/4"-20 Female | | Length | 4.3" / 110.00 mm | | Width | 2.0" / 50.00 mm | | Height | 3.1" / 80.00 mm | | Weight | 3.2 oz / 90.7 g | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.6 x 4.6 x 2.6" |
