User Manual for Sunwayfoto DYH-120TRON Leveling Base with DDC-110L Clamp Click to enlarge the picture
Contents of the user manual for the Sunwayfoto DYH-120TRON Leveling Base with DDC-110L
- Product category: Camera & Tripod Levelers Sunwayfoto
- Brand: Sunwayfoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunwayfoto Camera & Tripod Levelers
 |
User manual for the Sunwayfoto DYH-120TRON Leveling Base with DDC-110L contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunwayfoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunwayfoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunwayfoto product will considerably shorten its lifespan!
|

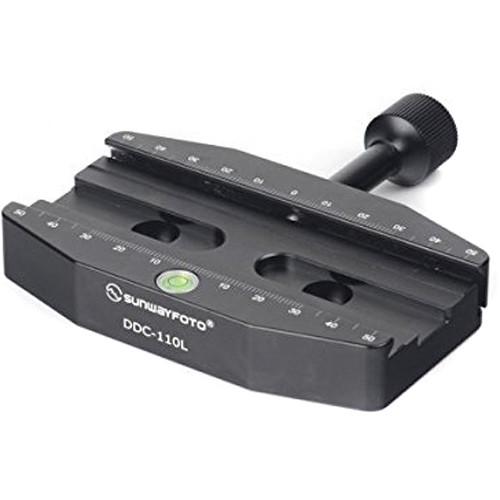

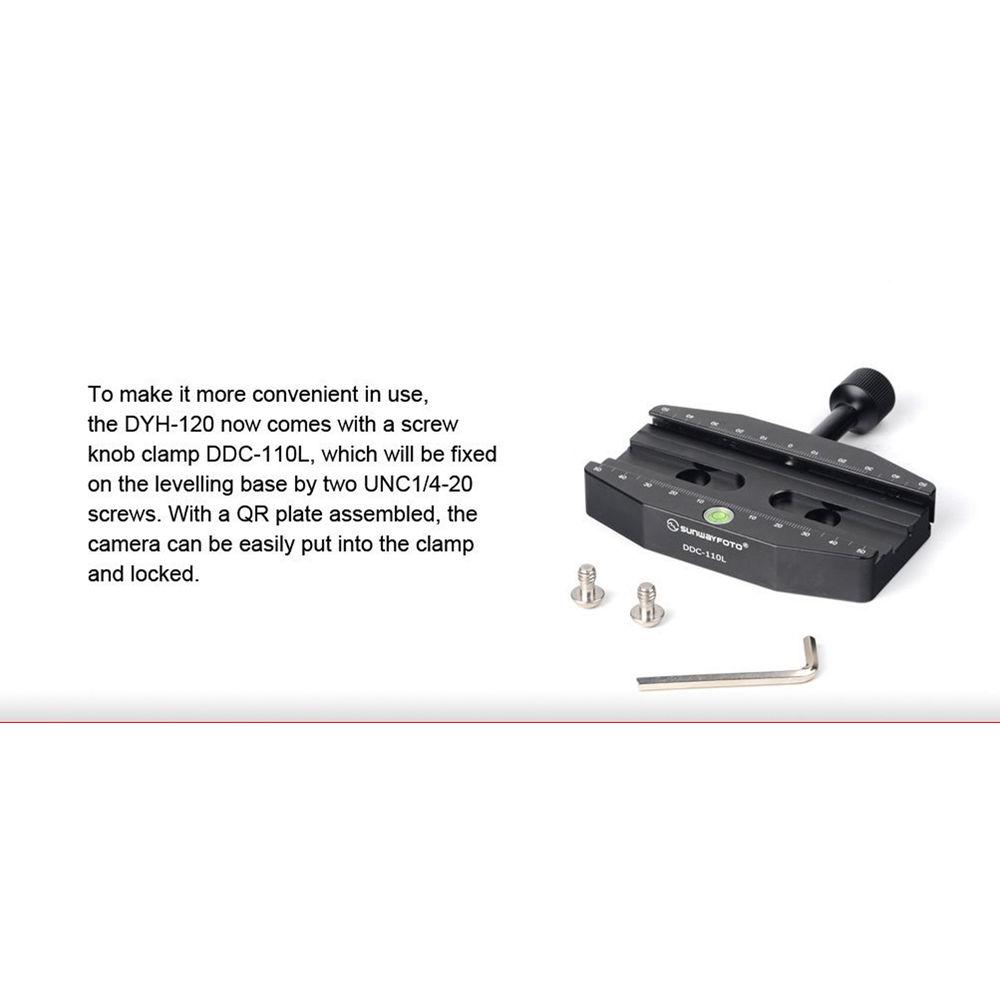

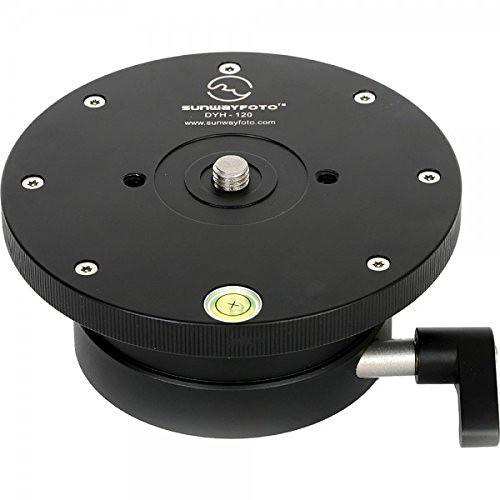

Product description The aluminum satin anodized DYH-120TRON Leveling Base with DDC-110L Clamp has a top diameter of 4.7" and a load capacity of 44 lb that is suitable to support large format cameras. The spirit bubble level, along with the leveling base's adjustment range of +/-16°, ensures your horizons will be leveled every time. The clamp is Arca-type compatible, and inside the clamp are safety stop channels that enable quick release plates with safety stops to engage the channels to prevent a lens or camera from accidentally sliding out if the clamp is partially opened. Additionally, the 3.4" wide base has a 3/8"-16 threaded mount, for compatibility with most tripods. In the Box Sunwayfoto DYH-120TRON Leveling Base with DDC-110L Clamp DDC-110L Arca-Type Screw-Knob Clamp Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunwayfoto DYH-120TRON Leveling Base with DDC-110L Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunwayfoto DYH-120TRON Specs | Load Capacity | 44 lb / 20 kg | | Mounting Thread | 3/8"-16 | | Material of Construction | Aluminum | | Finish | Black satin anodized | | Dimensions | Top Diameter: 4.7" / 120 mmBase Diameter: 3.4" / 86 mmHeight: 2.8" / 72 mm | | Weight | 2.2 lb / 977 g | | | | Package Weight | 3.03 lb | | Box Dimensions (LxWxH) | 6.4 x 5.9 x 3.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
