User Manual for Sunwayfoto M3 Micro-Slip Slide Video Rail Click to enlarge the picture
Contents of the user manual for the Sunwayfoto M3 Micro-Slip Slide Video Rail
- Product category: Camera Sliders Sunwayfoto
- Brand: Sunwayfoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunwayfoto Camera Sliders
 |
User manual for the Sunwayfoto M3 Micro-Slip Slide Video Rail contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunwayfoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunwayfoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunwayfoto product will considerably shorten its lifespan!
|

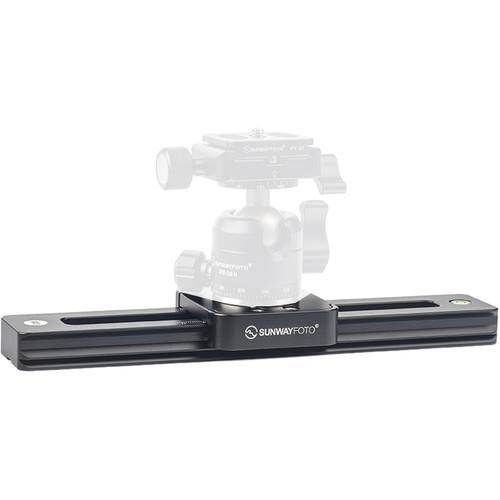

Product description Designed for video makers on the go, the lightweight and compact Sunwayfoto M3 Micro-Slip Slide Video Rail helps create smooth, silent moving shots. The 9" long track is manufactured with CNC-machined aluminum, making it light and sturdy.

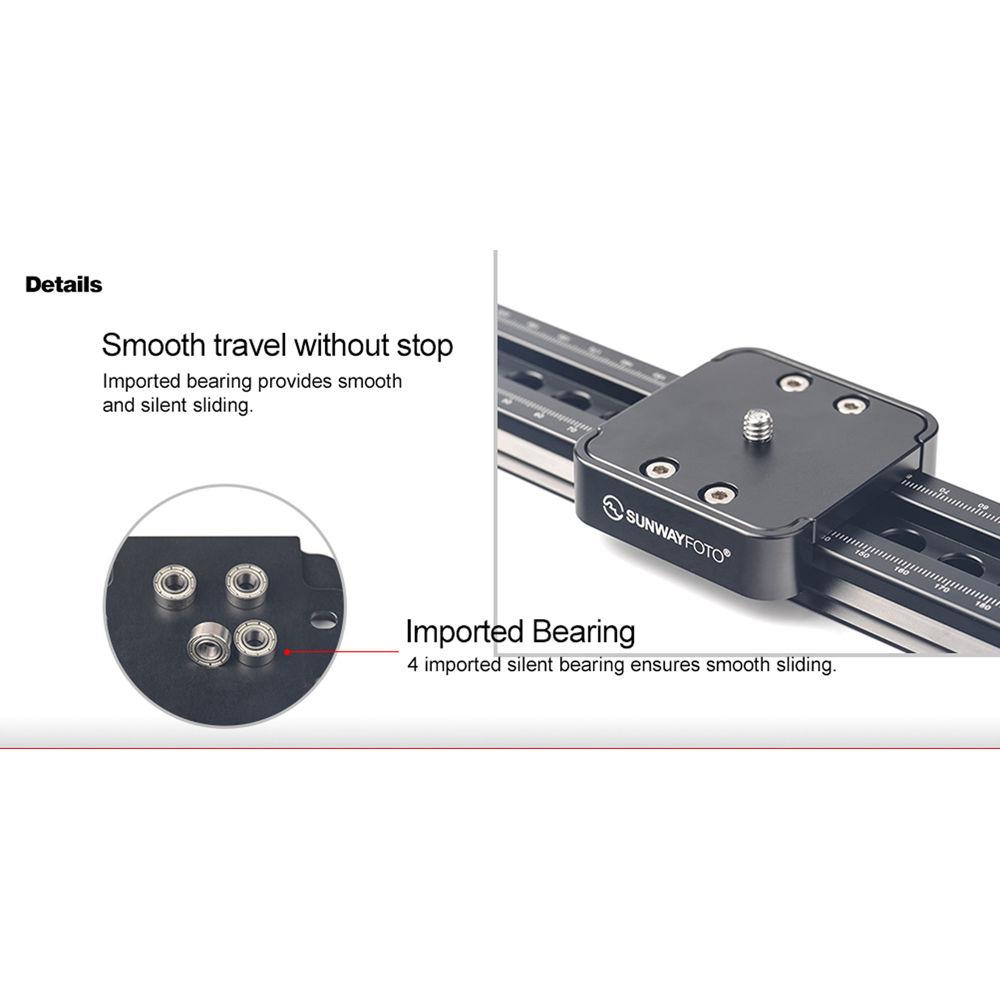

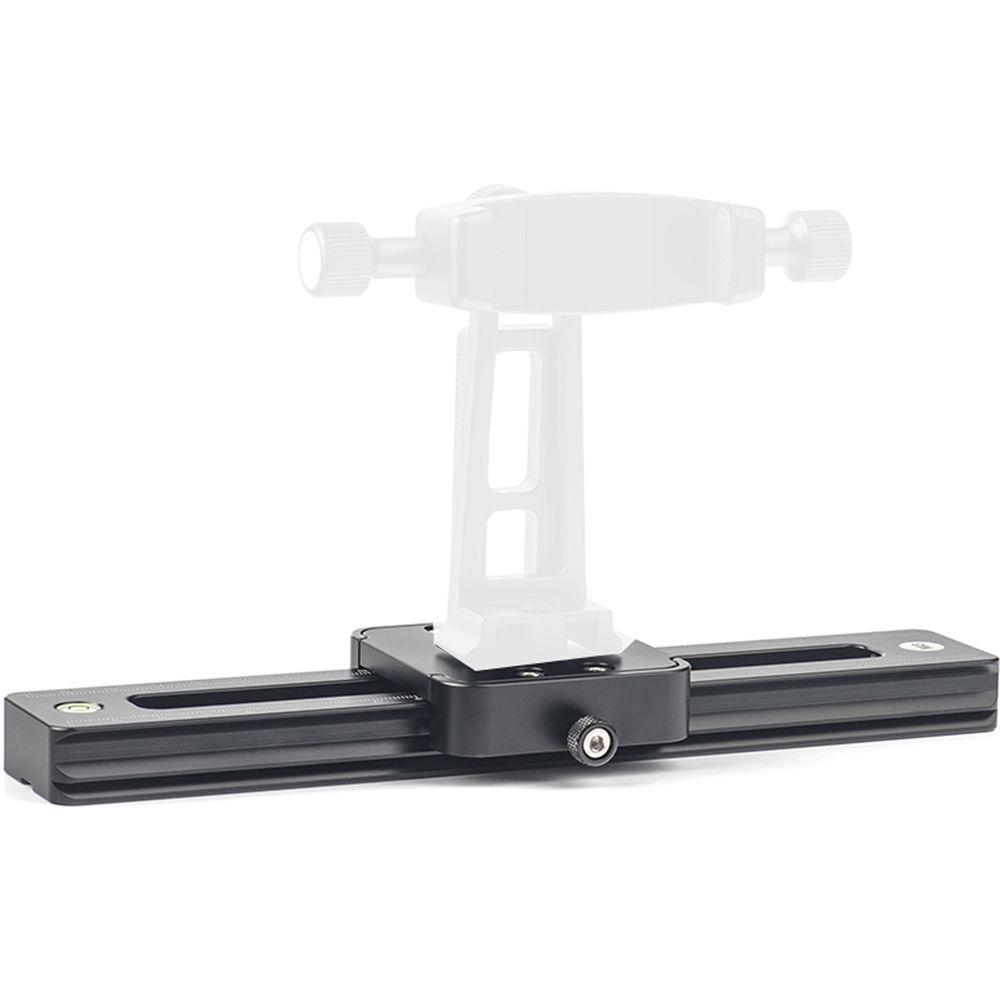

Attach a camera, ball head, or phone bracket to the 1/4"-20 male screw on top of the carriage, and four streamlined bearings silently guide it along the Arca-type dovetail grooves, offering your camera 7" of travel. The bottom 1/4"-20 and 3/8"-16 threaded screw holes allow for mounting on a tripod or using it directly on a flat surface. A clamp on the side of the carriage allows you to lock it in place for transport or for a static shot.

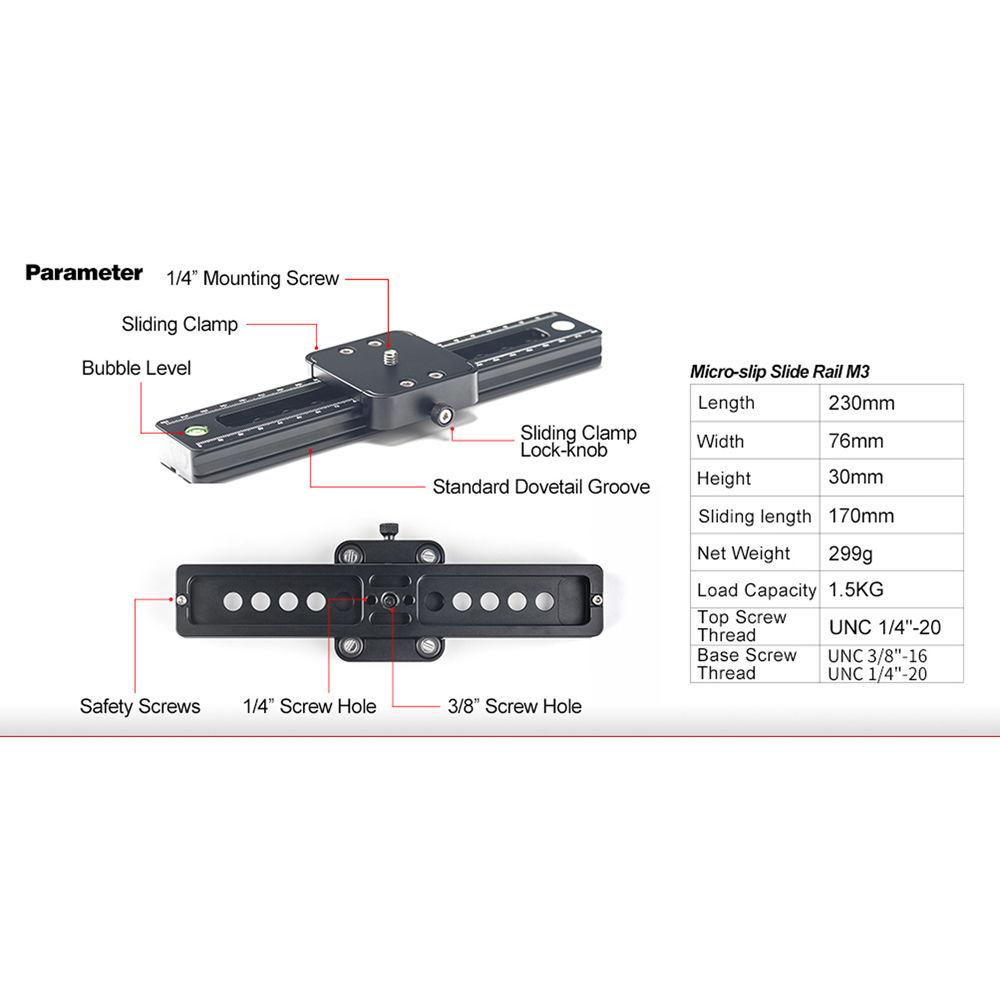

A bubble level is integrated into one end of the track to keep your shots accurate, and safety screws on the bottom of each end ensure your camera stays on the track. A cleaning cloth, wrench, and carry bag are also included. - Compact, 9" long track with Arca-type dovetail grooves
- Four bearings provide a smooth carriage slide down the Arca-type dovetail grooves
- Manufactured with CNC-machined aluminum for light weight and durability
- Integrated bubble level on one end of the track

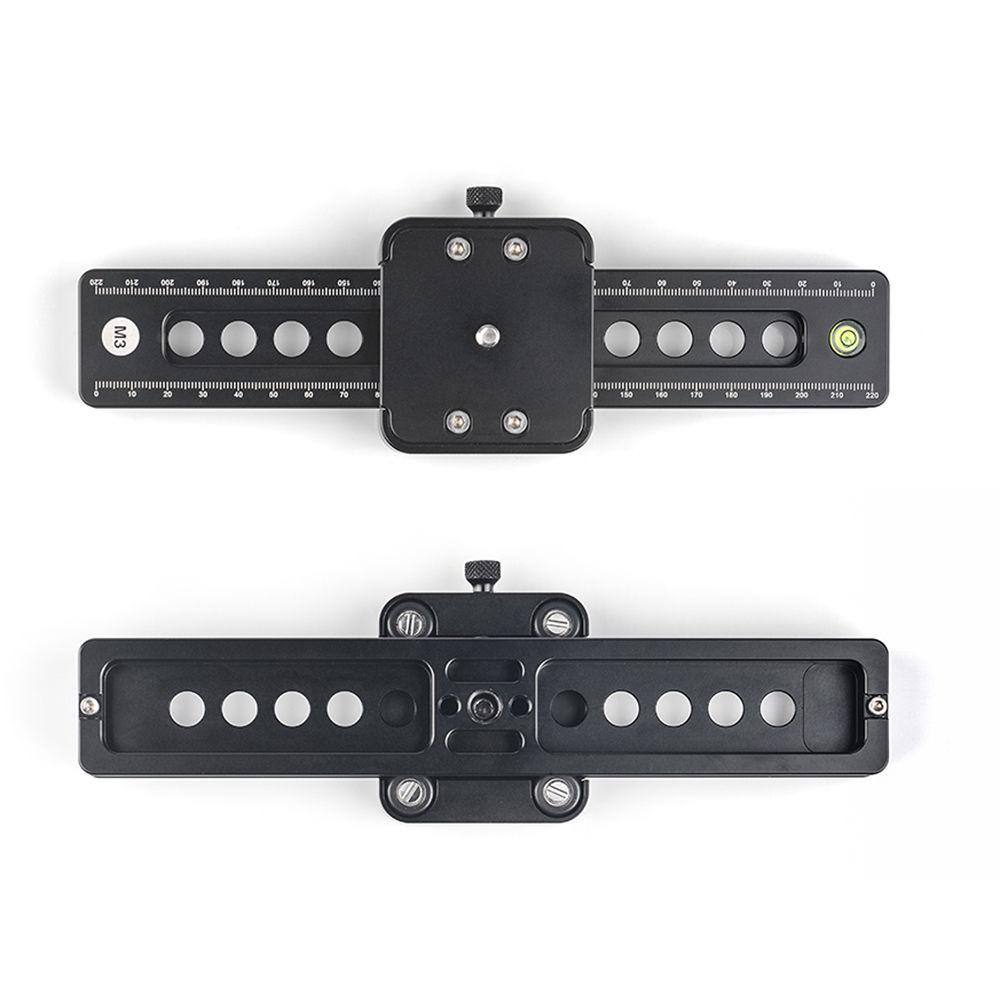

- One 1/4"-20 camera/tripod mounting screw for your camera, ball head, or phone bracket, and multiple 1/4"-20 and 3/8"-16 screw holes on base for mounting the track
- Safety screws keep the carriage from sliding off the track, and a lock knob secures the carriage in place

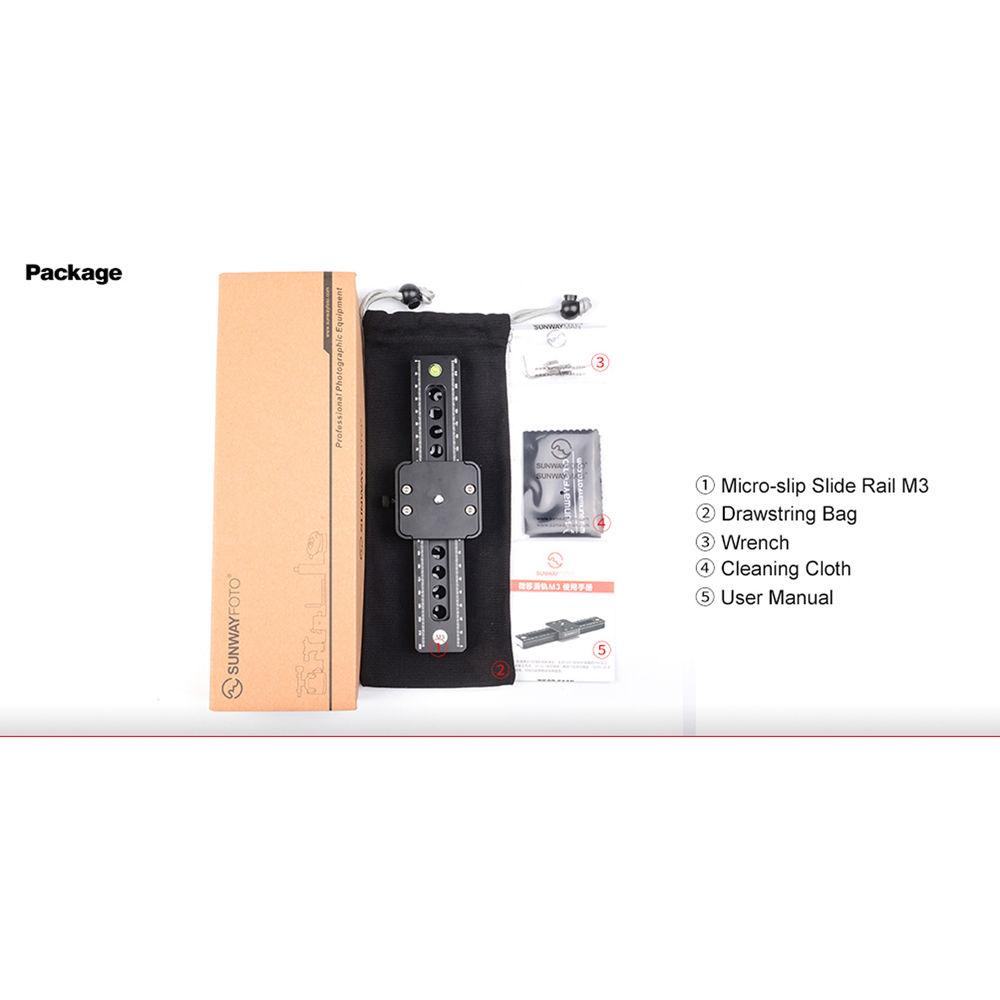

In the Box Sunwayfoto M3 Micro-Slip Slide Video Rail Cleaning Cloth Wrench Carry Bag Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunwayfoto M3 Micro-Slip Slide Video Rail in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

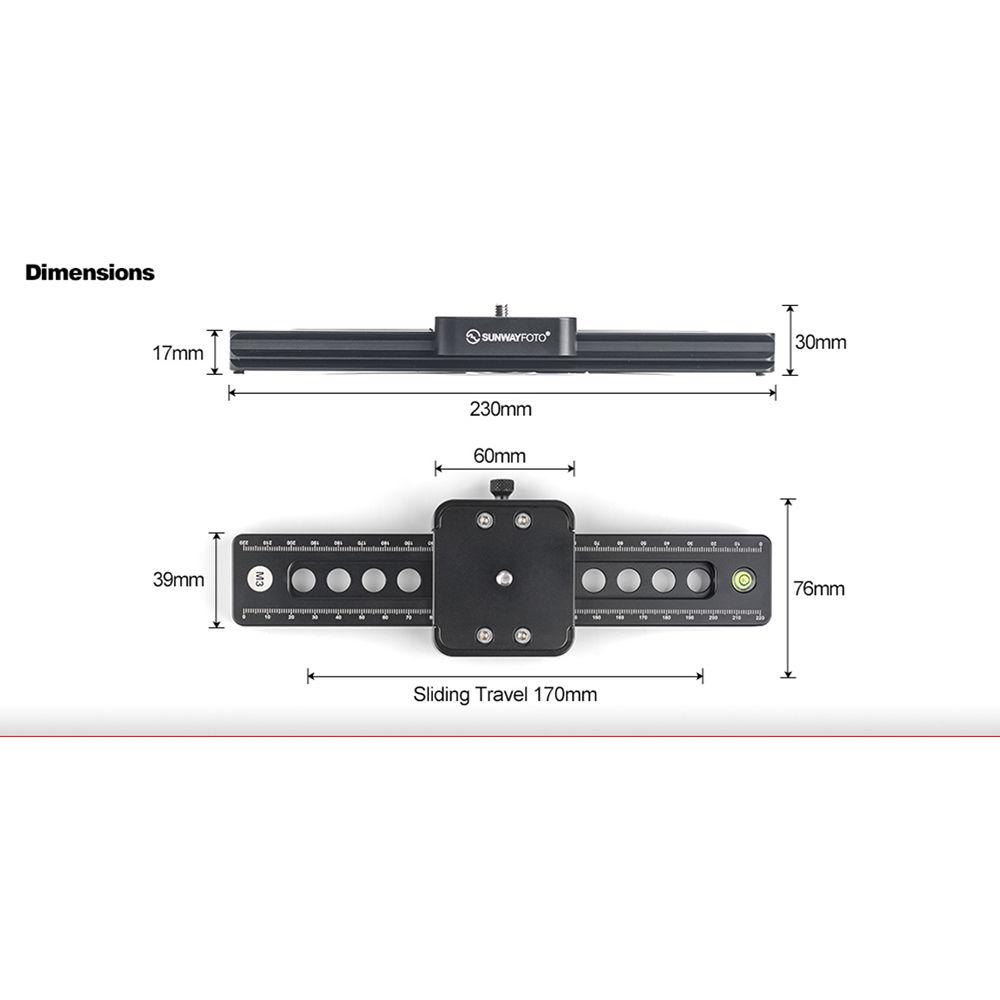

Technical parametersSunwayfoto M3 Specs | | | Load Capacity | 3.31 lb / 1.5 kg | | Travel Distance | 7" / 17.78 cm | | Bubble Level | Yes | | | | Camera Mounting Screw | 1/4"-20 Male | | Accessory Mounting | None | | Tripod Mounting | 1 x 1/4"-20 Female Thread
1 x 3/8"-16 Female Thread | | | | Quick Release Plate Type | No Quick Release | | Dimensions | 2.4 x 3 x 1.2" / 60 x 76 x 30 mm | | | | Body Material | Aluminum | | Track Length | 9.06" / 230 mm | | Track Width | 1.54" / 39 mm | | Track Height | 0.67" / 17 mm | | Weight | 10.55 oz / 299 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 12.1 x 12.1 x 4.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
