User Manual for Sunwayfoto Macro Focusing Rail with Screw-Knob Clamp Click to enlarge the picture
Contents of the user manual for the Sunwayfoto Macro Focusing Rail with Screw-Knob
- Product category: Other Macro Accessories Sunwayfoto
- Brand: Sunwayfoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunwayfoto Other Macro Accessories
 |
User manual for the Sunwayfoto Macro Focusing Rail with Screw-Knob contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunwayfoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunwayfoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunwayfoto product will considerably shorten its lifespan!
|

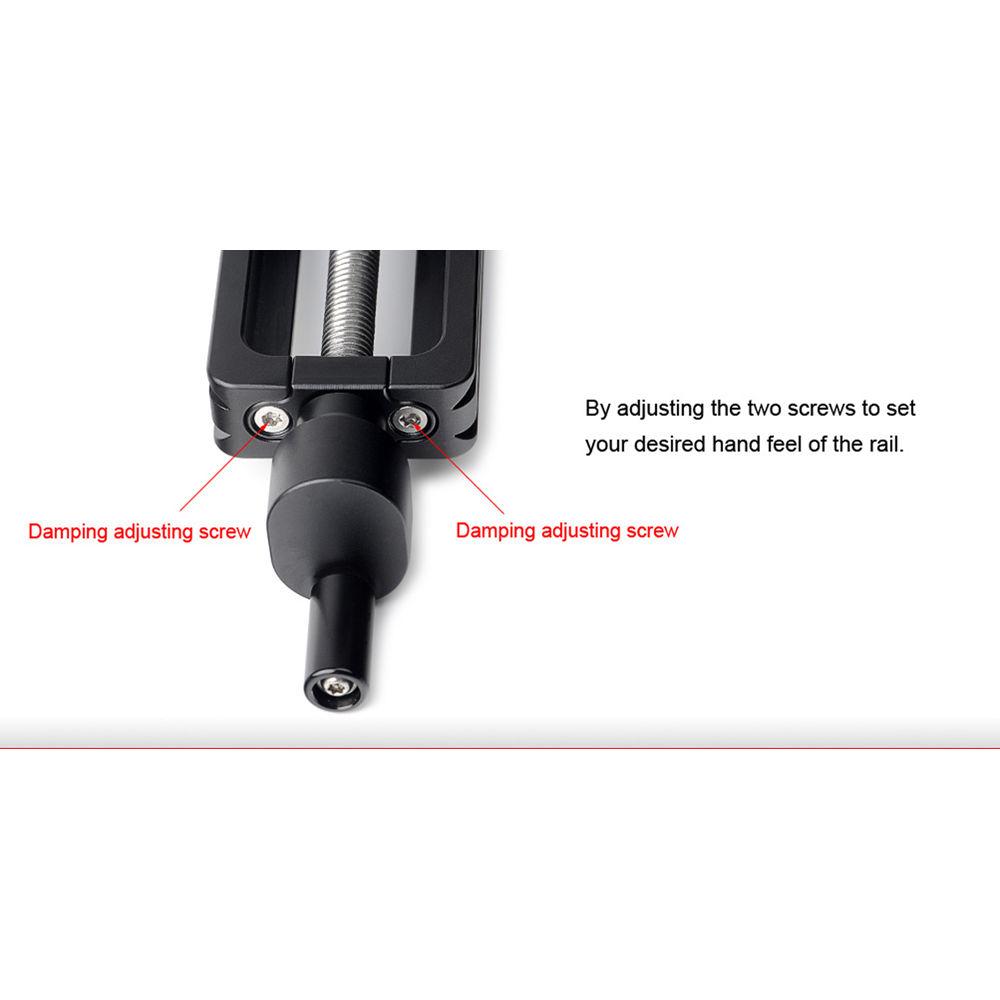

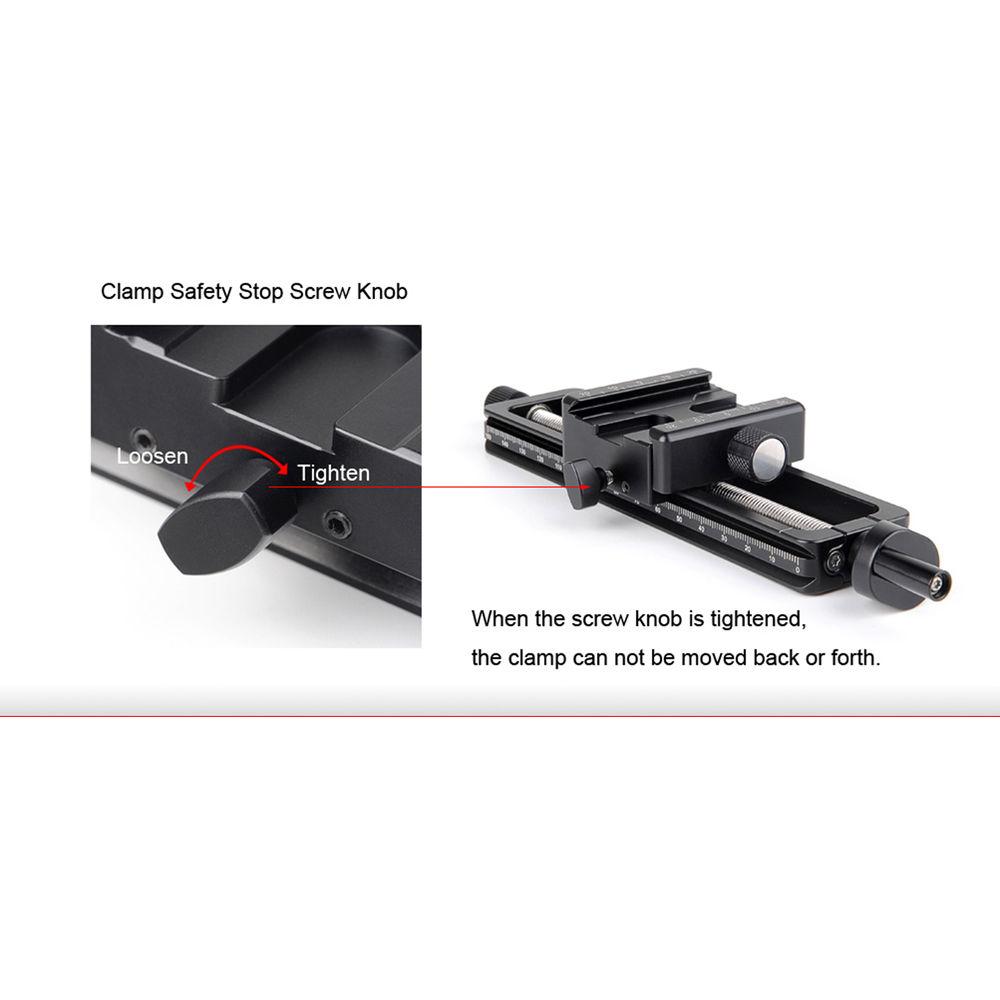

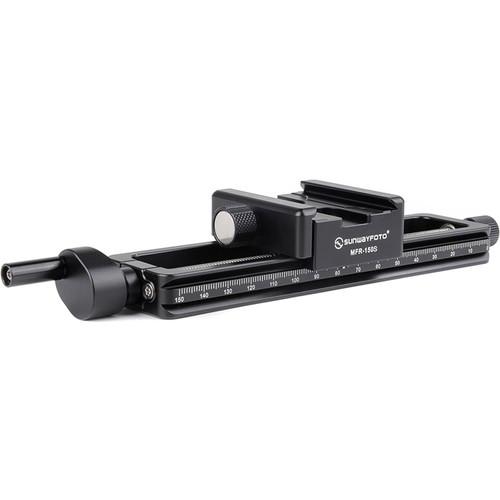

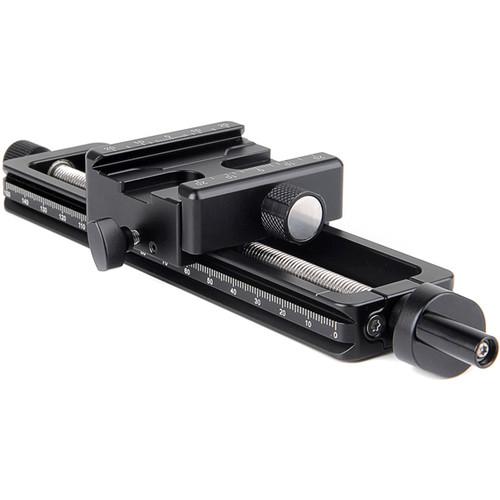

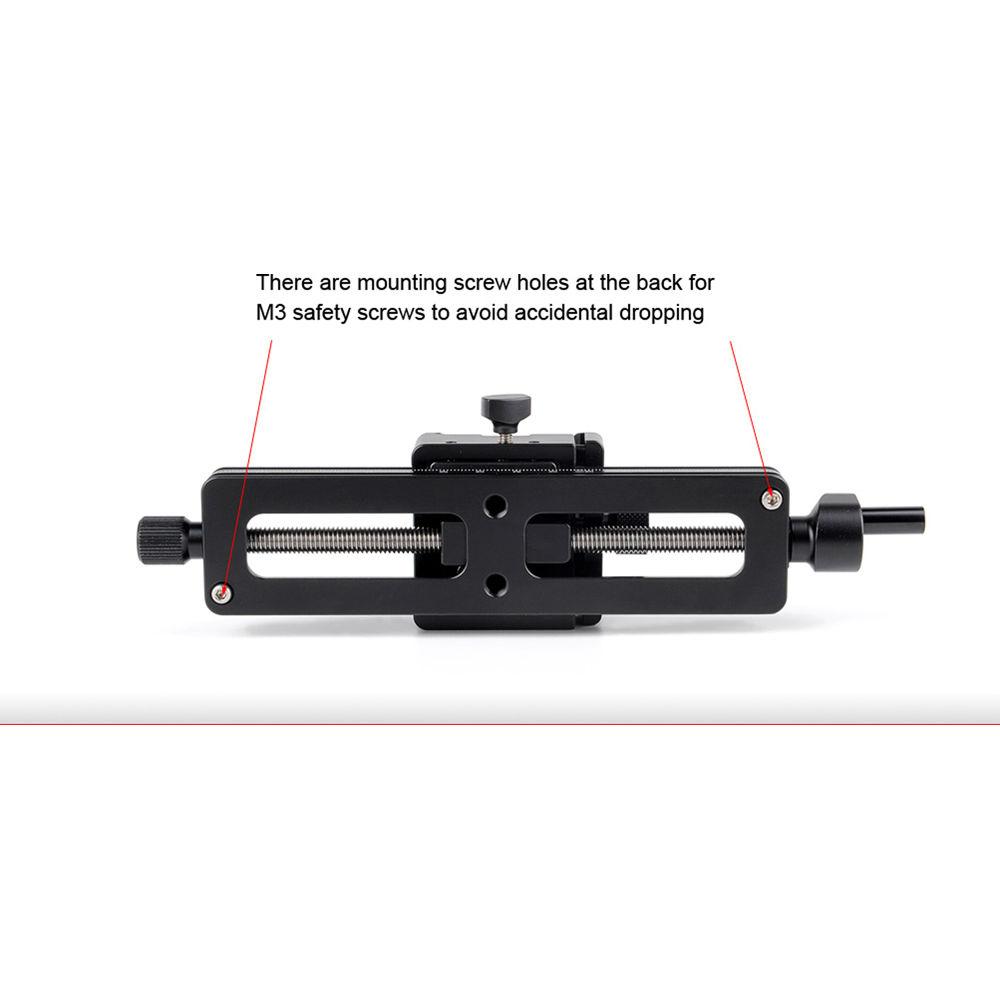

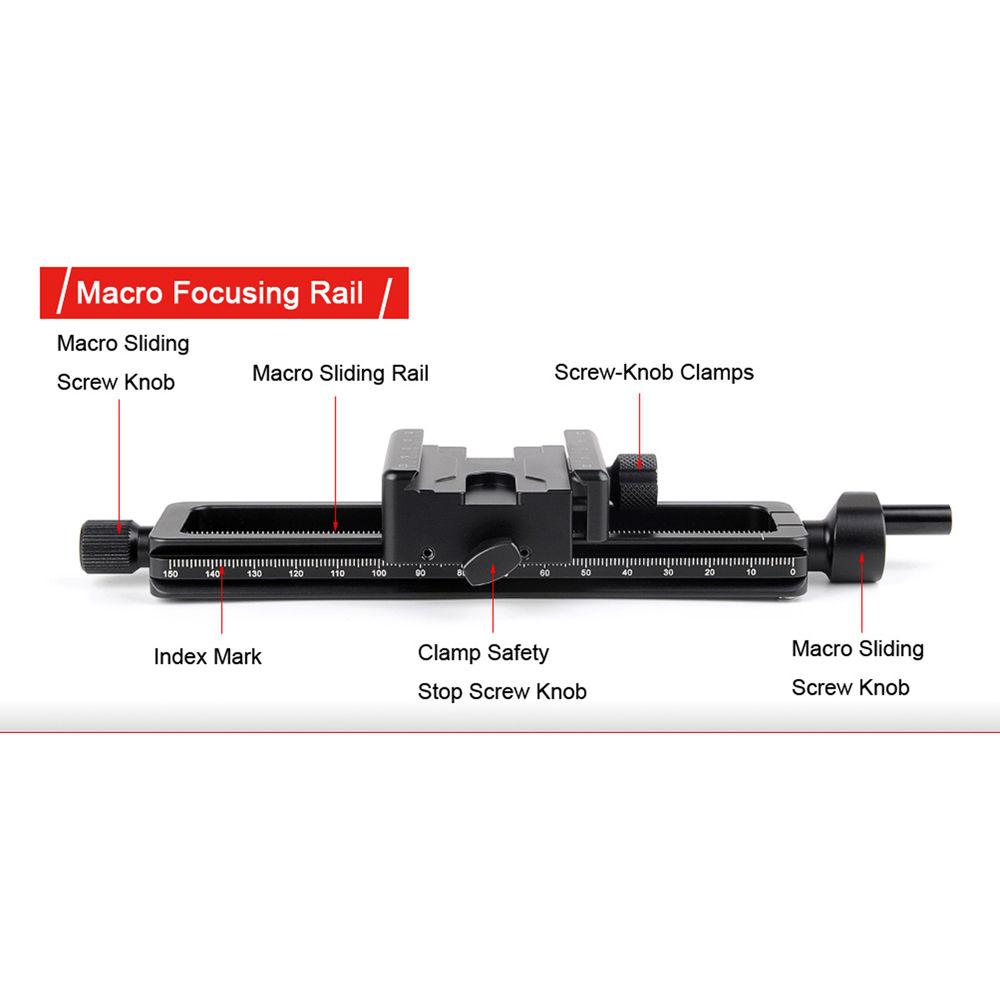

Product description The Macro Focusing Rail with Screw-Knob Clamp from Sunwayfoto gives you the ability to precisely adjust your camera fore-or-aft when shooting macro photography. The clamp at the top is Arca-type compatible and locks down with a screw-knob. The focusing rail itself has a double-dovetail mount and will fit most Arca-type clamps on the market. The Macro Focusing rail has both a ratchet handle, for fast and quick adjustments, and a thumb-screw knob along with engraved index marks on the side of the rail for fine adjustments. The CNC machined T6061 aluminum rail holds a maximum weight capacity of 15.4 lb, but may hold less weight once the angle of the rail is changed. The Type III black anodized aluminum is scuff and scratch resistant and the finish is also resistant against corrosion. In addition, two focusing rails can be stacked for dual axis adjustments (fore-or-aft and lateral). Located on the bottom of the plate are two safety stop screws to prevent any accidental pulling or falling out of the rail when a clamp is partially open. - Arca-type compatible dovetail mount and screw-knob clamp
- Thumb-screw knob for precise fore-or-aft adjustments
- Ratchet handle for quick and fast adjustments
- Type III black anodized aluminum, which is resistant against scratches, scuffs, and corrosion

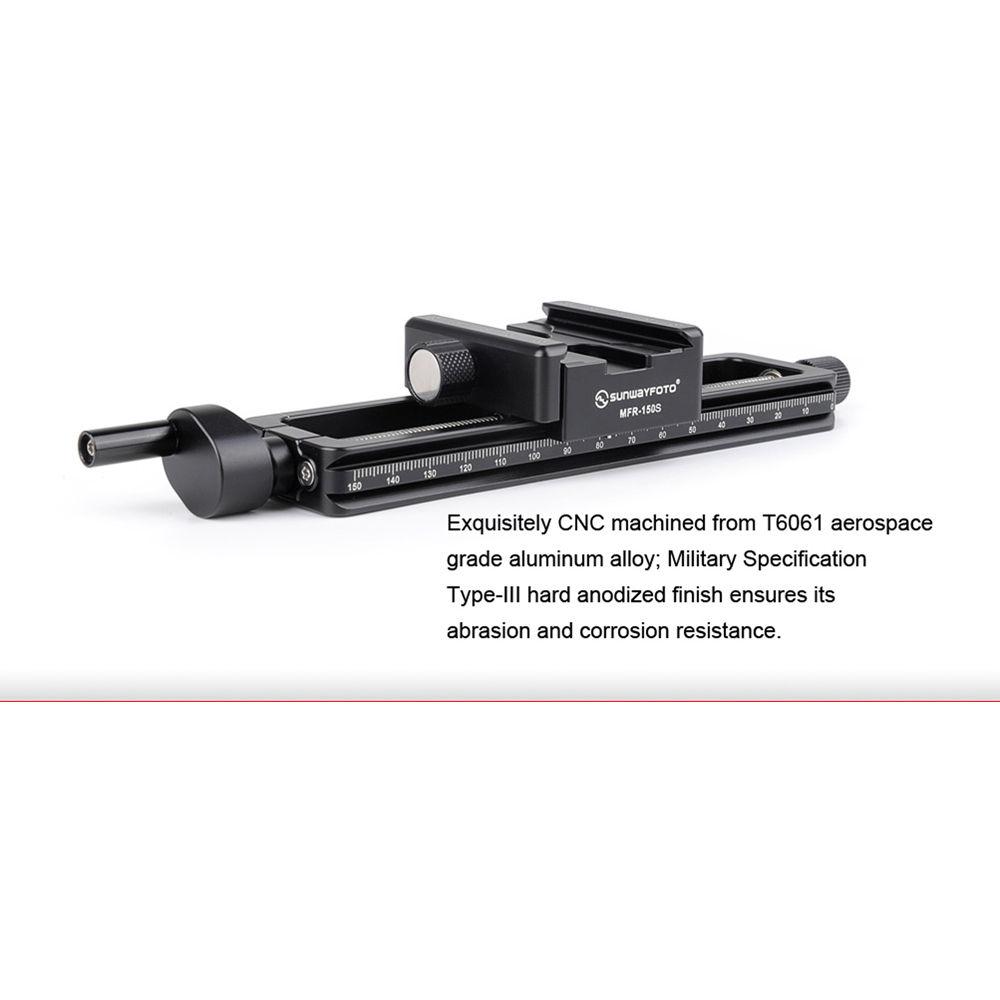

- CNC machined T6061 aluminum rail with two built-in safety stop screws and engraved index marks
In the Box Sunwayfoto Macro Focusing Rail with Screw-Knob Clamp Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunwayfoto Macro Focusing Rail with Screw-Knob Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

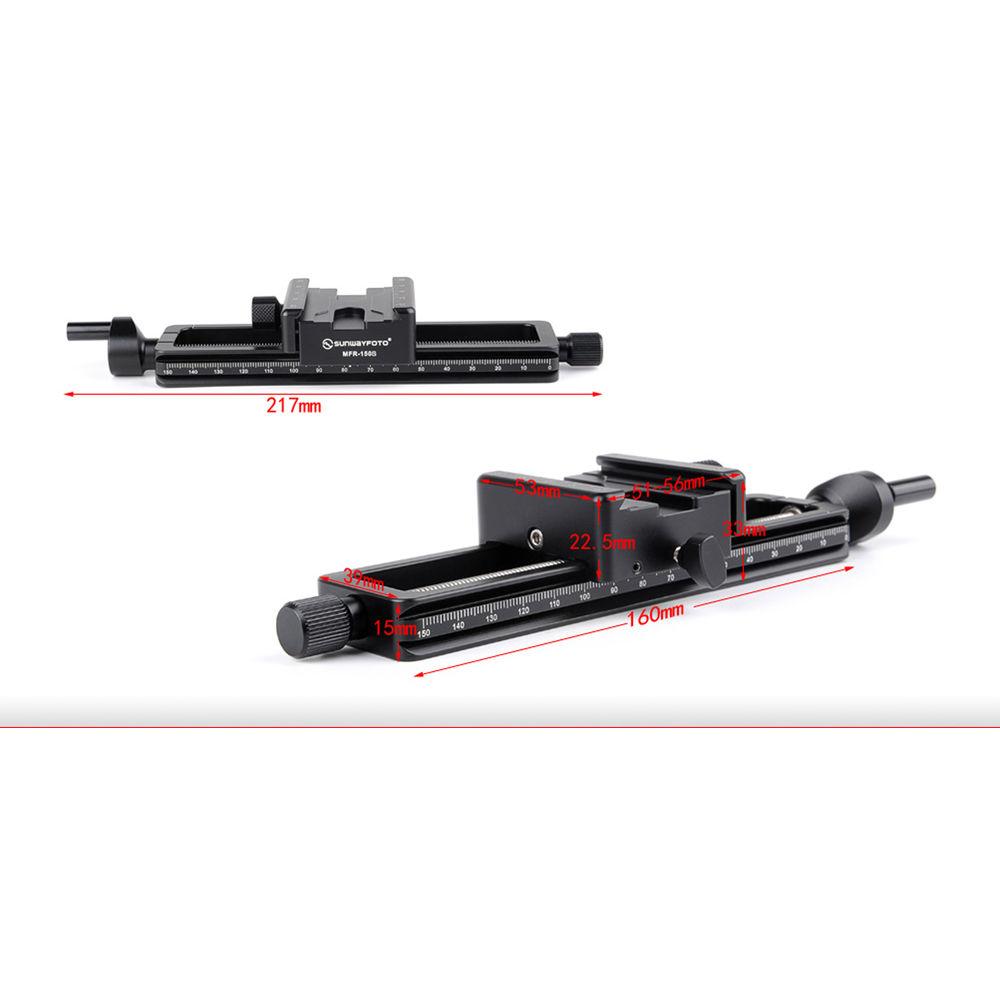

Technical parametersSunwayfoto MFR-150S Specs | Material of Construction | CNC machined T6061 aluminum | | Finish | Type III black anodized | | Adjustment Range | Lead screw: 4.2" (106 mm)Total Adjustment Range: 8.7" (220 mm)Stage Travel per Revolution: 0.05" (0.125 mm) | | Thread Pitch | 0.5 mm (12.5 mm) | | Weight Capacity | 15.4 lb (7 kg) weight capacity varies with angle of load | | Dimensions | 8.5 x 2.1 x 1.3" (21.6 x 5.3 x 3.3 cm) | | Weight | 9.8 oz (279 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 12.6 x 4.1 x 2.3" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
