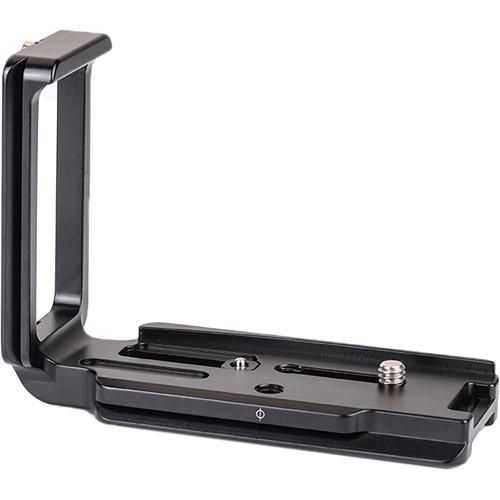

User Manual for Sunwayfoto PCL-R Custom L-Bracket for Canon EOS R Click to enlarge the picture
Contents of the user manual for the Sunwayfoto PCL-R Custom L-Bracket for Canon
- Product category: Tripods & Support Sunwayfoto
- Brand: Sunwayfoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunwayfoto Tripods & Support
|
User manual for the Sunwayfoto PCL-R Custom L-Bracket for Canon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunwayfoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunwayfoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunwayfoto product will considerably shorten its lifespan!
|
Product description The PCL-R Custom L-Bracket for Canon EOS R from Sunwayfoto is a single-piece design that is CNC machined from T6061 aluminum with a Type-III hard-anodized finish for durability. The Arca-type L-bracket can mount in both a vertical or horizontal orientation, and dual safety stops are located on the bottom of each axis as a precaution against the L-bracket from sliding out if the quick release clamp is partially opened by accident. The camera mounts to the bracket via a 1/4"-20 male threaded screw, and the anti-twist lip on the plate prevents and minimizes any movement between the camera and the bracket. The Eos R has an alignment socket at the base, which the shifting set screw right in to further stabilize the bracket to the camera. The camera's ports are completely accessible including the battery chamber, and the tilting and rotating LCD screen is not blocked. - Single-piece design with Arca-type compatible dovetails, which allow the bracket to mount in a vertical or horizontal orientation
- CNC machined T6061 aluminum with a Type-III hard-anodized finish for durability
- The anti-twist flange and shifting set screw on the plate prevent and minimize any movement between the camera and the bracket
- The bracket maintains camera port and battery access and also does not block the tilting and rotation of the LCD screen
- Dual safety stops are located on the bottom of the bracket on each axis, which prevents the L-bracket from accidentally sliding out of the quick release clamp
In the Box Sunwayfoto PCL-R Custom L-Bracket for Canon EOS R Camera Screw Velvet Bag Shifting Set Screw 4 x Safety Screw 2.5 mm Hex Wrench Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunwayfoto PCL-R Custom L-Bracket for Canon EOS R in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunwayfoto PCL-R Specs | Mounting Screw | 1 x 1/4"-20 Male | | Tripod Mounting Thread | 1 x 1/4"-20 Female | | Bubble Level | No | | Strap Loop | Yes | | Quick Release Plate Type | Arca-Type | | Material of Construction | Aluminum | | Length | 4.13" / 105.00 mm | | Width | 1.54" / 39.00 mm | | Height | 3.15" / 80.00 mm | | Weight | 4.2 oz / 120 g | | | | Package Weight | 0.47 lb | | Box Dimensions (LxWxH) | 5.7 x 4.5 x 2.6" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
