User Manual for Sunwayfoto T2C40C Carbon Fiber Tripod Click to enlarge the picture
Contents of the user manual for the Sunwayfoto T2C40C Carbon Fiber Tripod
- Product category: Tripod Legs Sunwayfoto
- Brand: Sunwayfoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunwayfoto Tripod Legs
 |
User manual for the Sunwayfoto T2C40C Carbon Fiber Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunwayfoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunwayfoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunwayfoto product will considerably shorten its lifespan!
|

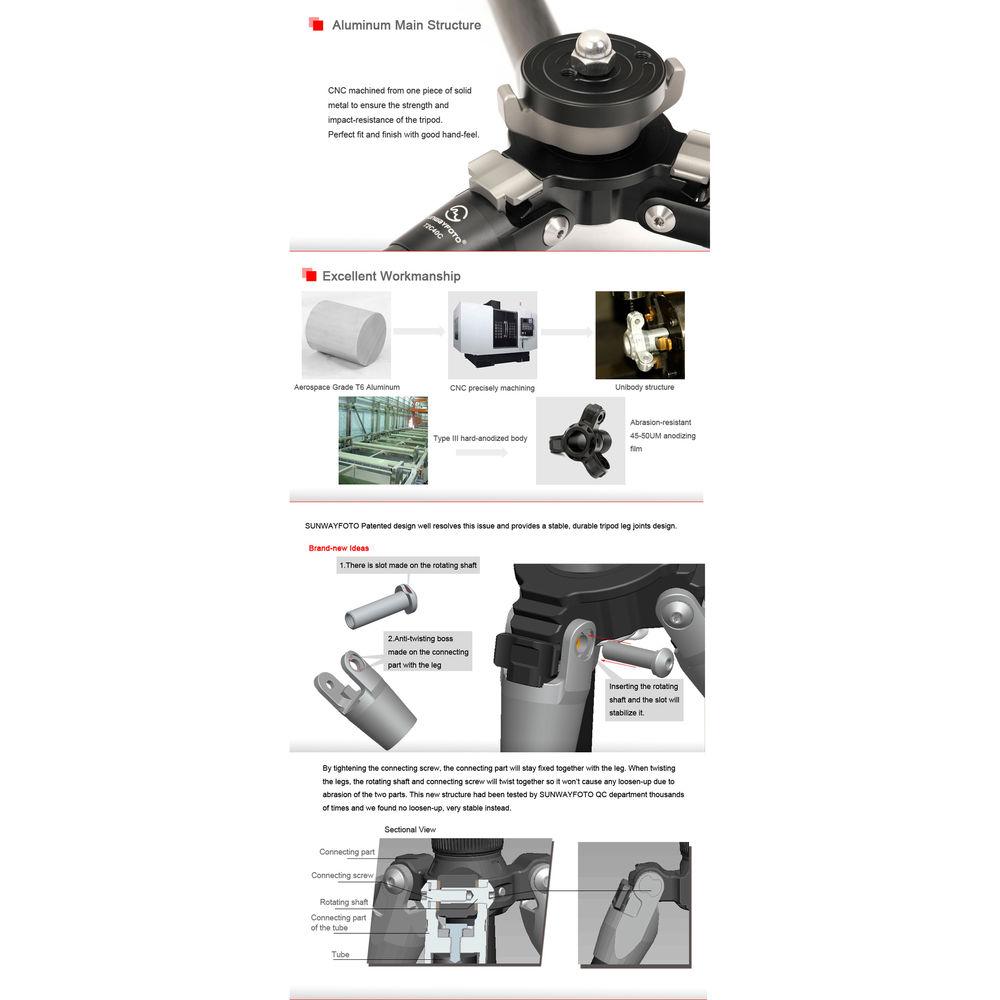

Product description The T2C40C Carbon Fiber Tripod from Sunwayfoto has a main structure that is CNC machined from one piece of solid metal to ensure the strength and impact-resistance of the tripod. The tripod features a unique construction of the joint of the legs to provide a stable and durable design. By tightening the connecting screw, the connecting part will stay fixed together with the leg. When twisting the legs, the rotating shaft and connecting screw will twist together so it won't cause any loosening due to abrasion of the two parts.

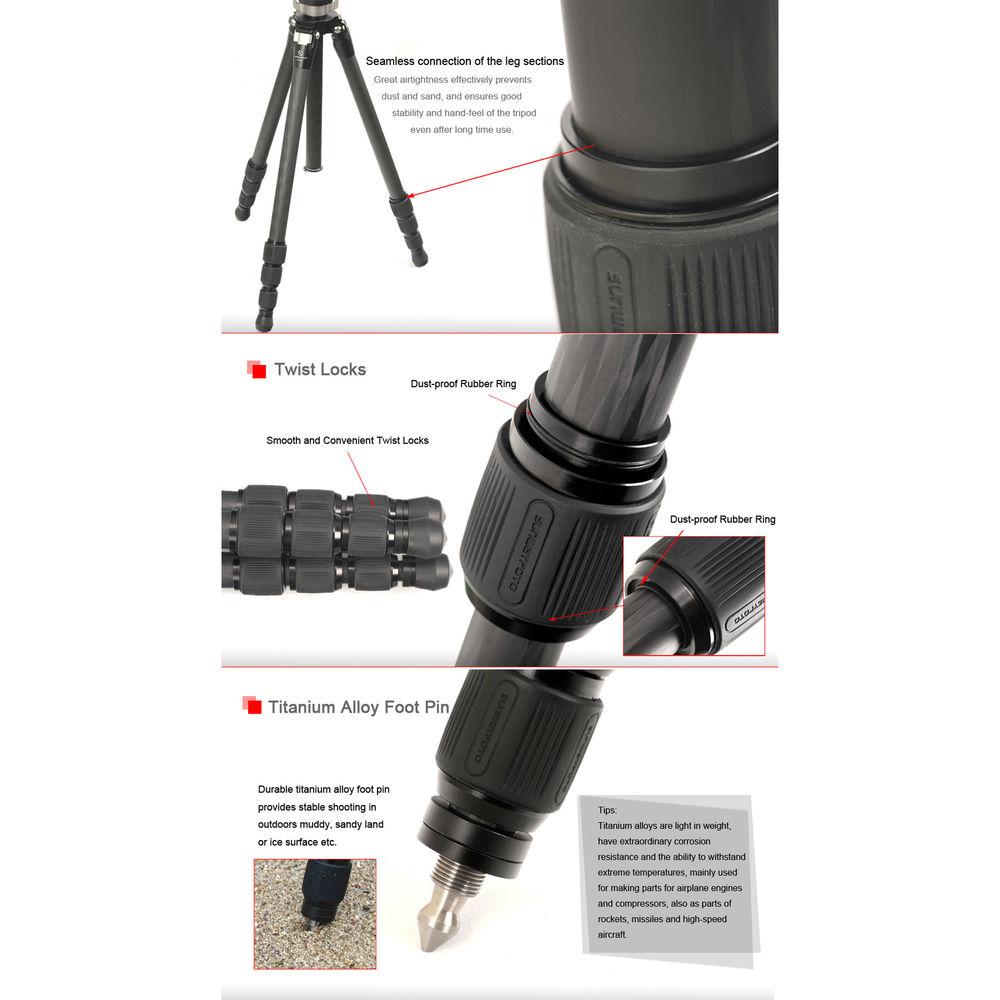

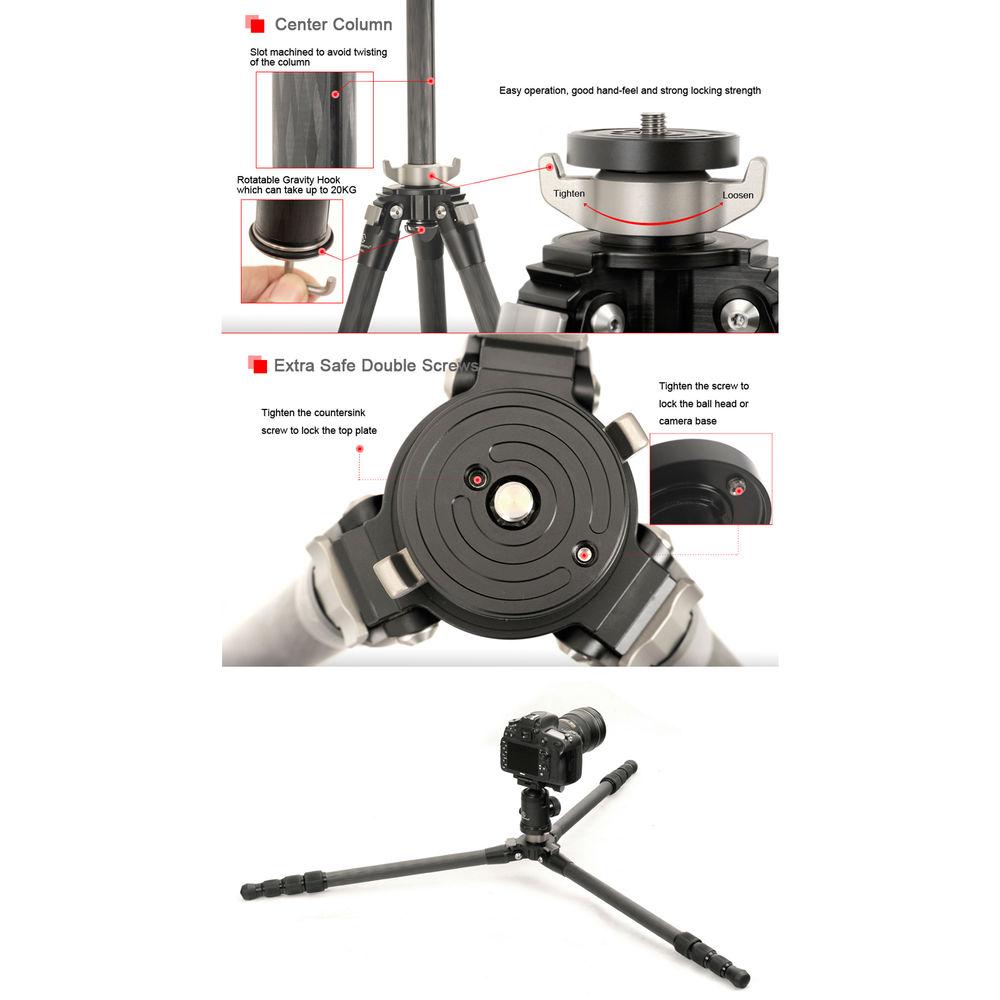

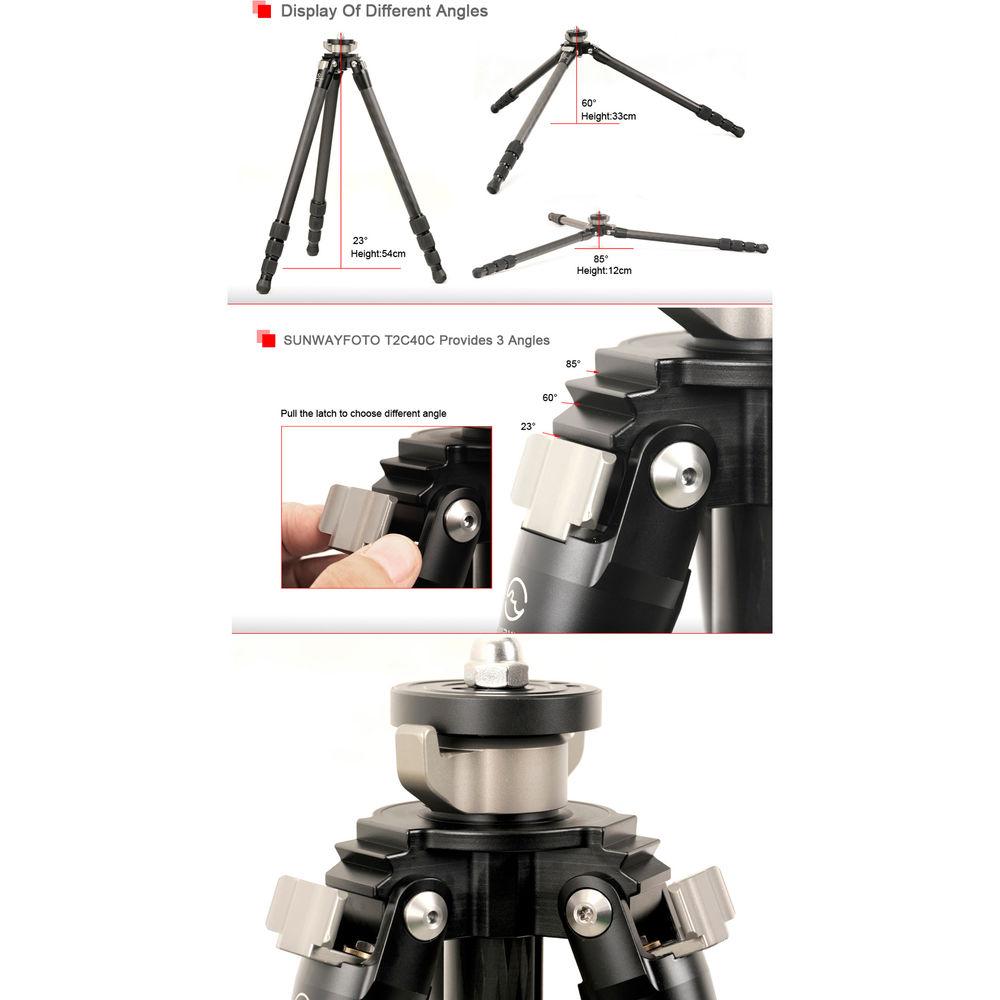

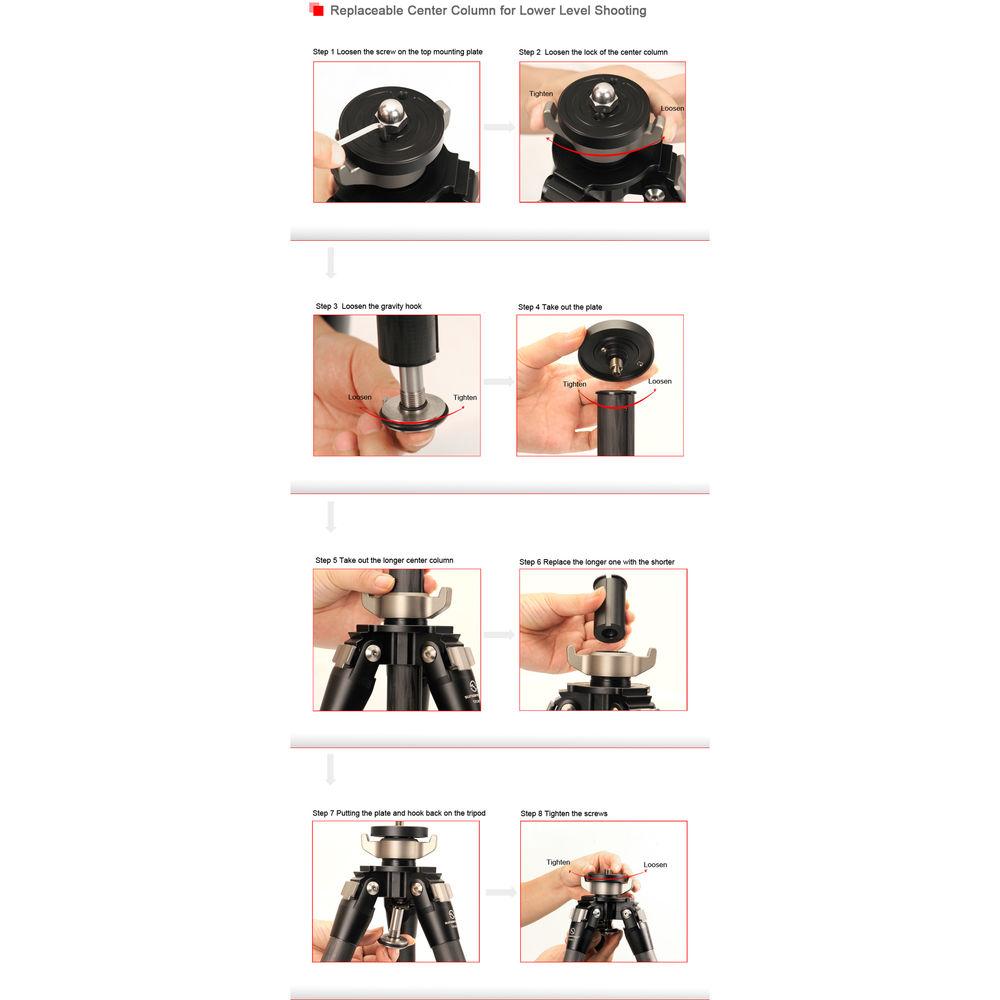

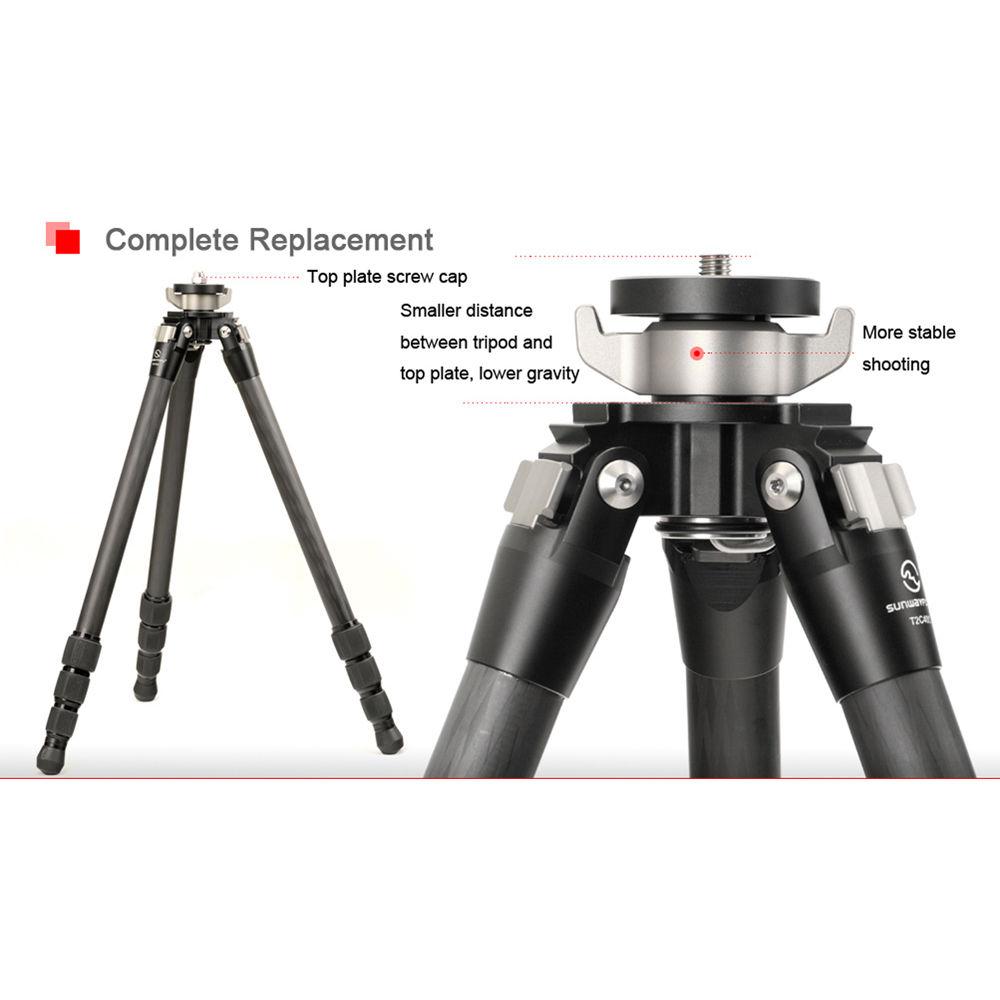

The center column features a machined slot to prevent the column from twisting and the rotatable gravity hook can support up to 44 pounds. It features double screws for extra safety and a replaceable center column for lower level shooting. The tripod has three leg angles including 23, 60, and 85°. The legs have friction tubes as long as 40mm to prevent the legs from bending even when fully extended. The longer friction tubes also prevent dust and sand from entering the legs, and the titanium alloy foot pins provide stable shooting on slippery or muddy surfaces. - 8-layer carbon fiber material
- Aerospace grade T6 aluminum
- Type III hard-anodized body
- Abrasion-resistant 45-50UM anodizing film
- Titanium allow foot pin and camera mounting screw

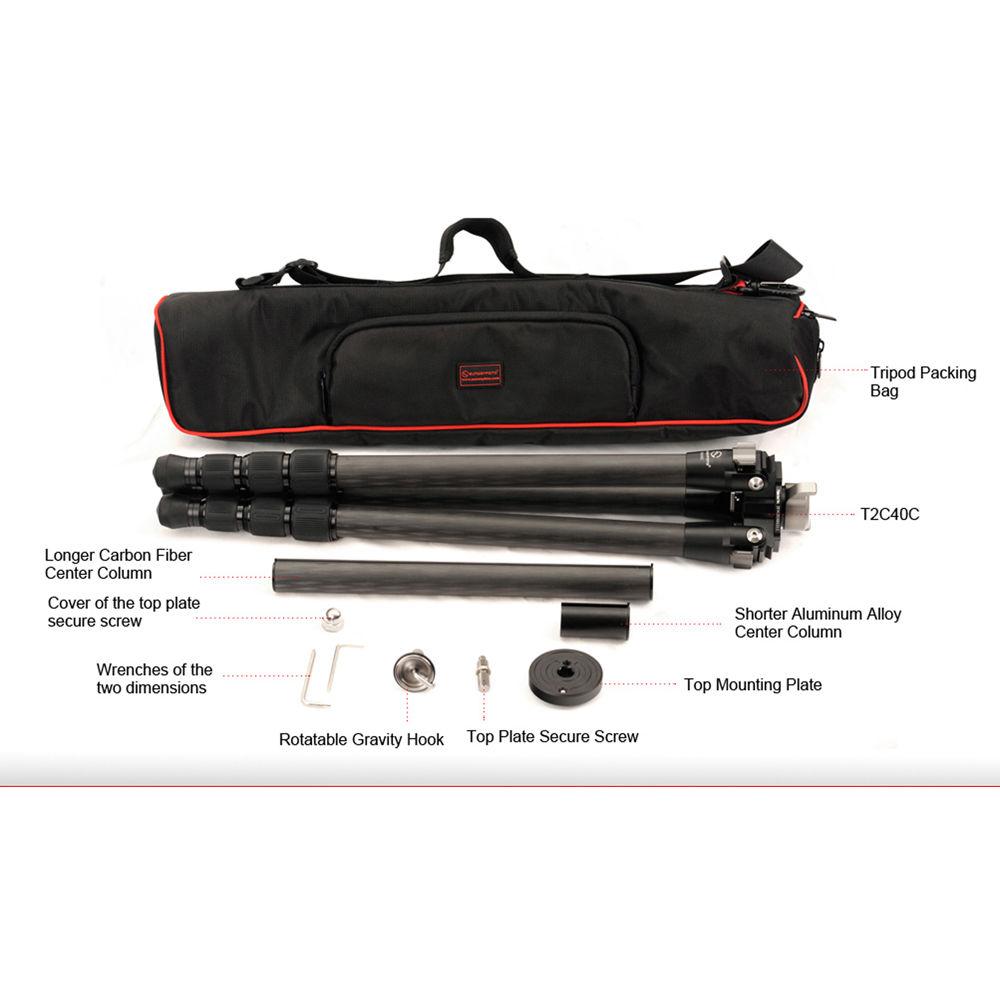

In the Box Sunwayfoto T2C40C Carbon Fiber Tripod Long Carbon Fiber Center Column Short Carbon Fiber Center Column Top Mounting Plate Top Plate Secure Screw Top Plate Secure Screw Cover 1/4" Wrench 3/8" Wrench Rotatable Gravity Hook Tripod Packing Bag Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunwayfoto T2C40C Carbon Fiber Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

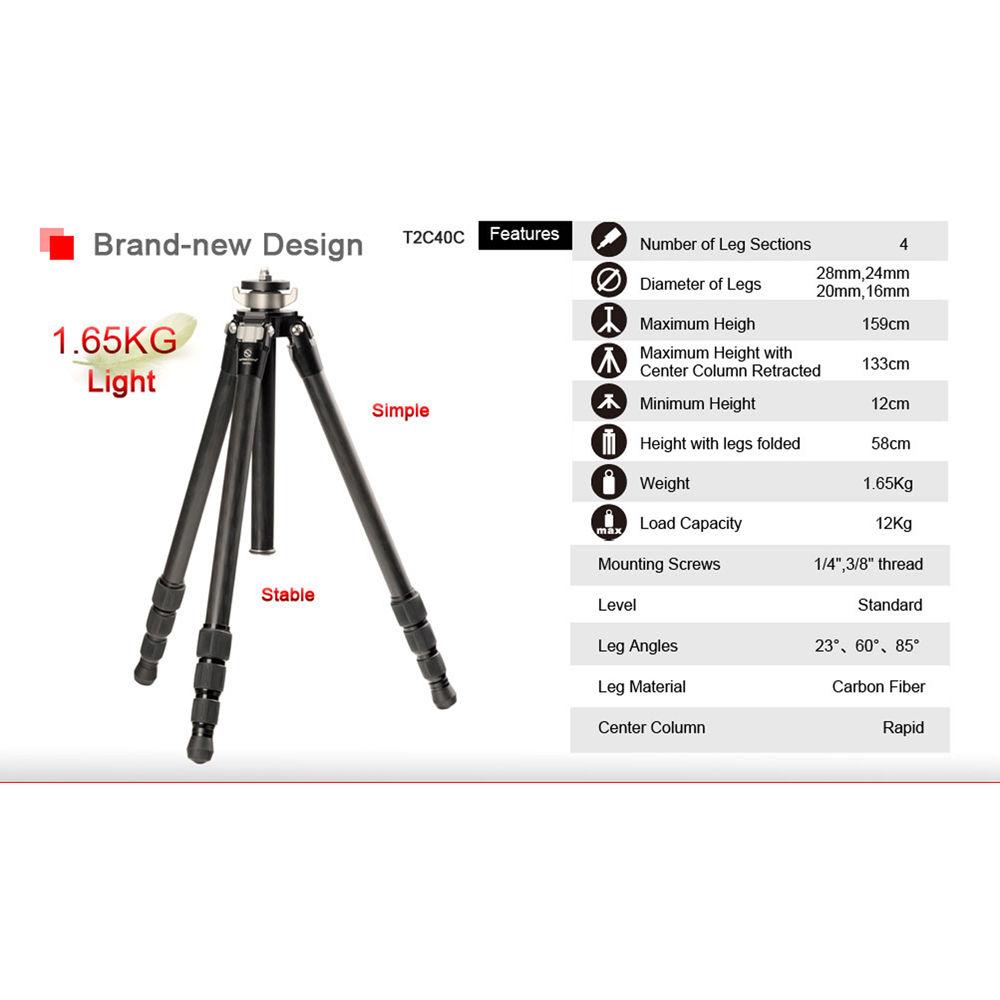

Technical parametersSunwayfoto T2C40C Specs | | | Load Capacity | 26.5 lb / 12 kg | | Maximum Working Height | 62.6" / 159 cm | | Max Height without Center Column | 52.4" / 133.1 cm | | Minimum Working Height | 4.7" / 11.9 cm | | Folded Length | 22.8" / 57.9 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 3.5 lb / 1.6 kg | | Materials | Carbon Fiber | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Leg Sections | 4 | | Leg Diameter | 1.1" / 27.9 mm | | | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 27.3 x 5.5 x 5.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
