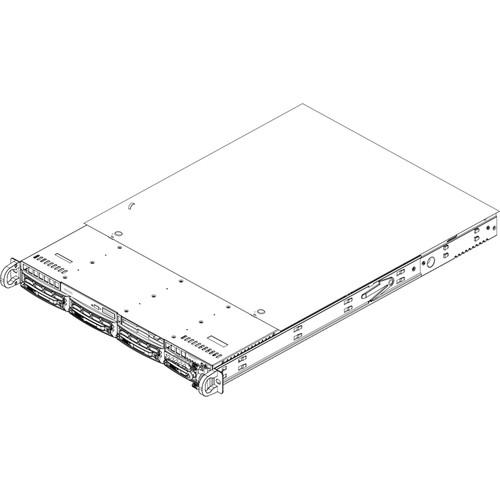

User Manual for Supermicro 1RU SuperChassis Click to enlarge the picture
Contents of the user manual for the Supermicro 1RU SuperChassis
- Product category: Server Rackmount Chassis Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Server Rackmount Chassis
|
User manual for the Supermicro 1RU SuperChassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|
Product description Provided by third party: Supermicro SC813 1U Chassis is optimized for high-end server applications. At a depth of 25.6", this chassis can house extended ATX boards and support a maximum of 2 addon cards (1x Full-height/Full-length and 1x Low-Profile) in certain models. -
- 1U Chassis support for max. motherboard size - 12" x 13" E-ATX
- 1 x Full-height, full-length PCI expansion slot (with Riser Card)
- 1 x Low-profile PCI expansion slot (with Riser Card)
Front Panel:- Power
- Hard drive activity
- 2 x Network activity
- System overheat
- 2 x USB & DB9 COM port tray (Optional - in place of floppy drive)
Power Supply:- DC Output: 5V +3.3V <= 160W
- 5V, 30.0 amp
- 5V standby, 2.0 amp
- 12V, 39.0 amp
- -12V, 1.0 amp
- 3.3V, 21.0 amp
UPC: 672042662197 In the Box Supermicro 1RU SuperChassis (Black) 1 x SC813S-500 System Cabinet 1 x SP502-1S Cold-Swappable 500W 1U Power Supply 1 x 1U Power Distributor 2 x 1U, 10cm Blower Fan 1 x 1U Slide Rails 4 x SCA Hard Drive Carriers 1 x 4 x 1" SCSI Backplane with SAF-TE 1 x 6" Two-Drop SCSI Cable 1 x Floppy Cable 1 x Front Panel Ribbon Cable 1 x TEAC Slim 3.5" 1.44MB Floppy Drive 1 x Slim 24x TEAC CD-ROM Drive Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro 1RU SuperChassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro CSE-813S-500B Specs | | | Motherboard Supported | EATX | | Number of Fans Installed | 2 | | | | Number of External 5.25" Bays | 1 | | Number of External 3.5" Bays | 5 | | Number of Total Expansion Bays | 6 | | | | Number of Total Expansion Slots | 2 | | | | Input Voltage | 110 V AC
220 V AC | | Number of Power Supplies Installed | 1 | | Power Supply Wattage | 500 W | | | | Color | Black | | Compatible Rack Unit | 1U | | Form Factor | Rack-mountable | | Height | 1.7" | | Width | 17.2" | | Depth | 25.6" | | Weight (Approximate) | 36 lb |
