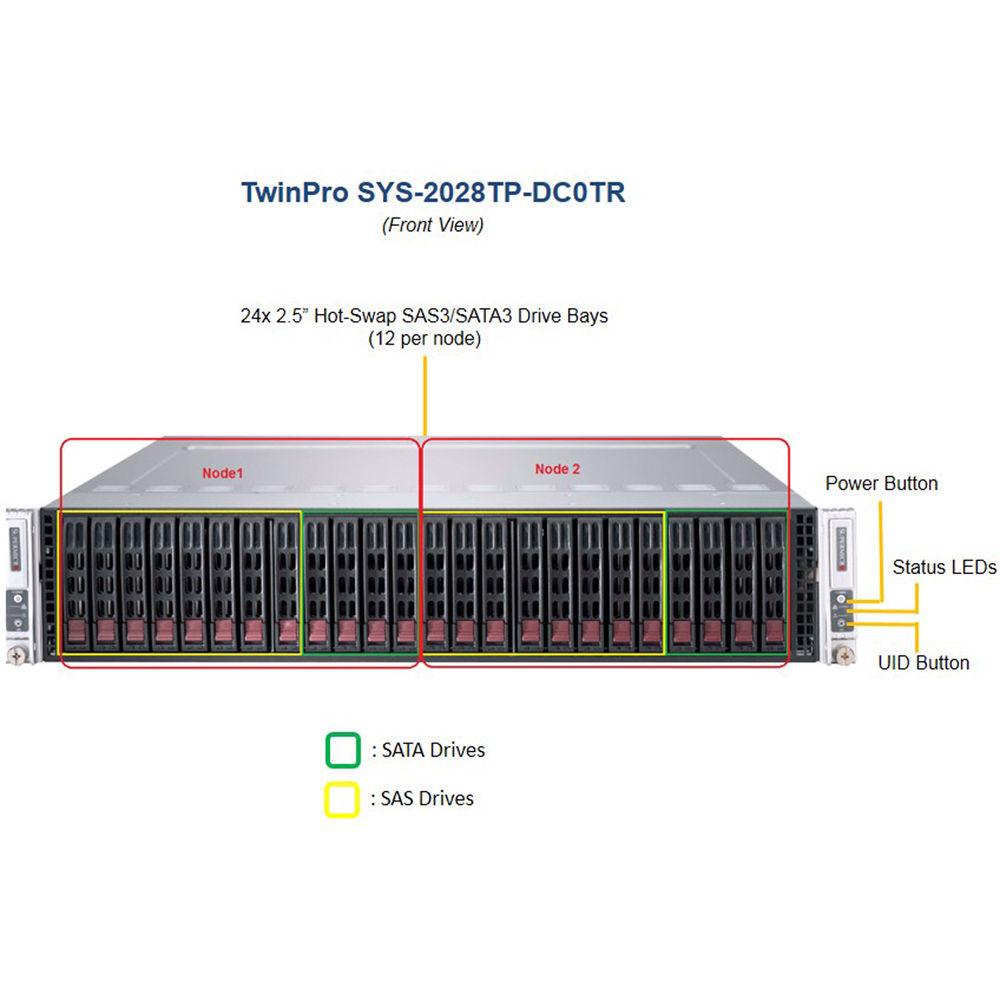

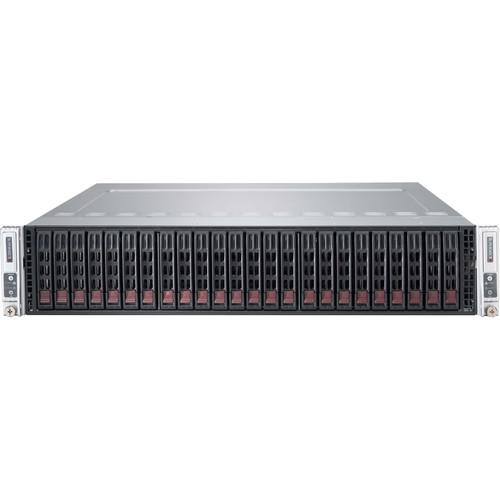

User Manual for Supermicro 2028TP-DC0TR SuperServer with 24 x 2.5" Hot Swap SAS3 SATA3 Bays Click to enlarge the picture
Contents of the user manual for the Supermicro 2028TP-DC0TR SuperServer with 24 x
- Product category: Server Systems Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Server Systems
 |
User manual for the Supermicro 2028TP-DC0TR SuperServer with 24 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|
Product description Provided by third party: The Supermicro FatTwin represents a revolution in green computing designed to support customers' critical applications and also reduce data center TCO to help preserve the environment. The FatTwin extends the compute and storage capabilities of Supermicro's existing Twin SuperServer systems to achieve increased performance and power efficiency. Due to its shared components the FatTwin improves cost-effectiveness and reliability, while its modular architecture makes it flexible to configure and easy to maintain.
Versatile configurations allow the FatTwin to be optimized for many different environments including enterprise, data center, cloud computing, HPC, financial, science and engineering, file and storage servers.
- Key Features
-
- Intel X540 dual port 10 GBase-T LAN
- Integrated IPMI 2.0 with KVM and dedicated LAN
- 12 x 2.5" hot-swap SAS (8)/SATA (4) HDD bays
- LSI 3008 SAS3 controller (8 ports)
- mSATA (full size) support

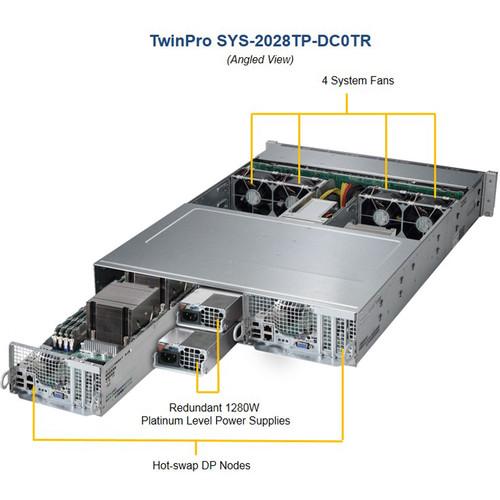

- 1280 W redundant power supplies platinum level digital (95%)
In the Box Supermicro 2028TP-DC0TR SuperServer with 24 x 2.5" Hot Swap SAS3/SATA3 Bays (2 RU, Black) Supermicro SuperServer 2028TP-DC0TR 4 x CPU heatsinks Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro 2028TP-DC0TR SuperServer with 24 x 2.5" Hot Swap SAS3 SATA3 Bays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

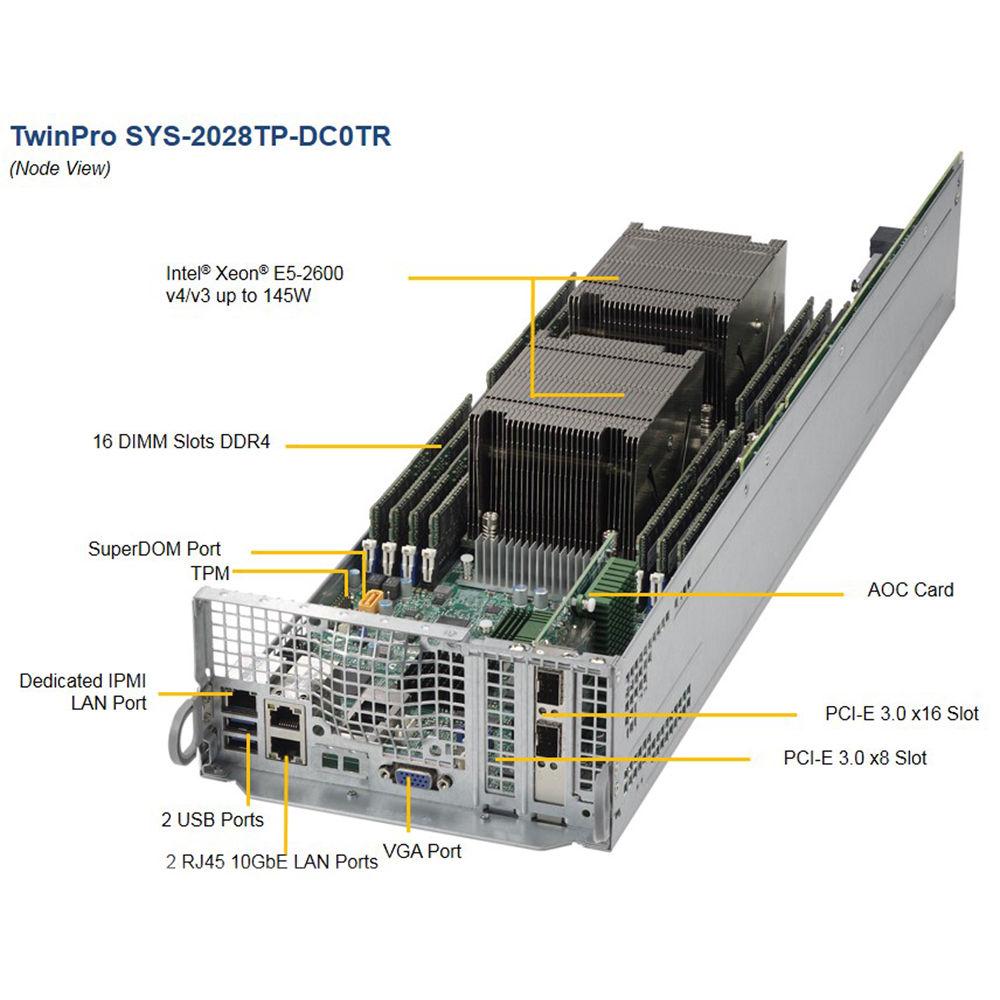

Technical parametersSupermicro SYS-2028TP-DC0TR Specs | | | Type | Cluster (2 nodes) | | Product Form Factor | Rack-mountable - 2U | | Server Scalability | 2-way | | Cluster Configuration | 2 - computing node | | Color | Black | | | | CPU | No CPU | | Max CPU Qty | 2 | | CPU Upgradability | Upgradable | | CPU Socket | LGA2011-v3 Socket | | Chipset Type | Intel C612 | | | | Installed Size | 0 MB / 1 TB (max) | | Technology | DDR4 SDRAM | | Form Factor | DIMM 288-pin | | Slots | 16 (total) / 16 (empty) | | Features | Registered, Load-Reduced DIMM (LRDIMM) | | RAM Supported | 1 TB Load-Reduced - ECC
512 GB registered - ECC | | | | Type | 1 x RAID - integrated | | Controller Interface Type | SAS 12Gb/s | | Storage Controller Name | LSISAS3008 | | Channel Qty | 8 | | RAID Level | RAID 0, RAID 1, RAID 10 | | | | Type | Integrated | | Graphics Processor | ASPEED AST2400 | | Video Interfaces | VGA | | | | Type | Integrated | | Ethernet Ports | 2 x 10 Gigabit Ethernet | | Ethernet Controller | Intel X540 | | Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet | | Remote Management Protocol | IPMI 2.0 | | Features | KVM over IP support | | | | Shared Storage Power Supply | 2 redundant hot plug power supplies | | Power Supply Capacity | 2x1280 Watt | | | | Bays | 12 (total) / 12 (free) x hot-swap 2.5" | | Slots | 2 (total) / 2 (free) x CPU
16 (total) / 16 (free) x DIMM 288-pin
1 (total) / 1 (free) x PCIe 3.0 x16

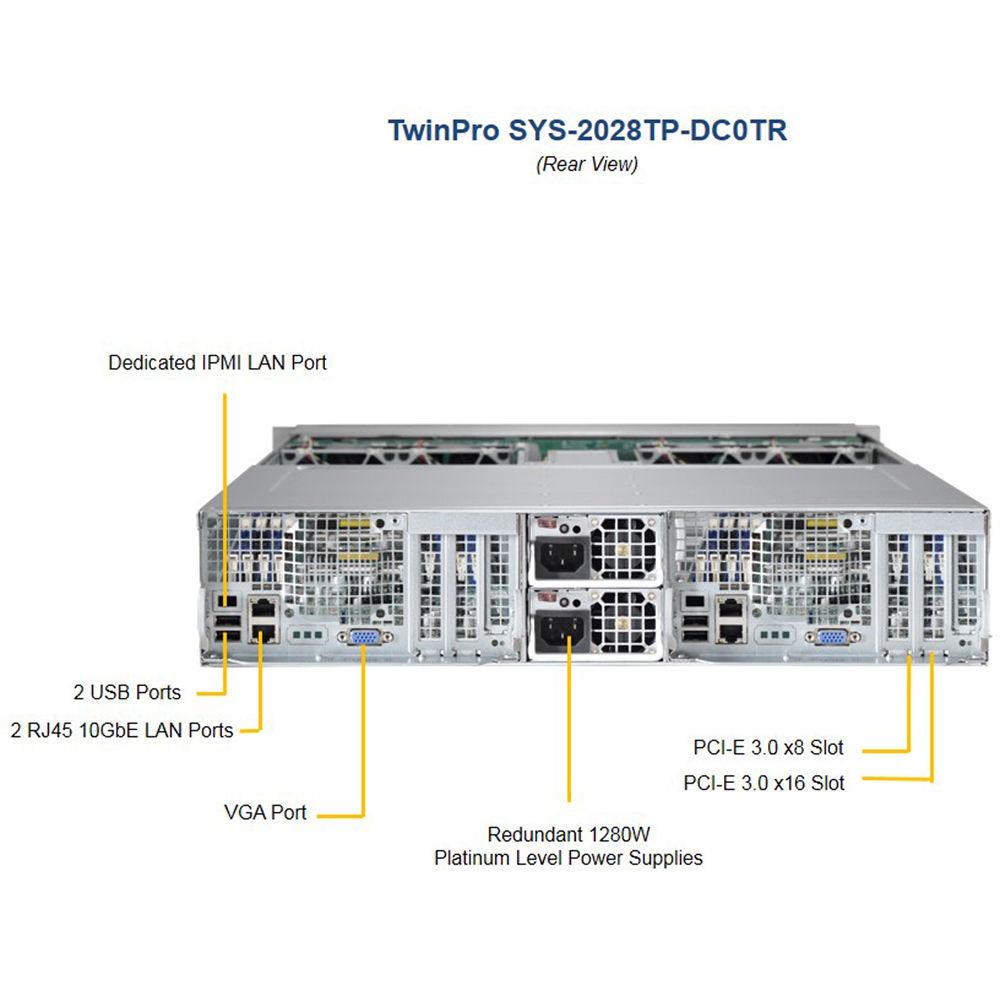

1 (total) / 1 (free) x PCIe 3.0 x8 | | Interfaces | 2 x LAN (10Gigabit Ethernet)
1 x management
2 x USB 3.0
1 x VGA
1 x serial | | | | Included Accessories | 4 x CPU heatsinks | | Features | UEFI BIOS | | Compliant Standards | Plug and Play, APM 1.2, RoHS, ACPI 4.0 | | | | 80 PLUS Certification | 80 PLUS Platinum | | | | Service & Support | Limited warranty - parts - 1 year
Limited warranty - labor - 3 years | | | | Width | 17.2 in | | Depth | 28.5 in | | Height | 3.5 in | | | | Min Operating Temperature | 50
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
