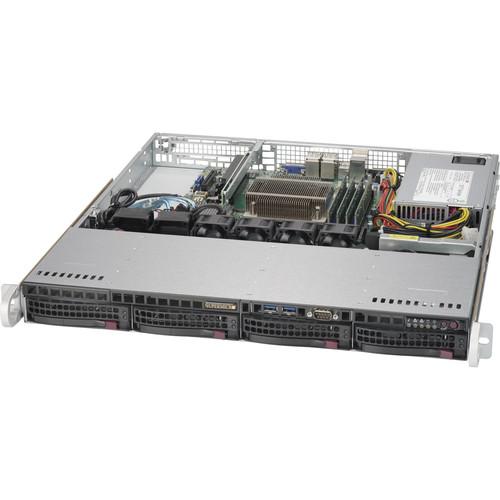

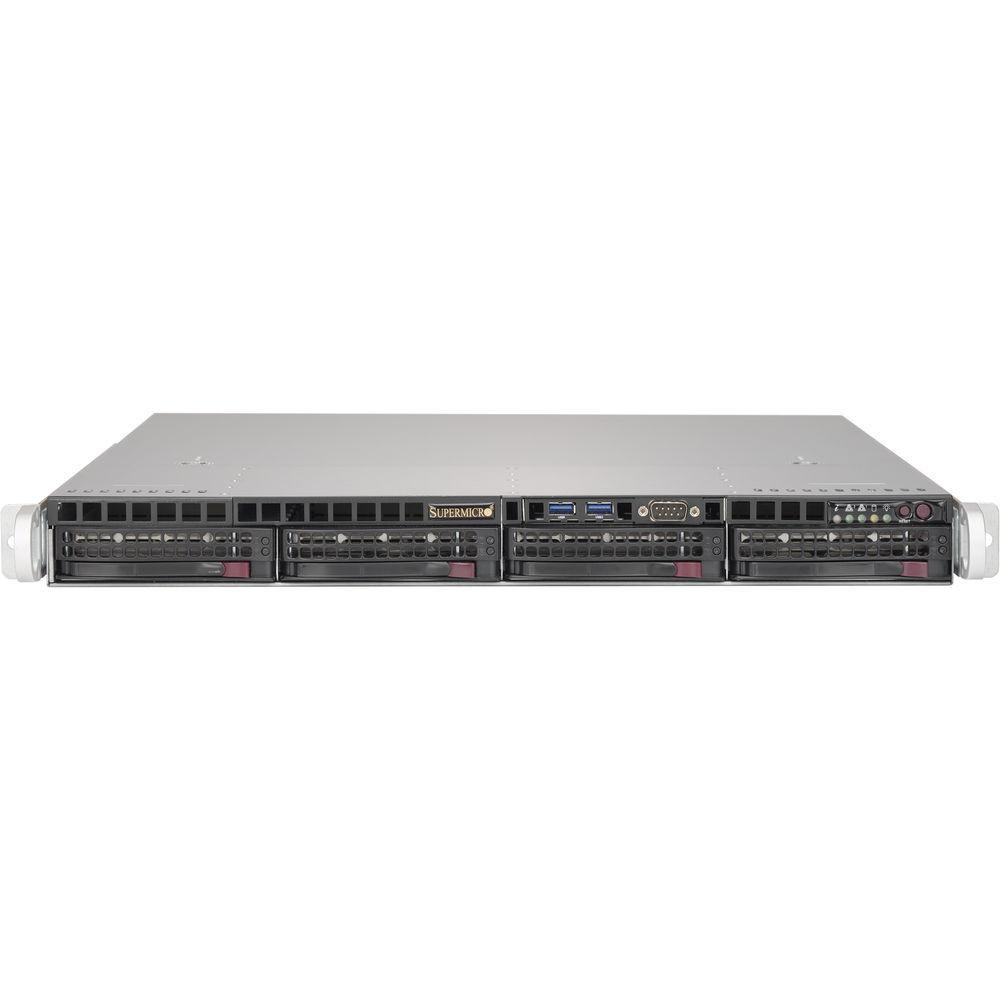

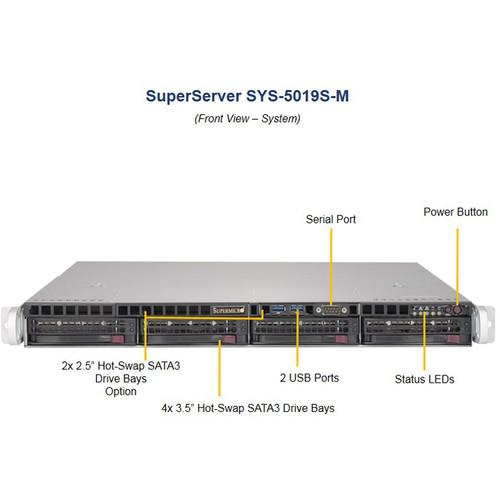

User Manual for Supermicro 5019S-M 4-Bay 3.5" Hot-Swap SATA III RAID SuperServer Click to enlarge the picture
Contents of the user manual for the Supermicro 5019S-M 4-Bay 3.5" Hot-Swap SATA
- Product category: Server Systems Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Server Systems
 |
User manual for the Supermicro 5019S-M 4-Bay 3.5" Hot-Swap SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|

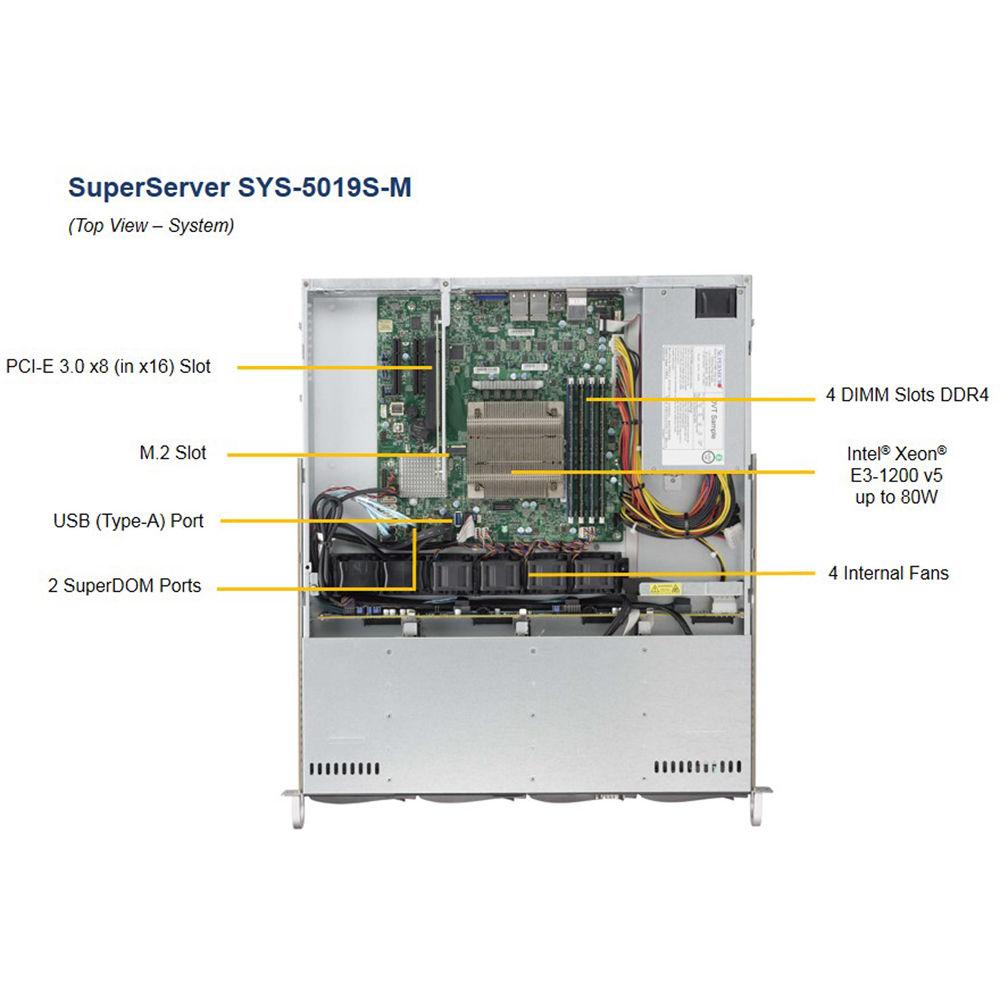

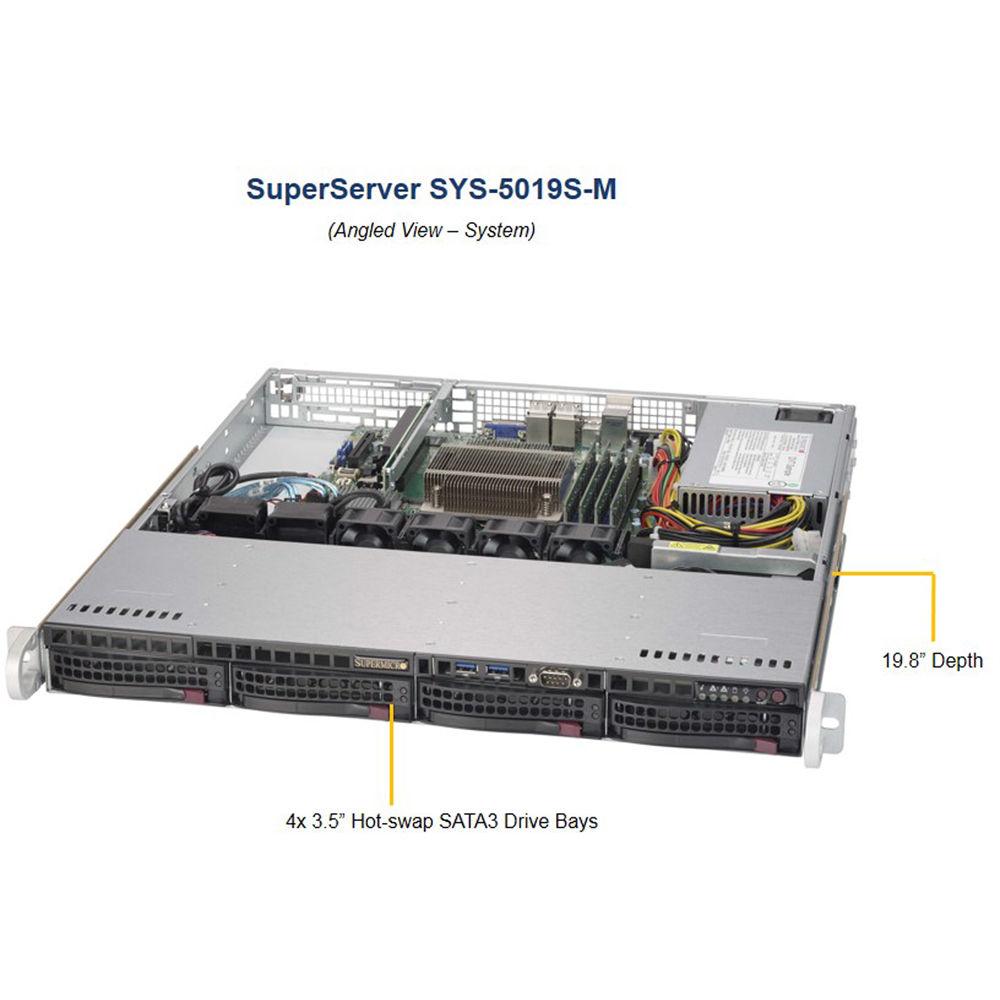

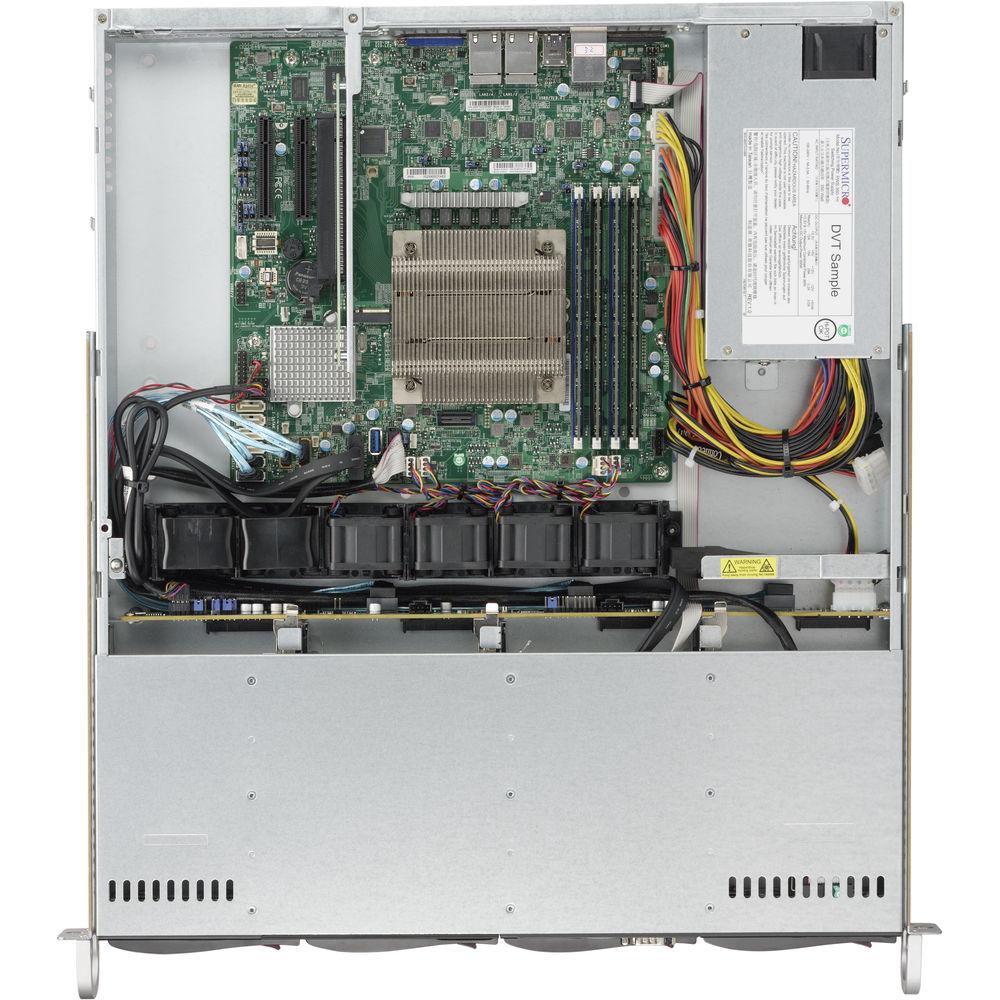

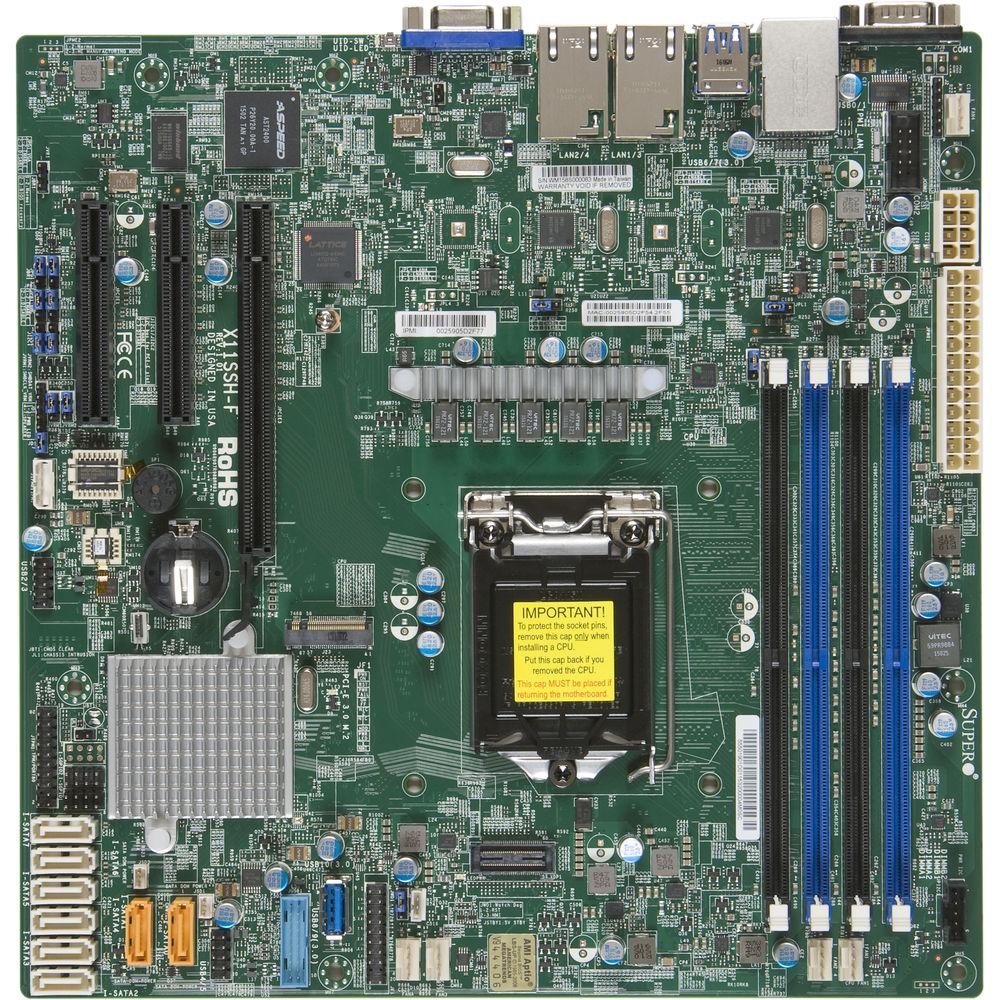

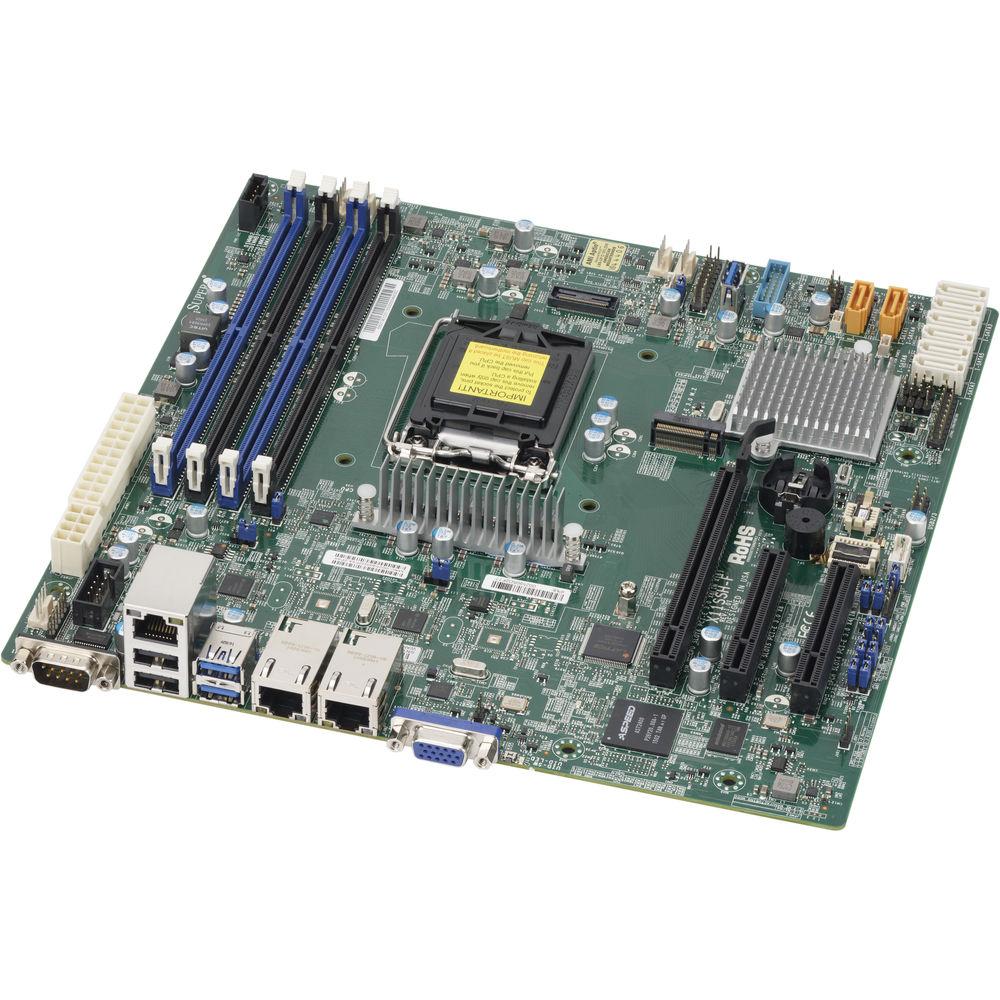

Product description Provided by third party: Built to deliver long lifespan performance for the latest in embedded, industrial, and security applications, Supermicro uni-processor 1U rack servers and the newest Intel Xeon E3-1200 v5 family processors enable the best performance and efficiency available, with the highest levels of quality and reliability. UPC: 672042203819 In the Box Supermicro 5019S-M 4-Bay 3.5" Hot-Swap SATA III RAID SuperServer (1 RU) SuperServer 5019S-M (Black) 1 x Super X11SSH-F Motherboard 1 x 1U Chassis 1 x SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB 1 x 1U 4-Port 12Gbps Backplane Support 4x3.5" SAS/SAS HDD/SSD 1 x 8 pin to 8 pin round SGPIO cable, 40cm, 28AWG, pinout 1-1,RoHS/REACH 1 x SET OF 4 SATA 56/45.5/35/23CM ROUND S-RA. 26AWG 1 x Riser card bracket for SC812,813,813M,815,111,113,113M 1 x Black 2x USB3.0/COM port tray in slim FDD bay 1 x 5019S-M/MR,QRG,HF,RoHS/REACH 1 x RSC-RR1U-E16 with PCI-E x16 output 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156 1 x 1U Single AC-DC 350W Platinum Level, multiple output power supply 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro 5019S-M 4-Bay 3.5" Hot-Swap SATA III RAID SuperServer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro SYS-5019S-M Specs | | | Number of Processors Supported | 1 | | Processor Socket | Socket H4 LGA-1151 | | Processor Supported | Core i3
Xeon | | 64-bit Processing | Yes | | Chipset Manufacturer | Intel | | Chipset Model | C236 | | | | Maximum Memory | 64 GB | | Memory Technology | DDR4 SDRAM | | Memory Standard | DDR4-2133/PC4-17000 | | Number of Total Memory Slots | 4 | | | | Controller Type | Serial ATA/600 | | RAID Supported | Yes | | | | Graphics Controller Manufacturer | ASPEED | | Graphics Controller Model | AST2400 | | | | Ethernet Technology | Gigabit Ethernet | | | | Number of Total Expansion Bays | 4 | | Number of 3.5" Bays | 4 | | Number of Total Expansion Slots | 2 | | Number of PCI Express x8 Slots | 1 | | | | Total Number of USB Ports | 4 | | Number of USB 3.0 Ports | 2 | | Number of SATA Interfaces | 4 | | | | Input Voltage | 120 V AC
230 V AC | | Number of Power Supplies Installed | 1 | | Maximum Power Supply Wattage | 350 W | | | | Color | Black | | Form Factor | Rack-mountable | | Rack Height | 1U | | Height | 1.7" | | Width | 17.2" | | Depth | 19.8" | | Weight (Approximate) | 30.42 lb | | | | Environmentally Friendly | Yes | | Environmental Certification | RoHS | | | | Package Weight | 31.65 lb | | Box Dimensions (LxWxH) | 29.4 x 23.6 x 8.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
