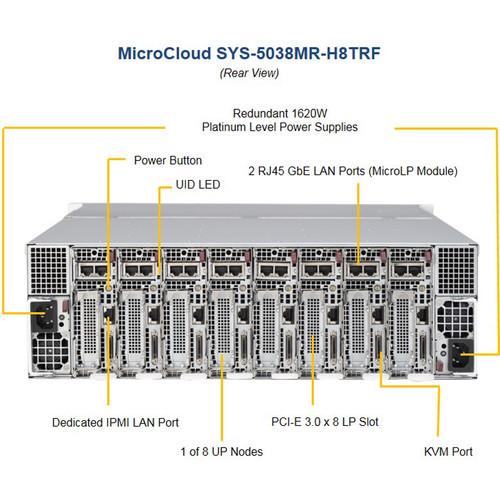

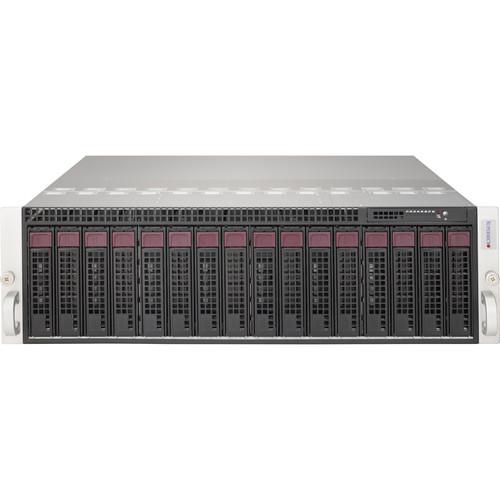

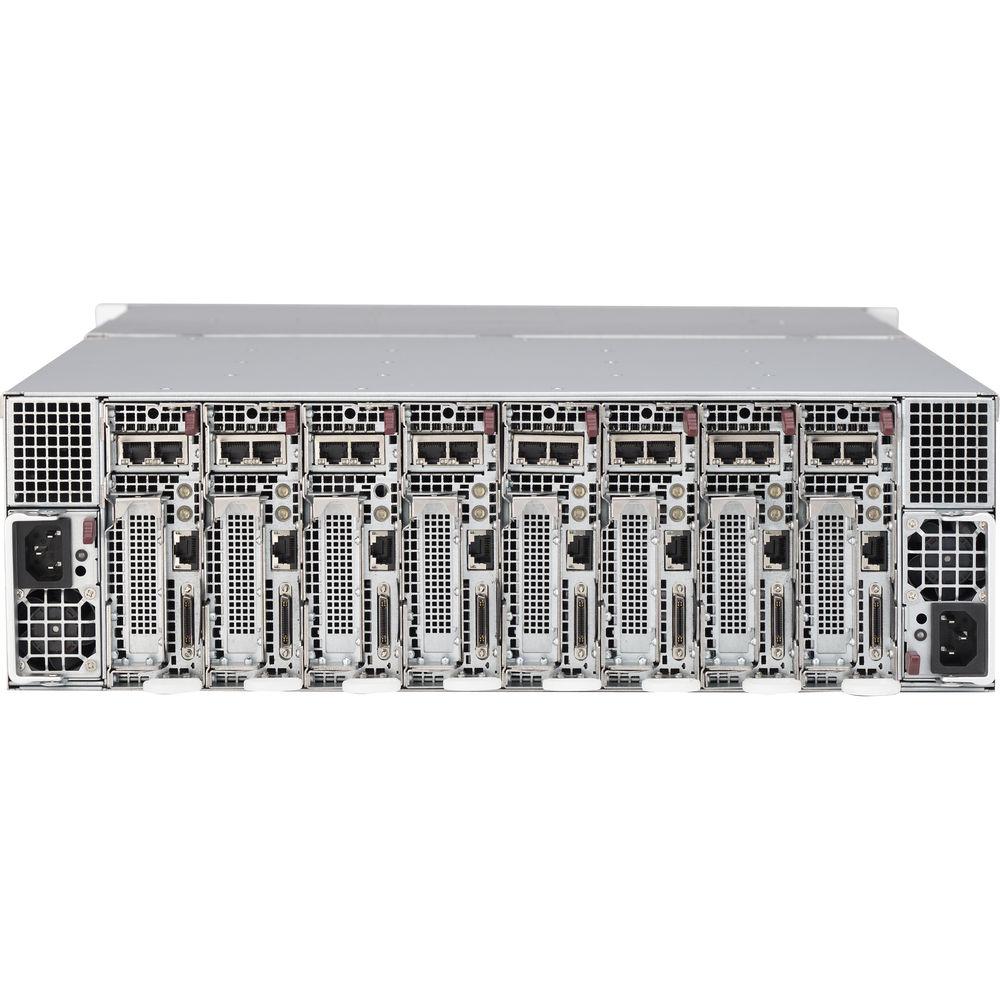

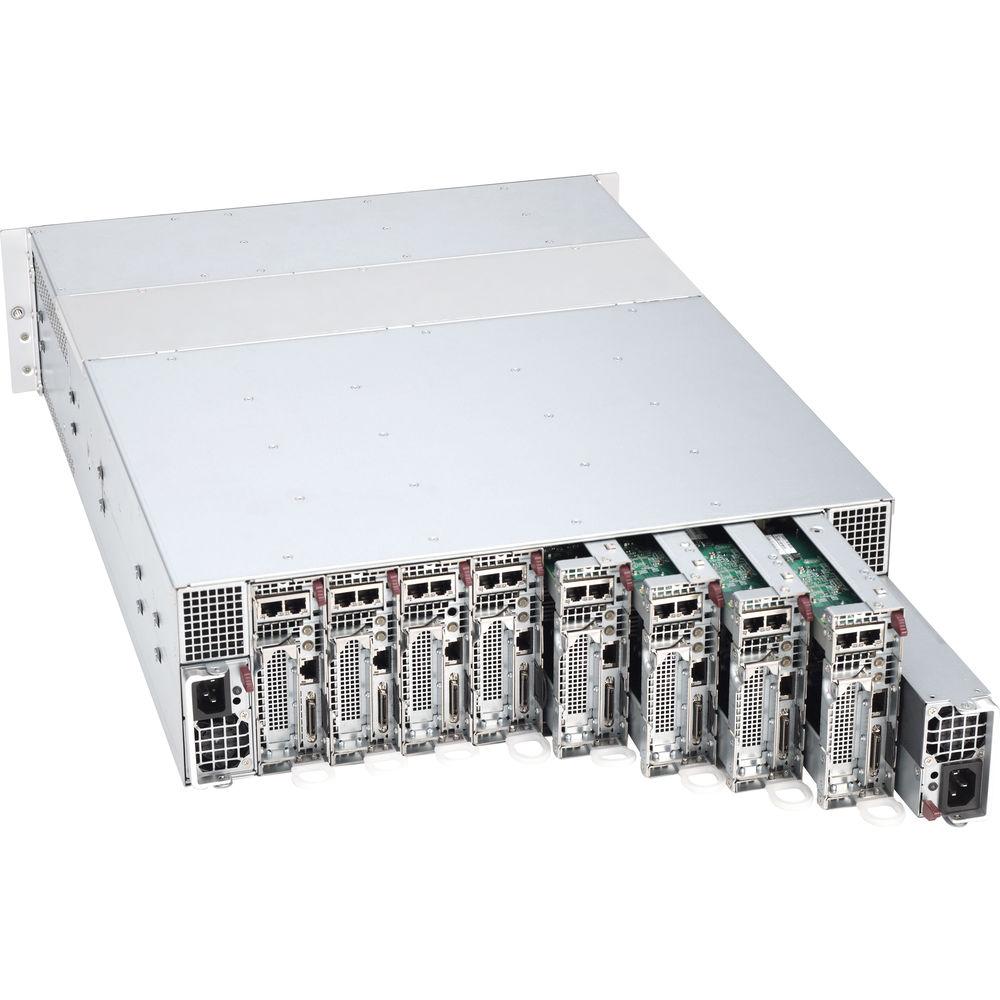

Product description With 16 hot-swappable drive bays (2 per node), the 5038MR-H8TRF 16-Bay MicroCloud SuperServer from Supermicro is designed to handle a wide variety of business storage needs. Each drive bay features dual RJ-45 GbE LAN ports along with a dedicated IPMI LAN port and KVM port.

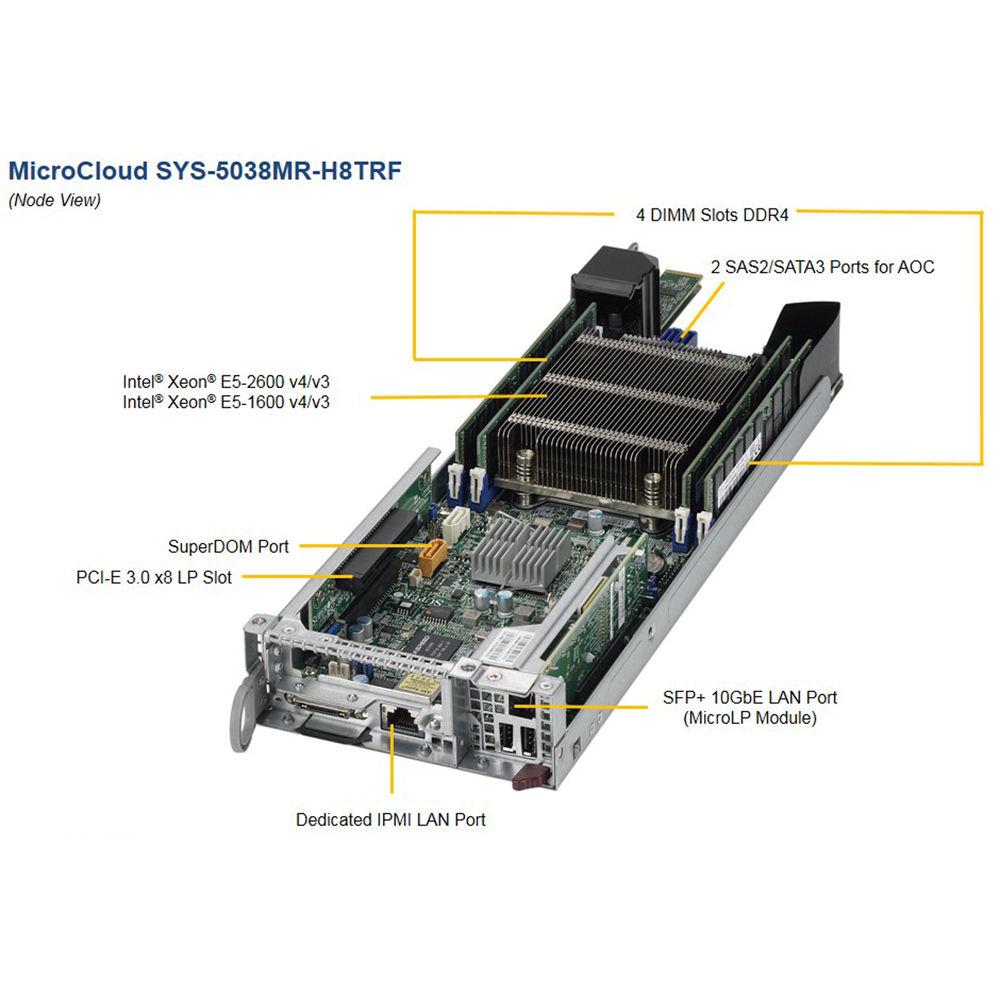

Inside the 16-Bay SuperServer you will find an Intel Xeon E5-2600 processor supporting up to 22 cores and 55MB of cache memory. In addition to enhanced processing power, this server comes equipped with four 288-pin DDR4 DIMM slots and an Intel C612 Chipset. You will find two Intel i350 Gigabit LAN ports per node along with two SATA 3.0 ports, a single VGA, COM, and two USB 2.0 ports assigned to each node. The server chassis occupies 3 RU of rackmount space making it an ideal server solution for large rackmount configurations. - Single socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4 / v3 & E5-1600 v4 / v3 family

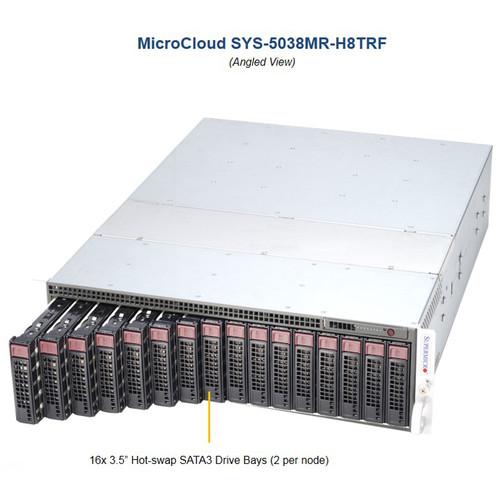

- 2 x 3.5" Hot-swap SATA3/SAS drive bays by default; or 2 x 2.5" SATA3 HDD Bays w/ optional kits (SAS requires RAID/HBA AOC)
- 1 x PCI-E 3.0 x8 and 1x Micro-LP
- Up to 512GB ECC 3DS LRDIMM, up to DDR4- 2400 MHz; 4 x DIMM slots
- 2 x GbE LAN ports via Intel i350
- 1 x Dedicated LAN for IPMI Remote Management
- 4 x 8cm heavy duty hot-swap fans with optimal cooling zone (per system)
- 1620W Redundant power supplies Platinum Level Certified (per system)
UPC: 672042183630 In the Box Supermicro 5038MR-H8TRF 16-Bay MicroCloud SuperServer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro 5038MR-H8TRF 16-Bay MicroCloud SuperServer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro SYS-5038MR-H8TRF Specs | Motherboard | MBD-X10SRD-F | | Processor | CPU
Intel Xeon processor E5-2600 v4/ v3, E5-1600 v4/ v3 family (up to 145 W TDP)
Single Socket R3 (LGA 2011)
Core / Cache
Up to 22 Cores / Up to 55 MB cache
Note: BIOS version 2.0 or above is required
Note: Ambient temperature should be no higher than 77°F / 25°C | | System Memory | Memory Capacity
• 4 x 288-pin DDR4 DIMM slots
• Up to 512 GB ECC 3DS LRDIMM
• Up to 256 GB ECC LRDIMM
• Up to 128 GB ECC RDIMM
Memory Type
2400/2133/1866/1600 MHz ECC DDR4
SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
• 3DS LRDIMM: 128 GB
• LRDIMM: 64 GB, 32 GB
• RDIMM: 32 GB, 16 GB, 8 GB, 4 GB
Memory Voltage
• 1.2 V
Error Detection
• Corrects single-bit errors
• Detects double-bit errors (using ECC memory) | | Devices | On-Board Devices (per node)
Chipset
• Intel C612 chipset
SATA
• 1x SATA DOM• SATA 3.0 (6Gbps) with RAID 0, 1IPMI
• Support for Intelligent Platform Management Interface v.2.0• IPMI 2.0 with virtual media over LAN and KVM over LAN support• Aspeed AST2400 BMC
Headers
• 1x USB Type A 3.0, TPM ready
Graphics
• Aspeed AST2400 BMC
Network Devices (per node)
MicroLP NIC
• Intel i350, 2x Gigabit LAN ports
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel I/OAT 3 support for fast, scalable, and reliable networking
• VMDq support for better performance of virtualization | | Input/Output | Serial ATA
2 x SATA 3.0 ports (6 Gbps)
LAN
2 x RJ-45 Gigabit Ethernet LAN ports
1 x RJ-45 Dedicated IPMI LAN port
KVM
1 x VGA, 1 x COM, and 2 x USB 2.0 (with KVM dongle) ports | | System BIOS | BIOS Type
• 128 Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
• Plug and Play (PnP)
• APM 1.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• RTC (Real Time Clock) Wakeup | | Rear Controls | Switch
• Power / UID | | Chassis | Form Factor
• 3 RU
Model
• CSE-938BH-R1620B | | Front Panel | Buttons
• Power On/Off button
LEDs
• Power LEDNode status LED | | Expansion Slots | PCI-Express
• 1 (x8) PCI-E 3.0 Low-profile slot
• 1x Micro-LP for Dual GbE (pre-installed), 10GbE or IB AOC option | | Drive Bays | Hot-swap

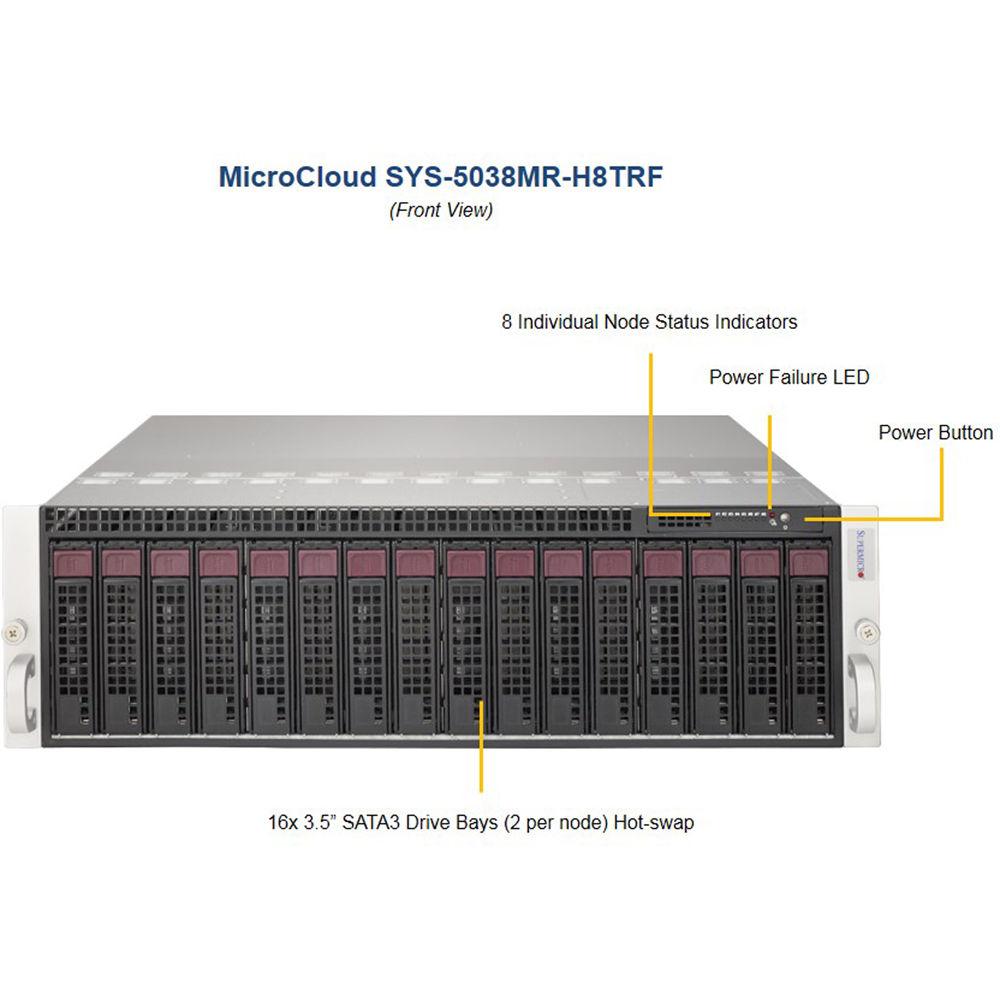

• 2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node
(or 2x 2.5" SATA3 with optional kits); up to 16 HDDs total
• Enterprise SATA HDD only recommended | | System Cooling | Fans
4 x 8 cm 11K RPM, 4-pin PWM cooling fans | | Power Supply | 1620W high-efficiency redundant power supply w/ PMBus
AC Input
• 1000 W Output @ 100-120 V, 12-10 A, 50-60 Hz
• 1200 W Output @ 120-140 V, 12-10 A, 50-60 Hzv• 1620 W Output @ 180-240 V, 10.5-8 A, 50-60 Hz
DC Output
• 1000 W: +12 V/84 A; +5 Vsb/4 A
• 1200 W: +12 V/100 A; +5 Vsb/4 A
• 1620 W: +12 V/150 A; +5 Vsb/4 A
Certification
• Platinum certified | | Product Health Monitoring | CPU
• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
• 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
• Cooling zone
Temperature
• Monitoring for CPU and chassis environment | | Temperature & Humidity | Operating Temperature
50 to 95°F / 10 to 35°C
Non-Operating Temperature
-40 to 158°F / -40 to 70°C
Operating Relative Humidity
8 to 90% non-condensing
Non-Operating Relative Humidity
5 to 95% non-condensing | | RoHS | RoHS compliant | | Dimensions | 5.2 x 17.3 x 23.2" / 132.5 x 438.4 x 589.0 mm | | Weight | 62.2 lb / 28.2 kg |
