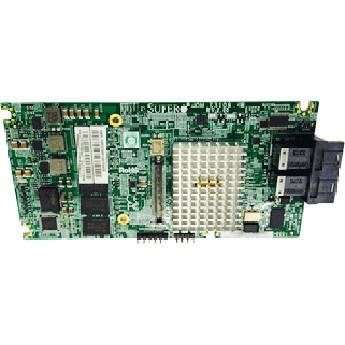

Product description Designed to meet the needs of high capacity storage applications, the 8-Port SAS Internal RAID Controller Card from Supermicro features eight internal SAS connectors along with an LSI SAS 3108 8-port PCI-E SAS-3 controller. This RAID controller card is capable of handling up to eight devices and supports RAID 0, 1, 5, 6, 10, 50, and 60 giving admins the ability to configure storage to suit a variety of business needs. With an on-board IO processor and 2GB of DDR3 on-card cache this RAID card can function efficiently even under heavy workloads. The 8-port RAID Controller Card comes compatible with a variety of operating systems including Windows, RedHat Enterprise, and SUSE Linux making it easy to fit this card into nearly any network configuration. - LSI SAS 3108 8-port PCI-E SAS-3 controller
- 8-port (8 internal) 12 Gb/s per port
- Supports 16 physical Devices
- Supports RAID 0, 1, 5, 6, 10, 50, 60
- On board hardware IO Processor
- 2GB 1866MHz DDR3 on-card cache
- Advanced array configuration and management utilities
- Automatically negotiates PCI-E link widths
- Supports 1.5, 3.0, 6.0 and 12 Gb/s SAS and SATA data transfer rates
- Port independent auto-negotiation
- Supports SSP, SMP, STP and SATA protocols
- OS Support: Windows XP, 2K3, 2K8, Vista, RedHat Enterprise, and SUSE Linux
UPC: 672042169160 In the Box Supermicro 8-Port SAS Internal RAID Controller Card Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro 8-Port SAS Internal RAID Controller Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro AOM-S3108M-H8 Specs | Compatibility | Motherboards
• X10DRW-i
• X10DRW-iN
• X10DRW-iT | | Controller | LSI SAS 3108 8-port PCI-E SAS-3 | | SAS Connector | 8 x Internal SAS connectors | | RAID Support | RAID 0, 1, 5, 6, 10, 50, 60 | | Cache | 2 GB 1866 MHz DDR3 on-card cache | | Transfer Rate | Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates | | OS Support | Windows XP, 2K3, 2K8, Vista, RedHat Enterprise, and SUSE Linux | | Ambient Operating Temperature | 50 to 131°F / 10 to 55°C | | Compliance | RoHS compliant 6/6, Pb free | | Dimensions | 2.5 x 5.2" / 6.35 x 13.21 cm | | Weight | Not specified by manufacturer |
