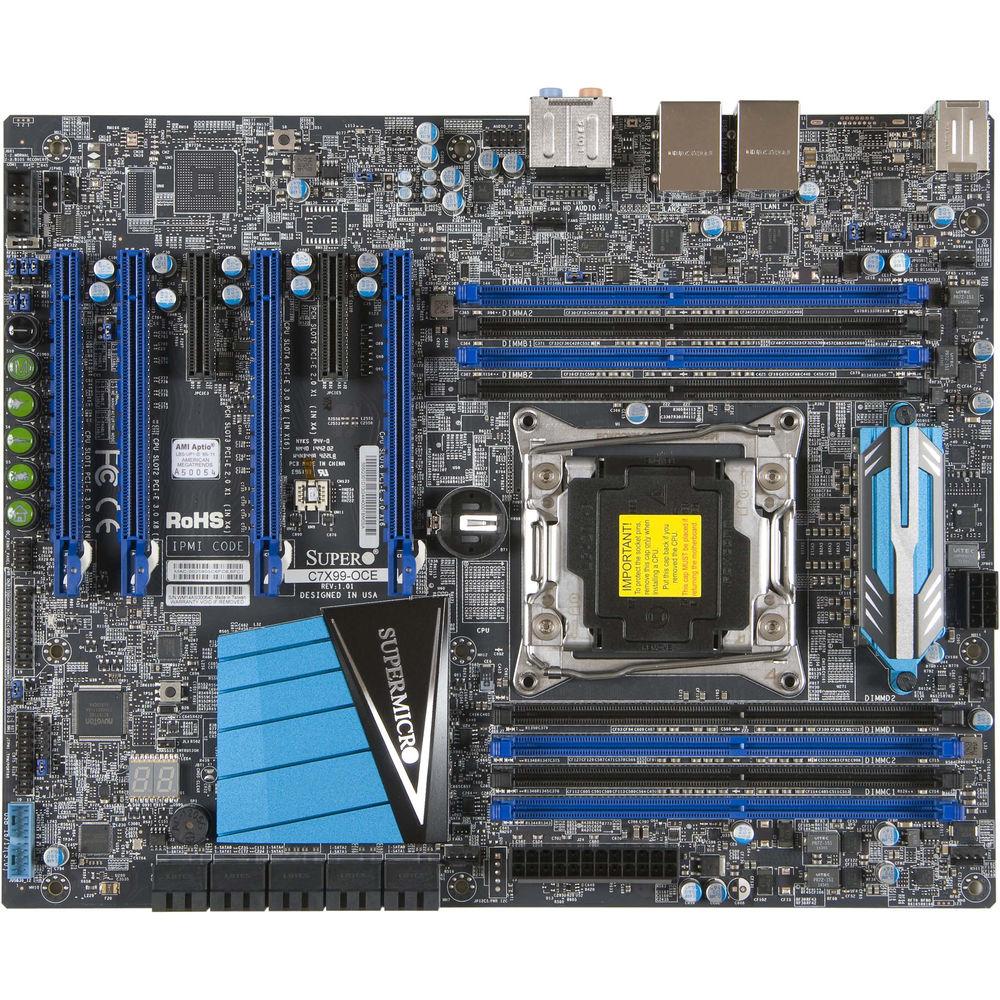

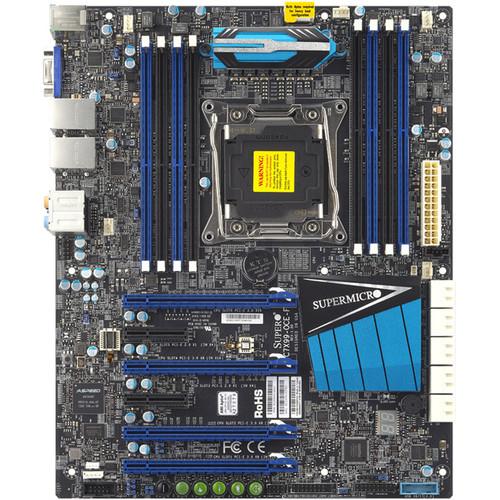

Product description The Supermicro C7X99-OCE-F ATX Motherboard comes with an LGA 2011 socket that can support a 4th-gen Intel Core i7 processor or an Intel Xeon E5-2600/1600 processor. It has eight DDR4 RAM slots that are compatible with 288-pin non-ECC UDIMM modules. These slots allow you to build a system with up to 64GB of RAM. With an Intel processor and X99 chipset, this motherboard supports ten SATA III and six USB 3.0 ports as well as four PCIe 3.0 x16 and two PCIe 2.0 x1 slots.
This motherboard comes built with a RealTek ALC1150 audio codec that delivers sound through the 7.1 HD audio jacks. It offers an ASPEED AST2400 BMC, a VGA port, and IPMI 2.0 software for IPMI functions. Networking is accomplished via an Intel i210-AT controller with IPMI support that provides Gigabit speeds along with two RJ-45 ports. Additionally, this motherboard is built with a PS/2 combo port. UPC: 672042172344 In the Box Supermicro C7X99-OCE-F ATX Motherboard 6 x SATA Cables I/O Shield Driver CD Limited 3-Year Labor Warranty Limited 1-Year Hardware Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro C7X99-OCE-F ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro X99 Specs | | | CPU | Intel 4th-generation Core i7 series
Intel Xeon processor E5-2600/1600 v3 family (up to 160 W TDP)
Single socket R3 (LGA 2011) | | | | Memory | 8 x 288-pins DDR4 DIMM sockets
Supports up to 64 GB of DDR4 non-ECC unbuffered memory (UDIMM) in 8 DIMM slots | | Frequency | Frequency up to 3300 MHz(OC) non-ECC DDR4 SDRAM 72-bit
284-pin (UDIMM) gold-plated DIMMs
Supports overclocking up to 3300 MHz | | DIMM Sizes | 8 GB, 4 GB, 2 GB, and 1 GB | | Voltage | 1.2 V | | | | Chipset | Intel X99 | | SATA | 10 x SATA III (6 Gb/s) ports (6 x iSATA RAID 0/1/5/10, 4 x sSATA) | | Network Controllers | Intel i210-AT Dual Port Gigabit Ethernet
Share with IPMI

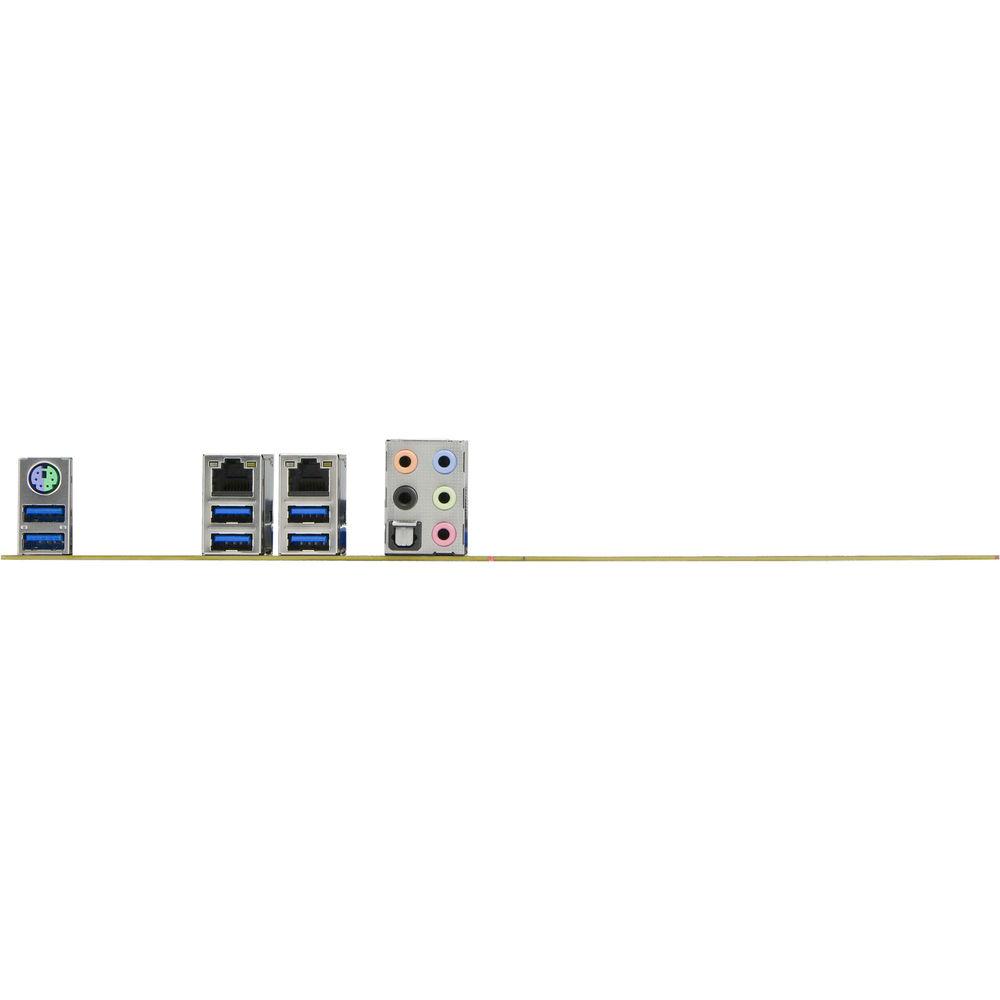

Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ-45 output | | Audio | RealTek ALC1150 7.1 high definition audio | | Graphics | ASPEED AST2400 BMC (for IPMI only) | | | | SATA | 10 x SATA III (6 Gb/s) ports | | LAN | 2 x RJ-45 Gigabit Ethernet LAN ports
Shared with IPMI | | USB | 8 x USB 3.0 ports (6 x rear + 2 x via header) | | Audio | 7.1 HD audio jacks | | Video | 1 x VGA (Aspeed AST 2400 BMC for IPMI) | | Keyboard/Mouse | 1 x PS/2 keyboard/mouse port | | Serial Port | 1 x header | | TPM | 1 x TPM 1.2 20-pin header | | | | PCIe | 4 x PCIe 3.0 x16 (run at 16/16/NA/8 or 16/8/8/8)
2 x PCIe 2.0 x1 (in x4) | | | | Type | 128 Mb SPI flash EEPROM with AMI BIOS | | Features | Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup | | | | Software | IPMI 2.0
SuperDoctor III
Watch Dog | | Power Configurations | ACPI power management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery | | | | Voltage | +12 V, +3.3 V, +5 V, 1.05 (PCH), 1.2 V (VDIMM), 3.3 V standby, chassis intrusion header, monitors CPU voltages, VBAT | | Fan | Total of 5 fan headers supporting up to 5 fans
5 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors | | Temperature | Monitoring for CPU and chassis environment
CPU thermal trip support
Temperature sensing logic
Supports Thermal Monitor 2 (TM2)
PECI | | LED | CPU/System overheat
Suspend static indicator | | Other Features | Chassis intrusion detection
Chassis intrusion header | | | | Compliance | RoHS | | Form Factor | ATX | | Dimensions | 12.0 x 9.6" / 304.8 x 243.8 mm | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 13.3 x 10.4 x 3.0" |
