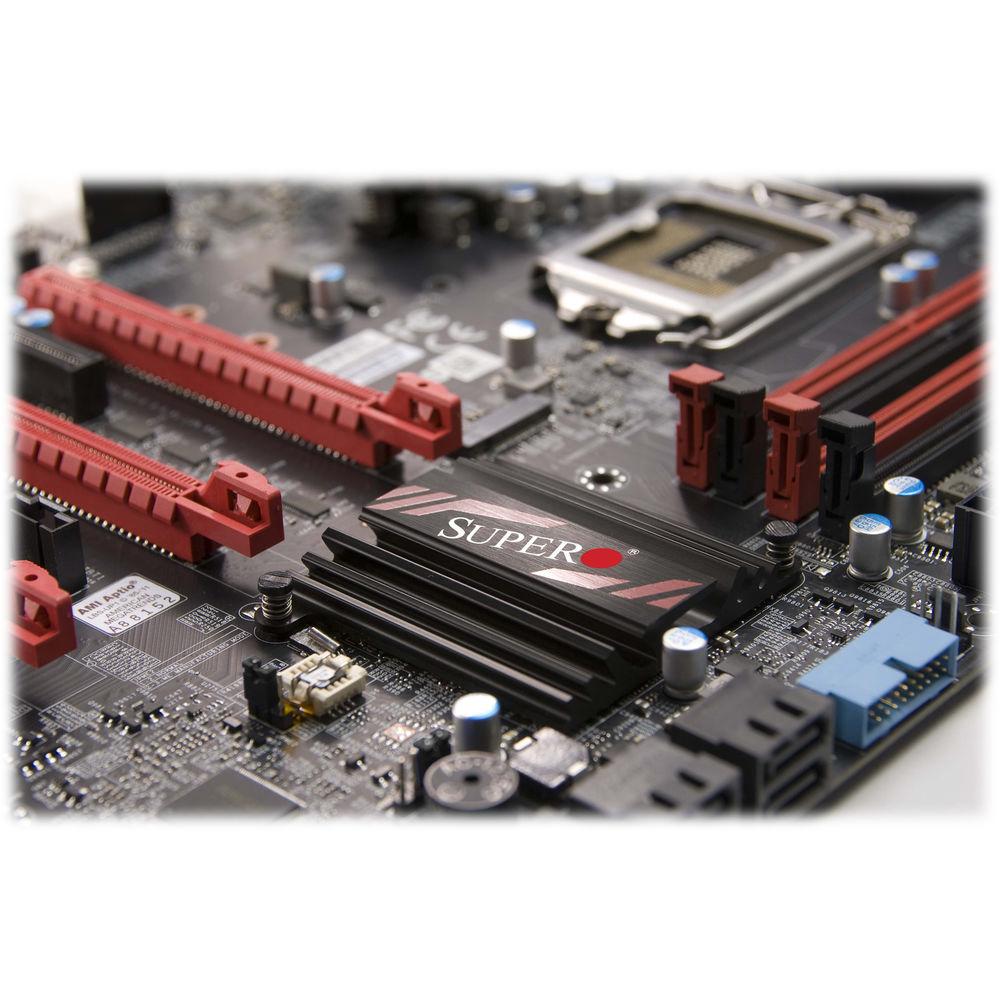

User Manual for Supermicro C7Z170-SQ ATX Motherboard Click to enlarge the picture
Contents of the user manual for the Supermicro C7Z170-SQ ATX Motherboard
- Product category: Motherboards Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Motherboards
 |
User manual for the Supermicro C7Z170-SQ ATX Motherboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|

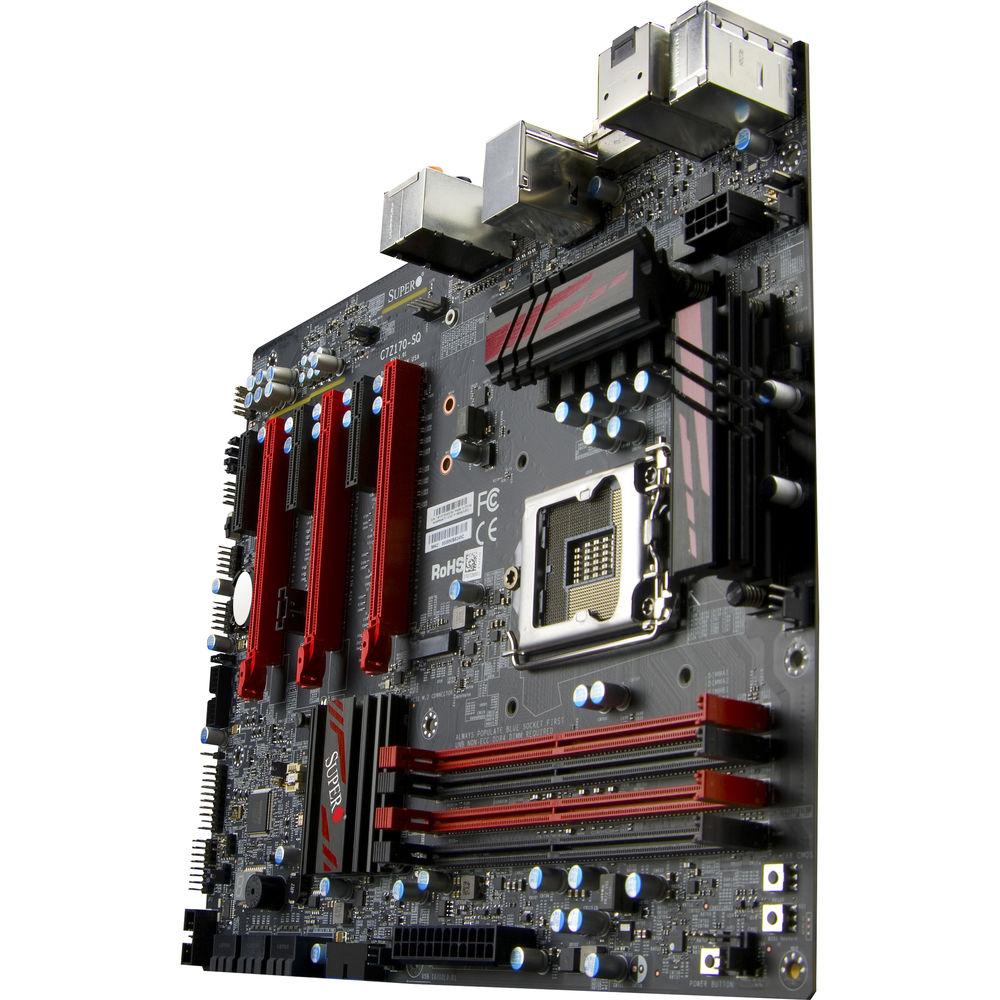

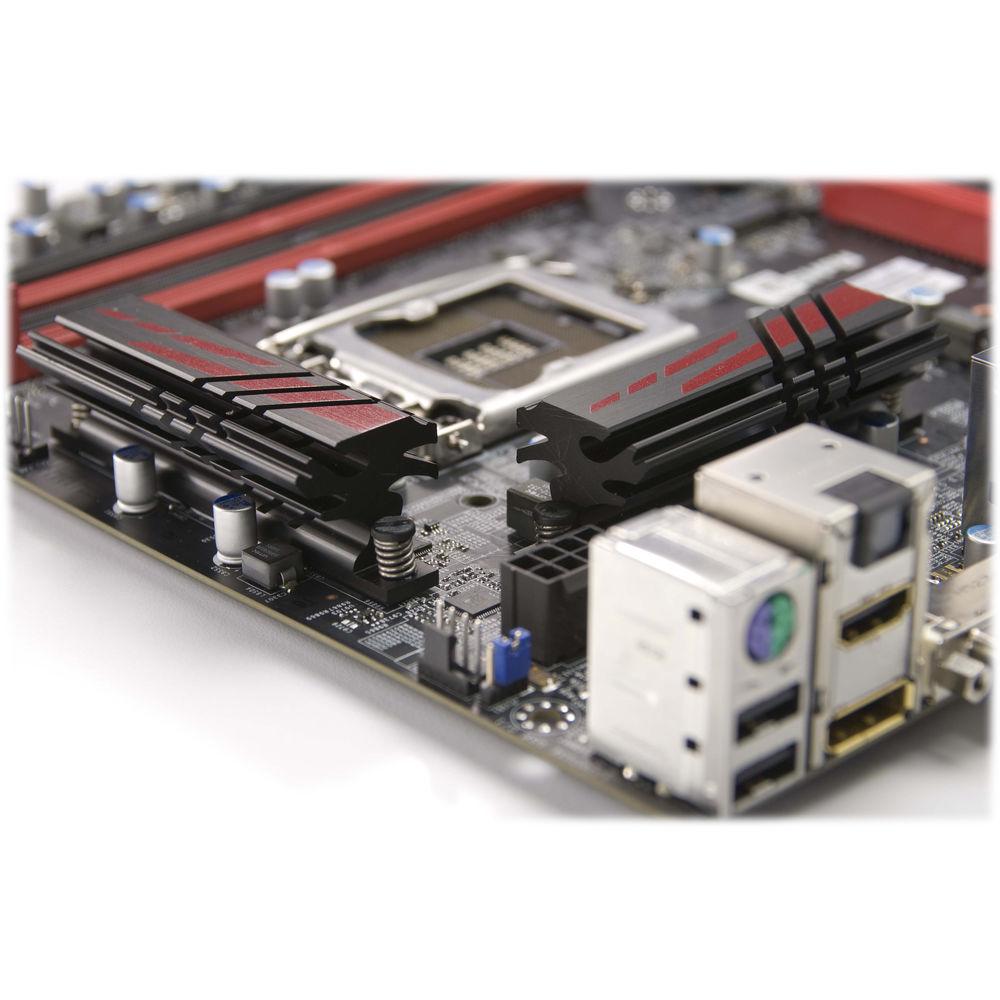

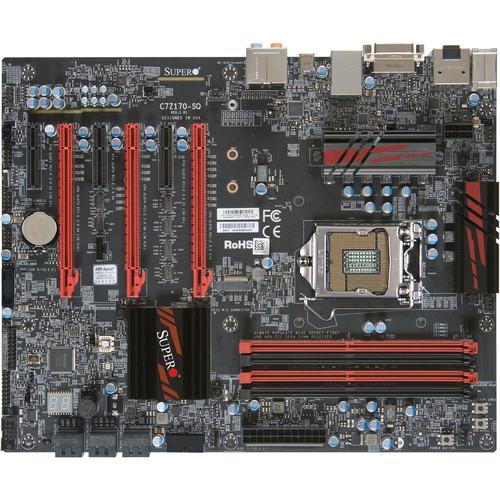

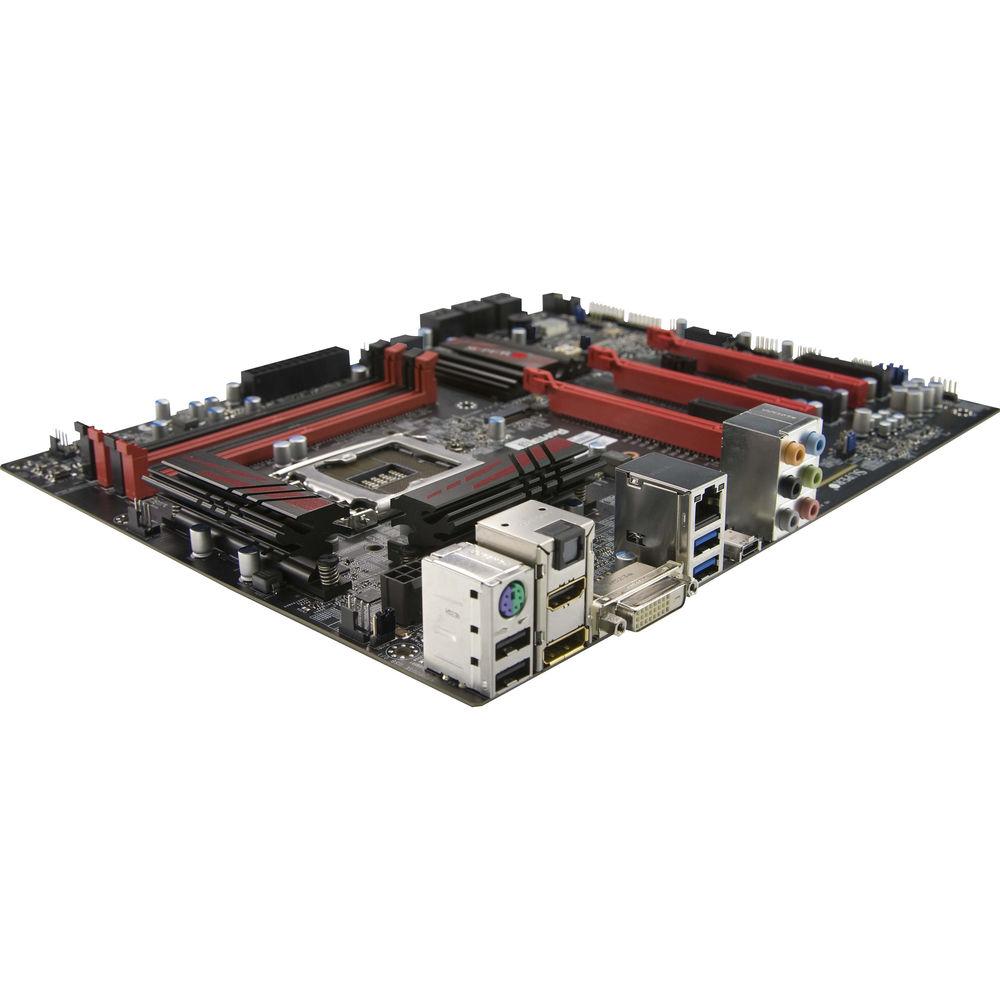

Product description The Supermicro C7Z170-SQ ATX Motherboard lets you build a system with a 6th-generation Intel processor along with up to 64GB of DDR4 memory modules. It comes with an M.2 connector that utilizes the multiple PCI Express lanes to support PCIe-based SSDs. Supermicro has outfitted this motherboard with three PCIe 3.0 x16 slots so you can install optional graphics cards designed for video editing or gaming. Aside from the internal components, this motherboard connects to external peripherals via its two USB 2.0 and two USB 3.0 ports. In addition, it has a USB 3.1 port that is faster than USB 3.0 and features a reversible Type-C design.
This motherboard comes equipped with an Intel i219V controller that provides Gigabit Ethernet speeds through the single RJ-45 port. With integrated Intel graphics support, this motherboard delivers visuals to your monitor through its DVI-D, DisplayPort, and HDMI ports. It also offers seven audio jacks as well as Realtek ALC1150 audio to complete the multimedia experience. For SATA-based storage and optical drives, it comes equipped with six SATA III connectors. Moreover, the chipset lets you configure your storage drives into a RAID mode. It also has three PCIe 3.0 slots for building a flexible PC system. - Supermicro SuperDoctor 5
- SuperDoctor 5 is a downloadable software program that monitors the health of the hardware and operating system services from the target nodes in real-time. It also provides alerts to administrators on availability of systems in datacenters.
Monitoring Functions
- Hardware monitoring (fan speed, temperature, voltage, chassis intrusion, redundant power failure, power consumption, disk health, and memory health)
- Software monitoring (HTTP, FTP, and SMTP services)
Notification Functions
- Notifications sent when host or service state changes
- Notifications sent via email and SNMP traps
Control Functions
- Monitored items
- Alert functions
- Password settings
System Information and Report Functions
- 15 System Information Types (baseboard, services, etc)
- 6 Report Types (Supermicro SuperDoctor 5 (SD5) server availability, host status change, and service status change)
Support for industry standard Nagios and Microsoft SCOM

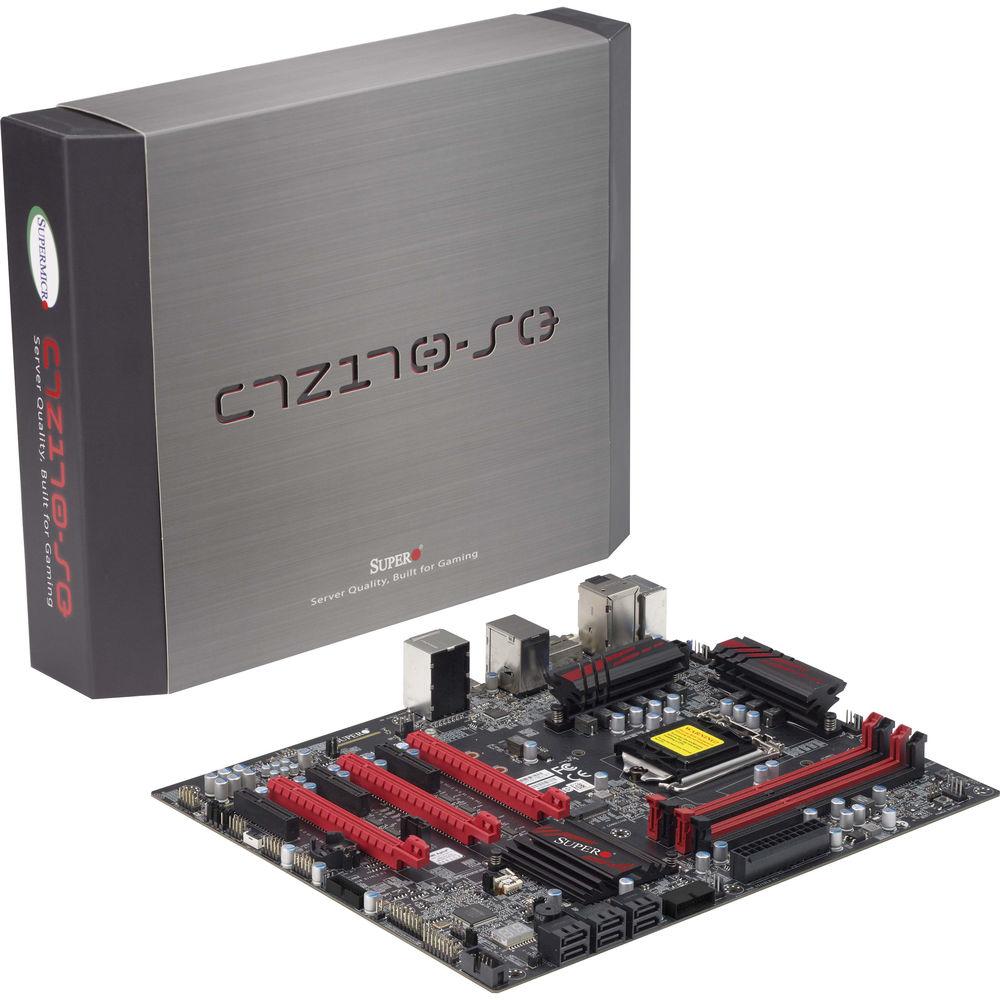

Compatible with Supermicro Server Manager for additional features UPC: 672042197804 In the Box Supermicro C7Z170-SQ ATX Motherboard 6 x SATA Cables I/O Shield Driver CD Limited 3-Year Warranty for Labor Limited 1-Year Warranty for Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro C7Z170-SQ ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

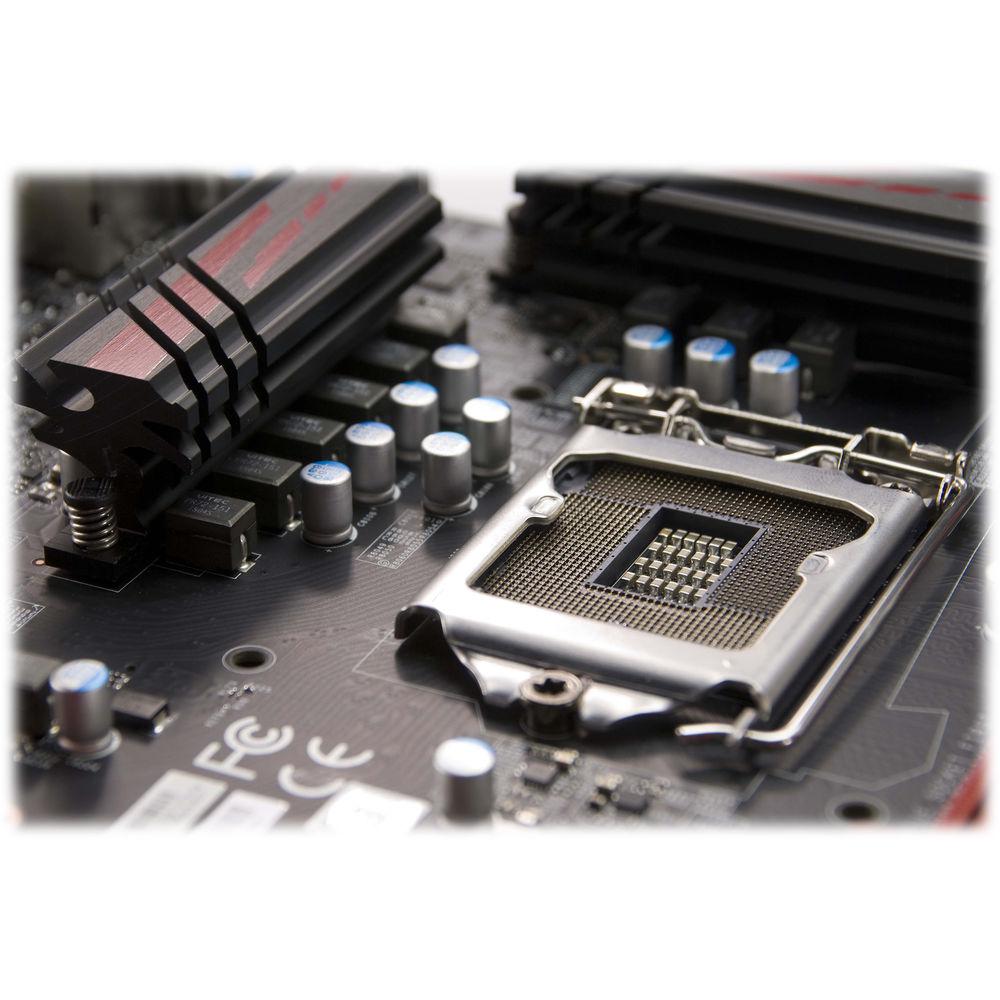

Technical parametersSupermicro C7Z170-SQ Specs | Form Factor | ATX | | Processor Supported | Intel 6th Gen Core i7/i5/i3 processors
Supports up to 160 W TDP
Single socket H4 (LGA 1151) | | Memory Capacity | 4 x 288-pin DDR4 DIMM slots
Supports up to 64 GB of DDR4 non-ECC, un-Buffered memory (UDIMM)
DIMM Size: 16 GB, 8 GB, 4 GB, 2 GB, 1 GB
Memory Voltage: 1.2 V | | Memory Type Supported | Frequency up to 3200 MHz (OC) non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
Supports overclocking up to 3200 MHz | | Chipset | Intel Z170 chipset | | SATA | SATA III via PCH with RAID 0, 1, 5, 10
6 x SATA (6 Gbps) ports | | Storage | 1 x PCIe x4 M.2 connector (supports 2260, 2280, 22110) | | Network Controllers | Intel i219V controller
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T | | LAN | 1 x RJ-45 Gigabit Ethernet LAN port | | Audio | RealTek ALC1150 High Definition Audio

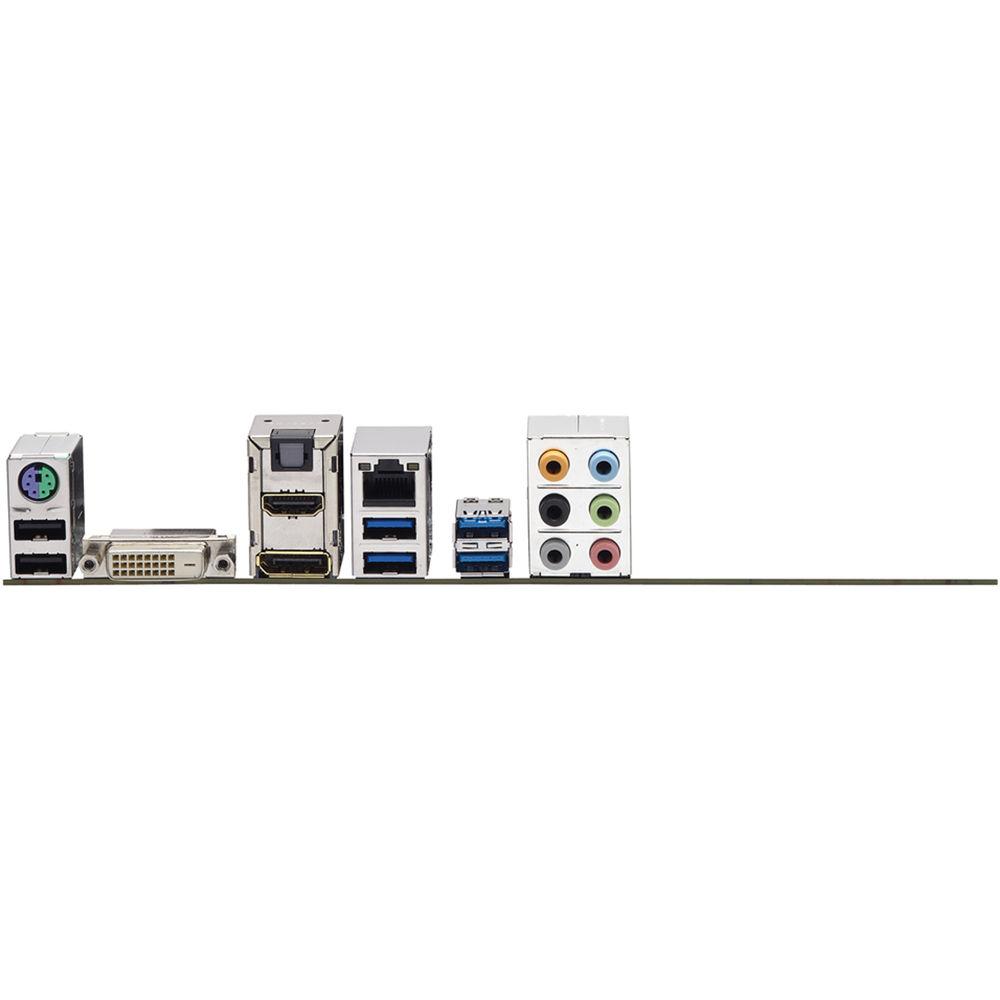

7.1 HD jacks (S/PDIF out, center, surround, s-surround, line-in, line-out, mic-in) | | USB | 6 x USB 3.0 (2 x USB 3.0 rear ports, 4 via headers)
6 x USB 2.0 (2 x USB 2.0 rear ports, 4 via headers)
1 x USB 3.1 with 10 Gb/s Type-C port (rear) | | Keyboard/Mouse | 1 x PS/2 combo port | | Thunderbolt | 1 x Thunderbolt AIC header | | Display | 1 x HDMI port
1 x DisplayPort

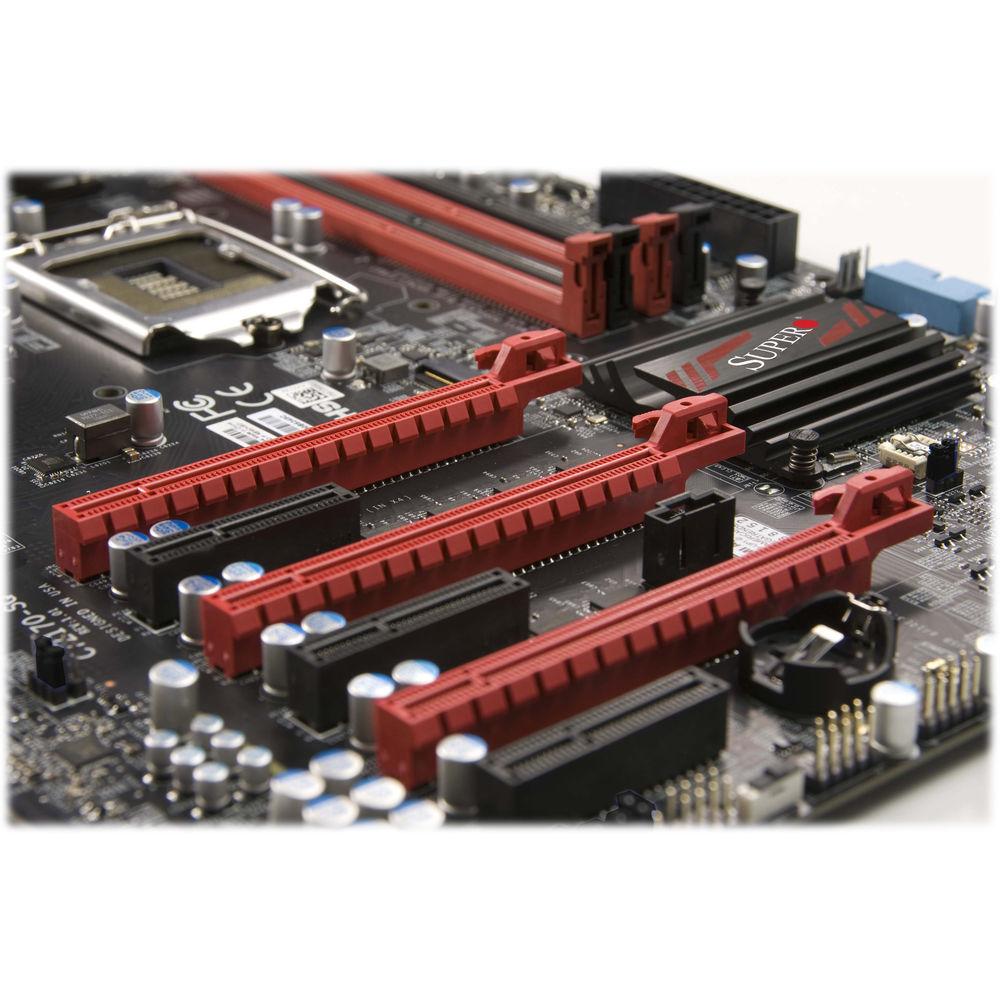

1 x DVI-D | | Serial | 1 x COM port (header) | | Expansion Slots | 2 x PCIe 3.0 x16 slots (single x16 or dual x8)
1 x PCIe 3.0 x16 slot (x4)
1 x PCIe 3.0 x4 slot
2 x PCIe 3.0 x1 slots (in x4) | | BIOS Type | 128 Mb SPI Flash EEPROM with AMI BIOS
DMI (SMBIOS) 2.7
ACPI 5.0
USB Keyboard support | | Power Configurations | ACPI / ACPM power management
Main switch override mechanism
Power-on mode for AC power recovery
Internal/external modem ring-on | | Voltage | Monitors for CPU Cores, +12 V, +3.3 V, +5 V, +5 V Standby, VBAT, HT, memory, chipset voltages
5-Phase-switching voltage regulator with auto-sense from 0.8375 to 1.60 V | | Fan | Total of five 4-pin fan headers supporting up to 5 fans
5 x fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Support 3-pin fans (w/o speed control)
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors | | Temperature | Monitoring for CPU and chassis environment
CPU thermal trip support
FC temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI | | LED | CPU/system overheat LED
+5 V standby alert LED | | Supported Features | Chassis intrusion detection
Chassis intrusion header | | Dimensions | 12.0 x 9.6" / 30.5 x 24.4 cm | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 13.8 x 11.0 x 2.9" |
