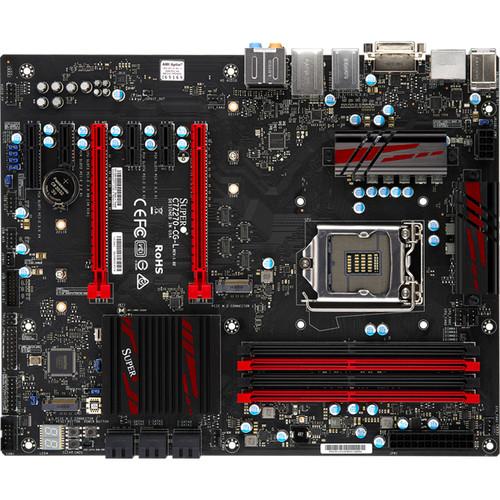

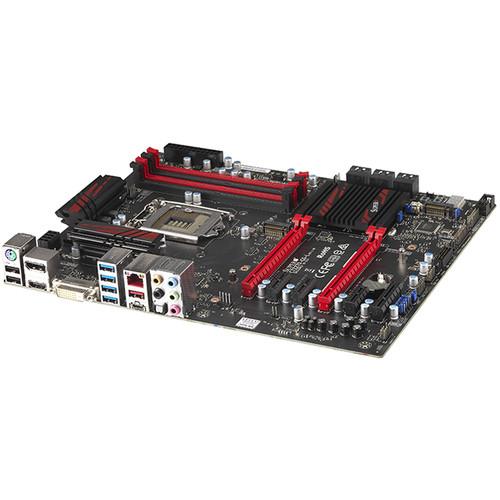

User Manual for Supermicro C7Z270-CG-L ATX Motherboard with Intel Z270 Express Chipset Click to enlarge the picture
Contents of the user manual for the Supermicro C7Z270-CG-L ATX Motherboard with Intel
- Product category: Motherboards Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Motherboards
 |
User manual for the Supermicro C7Z270-CG-L ATX Motherboard with Intel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|

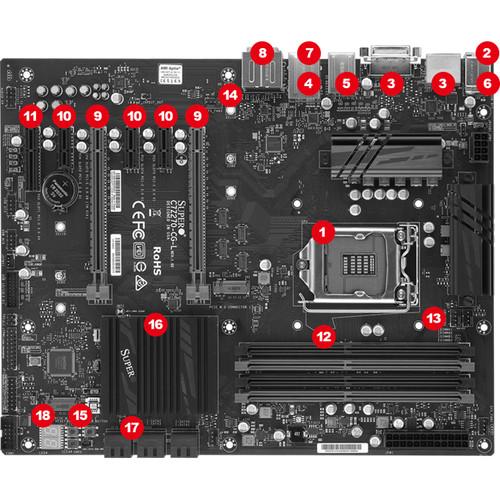

Product description - Key Features
-
- 8-pin 12v DC power connector
- ATX Power connector
- Control of power-on for recovery from AC power loss
- CPU thermal trip support for processor protection
- HD Audio 7.1 channel connector by Realtek ALC1150, support SPDIF-Out
UPC: 672042240500 Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro C7Z270-CG-L ATX Motherboard with Intel Z270 Express Chipset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro MBD-C7Z270-CG-L-O Specs | | | Product Type | Motherboard - ATX | | Chipset Type | Intel Z270 Express | | Processor Socket | LGA1151 Socket | | Max Processors Qty | 1 | | Compatible Processors | Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7) | | | | Max Size | 64 GB | | Technology | DDR4 | | Bus Clock | 2800 MHz (O.C.) | | Supported RAM Integrity Check | Non-ECC | | Registered or Buffered | Unbuffered | | | | Type | HD Audio (8-channel) | | Audio Codec | Realtek ALC1150 | | Compliant Standards | High Definition Audio | | | | Network Controller | Intel I219V | | Network Interfaces | Gigabit Ethernet | | | | Expansion Slots | 1 x CPU
4 x DIMM 288-pin (1.2 V)
2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode)
1 x PCIe 3.0 x4

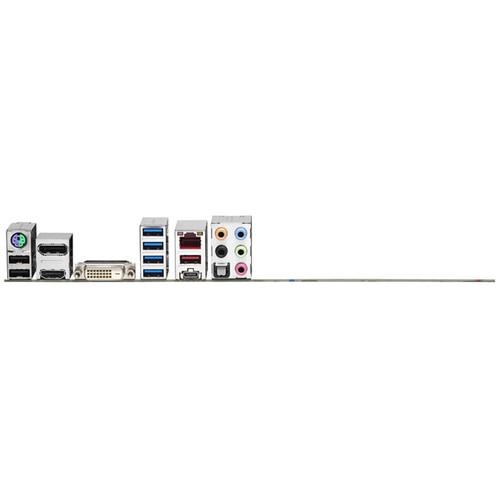

2 x PCIe 3.0 x1 | | Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 | | Interfaces | 2 x USB 2.0
1 x USB 3.1
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x DisplayPort
HDMI
1 x LAN (Gigabit Ethernet)
1 x USB-C
1 x PS/2 keyboard / mouse
1 x TOSLINK
4 x USB 3.0
1 x DVI-D | | Internal Interfaces | 2 x USB 3.0 - header
4 x USB 2.0 - header | | | | BIOS Type | AMI | | BIOS Features | Power failure recovery (AC loss resume), SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support | | Hardware Monitoring | CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage | | Hardware Features | Chassis intrusion detection | | | | Compliant Standards | RoHS | | Width | 12 in | | Depth | 9.6 in | | Package Type | Retail | | | | Service & Support | Limited warranty - parts - 1 year
Limited warranty - labor - 3 years |
