Product description

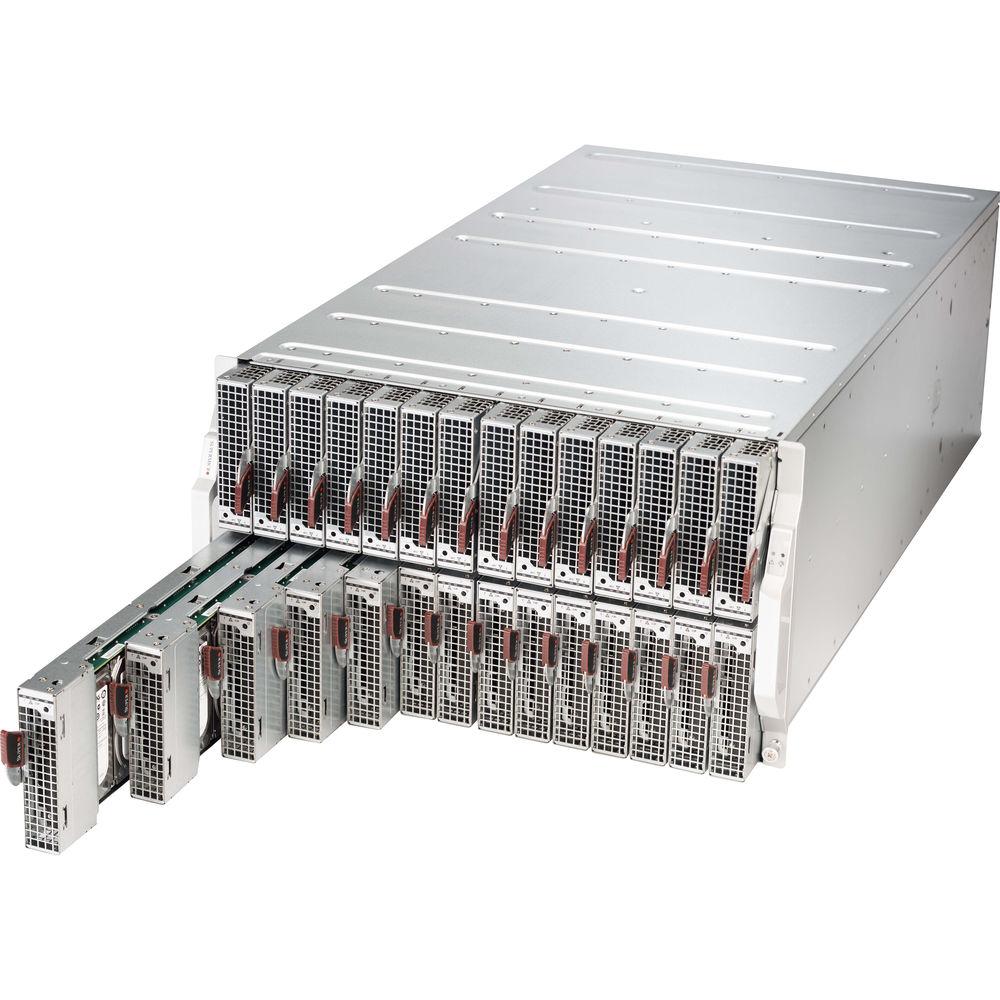

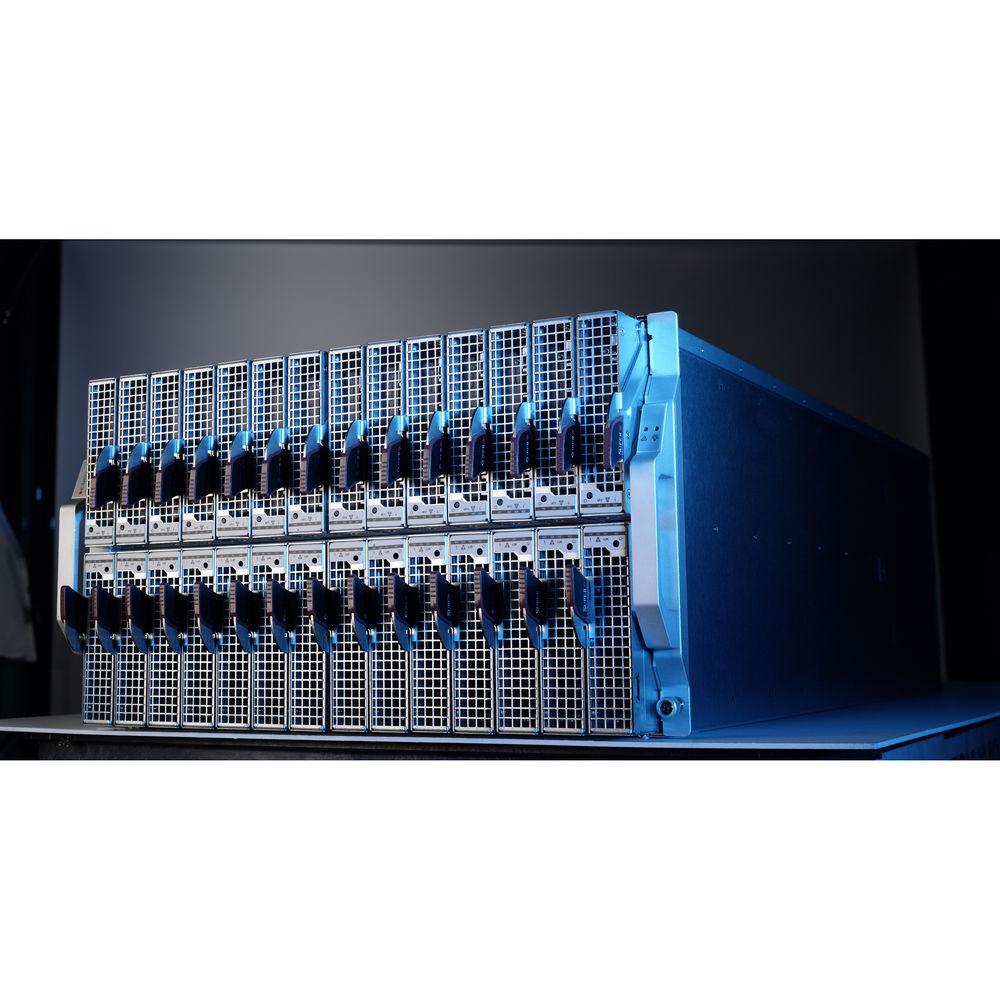

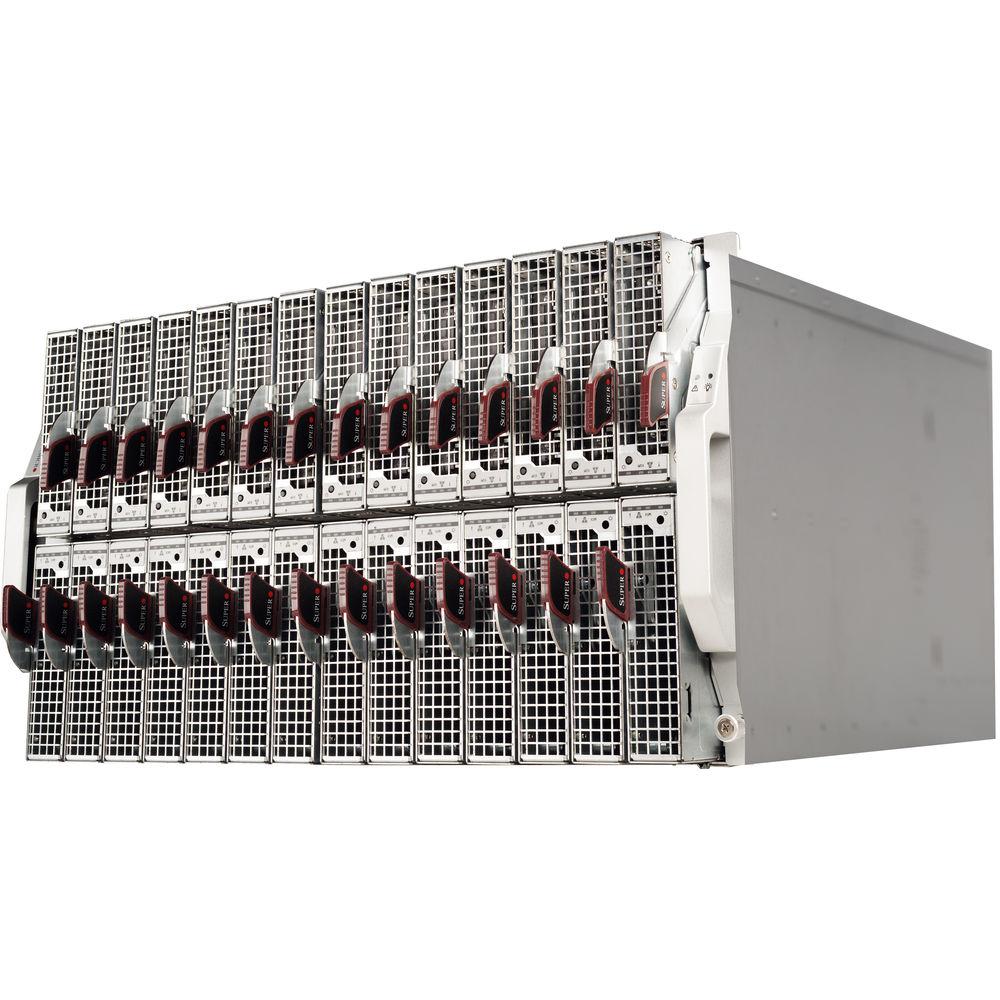

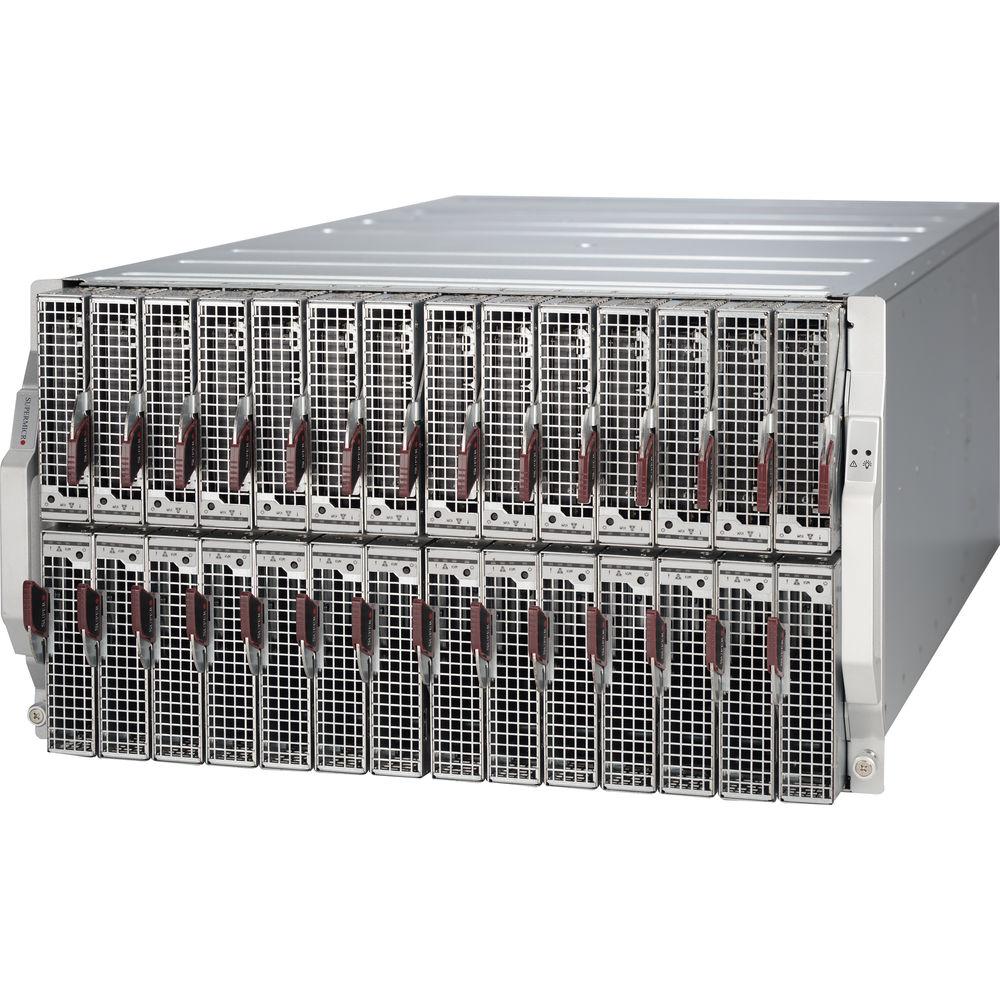

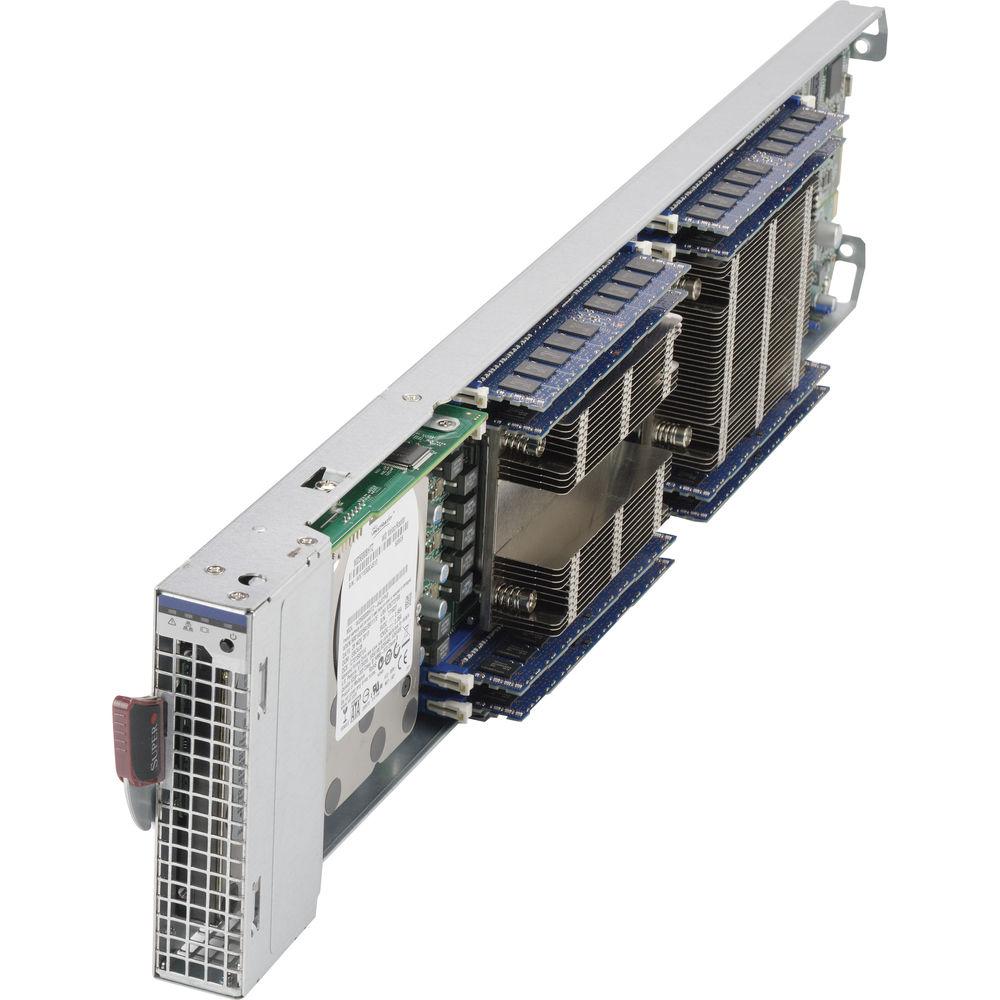

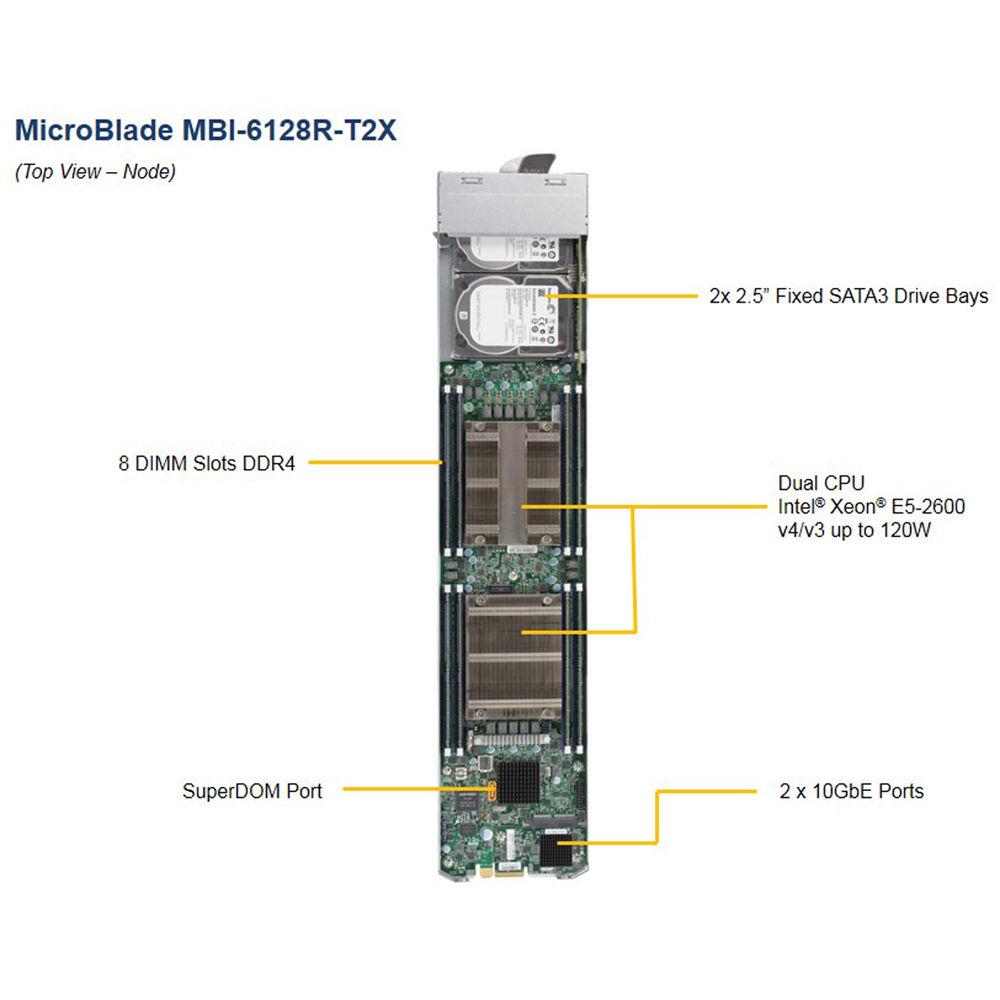

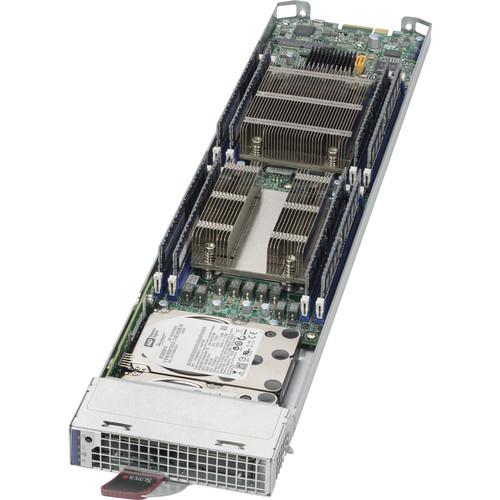

The MBI-6128R-T2X LGA 2011 MicroBlade Server Module from Supermicro supports two Intel Xeon E5-2600 v4/v3 family processors with its dual embedded LGA 2011 sockets. This server module is designed to fit the Supermicro MicroBlade computing platform which comes in 3 RU and 6 RU all-in-one systems. The Microblade module comes equipped with an Intel C612 Express chipset and supports Windows 10/8.1/7 (32-bit/64-bit).

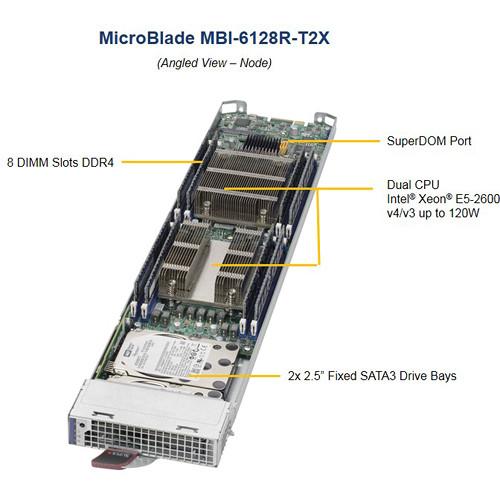

The server module has eight DDR4 DIMM slots that can support up to 256GB VLP ECC RDIMM memory. They support 2400/2133 MHz memory speeds. The module's motherboard offers two 2.5" 6 Gb/s SATA3 HDD/SSD drive bays and a SuperDOM (Disk on Module) port. The two 10GbE LAN ports are accessible via the included AOC-XEH-I2M-O-P add-on Card.

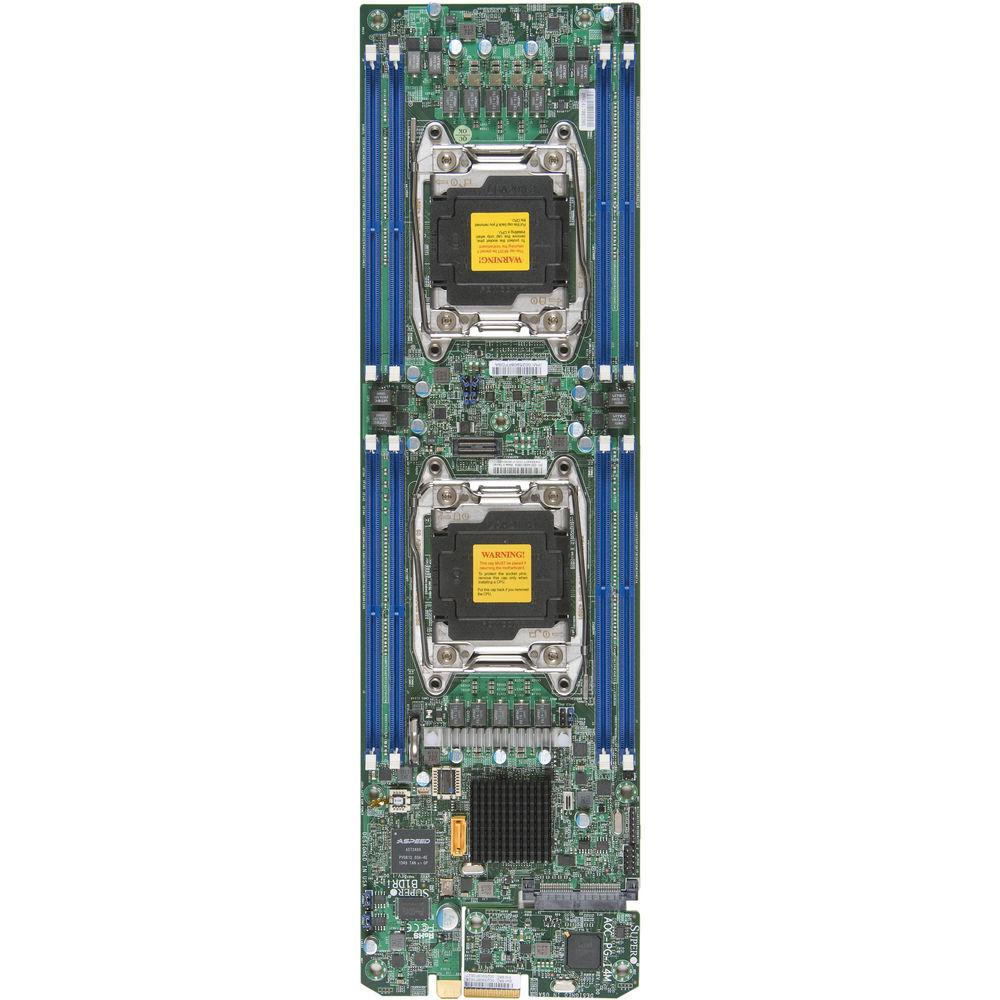

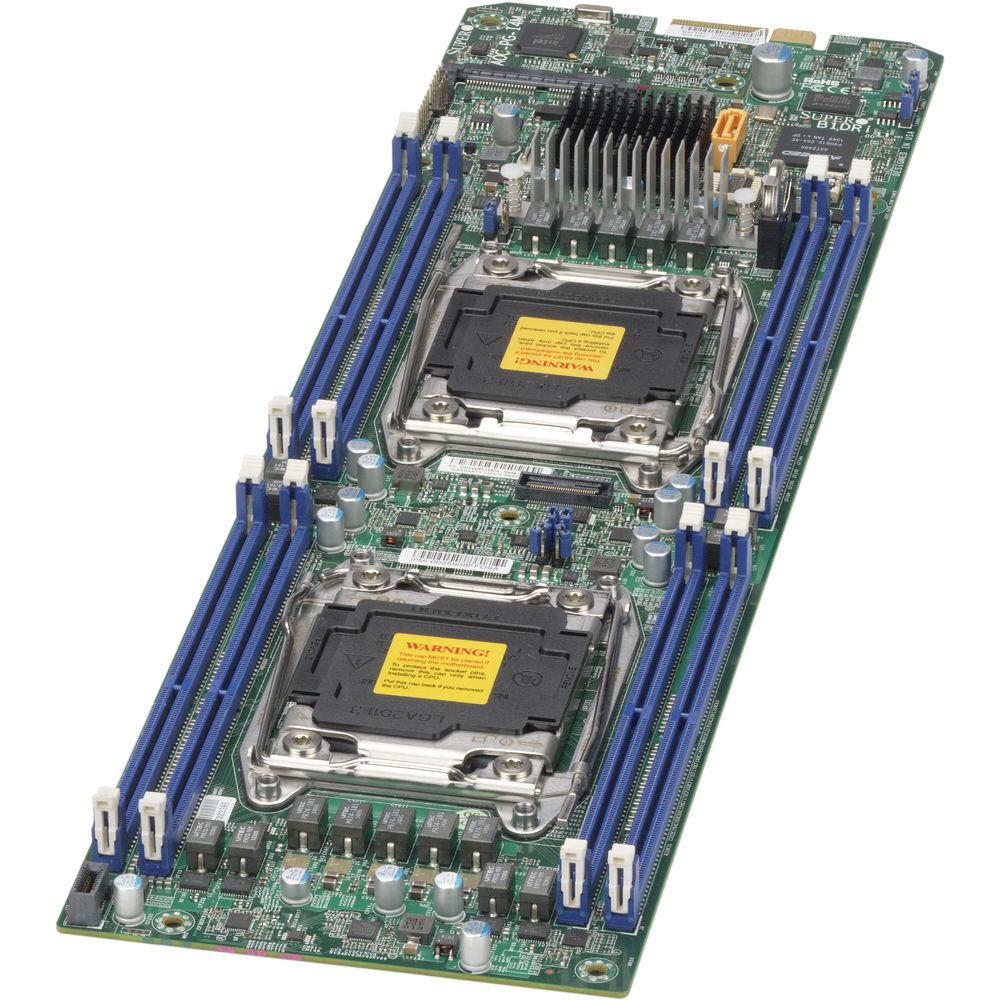

This MicroBlade module includes the AOM-BPN-MS28D-O-P HDD backplane and controller for the included MBD-B1DRi motherboard. It is protected by a limited three-year warranty for labor and one-year warranty for parts. UPC: 672042173983 In the Box Supermicro MBI-6128R-T2X LGA 2011 MicroBlade Server Module
  • MBD-B1DRI MicroBlade Motherboard with Dual Intel Xeon E5-2600 v3
  • MCP-680-31402-0N M628 MicroBlade DP Sled (Complete Assembly)
  • AOC-XEH-I2M-O-P Add-On Card with Dual Ports and 10 GbE Ethernet Controller
  • AOM-BPN-MS28D-O-P HDD Backplane and Controller for B1DRi
  • Limited 3-Year Warranty for Labor
  • Limited 1-Year Warranty for Parts
  • User Manual PDF 1.9mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Supermicro MBI-6128R-T2X LGA 2011 MicroBlade Server Module in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Supermicro MBI-6128R-T2X-PACK Specs

    CPU 2x Intel Xeon processor E5-2600 v4/v3 family (up to 120 W TDP)
    105 W TDP CPU or greater required 2000 W PSU
    Dual Socket R3 (LGA 2011) BIOS version 2.0 or above is required for v4.
    Cores 18 (max)
    Cache 45 MB (max)
    System Bus QPI up to 9.6 GT/s
    Memory Capacity 8 x 288-pin DDR4 DIMM slots
    Up to 256 GB VLP ECC RDIMM
    Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
    DIMM Sizes VLP RDIMM: 32 GB, 16 GB, 8 GB, 4 GB
    Memory Voltage 1.2 V
    Error Detection Corrects single-bit errors
    Chipset Intel C612 Express chipset
    SATA SATA3 (6 Gbps); RAID 0, 1
    DOM 1 x SuperDOM (Disk on Module) port
    LAN 2 x 10 GbE ports (via AOC-XEH-I2M)
    BIOS Type 128 Mb SPI Flash EEPROM with AMI BIOS
    BIOS Features Plug and Play (PnP)
    DMI 2.3
    ACPI 5.0
    USB Keyboard support
    SMBIOS 2.7.1
    UEFI
    Front Panel Power LED
    UID / KVM LED
    Network Activity LED
    Fault LED
    Drive Bays Internal: 2 x 2.5" 6 Gb/s SATA3 HDD/SSD
    1 x SATA DOM per node
    Temperature Operating Temperature: 10° to 35°C (50° to 95°F)
    Non-Operating Temperature: -40° to 70°C (-40° to 158°F)
    Humidity Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-Operating Relative Humidity: 5 to 95% (non-condensing)
    Electromagnetic Compatibility United States/Canada:
    FCC- Emissions (US) Verification
    Europe:
    EN55022 - Emissions
    EN55024 - Immunity
    EN61000-3-2 - Harmonics
    EN61000-3-3 - Voltage Flicker
    CE - EMC Directive 89/336/EEC
    Safety Compliance United States/Canada:
    UL60950-1 - CSA/CUL 60950-1
    Europe:
    EN60950-1, CE - Low Voltage Directive 73/23/EEE
    Germany:
    TUV
    Dimensions 1.20 x 4.94 x 23.20" (3.05 x 12.55 x 58.93 cm)
    Weight 3.4 lb (1.54 kg)
