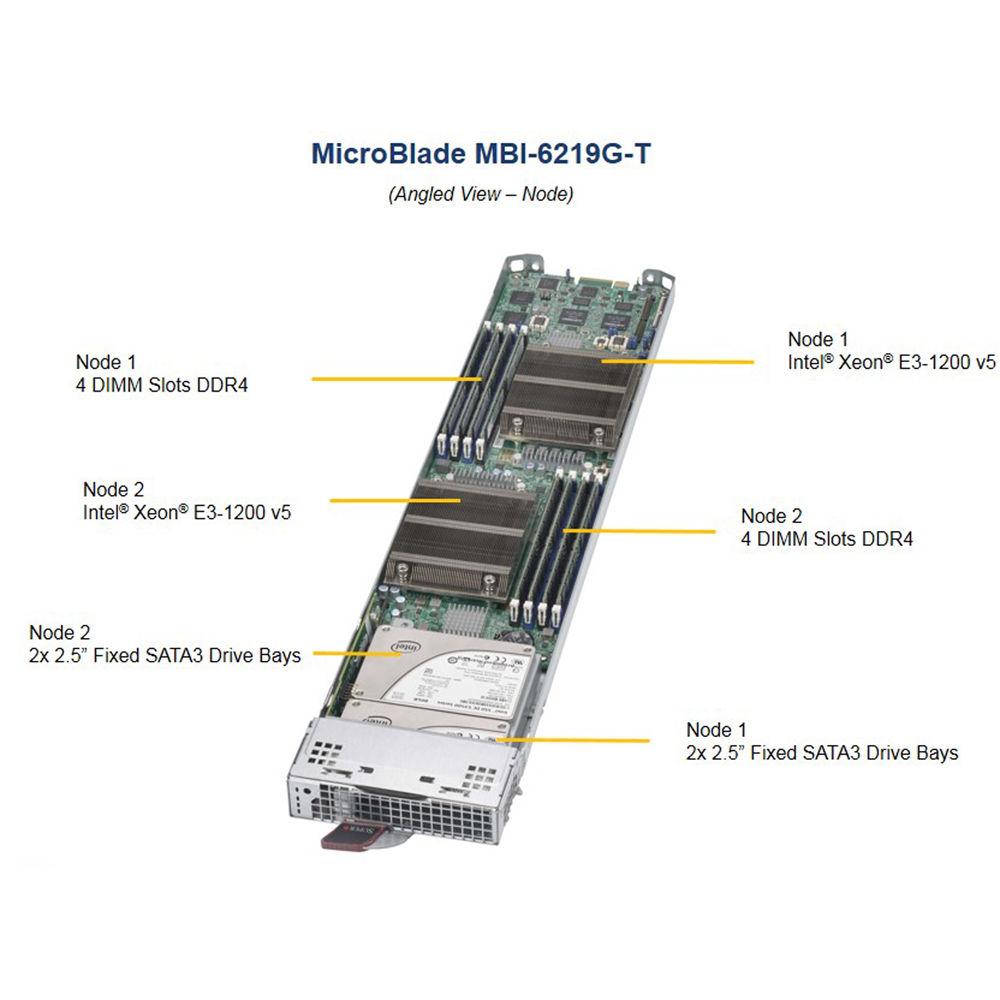

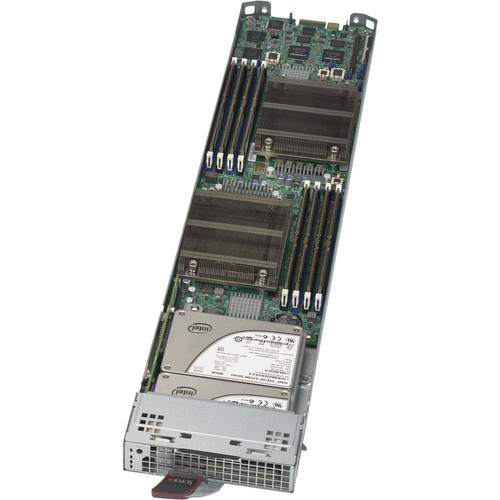

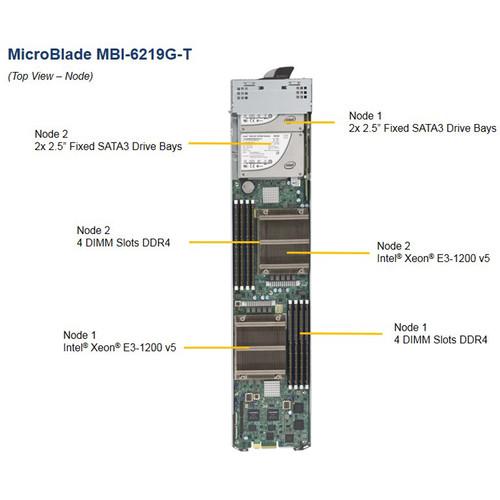

Product description Broad processor compatibility makes the MBI-6219G-T-Pack Microblade Node from Supermicro both efficient and versatile. This Microblade node comes equipped with a single H4 (LGA 1151) socket and supports the Intel Xoen E3-1200 v5 processor E3-1200 v5, Intel 6th Gen Core i3 processors, Intel Pentium processors, and Intel Celeron processors. In addition to enhanced CPU compatibility this node also comes with four DDR4 DIMM sockets supporting up to 64 GB of RAM memory. Plug-and-play support makes for easy installation while the dedicated LED status indicators depict the power, UID/KVM, network activity, and fault status of the Microblade node. - Socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i3 series, Intel Celeron and Intel Pentium processors
- Up to 64GB ECC VLP UDIMM DDR4-2133MHz in 4 DIMM sockets
- Supports up to two 2.5" SATA III SSDs or one HDD
- Dual 1 GbE LAN ports via Intel i350 dedicated LAN supports IPMI 2.0
- 56/28 Skylake UP nodes in 6U/3U

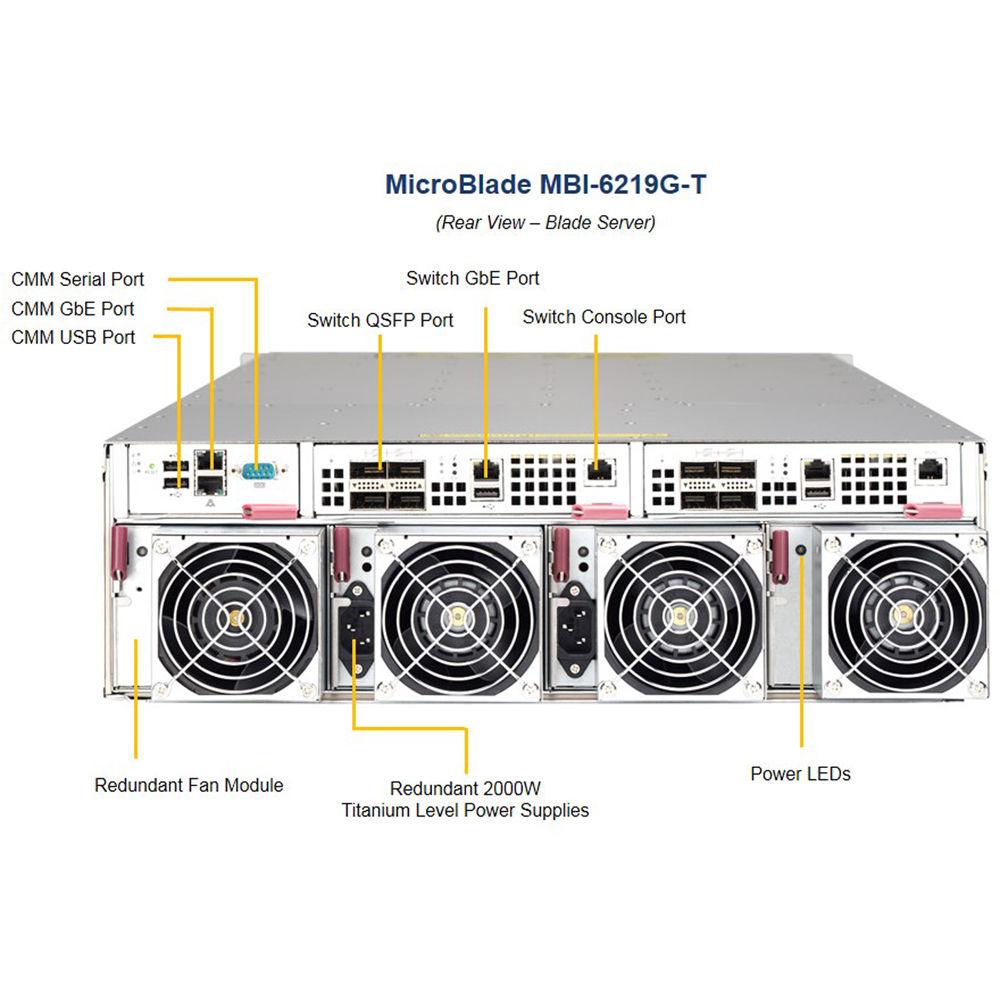

- 2000 W redundant titanium level power supplies
- Front-loading nodes for easy access and servicing
UPC: 672042215034 In the Box Supermicro MBI-6219G-T-Pack Microblade Node Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro MBI-6219G-T-Pack Microblade Node in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro MBI-6219G-T-PACK Specs | Motherboard | B2SS2-F-P | | Processor | Single Socket H4 (LGA 1151) Supports
Intel Xeon processor E3-1200 v5
Intel 6th Gen Core i3
Intel Pentium
Intel Celeron
CPU TDP up to 80 W | | System Memory | Memory Capacity
4 x DDR4 DIMM sockets
Supports up to 64 GB DDR4 ECC VLP UDIMM
Memory Type
2133 MHz ECC DDR4 UDIMM
DIMM Sizes
16 GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory) | | On-Board Devices | Chipset
Intel C236 chipset
SATA
SATA III (6 Gb/s) via chipset
Network Controllers
Redundant 1 GbE SDN switches with 40 Gb/s/10 Gb/s uplinks
Dual 1 GbE LAN ports
IPMI
Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | | System BIOS | 128 Mb SPI Flash EEPROM with AMI BIOS | | Front Panel | Plug and Play (PnP)
APM 1.2
ACPI 1.0/2.0v SMBIOS 2.3

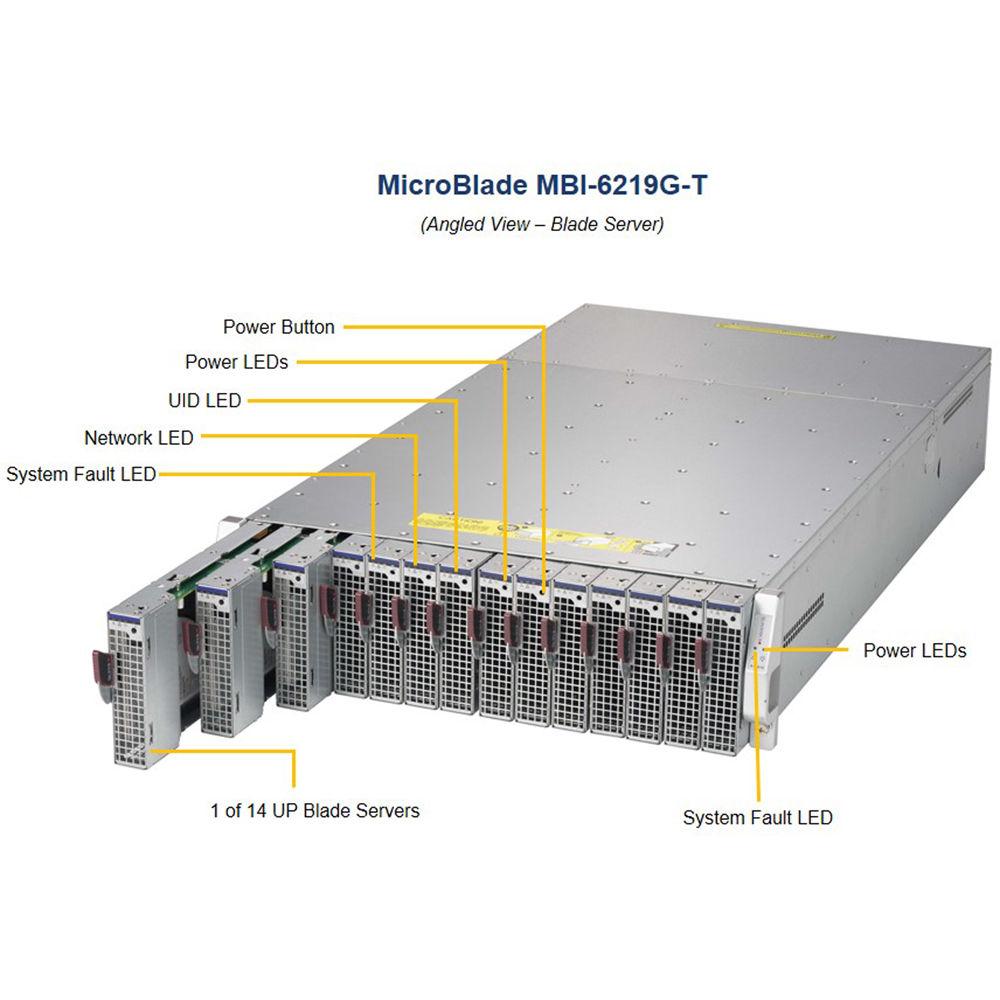

RTC (real time clock) wake up | | Front Panel | Power LED
UID / KVM LED
Network Activity LED
Fault LED | | Drive Bays | 4 x 2.5" SATA3 (6 Gb/s) SSD per blade | | Operating Environment | Operating Temperature
50 to 95°F / 10 to 35°C
Non-operating Temperature
-40 to 158°F / -40 to 70°C
Operating Relative Humidity
8 to 90% (non-condensing)
Non-operating Relative Humidity
5 to 95% (non-condensing) | | Electro Magnetic Compatibility | United States / Canada
FCC- Emissions (US) Verification
Europe
EN55022 - Emissions
EN55024 - Immunity
EN61000-3-2 - Harmonics
EN61000-3-3 - Voltage Flicker
CE - EMC Directive 89/336/EEC | | Dimensions | 1.20 x 4.94 x 23.20" / 30.48 x 125.48 x 589.28 mm | | Weight | 5.01 lb / 2.27 kg |
