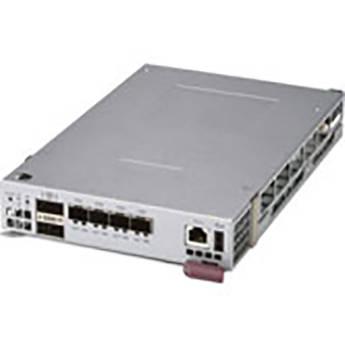

Product description The Supermicro MicroBlade Switch Module is installed inside your MicroBlade enclosure to provide four 10Gb and two 40Gb QSFP+ uplink connections, which connect to the network. The two 40Gb ports are compatible with QSFP+ cables as well as breakout cables for 10Gb. The switch module supports layer 2 Ethernet as well as Supermicro Switch operating systems. Other notable features include link aggregation, VLAN, Spanning Tree, Access Control Lists, and Jumbo Frame compatibility. Moreover, the two internal Ethernet paths, which connect to the MicroBlade chassis management module, allow you to manage and configure the switch. UPC: 672042218042 Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro MicroBlade 10 Gb s SFP 4-Port Switch Module with 40 Gb s QSFP Uplink in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro MBM-XEM-002 Specs | Chipset | Broadcom BCM 56846 | | Networking Ports | Uplink: 2 x 40 Gb/s QSFP and 4 x 10 Gb/s SFP+
Downlinks (Internal): 56 x 10/2.5/1 Gb/s | | Other Ports | 1 x Console port
1 x USB port | | Switching Capacity | 1280 Gb/s | | Jumbo Frames | Up to 9 KB | | Cabling Type | 40 Gigabit optical/copper
10 Gigabit optical Ethernet SFP+/copper | | Layer 2 Services | 4K VLANS
Spanning Tree (802.1D)
Rapid Spanning Tree (802.1w)
Multiple Spanning Trees (802.1s)
IEEE 802.lQ VLANs/ port-based VLANs
IEEE 802.3ad with LACP
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Storm control
Flow control
Port mirroring | | Additional Support | IP Source Guard | | Security | Switch access password protection
RADIUS and TACACS+ Authentication
Access Control Lists
SSH, SSL Encryption
DHCP Snooping | | Management | Industry Standard CLI
Command Completion
Context Sensitive Help
SNMP v1/v2/v3
SSH
Syslog
DHCP (Client)
Web-based management interface
NTP
RMON | | Multicast | IGMP Snooping | | Dimensions (W x D x H) | 10.5 x 6.3 x 1.4" / 266.7 x 160 x 35.6 mm | | Weight | 3.3 lb / 1.5 kg |
