User Manual for Supermicro Mini-ITX Motherboard & Intel Xeon E3-1585 V5 CPU Combo Click to enlarge the picture
Contents of the user manual for the Supermicro Mini-ITX Motherboard & Intel Xeon
- Product category: Motherboards Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Motherboards
|
User manual for the Supermicro Mini-ITX Motherboard & Intel Xeon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|
|
|
Upload User Manual
Have you got an user manual for the Supermicro Mini-ITX Motherboard & Intel Xeon E3-1585 V5 CPU Combo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

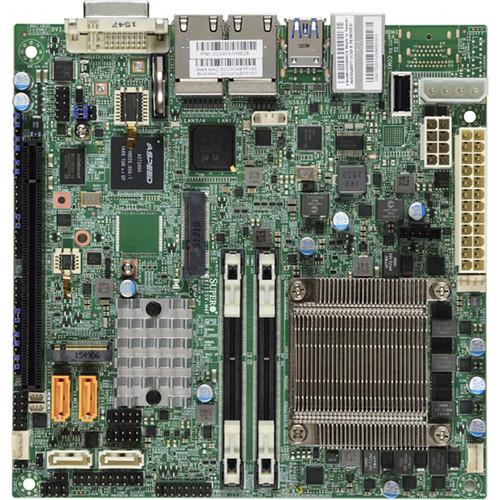

Technical parametersSupermicro X11SSV-M4F Specs | | | Product Type | Motherboard - mini ITX | | Processor | Intel Xeon E3-1585V5 (Quad-Core) | | Chipset Type | Intel C236 | | | | Max Size | 32 GB | | Technology | DDR4 | | Bus Clock | 1600 MHz, 1866 MHz, 2133 MHz | | Supported RAM Integrity Check | ECC | | Registered or Buffered | Unbuffered | | | | Graphics Controller | ASPEED AST2400 | | | | Type | HD Audio | | Audio Codec | Realtek ALC888S | | Compliant Standards | High Definition Audio | | | | Network Controller | Intel I350-AM2 / I210-AT / I219LM | | Network Interfaces | 4 x Gigabit Ethernet | | | | Expansion Slots | 2 x SO-DIMM 260-pin (1.2 V)
1 x Mini PCIe / mSATA
1 x PCIe 3.0 x16 | | Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -connectors: 1 x M.2 | | RAID Features | Intel Rapid Storage Technology | | Interfaces | 4 x LAN (Gigabit Ethernet)
4 x USB 3.0
1 x serial
1 x DVI-A | | Internal Interfaces | 1 x USB 2.0 - Type A
4 x USB 2.0 - header | | Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, DC-in power connector | | | | BIOS Type | AMI | | BIOS Features | Power failure recovery (AC loss resume), DMI 2.3 support, UEFI BIOS, ACPI 5.0 support, IPMI 2.0 support, SMBIOS 3.0 support | | Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage | | Sleep / Wake Up | RTC (real-time clock) wake up, wake on LAN (WOL) | | Hardware Features | Chassis intrusion detection, WatchDog Timer | | | | Included Accessories | I/O back plate | | Cables Included | 4 x Serial ATA cable | | Software Included | SuperDoctor 5 | | Compliant Standards | Plug and Play, RoHS, ACPI 5.0 | | Width | 6.7 in | | Depth | 6.7 in | | Package Type | Retail | | | | Service & Support | Limited warranty - parts - 1 year
Limited warranty - labor - 3 years |
