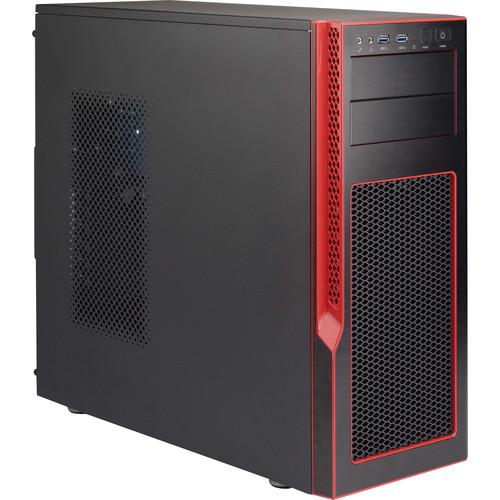

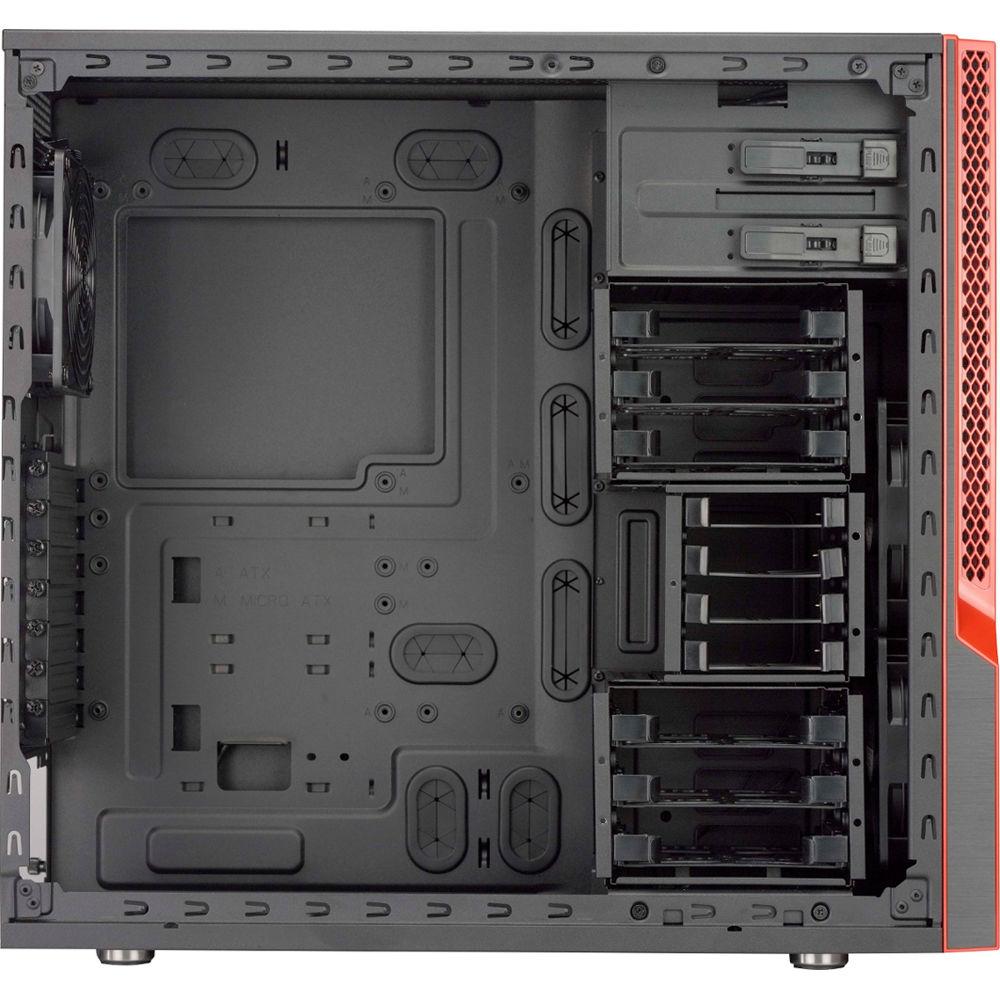

Product description The black and red S5 Special Edition Mid Tower Gaming Case from Supermicro sports an all-black interior ideal for DIY PC gamers. Constructed from steel and aluminum, this case supports standard ATX and Micro-ATX motherboards and features tool-less drive storage for easy installation of up to two 5.25", four 2.5", and six combo 3.5"/2.5" drives. If not required, the HDD/SSD cages can be removed for improved airflow throughout the chassis.This case has seven expansion slots that can accommodate multi-GPU setups. Multi-GPU systems run hotter than single-GPU systems, so use the nine supported fan locations to cool the system as needed. There are three pre-installed fans in this case: two 120-mm PWM fans in the front and one 120 mm PWM fan in the rear. PWM (Pulse-width modulation) fans can have their speed controlled by the motherboard's PWM capabilities and optional software.On the front panel there are two USB 3.0 ports, one microphone jack, one headphone jack, and power & reset buttons. Within the case are multiple cable-management holes with rubber grommets for a clean build. To make installing parts easier, this case has a large motherboard tray cutout, which lets you to install CPU coolers with the motherboard already in place. Additionally, the removable magnetic dust filters and one-click access to the front grille simplify cleaning and system maintenance. Without any additional components installed, this case is whisper-quiet at 23 dB. -
- Black interior paint throughout the chassis
- Black anodized brushed-aluminum fascia front panel with two USB 3.0 ports
- Removable 3.5” and 2.5” HDD/SSD cages with tool-less trays for up to 10 drives
- Tool-less 5.25” device installation with trays to support 3.5” and 2.5” drives
- Cable management holes with rubber grommets for clean builds
- Removable magnetic dust filter
- One-click front grille access
- Large motherboard tray cut-out for CPU-cooler back-plates
- 3 x 120 mm PWM fans included
UPC: 672042191239 In the Box Supermicro S5 Special Edition Mid Tower Gaming Case (Black,Red) Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro S5 Special Edition Mid Tower Gaming Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro S5 Specs | | | Motherboard Support | ATX, Micro-ATX | | External Drive Bays | 2 x 5.25" | | Internal Drive Bays | 6 x 2.5"
4 x 2.5" | | Maximum GPU Length | 12" / 30.5 cm | | CPU Cooler Height | 6.4" / 16.2 cm | | Maximum PSU Length | 7.8" / 19.8 cm | | | | Fan Mounting (Side) | 2 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Top) | 3 x 120 mm
Or
3 x 140 mm
| | Fan Mounting (Bottom) | 1 x 120 mm
| | Fans Included (Front) | 2 x 120 mm (Variable rpm) | | Fans Included (Rear) | 1 x 120 mm (Variable rpm) | | Maximum Radiator Size (Rear) | 120 mm | | Maximum Radiator Size (Top) | 280 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 7.9 x 18.1 x 19.4" / 20.0 x 46.0 x 49.3 cm | | Weight | 18.3 lb / 8.3 kg | | | | Package Weight | 21.8 lb | | Box Dimensions (LxWxH) | 22.3 x 20.5 x 10.6" |
