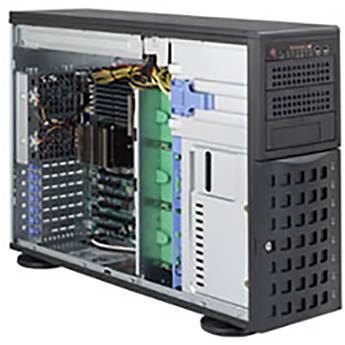

User Manual for Supermicro SuperChassis Tower 4U Chassis Click to enlarge the picture
Contents of the user manual for the Supermicro SuperChassis Tower 4U Chassis
- Product category: Desktop Computer Cases Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Desktop Computer Cases
 |
User manual for the Supermicro SuperChassis Tower 4U Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|
Product description Provided by third party: Tower / 4U SuperChassis 745Supermicro's SC745 Chassis series is optimized for the latest Intel® Xeon® processor 5500 series (Nehalem) and is also compatible with previous generation Intel and AMD dual processor-based motherboards. Utilizing redundant, high-efficiency power supplies (85% and up) with Gold Level 1200W option, and 8 hot-swap 3.5" drive bays, this chassis offers reliable performance with problem-free maintenance. Designed with 100% cooling redundancy** via a combination of high-performance fans and adjustable air-shroud capable of fitting any generation motherboard, the SC745 minimizes the probability of system downtime or performance degradation from thermal-related issues. With 90-degree rotatable drive bay module, 7 tool-less expansion slots, and 6-Pin power connectors supporting up to 3 high-end graphics cards, the SC745 supports up to 3 GPUs, and it is quick to configure and easy to operate. In the Box Supermicro SuperChassis Tower/ 4U Chassis (Black) SuperChassis SC745BTQ-R1K28B System Cabinet 1 x CSE-SAS-743TQ-O-P 1 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF 4 x SATA CABLE 61CM FLAT S-S PBF 1 x POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE 1 x SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB 1 x Front Control Cable Round 16pin to 16pin Ribbon 20inch (50cm) 3 x 4 TO 4 PIN MIDDLE FAN POWER EXTENSION, 200MM (PWM) 8 x Black Hot-swap 3.5inch HDD Tray (w/o logo) 1 x Plastic feet (4 pcs set) for 4U tower chassis, black color 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro SuperChassis Tower 4U Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro CSE-745BTQ-R1K28B Specs | | | Motherboard Supported | ATX
EATX | | Number of Fans Supported | 5 | | Number of Fans Installed | 5 | | | | Number of External 5.25" Bays | 3 | | Number of Internal 3.5" Bays | 8 | | Number of Total Expansion Bays | 11 | | | | Number of Total Expansion Slots | 7 | | | | Total Number of USB Ports | 2 | | Front USB | Yes | | | | Input Voltage | 110 V AC
220 V AC | | Number of Power Supplies Supported | 2 | | Number of Power Supplies Installed | 2 | | Power Supply Wattage | 1.28 kW | | Redundant Power Supply | Yes | | | | Color | Black | | Compatible Rack Unit | 4U | | Form Factor | Rack-mountable
Tower | | Height | 17.2" | | Width | 7" | | Depth | 25.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
