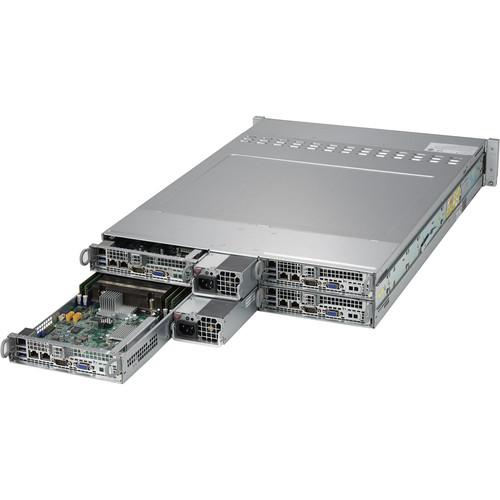

User Manual for Supermicro SuperServer 2028TR-HTR with Four Hot-Pluggable Systems Click to enlarge the picture
Contents of the user manual for the Supermicro SuperServer 2028TR-HTR with Four Hot-Pluggable
- Product category: Server Systems Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Server Systems
 |
User manual for the Supermicro SuperServer 2028TR-HTR with Four Hot-Pluggable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|
Product description Provided by third party: Supermicro provides the outstanding product line, their proven high level of quality and performance has made SuperServers the platform of choice for enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.
- Key Features
-

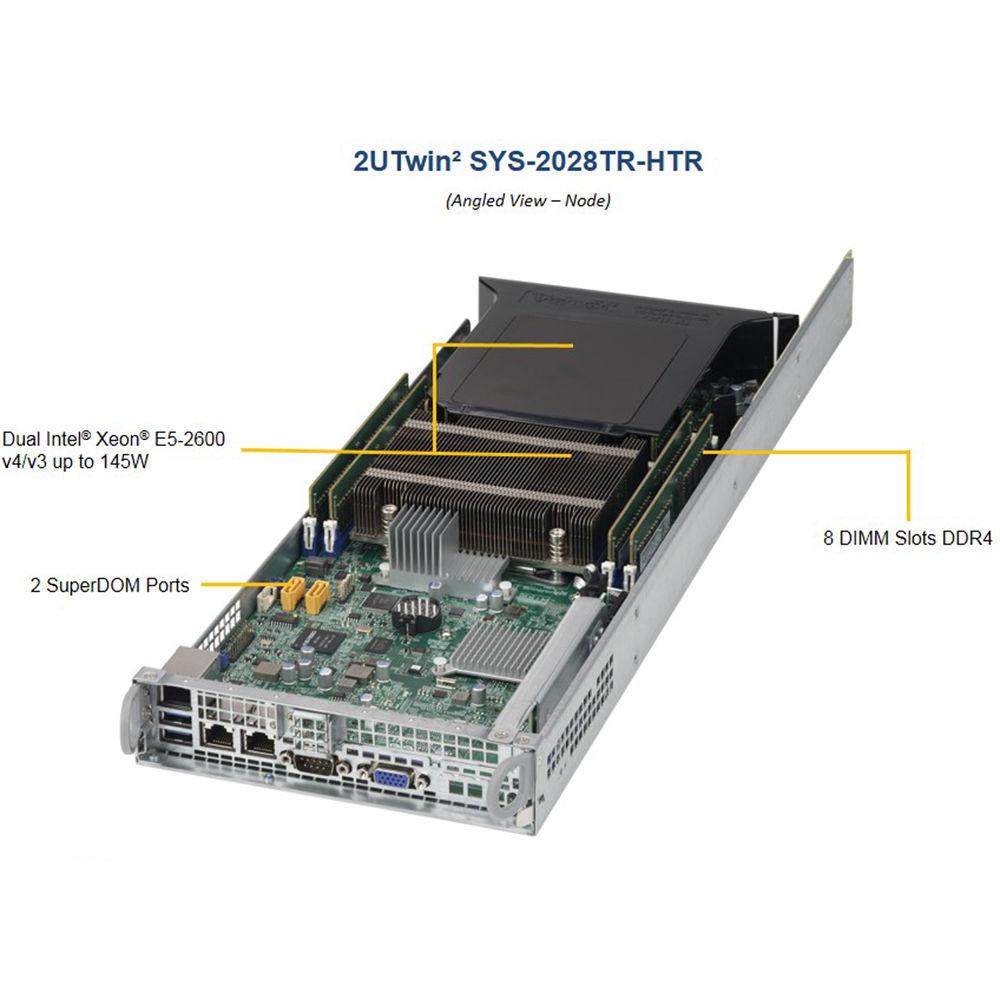

- Improved memory slots

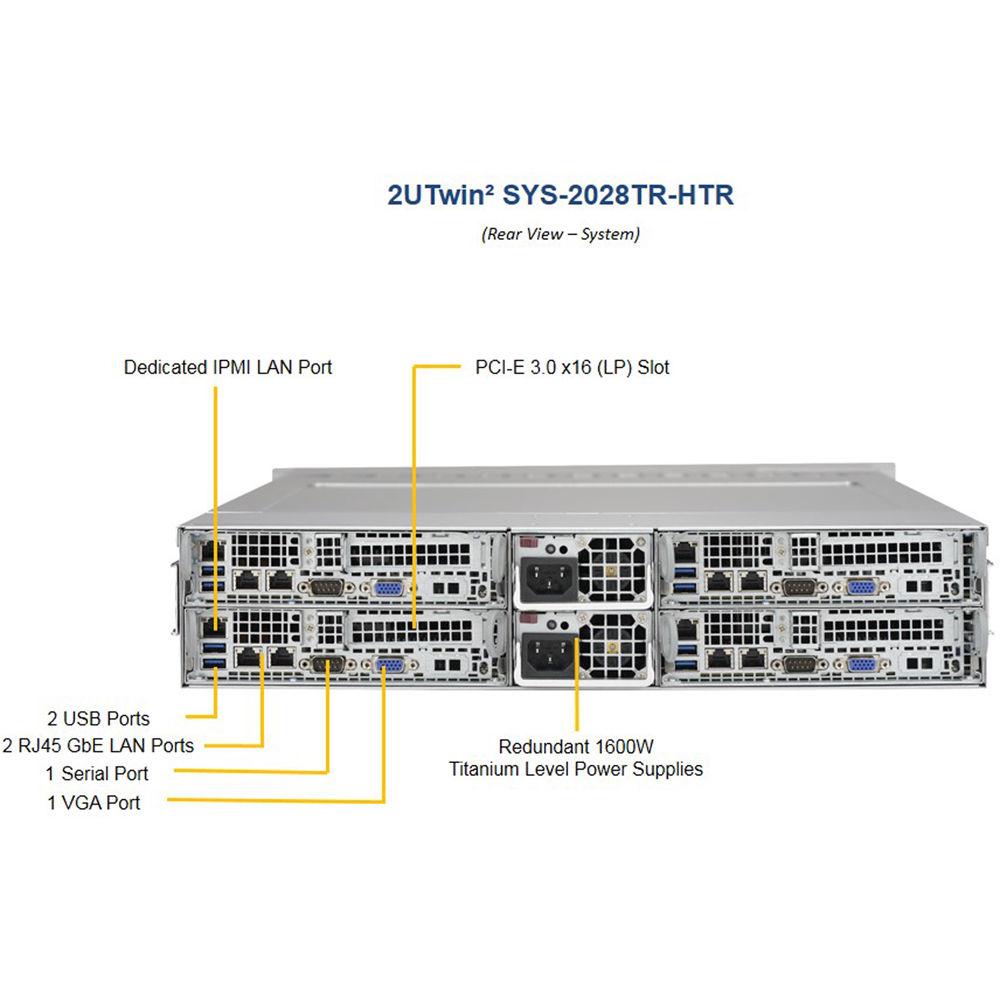

- 1x PCI-E 3.0 x16 (LP) slot
- Dual-port GbE LAN

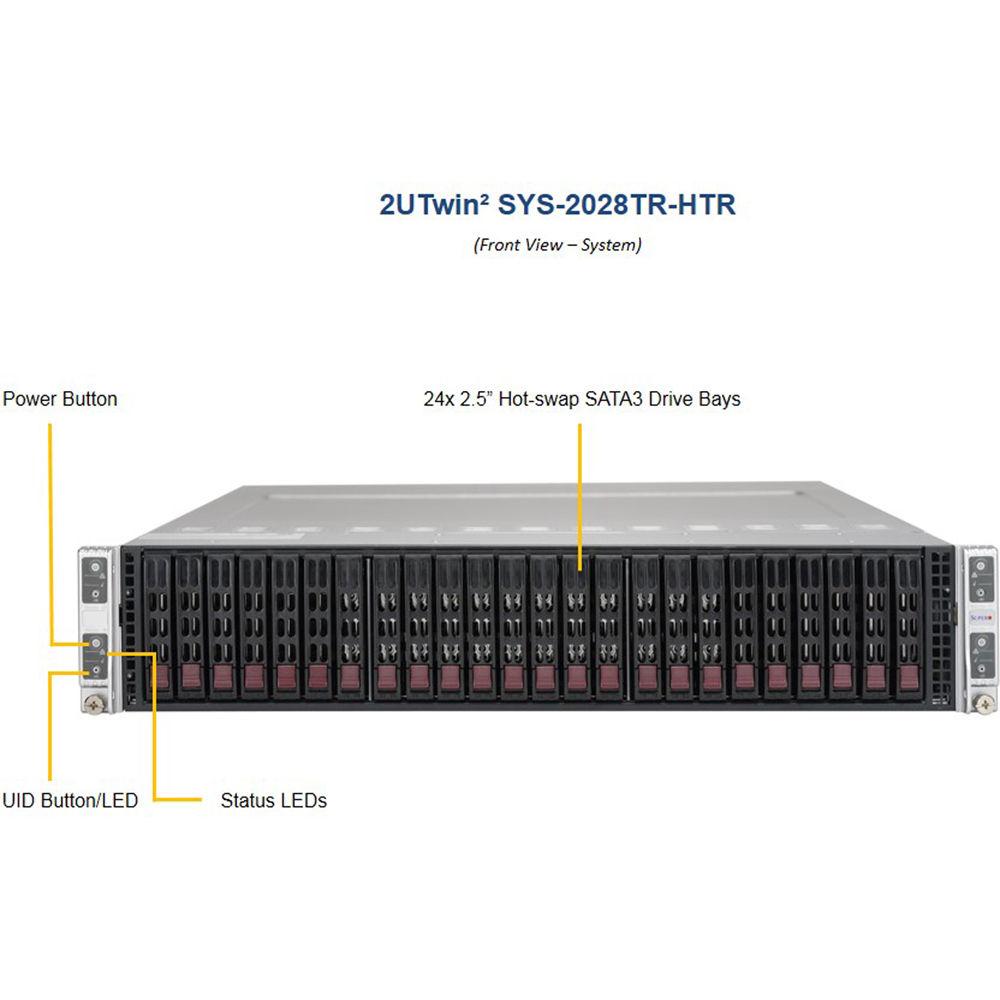

- Hot-swap SATA3 drive bays

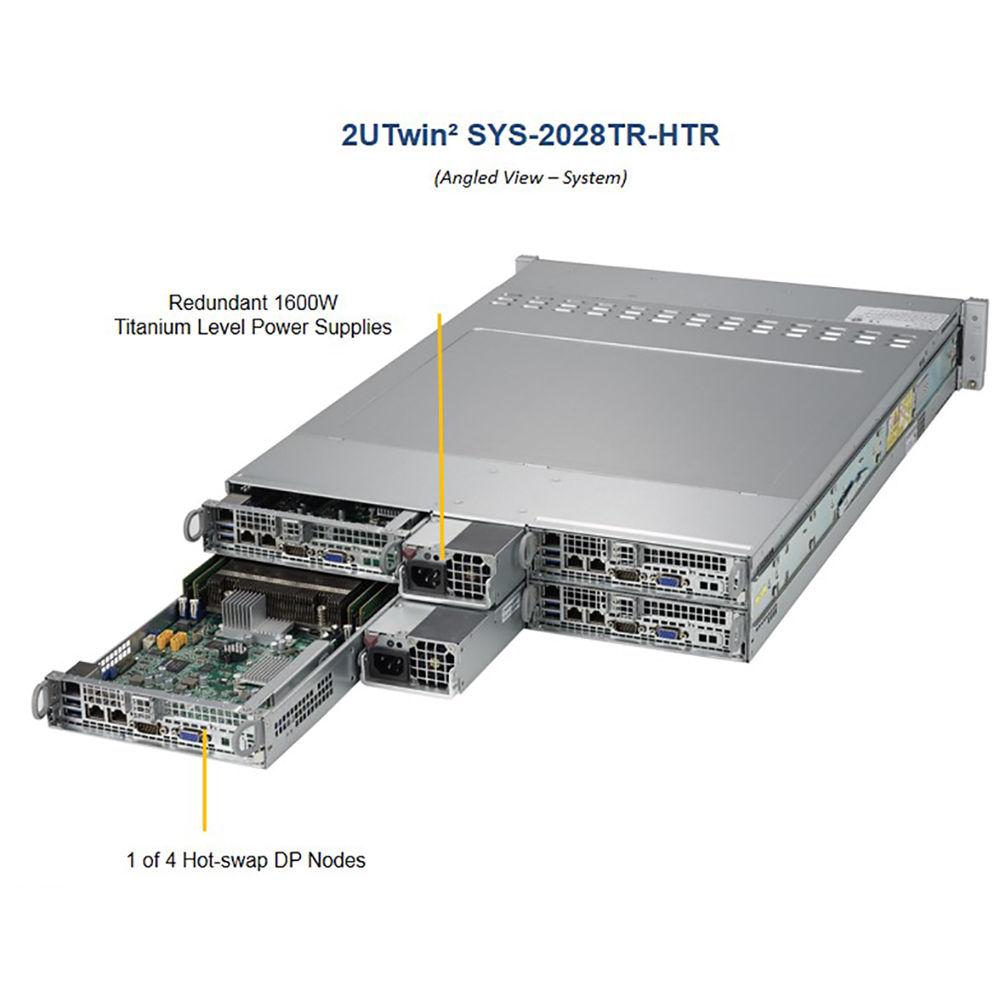

- Redundant power supplies
- 2x SATA DOM
UPC: 672042193165 Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro SuperServer 2028TR-HTR with Four Hot-Pluggable Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro 2028TR-HTR Specs | | | Type | Cluster (4 nodes) | | Product Form Factor | Rack-mountable - 2U | | Server Scalability | 2-way | | Cluster Configuration | 4 - computing node | | Color | Black | | | | CPU | No CPU | | Max CPU Qty | 2 | | CPU Upgradability | Upgradable | | CPU Socket | LGA2011-v3 Socket | | Chipset Type | Intel C612 | | | | Installed Size | 0 MB / 1 TB (max) | | Technology | DDR4 SDRAM - ECC | | Form Factor | DIMM 288-pin | | Slots | 8 (total) / 8 (empty) | | Features | Registered, Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM) | | RAM Supported | 1 TB 3DS Load-Reduced - ECC
256 GB registered - ECC | | | | Type | 1 x RAID | | Controller Interface Type | SATA 6Gb/s | | Channel Qty | 8 | | RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 | | | | Graphics Processor | ASPEED AST2400 | | Video Interfaces | VGA | | | | Ethernet Ports | 2 x Gigabit Ethernet | | Ethernet Controller | Intel I350 | | Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet | | Remote Management Protocol | IPMI 2.0 | | Remote Management Controller | Aspeed AST2400 | | Features | KVM over IP support | | | | Shared Storage Power Supply | 2 redundant hot plug power supplies | | Power Supply Capacity | 2x1600 Watt | | | | Bays | 6 (total) / 6 (free) x hot-swap 2.5" | | Slots | 2 (total) / 2 (free) x CPU
8 (total) / 8 (free) x DIMM 288-pin
1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile | | Interfaces | 2 x LAN (Gigabit Ethernet)
2 x USB 3.0
1 x VGA
1 x management - RJ-45
1 x serial | | | | Included Accessories | 4 x riser card, 8 x CPU Heatsink | | Compliant Standards | Plug and Play, ACPI 2.0, APM 1.2, RoHS | | | | 80 PLUS Certification | 80 PLUS Titanium | | | | OS Provided | No operating system | | | | Service & Support | Limited warranty - parts - 1 year
Limited warranty - labor - 3 years | | | | Width | 17.2 in | | Depth | 28.5 in | | Height | 3.5 in | | Weight | 54.45 lbs | | | | Min Operating Temperature | 50
