User Manual for Supermicro SuperServer 5019S-MN4 1U Rackmount Server Click to enlarge the picture
Contents of the user manual for the Supermicro SuperServer 5019S-MN4 1U Rackmount Server
- Product category: Server Systems Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Server Systems
 |
User manual for the Supermicro SuperServer 5019S-MN4 1U Rackmount Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|

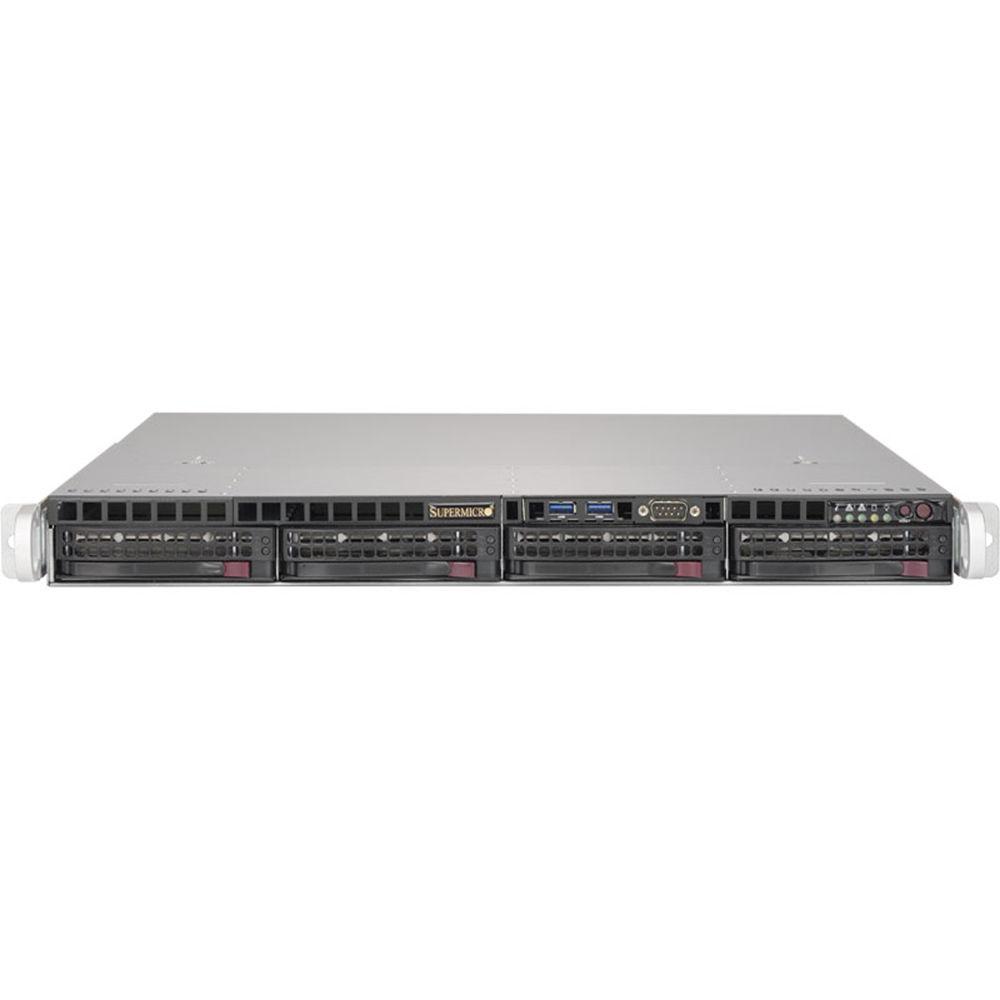

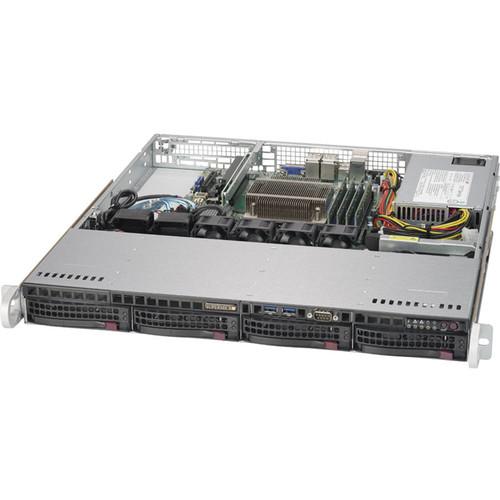

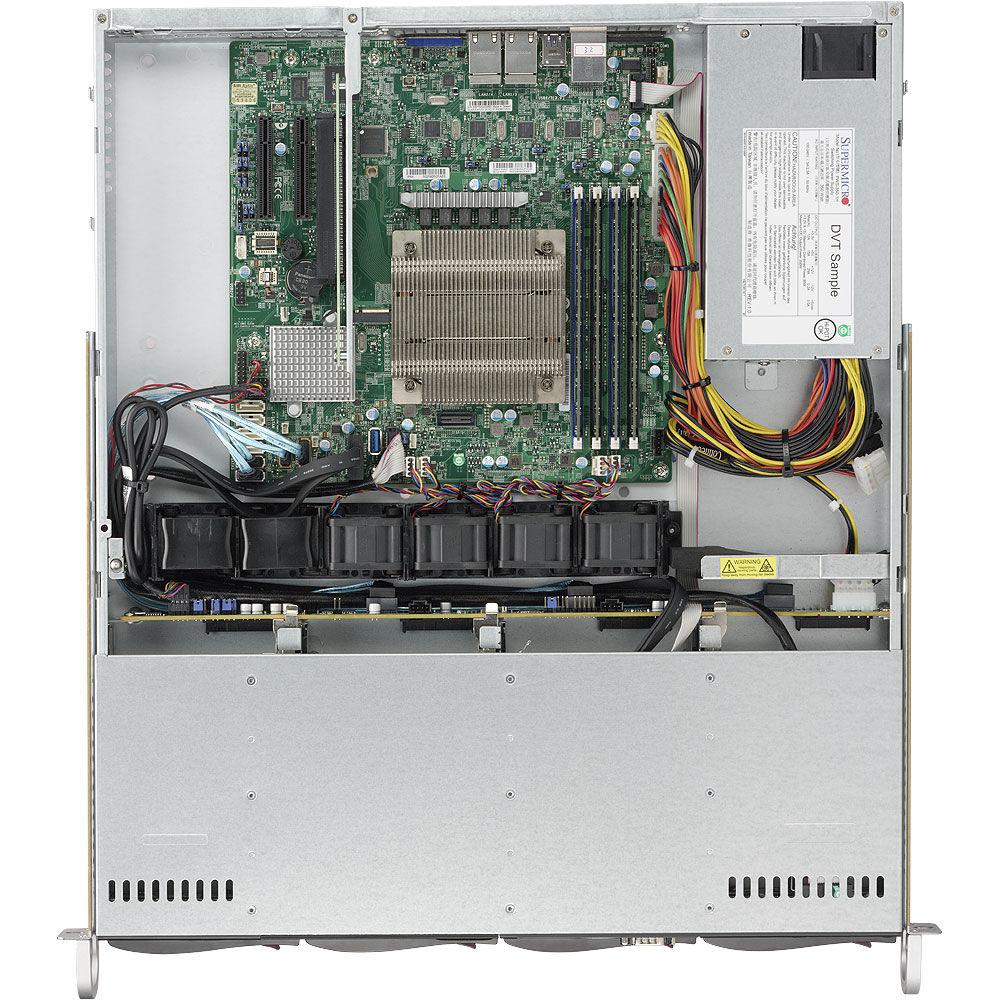

Product description The black SuperServer 5019S-MN4 1U Rackmount Server from Supermicro is suitable for use in embedded, industrial, and security applications. It comes with an Intel C236 chipset and supports Intel Xeon E3-1200 v5 and Intel 6th Gen Core i3 processors, and up to 64GB DDR4 ECC UDIMM memory. The server comes with four 288-pin DDR4 DIMM slots, four 3.5" hot-swap SATA3 drive bays, and 4 GbE ports with Intel i210-AT Ethernet controller. In addition, the rackmount server also comes with four 40 x 28mm 4-pin PWM cooling fans and a 350W AC power supply with PFC. - Suitable for SMB, web hosting, and file/print applications
- Can be used for network-centric, general purpose, and mainstream applications
- Works as a domain controller
- Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5 and Intel 6th Gen. Core i3 series processors
- PCI-E 3.0 x8 (in x16) AOC slot
- Integrated IPMI 2.0 and KVM with dedicated LAN

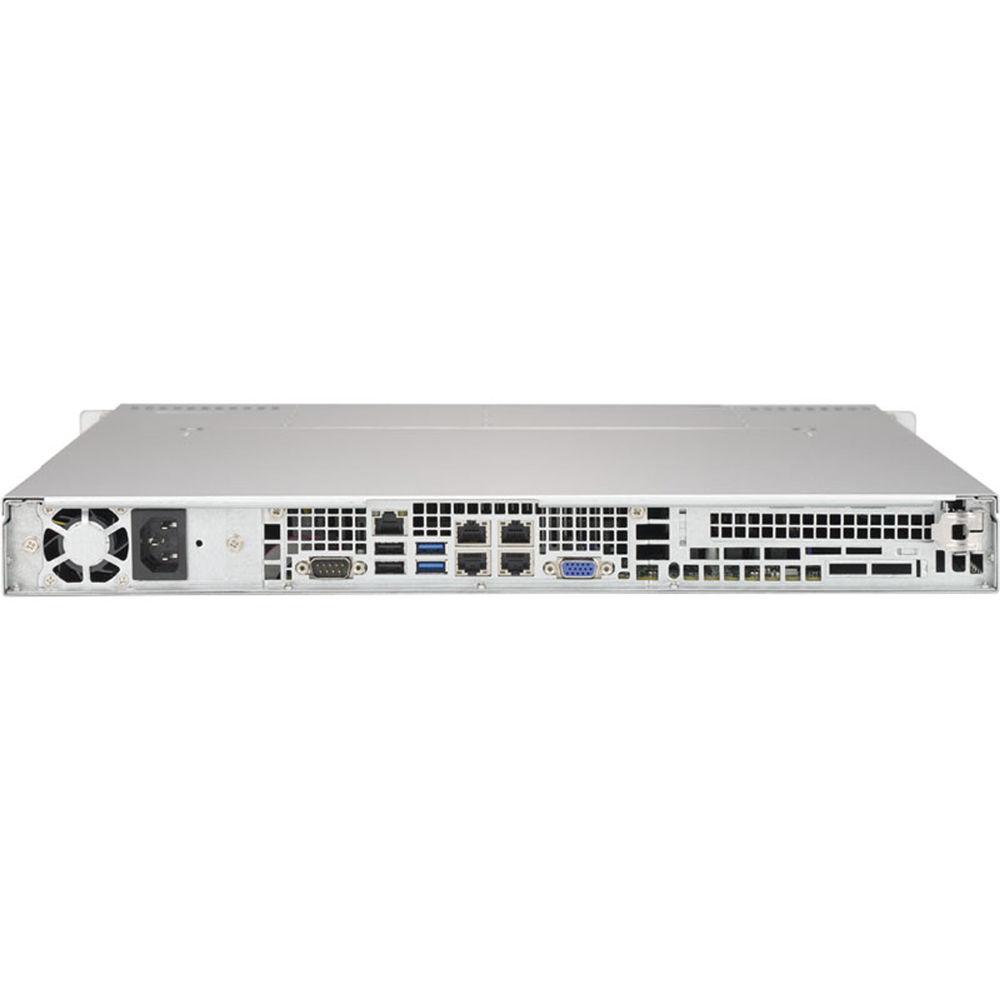

- Comes with 1 VGA, 2 COM, 2 USB 3.0 (front/rear), and USB 2.0 ports
- 350W platinum level power supply
- Chassis intrusion detection and intrusion header
UPC: 672042203840 In the Box Supermicro SuperServer 5019S-MN4 1U Rackmount Server (Black) MBD-X11SSH-LN4F Super X11SSH-LN4F Motherboard CSE-813MFTQC-350CB 1U Chassis MCP-310-19007-0N Air Shroud BPN-SAS3-815TQ Backplane CBL-0186L SATA Cable CBL-CDAT-0661 SGPIO Cable MCP-120-00031-0N Riser Card Bracket MCP-220-00129-0B Drive Tray RSC-RR1U-E16 Riser Card SNK-P0046P Heatsink / Retention PWS-350-1H Power Supply Limited 1-year warranty for parts, 3 years for labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro SuperServer 5019S-MN4 1U Rackmount Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro SYS-5019S-MN4 Specs | | | Drive Expansion | 43.5" (External)
1M.2 (Internal) | | Storage Drive | None | | Drive Connections | 4 x SATA III | | RAID Modes | RAID 0, 1, 10, 5 | | PCI Expansion | 1 x PCIe Gen 3 x8 | | | | Processor | None | | Chipset | Socket: H4
Type: LGA 1151 | | Chipset Model | Intel C236 | | Total Installed Memory | None | | Maximum Memory Capacity | 64 GB | | Memory Support | DDR4 1600, 1866, 2133 MHz | | Available Memory Slots | 4 | | Memory Slot Type | 288-Pin DIMM | | ECC Memory | Yes | | GPU | Aspeed AST2400 | | | | Network | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Ports | 1 x DE-9 Serial
4 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Display | 1 x VGA | | Audio | None | | | | Rack Form Factor | 1 RU | | Fans | 4 x 40 mm PWM | | Power Supply | 1 x 350 W 80 PLUS Platinum | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.8 to 4.2 A | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Operating Humidity | 8 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 95% | | Dimensions (W x H x D) | 1.7 x 17.2 x 19.8" / 43.0 x 437.0 x 503.0 mm | | Weight | 17.6 lb / 8.0 kg | | | | Package Weight | 30.55 lb | | Box Dimensions (LxWxH) | 29.2 x 23.8 x 8.8" |
