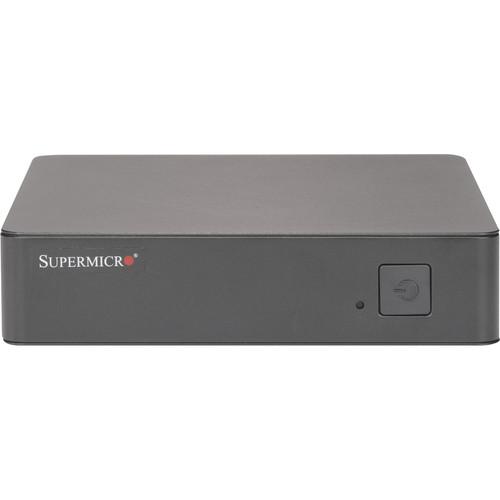

User Manual for Supermicro SuperServer E200-9B System Click to enlarge the picture
Contents of the user manual for the Supermicro SuperServer E200-9B System
- Product category: Desktop Computers Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Desktop Computers
|
User manual for the Supermicro SuperServer E200-9B System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|
Product description The black SuperServer E200-9B System from Supermicro is a compact, embedded system. It consists of the SC101S chassis and the X11SBA-LN4F single-processor motherboard. The processing is handled by an Intel Pentium Processor N3700 SoC (System on a Chip) in the FCBGA1170 format. One 4cm system fan, plus an option for one additional 4cm fan ensures that the system remains cool. The E200-9B supports up to 8GB of DDR3L 1.35V dual channel, non-ECC SO-DIMM RAM with frequency of up to 1600 MHz in two horizontal sockets. For expansion, the system comes with one mini-PCIe slot with mSATA support. It supports a single fixed 2.5" hard drive up to 15mm thick. - System consists of the SC101S chassis, X11SBA-LN4F single processor motherboard, and embedded Intel N3700 SoC processor
- SC101S features a removable top cover to access the inside of the chassis
- The front of the chassis includes a power on/off push-button, an LED status light, and a reset button
- The chassis includes mounting brackets that allow it to be mounted in any convenient space in the work environment
- Motherboard uses lithium-battery powered non-volatile memory to retain system information when system power is removed
- JD2 header on the motherboard can be used for the external speaker (speaker not included)
- General-purpose I/O expander on a pin header from Intel SoC, JGP1 header, is located near the SATA connectors on the motherboard
- Disk-On-Module (DOM) power connector at JSD1 provides 5V power to a solid-state DOM storage device connected to one of the SATA ports
- A 10-pin audio header located on the motherboard allows you to use the onboard sound chip (ALC888S) for audio function
- JTPM1 header is used to connect a Trusted Platform Module (TPM)
- TPM can securely store artifacts used to authenticate the platform
- 4-pin power connector at JSATA1 provides power from the motherboard to internal SATA hard drive or SSD device
- The X11SBA-LN4F/F has two SATA 3.0 ports that are supported by the Intel SoC
- One HDMI and one DisplayPort port are located next to the IPMI_LAN port on the I/O back panel
- Four LAN ports located on the I/O back panel
- Two USB 2.0 ports and two USB 3.0 ports located on the I/O back panel
- VGA controller from AST2400 can be used for BMC KVM (Keyboard, Video and Mouse)
- Supermicro SuperDoctor 5 monitors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP)
- X11SBA-LN4F supports the Intelligent Platform Management Interface (IPMI) that can be used to provide remote access, monitoring, and management
UPC: 672042209477 In the Box Supermicro SuperServer E200-9B System (Black) 60W DC Power Adapter Limited 3-Year Warranty on Part Limited 1-Year Warranty on Labor User Manual PDF 3.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro SuperServer E200-9B System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro E200-9B Specs | | | CPU | 1.6 GHz Intel Pentium N3700 Quad-Core | | Maximum Boost Speed | 2.4 GHz | | | | Total Drive Bays | 1 x 2.5" (Internal) | | PCI Expansion | 1 x PCIe Minicard | | | | Ports | 2 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0) | | Display | 1 x DisplayPort
1 x HDMI
1 x VGA | | | | Ethernet | 4 x RJ45 (Gigabit) | | | | Power Supply | 60 W | | Dimensions | 7.7 x 1.8 x 7.7" / 19.6 x 4.6 x 19.6 cm | | Weight | 2.5 lb / 1.1 kg | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 14.9 x 11.0 x 5.5" |
