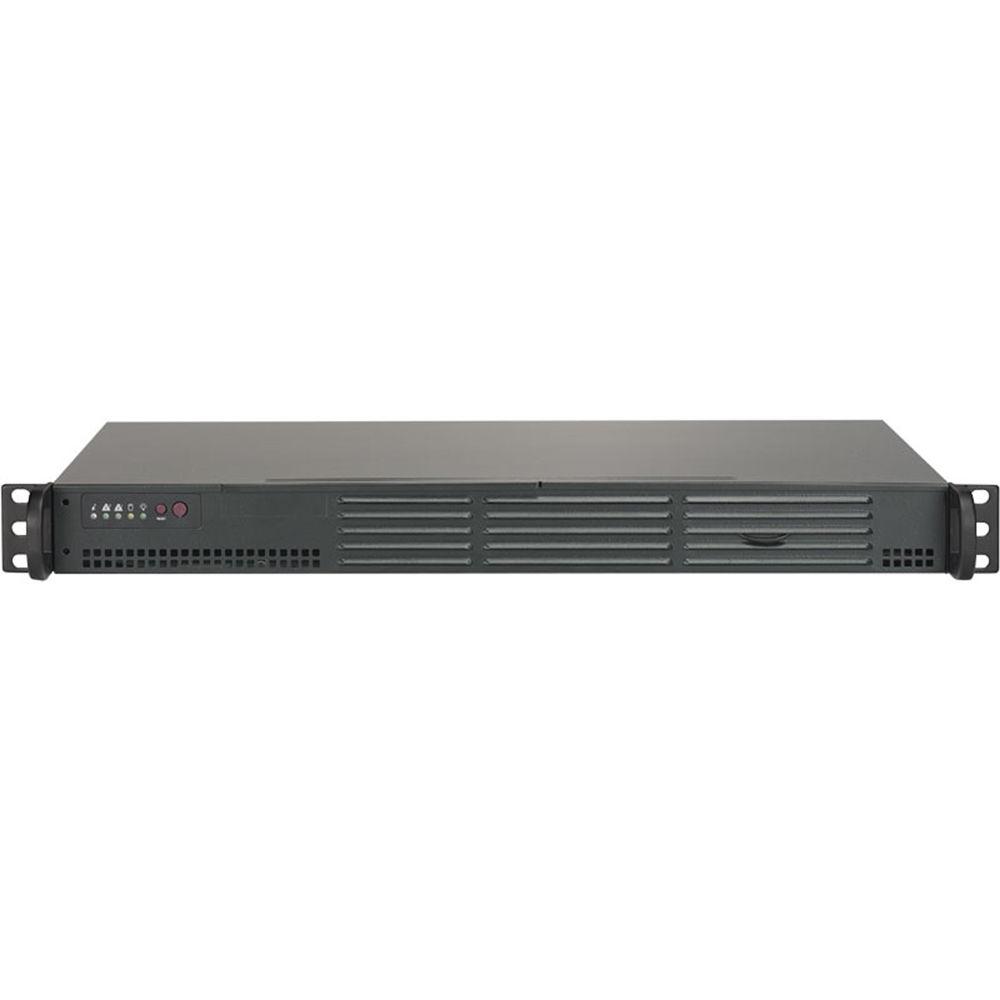

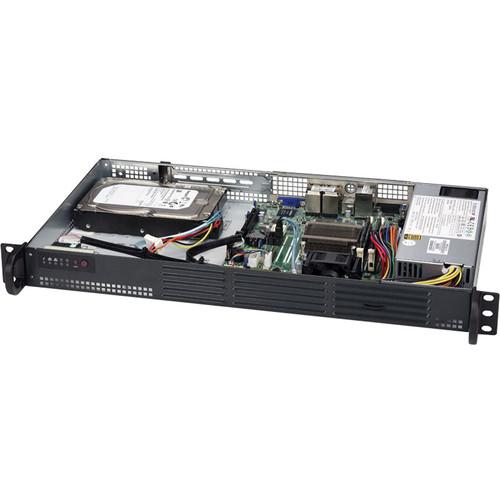

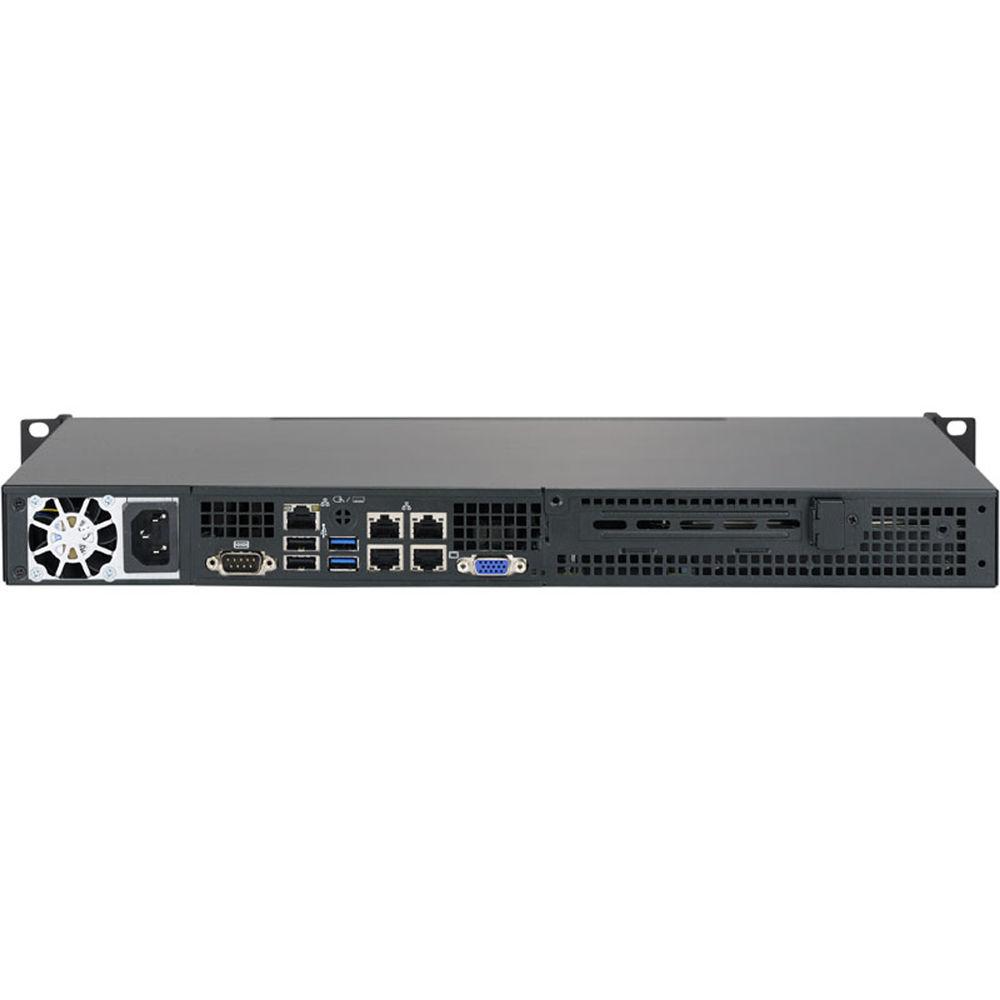

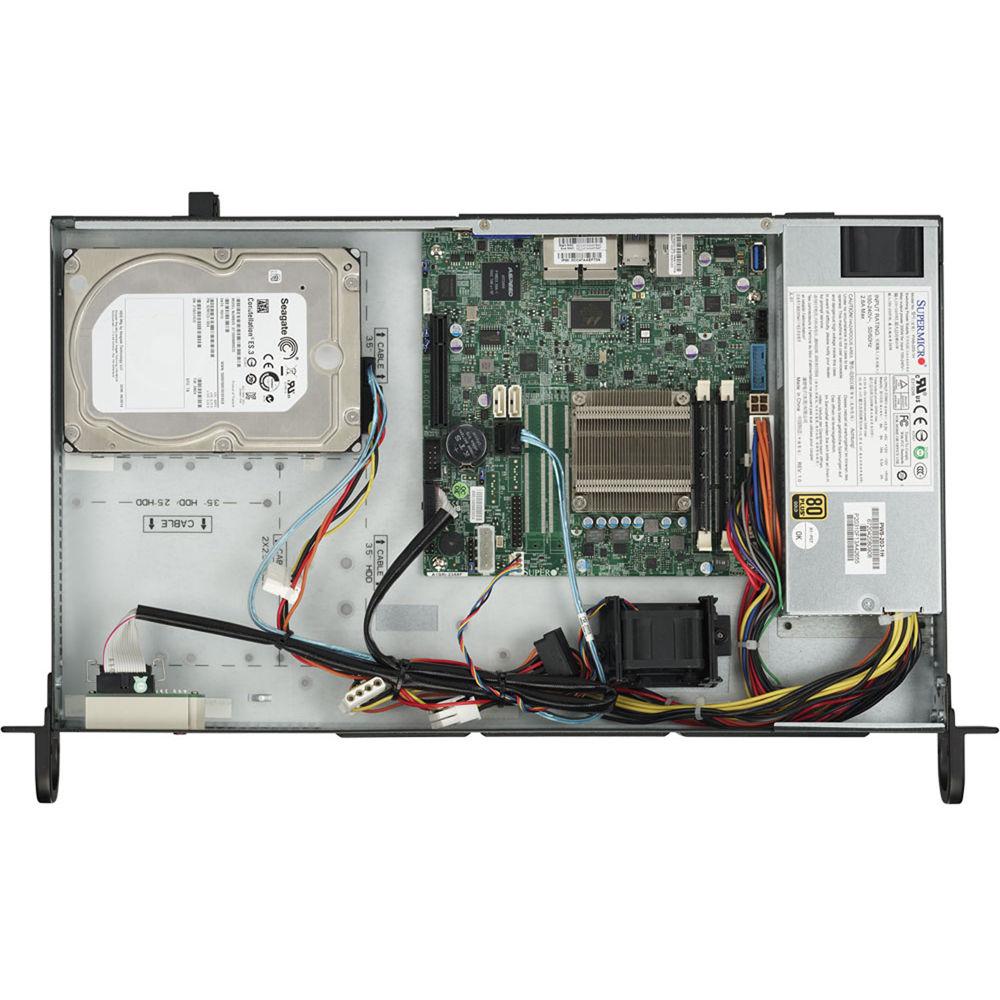

User Manual for Supermicro SuperServer Intel Atom C2358 Processor with Four 2.5" HDD Drive Bays Click to enlarge the picture
Contents of the user manual for the Supermicro SuperServer Intel Atom C2358 Processor
- Product category: Server Systems Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Server Systems
 |
User manual for the Supermicro SuperServer Intel Atom C2358 Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|
Product description Provided by third party: Supermicro provides the outstanding product line, their proven high level of quality and performance has made SuperServers the platform of choice for enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.
- Key Features
-
- Intel QuickAssist technology
- Compact form factor < 10" depth
- Low power
UPC: 672042233793 In the Box Supermicro SuperServer Intel Atom C2358 Processor with Four 2.5" HDD Drive Bays (1 RU, Black) Supermicro SuperServer 5018A-LTN4 4 x Serial ATA cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro SuperServer Intel Atom C2358 Processor with Four 2.5" HDD Drive Bays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro SYS-5018A-LTN4 Specs | | | Type | Server | | Product Form Factor | Rack-mountable - 1U | | Server Scalability | 1-way | | Internal Bays Qty | 2 | | Color | Black | | | | CPU | Intel Atom C2358 | | Number of Cores | Dual-Core | | CPU Qty | 1 | | Max CPU Qty | 1 | | | | Installed Size | 0 MB / 16 GB (max) | | Technology | DDR3 SDRAM - ECC | | Form Factor | SO-DIMM 204-pin | | Slots | 2 (total) / 2 (empty) | | Features | Unbuffered | | | | Type | 1 x SATA - integrated | | Controller Interface Type | SATA 6Gb/s | | Channel Qty | 2 | | | | Type | 1 x SATA | | Controller Interface Type | SATA 3Gb/s | | Channel Qty | 2 | | | | Graphics Processor | ASPEED AST2400 | | Video Interfaces | VGA | | | | Ethernet Ports | 4 x Gigabit Ethernet | | Ethernet Controller | Intel I354 | | Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet | | Remote Management Protocol | IPMI 2.0 | | Remote Management Controller | Aspeed AST2400 | | Features | KVM over IP support | | | | Bays | 2 (total) / 2 (free) x internal 2x2.5" / 1x3.5" shared | | Slots | 2 (total) / 2 (free) x SO-DIMM 204-pin (1.35 V / 1.5 V)
1 (total) / 1 (free) x PCIe 2.0 x8 | | Interfaces | 4 x LAN (Gigabit Ethernet)
3 x USB 3.0 (1 internal)
2 x USB 2.0
1 x VGA
1 x serial
1 x management - RJ-45 | | | | Cables Included | Serial ATA cable (4 pcs.) | | Compliant Standards | Plug and Play, RoHS, ACPI 5.0 | | | | Device Type | Power supply | | Nominal Voltage | AC 120/230 V (50 - 60 Hz) | | Power Provided | 200 Watt | | 80 PLUS Certification | 80 PLUS Gold | | Power Factor Correction | Yes | | | | OS Provided | No operating system | | | | Service & Support | Limited warranty - labor - 3 years
Limited warranty - parts - 1 year | | | | Width | 17.2 in | | Depth | 9.8 in | | Height | 1.7 in | | Weight | 11.99 lbs | | | | Min Operating Temperature | 50
