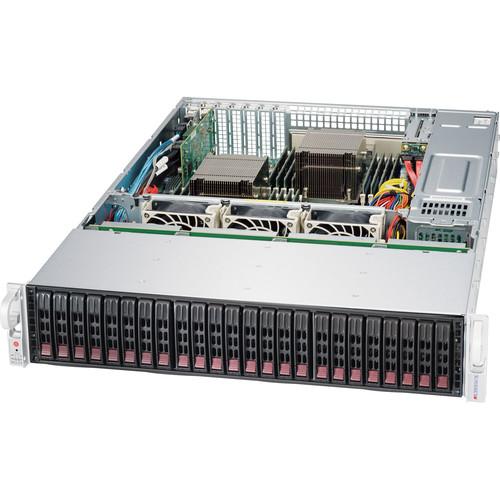

User Manual for Supermicro SuperStorage 2028R-ACR24H Rackmount Server Click to enlarge the picture
Contents of the user manual for the Supermicro SuperStorage 2028R-ACR24H Rackmount Server
- Product category: Server Systems Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Server Systems
|
User manual for the Supermicro SuperStorage 2028R-ACR24H Rackmount Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|
Product description - Key Features
-
- ECC DDR4 2133MHz; 16x DIMM slots
- Dual 10GBase-T LAN w/Intel X540
- 24x 2.5" Hot-swap SAS3/SATA3 direct attached drive bays
- SAS3 via 3x LSI 3108 AOC (HW RAID)
- Server remote management: IPMI 2.0 /KVM over LAN/Media over LAN
- 3x 8 cm hot-swap redundant PWM fans
- 920W Redundant Power Supplies Platinum Level (94%)
UPC: 672042199525 In the Box Supermicro SuperStorage 2028R-ACR24H Rackmount Server (2 RU) Supermicro SuperStorage Server 2028R-ACR24H 2 x CPU Heatsink 6 x mini SAS HD cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro SuperStorage 2028R-ACR24H Rackmount Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro SSG-2028R-ACR24H Specs | | | Type | Server | | Product Form Factor | Rack-mountable - 2U | | Server Scalability | 2-way | | Hot-Swap Bays Qty | 24 | | Color | Black | | | | CPU | No CPU | | Max CPU Qty | 2 | | CPU Upgradability | Upgradable | | CPU Socket | LGA2011-v3 Socket | | Chipset Type | Intel C612 | | | | Installed Size | 0 MB / 1 TB (max) | | Technology | DDR4 SDRAM - ECC | | Form Factor | DIMM 288-pin | | Slots | 16 (total) / 16 (empty) | | Features | Registered, Load-Reduced DIMM (LRDIMM) | | RAM Supported | 512 GB registered - ECC
1 TB Load-Reduced - ECC | | | | Type | 3 x RAID | | Controller Interface Type | SAS 12Gb/s | | Storage Controller Name | LSISAS3108 | | RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 | | | | Type | 1 x RAID | | Controller Interface Type | SATA 6Gb/s | | RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 | | | | Graphics Processor | ASPEED AST2400 | | Video Interfaces | VGA | | | | Ethernet Ports | 2 x 10 Gigabit Ethernet | | Ethernet Controller | Intel X540 | | Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet | | Remote Management Protocol | IPMI 2.0 | | Features | ACPI support, KVM over IP support | | | | Bays | 24 (total) / 24 (free) x hot-swap 2.5" | | Slots | 2 (total) / 2 (free) x CPU
16 (total) / 16 (free) x DIMM 288-pin
1 PCIe 3.0 x16
6 PCIe 3.0 x8 | | Interfaces | 2 x LAN (10Gigabit Ethernet)
3 x USB 2.0 (1 internal)
1 x VGA
1 x serial
1 x management
2 x USB 3.0 | | | | Included Accessories | 2 x CPU Heatsink | | Cables Included | Mini SAS HD cable (6 pcs.) | | Compliant Standards | Plug and Play, ACPI 2.0, APM 1.2, RoHS | | | | Device Type | Power supply | | Power Redundancy | Yes | | Power Redundancy Scheme | 1+1 | | Installed Qty | 2 | | Max Supported Qty | 2 | | Nominal Voltage | AC 120/230 V (50/60 Hz) | | Power Provided | 920 Watt | | 80 PLUS Certification | 80 PLUS Platinum | | Efficiency | 94%+ | | | | OS Provided | No operating system | | | | Service & Support | Limited warranty - labor - 3 years
Limited warranty - parts - 1 year | | | | Width | 17.2 in | | Depth | 24.8 in | | Height | 3.5 in | | | | Min Operating Temperature | 50
