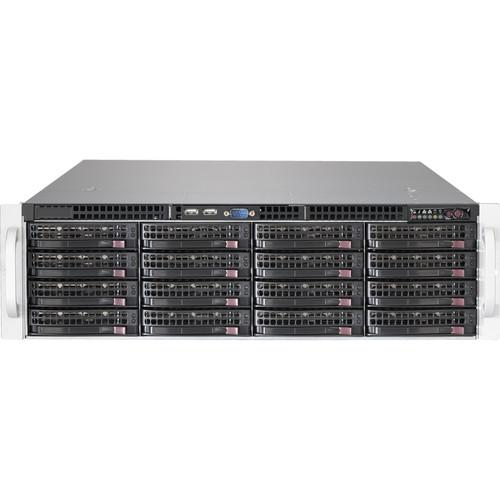

User Manual for Supermicro SuperStorage 6038R-E1CR16L 3U Rackmount Server Click to enlarge the picture
Contents of the user manual for the Supermicro SuperStorage 6038R-E1CR16L 3U Rackmount Server
- Product category: Server Systems Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Server Systems
|
User manual for the Supermicro SuperStorage 6038R-E1CR16L 3U Rackmount Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|
Product description The black SuperStorage 6038R-E1CR16L 3U Rackmount Server from Supermicro is suitable for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems. It comes with an Intel C612 chipset and supports Intel Xeon processor E5-2600 v3 family, and up to 2TB of memory. The server comes with sixteen 288-pin DDR4 DIMM slots, sixteen 3.5" hot-swap SAS3/SATA3 drive bays, and dual 10GBase-T LAN with Intel X540 Ethernet controller. In addition, the rackmount server also comes with two 80mm hot-swap rear exhaust cooling fans and 920W redundant power supplies. - Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family (QPI up to 9.6 GT/s)
- Up to 2TB ECC 3DS LRDIMM (up to 2400 MHz)
- 1 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (slot 3 and 4 occupied by controller and JBOD expansion port)
- Dual 10GBase-T LAN with Intel X540
- Sixteen 3.5" hot-swap SAS3/SATA3 drive bays
- SAS3 via LSI 3008 controller
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
- Two 80mm hot-swap rear exhaust PWM fans
- 920W redundant power supplies (Platinum Level (94%))
In the Box Supermicro SuperStorage 6038R-E1CR16L 3U Rackmount Server (Black) MBD-X10DRH-iT Super X10DRH-iT Motherboard CSE-836BE1C-R920B 3U Chassis BPN-SAS3-836EL1 Backplane 4 x CBL-SAST-0531 Internal Mini-SAS HD to Mini-SAS HD Cable (2.6') LBL-0108 Caution Label MCP-260-00042-0N STD I/O Shield 2 x SNK-P0048PS 2U Passive CPU Heat Sink 2 x PWS-920P-SQ 920W 1U Redundant Power Supply 2 x FAN-0125L4 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan with Housing AOC-S3008L-L8E-O-P Add On Card AOM-SAS3-8I8E 8-Port Mini SAS HD Int-to-Ext Cable Adapter Limited 1-year warranty for parts, 3 years for labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro SuperStorage 6038R-E1CR16L 3U Rackmount Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro SSG-6038R-E1CR16L Specs | | | Drive Expansion | 163.5" (External) | | Storage Drive | None | | PCI Expansion | 1 x PCIe Gen 3 x16
3 x PCIe Gen 3 x8 | | | | Processor | None | | Chipset | Socket: 2 x R3
Type: LGA 2011 | | Chipset Model | Intel C612 | | Total Installed Memory | None | | Maximum Memory Capacity | 2 TB | | Memory Support | DDR4 1600, 1866, 2133, 2400 MHz | | Available Memory Slots | 16 | | Memory Slot Type | 288-Pin DIMM | | ECC Memory | Yes | | GPU | Aspeed AST2400 with 32 MB | | | | Network | 2 x 10Gb Ethernet (RJ45)
1 x Ethernet (RJ45) | | Ports | 2 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A
1 x USB (Unspecified Version) Type-A
2 x mini-SAS | | Display | 1 x VGA | | Audio | None | | | | Rack Form Factor | 3 RU | | Fans | 2 x 80 mm | | Power Supply | 2 x 920 W 80 PLUS Platinum (Supports Redundancy) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4.5 to 11 A | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Operating Humidity | 8 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 95% | | Dimensions (W x H x D) | 17.2 x 5.2 x 25.5" / 437.0 x 132.0 x 648.0 mm | | Weight | 48.0 lb / 21.8 kg | | | | Package Weight | 75.0 lb | | Box Dimensions (LxWxH) | 34.0 x 26.5 x 13.0" |
