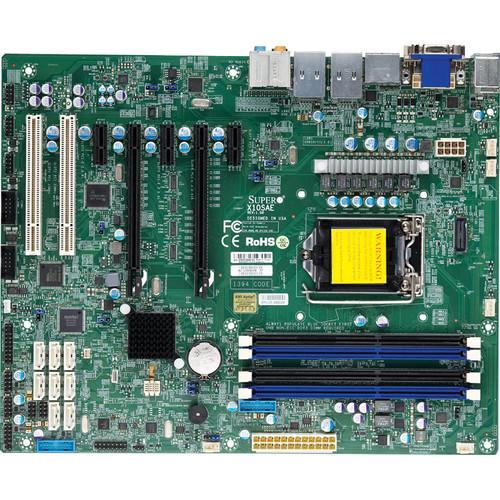

User Manual for Supermicro X10SAE Server Motherboard Click to enlarge the picture
Contents of the user manual for the Supermicro X10SAE Server Motherboard
- Product category: Motherboards Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Motherboards
|
User manual for the Supermicro X10SAE Server Motherboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|
Product description The X10SAE Server Motherboard from SuperMicro has an ATX form factor and it supports Intel Xeon, i3/i5/i7, Pentium, and Celeron Processors with its Intel C226 PCH chipset and LGA 1150 socket. It supports up to 32GB of memory and offers two PCIe 3.0 slots, three PCIe 2.0 slots, and dual gigabit Ethernet ports. A processor with integrated graphics is required for the on-board video functionality. The motherboard also features 7.1 HD audio channel connector, DOM power connector, SPDIF out header, Chassis intrusion detection header, TPM header, and UEFI BIOS. UPC: 672042135455 In the Box Supermicro X10SAE Server Motherboard Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro X10SAE Server Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro MBD-X10SAE-O Specs | | | CPU | Supports Intel 4th Generation Core i3/i5/i7/Pentium/Celeron and Intel E3-1200 v3 Xeon processors | | Chipset | Intel C226 Express PCH | | Form Factor | ATX | | | | Capacity | 4 x 240-pins DDR3 DIMM sockets
Supports up to 32 GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM) | | Type | 1600 MHz ECC/non-ECC DDR3 SDRAM 72-bit
240-pins gold-plated DIMMs | | DIMM Sizes | 1/2/4/8 GB | | Voltage | 1.5/1.35 V | | Error Detection | Corrects single-bit errors
Detects double-bit errors (using ECC memory) | | | | SATA | SATA 3 via PCH with RAID 0, 1, 5, 10 | | Network Controllers | Intel i217LM + Intel i210AT controllers
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T
RJ-45 output | | Audio | RealTek ALC1150 high definition audio | | | | SATA | 6 x SATA 3 (6 Gb/s) ports via PCH
2x SATA 3 (6 Gb/s) ports via ASM1061
Total of 8x SATA3 ports (6 Gb/s) | | LAN | 2 x RJ-45 Gigabit Ethernet LAN ports | | USB | 6 x USB 3.0 ports (2 x rear, 4 x via headers)
10 x USB 2.0 ports (4 x rear, 6 x via headers) | | Display | 1 x VGA, 1 x HDMI, 1 x DVI, 1 x Display port | | Serial Port | 2 x COM ports (headers) | | DOM | Supports SATA DOM (Disk on Module) power connector | | Other Features | TPM header
2 x Type B 1394a headers
PS/2 connector for mouse and keyboard | | | | PCIe | 2 x PCIe 3.0 x16 slots -Function as: 16/NA or 8/8
3 x PCIe 2.0 x1 (in x4) slots | | PCI | 2 x PCI 5V 32-bit slots | | | | Type | 128 Mb SPI flash EEPROM with AMI BIOS | | Features | DMI (SMBIOS) 2.7
ACPI 5.0
Supports USB keyboard | | | | 3U / Mid-Tower | SC732D4-903B
SC732G-903B | | 4U / Tower | SC743TQ-1200B-SQ
SC743TQ-865B-SQ To support the new generation Intel Xeon processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details | | | | Software | SuperDoctor III
Watch Dog
AMT
vPro | | Power Configurations | ACPI / ACPM power management
Main switch override mechanism
Power-on mode for AC power recovery
Internal/External modem ring-on | | | | Voltage | Monitors for CPU cores, +1.8/12/3.3/5 V, 5V Standby, VBAT, HT, memory, chipset voltages
5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V | | Fan | Total of five 4-pin fan headers supporting up to 5 fans
5x fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Support 3-pin fans (w/o speed control)
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors | | Temperature | Monitoring for CPU and chassis environment
CPU thermal trip support
FC temperature sensing logic
Supports Thermal Monitor 2 (TM2)
PECI | | LED | CPU / System Overheat LED +5V Standby alert LED | | Other Features | Chassis intrusion detection/header | | | | Dimensions | 12.00 x 9.60" (30.48 x 24.40 cm) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 13.3 x 10.5 x 2.8" |
