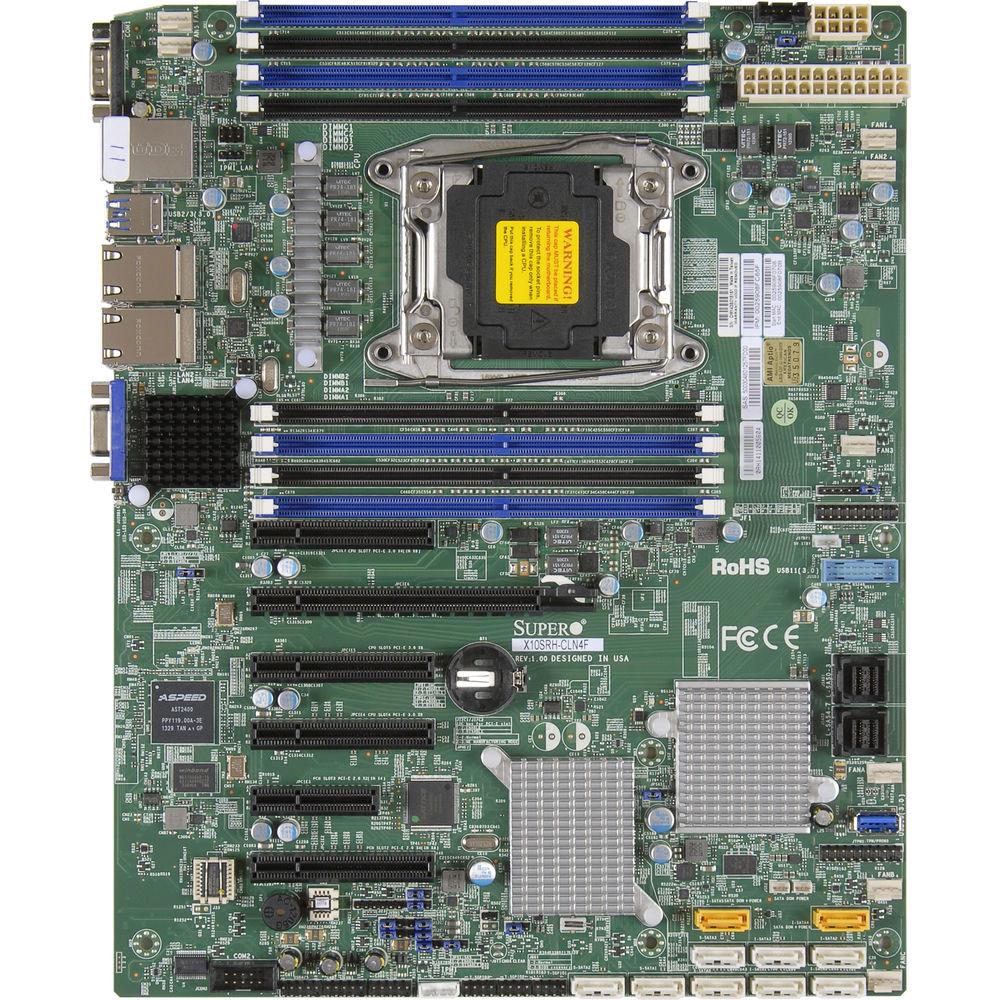

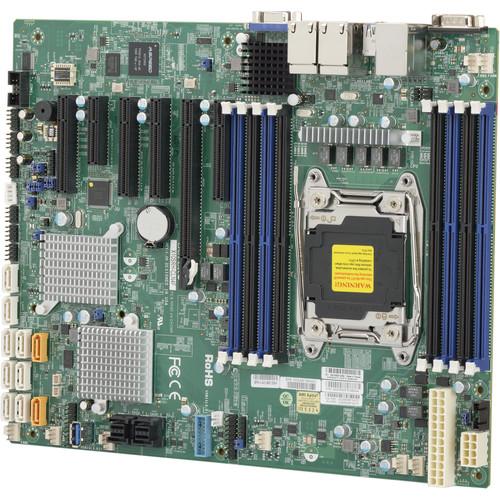

Supermicro X10SRH-CLN4F Motherboard with Intel C612 Chipset Contents of the user manual for the Supermicro X10SRH-CLN4F Motherboard with Intel C612
  • Product category: Motherboards Supermicro
  • Brand: Supermicro
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Supermicro Motherboards

Supermicro X10SRH-CLN4F Motherboard with Intel C612 Chipset Supermicro X10SRH-CLN4F Motherboard with Intel C612 Chipset
User manual for the Supermicro X10SRH-CLN4F Motherboard with Intel C612 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Supermicro product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!







Upload User Manual

Have you got an user manual for the Supermicro X10SRH-CLN4F Motherboard with Intel C612 Chipset in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Supermicro MBD-X10SRH-CLN4F-O Specs

Product Type Motherboard - ATX
Chipset Type Intel C612
Processor Socket LGA2011-v3 Socket
Max Processors Qty 1
Compatible Processors Xeon E5-2600 v3 series, Xeon E5-1600 v3 series (supports CPUs with up to 18 cores, Maximum TDP 145 Watt)
Max Size 512 GB
Technology DDR4
Bus Clock 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz
Supported RAM Integrity Check ECC
Registered or Buffered Registered, unbuffered, Load-Reduced
Details 256 GB - registered - ECC
512 GB - Load-Reduced - ECC
Graphics Controller ASPEED AST2400
Network Controller Intel I350-AM4
Network Interfaces 4 x Gigabit Ethernet
Expansion Slots 1 x CPU
8 x DIMM 288-pin (1.2 V)
1 x PCIe 3.0 x8 (x4 mode)
1 x PCIe 3.0 x16 (x8 mode)
2 x PCIe 3.0 x8
1 x PCIe 2.0 x8 (x4 mode)
1 x PCIe 2.0 x4 (x2 mode)
Storage Interfaces LSI Logic LSISAS3008: SAS 3 -connectors: 8 - 8 devices - RAID 0 / RAID 1 / RAID 10
SATA-600 -connectors: 10 x 7pin SATA - 10 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5

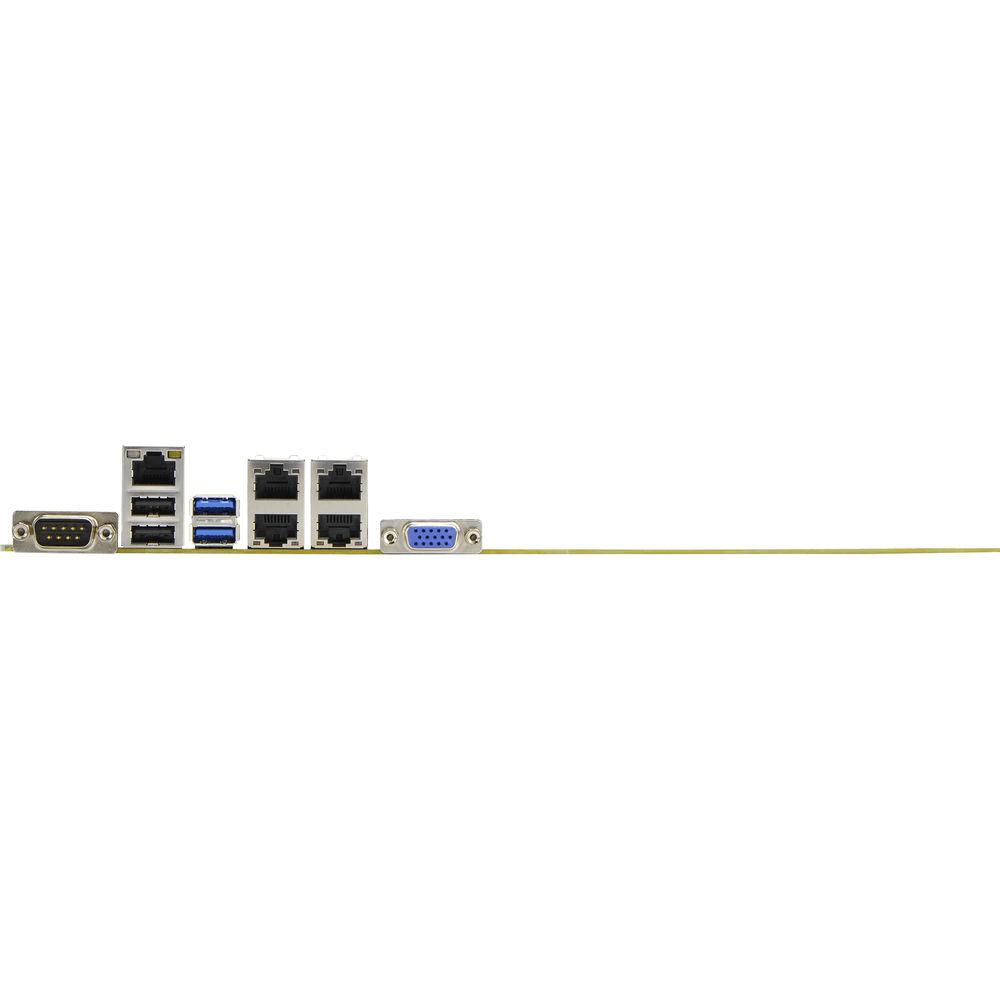

Interfaces 4 x LAN (Gigabit Ethernet)
2 x USB 2.0
1 x VGA
1 x management
1 x serial
2 x USB 3.0
Internal Interfaces 6 x USB 2.0 - header
1 x USB 3.0 - header
1 x USB 3.0 - Type A
1 x serial - header
BIOS Type AMI
BIOS Features APM 1.2 support, flash virus protection, power failure recovery (AC loss resume), DMI 2.3 support, UEFI BIOS, ACPI 4.0 support, SMBIOS 2.7.1 support, IPMI 2.0 support
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up Keyboard wake up, RTC (real-time clock) wake up
Hardware Features Diagnostic LEDs, chassis intrusion detection, WatchDog Timer
Software Included SuperDoctor 5
Compliant Standards Plug and Play, RoHS, ACPI 4.0
Width 12 in
Depth 9.6 in
Package Type Retail
Service & Support Limited warranty - parts - 1 year
Limited warranty - labor - 3 years
Designed for Supermicro SC732 i-500B
Supermicro SC743 T-665B
Supermicro SC823 TQ-653LPB
Supermicro SC833 T-653B
Supermicro SC842 TQ-665B, TQ-865B
