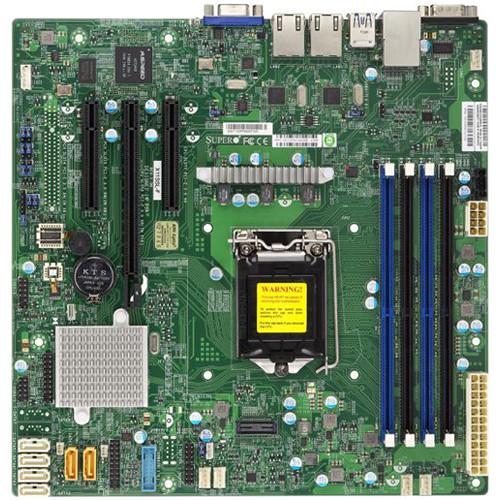

User Manual for Supermicro X11SSL Intel C232 Micro-ATX Motherboard Click to enlarge the picture
Contents of the user manual for the Supermicro X11SSL Intel C232 Micro-ATX Motherboard
- Product category: Motherboards Supermicro
- Brand: Supermicro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Supermicro Motherboards
|
User manual for the Supermicro X11SSL Intel C232 Micro-ATX Motherboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Supermicro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Supermicro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Supermicro product will considerably shorten its lifespan!
|
Product description Provided by third party: The Super X11SSL motherboard supports an Intel Xeon E3-1200 v5, 6th-Gen Core i3, Pentium, or Celeron processor in an LGA 1151 (H4) socket. With support of the Intel C232 chipset, DDR4 memory, SATA 3.0, Intel Node Manager, and Trusted Platform Module (TPM), this motherboard is optimized for cost-effective, entry-level server platforms.
UPC: 672042200931 In the Box Supermicro X11SSL Intel C232 Micro-ATX Motherboard SUPERMICRO X11SSL Software Table of Contents
|
Upload User Manual
Have you got an user manual for the Supermicro X11SSL Intel C232 Micro-ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSupermicro MBD-X11SSL-O Specs | | | Product Type | Motherboard - micro ATX | | Chipset Type | Intel C232 | | Processor Socket | LGA1151 Socket | | Max Processors Qty | 1 | | Compatible Processors | Pentium, Celeron, Core i3, Xeon E3-1200 v5 series (Maximum TDP 80 Watt) | | | | Max Size | 64 GB | | Technology | DDR4 | | Bus Clock | 1600 MHz, 1866 MHz, 2133 MHz | | Supported RAM Integrity Check | ECC | | Registered or Buffered | Unbuffered | | | | Graphics Controller | ASPEED AST1400 | | | | Network Controller | Intel I210-AT | | Network Interfaces | 2 x Gigabit Ethernet | | | | Expansion Slots | 1 x CPU
4 x DIMM 288-pin (1.2 V)
1 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 3.0 x8 (x4 mode)
1 x PCIe 3.0 x8 | | Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 | | Interfaces | 2 x LAN (Gigabit Ethernet)
2 x USB 2.0
2 x USB 3.0
1 x VGA
1 x serial | | Internal Interfaces | 2 x USB 3.0 - header
1 x USB 3.0 - Type A
4 x USB 2.0 - header | | | | BIOS Type | AMI | | BIOS Features | APM 1.2 support, flash virus protection, power failure recovery (AC loss resume), DMI 2.3 support, UEFI BIOS, ACPI 4.0 support, SMBIOS 2.7.1 support | | Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage | | Sleep / Wake Up | Keyboard wake up, RTC (real-time clock) wake up | | Hardware Features | Diagnostic LEDs, chassis intrusion detection, WatchDog Timer | | | | Software Included | SuperDoctor 5 | | Compliant Standards | Plug and Play, RoHS | | Width | 9.6 in | | Depth | 9.6 in | | Package Type | Retail | | | | Service & Support | Limited warranty - parts - 1 year
Limited warranty - labor - 3 years |
