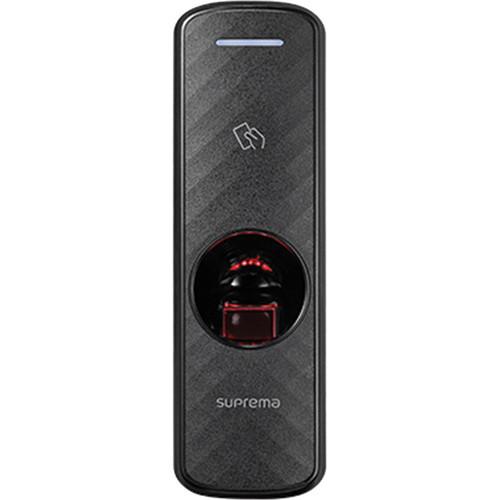

User Manual for Suprema BEP2-OD BioEntry P2 MIFARE Card & Fingerprint Reader Click to enlarge the picture
Contents of the user manual for the Suprema BEP2-OD BioEntry P2 MIFARE Card
- Product category: Keypads & Readers Suprema
- Brand: Suprema
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Suprema Keypads & Readers
|
User manual for the Suprema BEP2-OD BioEntry P2 MIFARE Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Suprema product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Suprema user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Suprema product will considerably shorten its lifespan!
|
Product description The BEP2-OD BioEntry P2 MIFARE Card & Fingerprint Reader from Suprema combine MIFARE and fingerprint reading to provide dual-layer security, authentication, and access control to your entryway. The sensor can recognize fingerprints from up to 10,000 users. NFC enables Android smartphones to be used to gain access.
Interfaces on this reader include RS-485, 100M Ethernet, Wiegand (selectable input or output), relay, TCP/IP, and two TTL inputs. This device is housed in a tamper-resistant enclosure. - Dual-frequency RFID card technology
- AES 128-bit encrypted NFC host card emulation for Android
- OSDP support enables compatibility with third-party controllers
- Reader's mullion design enables flexible placement in narrow spaces and door frames
- CE, FCC, KC, RoHS, REACH, and WEEE certified
In the Box Suprema BEP2-OD BioEntry P2 MIFARE Card & Fingerprint Reader Wall Bracket Drilling Template 2 x PVC Anchors 2 x Fixing Screws 6 x Connection Cables Ferrite Core 120 Ohms Resistor Diode Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Suprema BEP2-OD BioEntry P2 MIFARE Card & Fingerprint Reader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSuprema BioEntry P2 Specs | Biometric | Fingerprint
MINEX Certified and Compliant | | RF Options | 125 kHZ EM, 13.56 MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, and NFC | | Template | SUPREMA, ISO 19794-2, ANSI 378 | | Capacity | Maximum Users (One Finger Enrollment per User): 10,000 (1:1), 10,000 (1:N)
Maximum Fingers per User: 10
Maximum Templates (Two Templates per Finger): 20,000 (1:1), 20,000 (1:N)
Maximum Text Logs: 1,000,000 | | CPU | 1.0 GHz | | Memory | Flash: 8 GB
RAM: 64 MB | | LED | Multicolor LED Lamp | | Sound | Multitone Buzzer | | TCP/IP | Yes | | Ethernet | 1 x 100M, Auto MDI/MDI-X | | RS-485 | 1-Channel Host or Slave (Selectable) | | Wiegand | 1-Channel Input or Output (Selectable) | | TTL | 2 x Inputs | | Relay | 1 x Relay | | Power | 12 VDC | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 80%, Non-Condensing | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 0 to 90%, Non-Condensing | | Tamper Resistance | Yes | | Certificates | CE, FCC, KC, RoHS, REACH, WEEE | | Dimensions (W x H x D) | 2 x 6.5 x 1.5" / 50 x 164 x 37.5 mm | | Weight | Device: 5.7 oz / 162 g
Bracket: 1.4 oz / 39 g (Including Washer and Bolt) |
