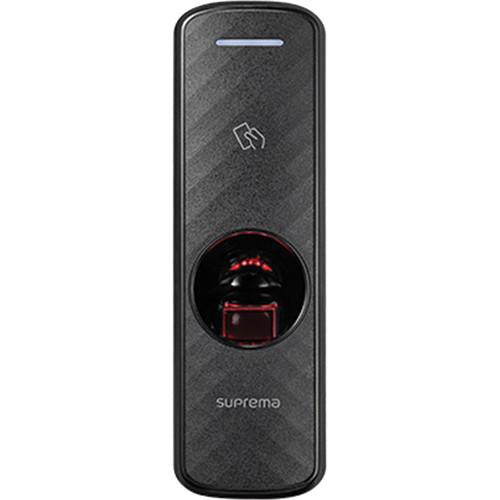

User Manual for Suprema BioEntry R2 Compact RFID Card & Fingerprint Reader Click to enlarge the picture
Contents of the user manual for the Suprema BioEntry R2 Compact RFID Card
- Product category: Keypads & Readers Suprema
- Brand: Suprema
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Suprema Keypads & Readers
|
User manual for the Suprema BioEntry R2 Compact RFID Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Suprema product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Suprema user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Suprema product will considerably shorten its lifespan!
|
Product description The BioEntry R2 Compact RFID Card & Fingerprint Reader from Suprema is designed for centralized access control systems. It combines multiclass RFID card and fingerprint reading to provide dual-layer security, authentication, and access control. NFC enables Android smartphones to be used to gain access.
This device is equipped with an RS-485 interface. Its housing is tamper resistant. - Dual-frequency RFID card technology
- AES 128-bit encrypted NFC host card emulation for Android
- Reader's mullion design enables flexible placement in narrow spaces and door frames
- CE, FCC, KC, RoHS, REACH, and WEEE certified
In the Box Suprema BioEntry R2 Compact RFID Card & Fingerprint Reader Wall Bracket Drilling Template 2 x PVC Anchors 2 x Fixing Screws Connection Cable (2 Pins, 4 Pins) Ferrite Core 120 Ohms Resistor Diode Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Suprema BioEntry R2 Compact RFID Card & Fingerprint Reader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSuprema BioEntry R2 Specs | Biometric | Fingerprint
MINEX Certified and Compliant | | RF Options | 125 kHZ EM, 13.56 MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, and NFC | | Template | SUPREMA, ISO 19794-2, ANSI 378 | | CPU | 1.0 GHz | | Memory | Flash: 32 MB
RAM: 32 MB | | LED | Multicolor LED Lamp | | Sound | Multitone Buzzer | | RS-485 | 1-Channel Master or Slave (Selectable) | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 80%, Non-Condensing | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 0 to 90%, Non-Condensing | | Tamper Resistance | Yes | | Certificates | CE, FCC, KC, RoHS, REACH, WEEE | | Dimensions (W x H x D) | 2 x 6.5 x 1.5" / 50 x 164 x 37.5 mm | | Weight | Device: 5.6 oz / 158 g
Bracket: 1.4 oz / 39 g (Including Washer and Bolt) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
