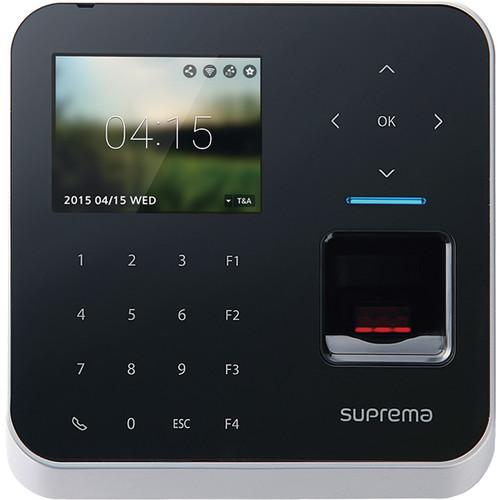

User Manual for Suprema BS2-OIPW BioStation 2 iCLASS Card & Fingerprint Reader Click to enlarge the picture
Contents of the user manual for the Suprema BS2-OIPW BioStation 2 iCLASS Card
- Product category: Keypads & Readers Suprema
- Brand: Suprema
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Suprema Keypads & Readers
|
User manual for the Suprema BS2-OIPW BioStation 2 iCLASS Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Suprema product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Suprema user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Suprema product will considerably shorten its lifespan!
|
Product description The BS2-OIPW BioStation 2 iCLASS Card & Fingerprint Reader from Suprema combines iCLASS card and fingerprint reading to provide dual-layer security, authentication, and access control. This reader is capable of instantly matching and authenticating up to 20,000 fingerprints per second. The optical sensor can recognize fingerprints from up to 500,000 users. The built-in 2.8" LCD screen displays information and settings entered from the numeric keypad and assorted buttons.
This device is equipped with a built-in speaker and microphone. It features RS-485 and RS-232 communication protocols, one relay, a Wiegand input & output, two TTL inputs, and two TTL outputs. The reader's tamper-resistant housing is IP65 rated for outdoor use. - Optical sensor captures and recognizes fingerprints from fingers in non-ideal conditions, such as wet and dry fingers
- Instantly matches and authenticates up to 20,000 fingerprints per second
- Rapid data transfer sends user and log data at a rate of 5000 users per minute
- Holds up to 3,000,000 logs for backup in the event of a connection loss to the server
- Up to 1,000,000 templates
- USB port to connect to a memory stick
- Two TTL inputs and two TTL outputs
- Numeric keypad, intercom, escape button, function buttons, arrow keys, and OK button
- CE, FCC, KC, RoHS, REACH, and WEEE certified
In the Box Suprema BS2-OIPW BioStation 2 iCLASS Card & Fingerprint Reader Wall Bracket Cable Cover Bracket Fixing Screw (Star Shaped) 6 x Connector Cables Drilling Template 4 x Fixing Screws Diode Ferrite Core 4 x PVC Anchors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Suprema BS2-OIPW BioStation 2 iCLASS Card & Fingerprint Reader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSuprema BioStation 2 Specs | Biometric | Fingerprint
MINEX Certified and Compliant | | RF Options | 13.56 MHz iCLASS SE/SR/Seos | | Template | SUPREMA, ISO 19794-2, ANSI 378 | | Capacity | Maximum Users (One Finger Enrollment per User): 500,000 (1:1), 20,000 (1:N)
Maximum Fingers per User: 10
Maximum Templates (Two Templates per Finger): 1,000,000 (1:1), 40,000 (1:N)
Maximum Text Logs: 3,000,000 | | CPU | 1.0 GHz Single-Core | | Memory | Flash: 8 GB
RAM: 256 MB | | LCD Screen | 2.8" / 7.1 cm TFT LCD | | LED | Multicolor LED Lamp | | Sound | 16-Bit | | Built-In Microphone | Yes | | Built-In Speaker | Yes | | Wi-Fi | IEEE 802.11b/g | | TCP/IP | Yes | | Intercom | Supported | | PoE | 802.3af | | Ethernet | 1 x 100M, Auto MDI-X | | RS-485 | 1-Channel Host or Slave (Selectable) | | RS-232 | Supported | | DIP Switch | Yes | | Wiegand | 1 x Input
1 x Output | | TTL | 2 x Inputs
2 x Outputs | | Relay | 1 x Relay | | USB Ports | 1 x USB
1 x Mini-USB | | USB 2.0 | Yes | | Power | 12 VDC | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 80%, Non-Condensing | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 0 to 90%, Non-Condensing | | IP Rating | IP65 | | Tamper Resistance | Yes | | Certificates | CE, FCC, KC, RoHS, REACH, WEEE | | Dimensions (W x H x D) | 5.6 x 5.7 x 1.8" / 142 x 144 x 45 mm | | Weight | Device: 14.1 oz / 400 g
Bracket: 4.6 oz / 130 g (Including Washer and Screw) |
