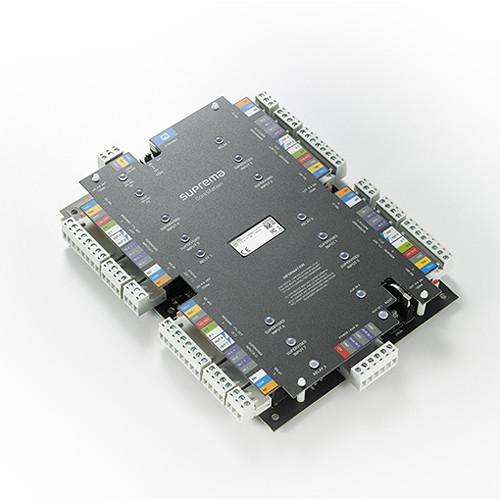

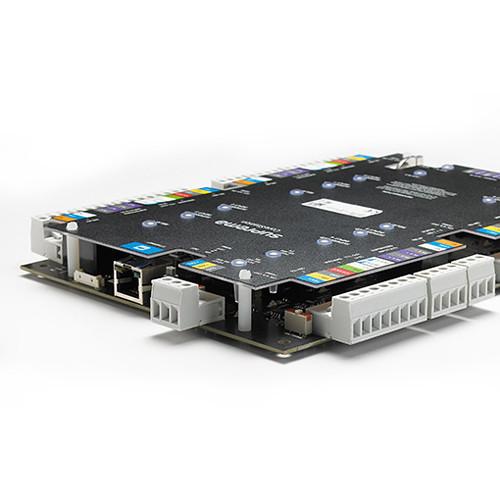

User Manual for Suprema CoreStation Biometric Access Controller Click to enlarge the picture
Contents of the user manual for the Suprema CoreStation Biometric Access Controller
- Product category: Access Controllers Suprema
- Brand: Suprema
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Suprema Access Controllers
 |
User manual for the Suprema CoreStation Biometric Access Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Suprema product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Suprema user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Suprema product will considerably shorten its lifespan!
|
Product description The CoreStation Biometric Access Controller from Suprema provides centralized biometric access control and is designed for enterprise-level systems. This device can handle information from up to 500,000 users. It supports RFID smart cards, fingerprint readers, locks, sensors, RTE, and alarm devices.
Interfaces on this controller include five RS-485 ports, four relays, four Wiegand connections, a 100M Ethernet port, eight supervised inputs (TTL input selectable), eight TTL outputs, and an auxiliary input. - Capable of delivering the full features of the BioStar 2 platform
- AES-256 encryption and secure communication via TLS 1.2
- Centralized secure storage of biometric and access group data
- No Ethernet connection to edge devices
- No data is stored on edge devices
- Matching speed of up to 400,000 fingerprints per second
- Supports up to 5,000,000 text logs
- Simultaneous matching speed of up to eight devices in one second
- Third-party Wiegand reader
- Leverages existing wiring
- Auxiliary input (AC power failure or tamper)
- Eight supervised inputs (TTL selectable)
- Elevator control with OM-120 (available separately)
- Supports up to 132 access points with the DM-20 and Secure I/O 2 (available separately, 132 Wiegand readers / 64 RS-485 readers)
- ENCR-10 enclosure (available separately) provides tamper resistance
In the Box Suprema CoreStation Biometric Access Controller 12 x Fixing Screws 6 x Spacers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Suprema CoreStation Biometric Access Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSuprema CoreStation Specs | CPU | 1.4 GHz Octa-Core | | Memory | Flash: 8 GB
RAM: 1 GB | | Capacity | Maximum Users (One Finger Enrollment per User): 500,000 (1:1), 100,000 (1:N)
Maximum Fingers per User: 10
Maximum Templates (Two Templates per Finger): 1,000,000 (1:1), 200,000 (1:N)
Maximum Text Logs: 5,000,000
Maximum RF Cards: 500,000
Maximum PINs: 500,000 | | LED | Multicolor LEDs | | Ethernet | 1 x 100M, Auto MDI/MDI-X | | RS-485 | 5 x Ports | | RS-485 Protocol | OSDP V2 Compliant | | Wiegand | 4-Channel | | Relays | 4 x Relays | | Supervised Input | 8-Channel (TTL Input Selectable) | | TTL | 8 x Outputs | | Auxiliary Input | 2-Channel (AC Power Fail, Tamper) | | Power | 12 VDC | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80%, Non-Condensing | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 0 to 95%, Non-Condensing | | Certificates | CE, KC, RoHS, REACH, WEEE | | Dimensions (W x H x D) | 5.9 x 8.4 x 0.8" / 150 x 214 x 21 mm | | Weight | 14.6 oz / 415 g |
