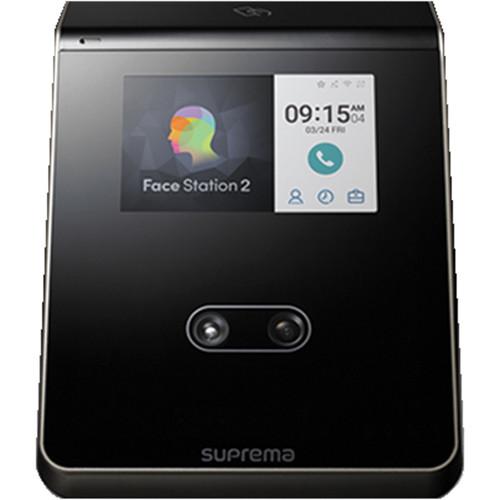

User Manual for Suprema FS2-D FaceStation 2 Smart Face Recognition Terminal Click to enlarge the picture
Contents of the user manual for the Suprema FS2-D FaceStation 2 Smart Face
- Product category: Keypads & Readers Suprema
- Brand: Suprema
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Suprema Keypads & Readers
|
User manual for the Suprema FS2-D FaceStation 2 Smart Face contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Suprema product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Suprema user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Suprema product will considerably shorten its lifespan!
|
Product description The FS2-D FaceStation 2 Smart Face Recognition Terminal from Suprema provides facial recognition of up to 30,000 users to provide biometric authentication and access control. IR-based live face detection blocks fake faces from gaining access. This device also provides MIFARE card reading. The built-in 4" LCD screen uses an Android-based GUI to display information.
This device is equipped with a built-in speaker and microphone. Interfaces on this terminal include RS-485, 1000M Ethernet, relay, Wiegand (input & output), and two TTL inputs. - Matches up to 3000 faces per second
- IR illumination enables this device to have an operating illuminance of 25,000 lux
- 24-bit voice digital signal processor with echo cancellation
- Up to 5,000,000 test logs
- TFT LCD screen with Android-based GUI
- Optional tilting bracket enables this device to accommodate a wide height range, including wheelchair users and children
- CE, FCC, KC, RoHS, REACH, and WEEE certified
In the Box Suprema FS2-D FaceStation 2 Smart Face Recognition Terminal Wall Bracket 4 x PVC Anchors Bracket Fixing Screw (Star Shaped) 5 x Connection Cables Ferrite Core 4 x Fixing Screws Diode 120 Ohms Resistor Drilling Template Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Suprema FS2-D FaceStation 2 Smart Face Recognition Terminal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSuprema FaceStation 2 Specs | Biometric | Face
Extractor/Matcher: SUPREMA | | Live Face Detection | Supported | | RF Options | 125 kHz EM, 13.56 MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, and NFC | | Template | SUPREMA | | Capacity | Maximum Users (One Face Enrollment per User): 30,000 (1:1), 3000 (1:N)
Maximum Faces per User: 5
Maximum Templates: 900,000 (1:1), 90,000 (1:N)
Maximum Text Logs: 5,000,000
Maximum Image Logs: 50,000 | | CPU | 1.4 GHz Quad-Core | | Memory | Flash: 8 GB
RAM: 1 GB | | LCD Screen | 4" / 101.6 mm TFT LCD
Resolution: 800 x 480 | | Image Sensor | CMOS | | Camera Resolution | 720 x 480 | | Diagonal Field of View (FOV) | Visual Lens: 92.7°
IR Lens: 58° | | Sound | 24-Bit Voice DSP (Echo Cancellation) | | Built-In Microphone | Yes | | Built-In Speaker | Yes | | Intercom | Supported | | Ethernet | 1 x 1000M, Auto MDI/MDI-X | | RS-485 | 1-Channel Host or Slave (Selectable) | | Wiegand | 1 x Input
1 x Output | | TTL | 2 x Inputs | | Relay | 1 x Relay | | USB | USB 2.0 (Host) | | Power | 24 VDC | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 80%, Non-Condensing | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 0 to 90%, Non-Condensing | | Tamper Resistance | Yes | | Certificates | CE, FCC, KC, RoHS, REACH, WEEE | | Dimensions (W x H x D) | 5.5 x 6.5 x 4.9" / 141 x 164 x 125 mm | | Weight | Device: 19.3 oz / 548 g
Bracket: 2.6 oz / 74 g (Including Washer and Bolt) |
