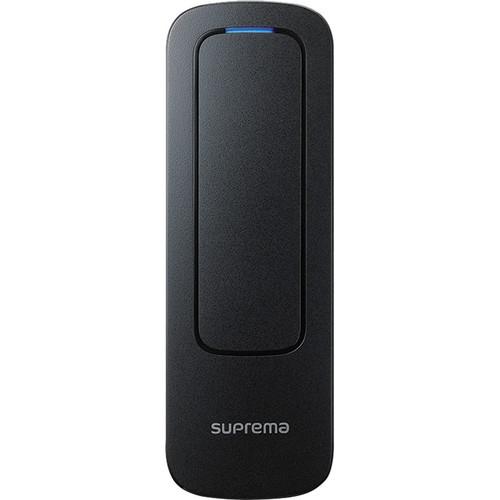

User Manual for Suprema XPass D2 Outdoor Compact RFID Reader Click to enlarge the picture
Contents of the user manual for the Suprema XPass D2 Outdoor Compact RFID
- Product category: Keypads & Readers Suprema
- Brand: Suprema
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Suprema Keypads & Readers
|
User manual for the Suprema XPass D2 Outdoor Compact RFID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Suprema product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Suprema user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Suprema product will considerably shorten its lifespan!
|
Product description The XPass D2 Outdoor Compact RFID Reader from Suprema is a multiclass RFID card reader designed for use in centralized access control systems. NFC enables Android smartphones to be used to gain access. Additionally, BLE communication enables iOS and Android smartphones to be used to gain access.
This device is equipped with RS-485 and Wiegand interfaces. It is housed in an IP67- and IK08-rated enclosure to protect it from inclement weather and impacts. - Dual-frequency RFID card technology
- AES encrypted NFC host card emulation for Android
- AES 128-bit encrypted BLE communication for iOS and Android
- Reader's mullion design enables flexible placement in narrow spaces and door frames
- Design supports installation in gang box locations
In the Box Suprema XPass D2 Outdoor Compact RFID Reader Wall Bracket Drilling Template 2 x Wall Fixing Screws Bracket Fixing Screw (Star Shaped) 2 x PVC Anchors 120 Ohms Resistor Shrink Tube Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Suprema XPass D2 Outdoor Compact RFID Reader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSuprema XPass Specs | RF Options | 125 kHZ EM, Wiegand Format Card & 13.56 MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC, and Bluetooth Low Energy | | CPU | 80 MHz | | Memory | Flash: 256 kB
RAM: 64 kB | | LED | Multicolor LED Lamp | | Sound | Multitone Buzzer | | RS-485 | 1-Channel Slave | | Wiegand | 1-Channel | | Power | 12 VDC | | Operating Temperature | -31 to 149°F / -35 to 65°C | | Operating Humidity | 0 to 95%, Non-Condensing | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 0 to 95%, Non-Condensing | | IP Rating | IP67 | | IK Rating | IK08 | | Tamper Resistance | Yes | | Certificates | CE, FCC, KC, RoHS, REACH, WEEE, and SIG | | Dimensions (W x H x D) | 1.9 x 5.7 x 1" / 48 x 144.7 x 27 mm | | Weight | Device: 4.1 oz / 117 g
Bracket: 1 oz / 30 g (Including Washer and Bolt) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
