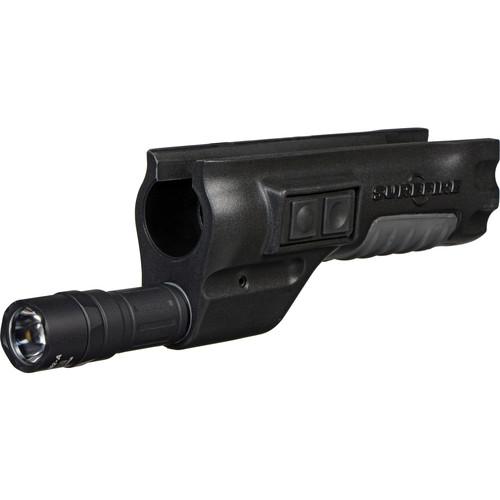

Product description Replace the forend on your Remington 870 with the Surefire 618LMG-A Forend LED Flashlight for added functionality. The light features 500 lumens of output, and has momentary and constant-on modes. The right side features a long momentary-on tape switch and system disable toggle switch, while the left side features a constant-on toggle switch. The disable switch helps to prevent accidental activation during transport, storage, or when strict light discipline is needed.
The forend is made from an impact-resistant Nitrolon polymer and has a textured grip for secure handling. The light is made from machined aluminum with a matte black Type III MIL-STD anodized finish. SureFire's Total Internal Reflection (TIR) lens produces a pre-focused beam that has a tight center cone of bright light, with a dimmer ring on the periphery to help maintain situational awareness. O-rings and gaskets seal the light from water and dust. The two 123A batteries provide up to 1.75 hours of runtime. - Compatibility
- Remington 870 shotgun
- Light Performance
-
- White LED emitter
- 500 lumens
- Pre-focused Total Internal Reflection (TIR) lens produces tight beam with bright center and dimmer periphery ring
- Switching
-
- Type: Pressure and toggle
- Momentary and Constant-On modes
- Right side features a long momentary-on tape switch and system disable toggle switch
- Left side features a constant-on toggle switch
- Disable selector switch protects against accidental activation
- Construction Details
- Flashlight
- Machined aluminum body
- Type III MIL-STD Anodized Finish
- Tempered glass and coated window
- O-ring and gasket-sealed against water and dirt
Grip - Impact-resistant Nitrolon polymer
- Textured for secure handling
UPC: 084871324120 In the Box SureFire 618LMG-A Forend LED Flashlight 2 x 123A Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SureFire 618LMG-A Forend LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSureFire 618LMG-A Specs | | | Illumination Source | White LED | | Output | 500 lumens | | Battery | 2 x 123A | | Runtime | 1.75 h | | Waterproofing | O-ring and gasket-sealed | | | | Construction | Light: Aluminum
Forend grip: Nitrolon polymer | | Length | 10.3" / 26.2 cm | | Bezel Diameter | 1.125" / 2.85 cm | | Weight | 17.2 oz / 487.6 g with batteries | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 10.3 x 3.7 x 3.6" |
