User Manual for SureFire HellFighter 5 WeaponLight and Searchlight Click to enlarge the picture
Contents of the user manual for the SureFire HellFighter 5 WeaponLight and Searchlight
- Product category: Weapon & Tactical Lights SureFire
- Brand: SureFire
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SureFire Weapon & Tactical Lights
 |
User manual for the SureFire HellFighter 5 WeaponLight and Searchlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SureFire product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SureFire user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SureFire product will considerably shorten its lifespan!
|

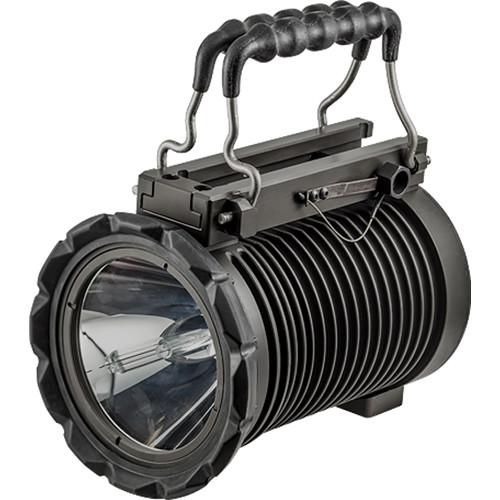

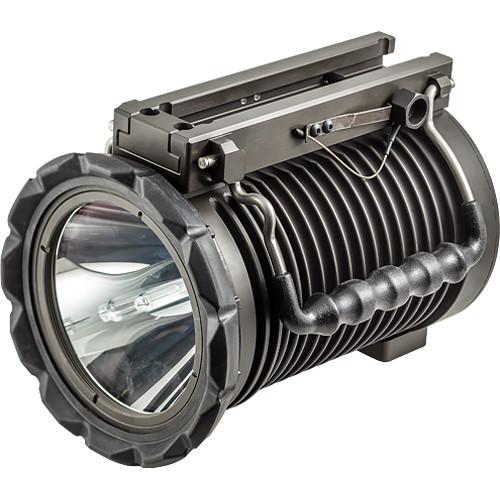

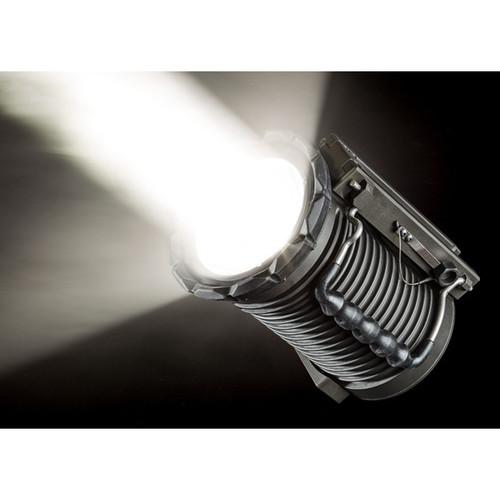

Product description Designed and purpose-built to withstand the rigors and recoil of heavy and crew-served weapons, SureFire's HellFighter 5 WeaponLight and Searchlight utilizes a filament-free High Intensity Discharge (HID) lamp that is virtually immune to failure from recoil, vibration, or impacts to produce 4,500 darkness piercing lumens of blinding light. Complementing the HID lamp is a finely polished mirror-finish reflector that produces a wide cone of peripheral light to maintain situational awareness and enhanced patrol or search efficiency. The light is equipped with an internal rechargeable Li-ion battery that gives it a runtime of up to 80 minutes. Specialized circuitry digitally regulates the output to maintain consistent beam intensity throughout battery charge. The battery, coupled with an integrated lockable carrying handle, allows the HellFighter to pull double-duty as a powerful search & rescue tool. Three other power sources can be used, including drawing power from a 12 VDC car/vehicle plug using the included adapter.The output is controlled via a rear-facing pushbutton switch and offers both momentary and constant-on modes. An integrated saddle enables the light to be installed on conventional T-rails, while optional adapters and remote activation switches provide a variety of options for mounting it on a multitude of platforms including the ubiquitous Picatinny/Weaver rail. The HellFighter is made of an aluminum alloy with a corrosion and scratch-resistant Mil-Spec Type III hard-coat anodized finish, and is O-ring and gasket sealed to be waterproof and submersible to 3.3'. Supporting its role as a dependable and indispensable tool in extreme situations, the reflector, lamp, and rechargeable battery unit are all field-replaceable. - Performance
-
- 4,500 lumen single output
- Incandescent High Intensity Discharge (HID) lamp
- Mirror-finish reflector produces wide cone of peripheral light for situational awareness and enhanced patrol or search efficacy
- Filament-free HID lamp is virtually immune to failure from recoil, vibration, or impact
- Digitally regulated output maintains constant beam intensity throughout battery charge
- Power Options
-
- Internal long-life lithium-ion rechargeable battery provides 80 minute runtime
- Any vehicle accessory outlet that supplies from 11-32 VDC using the included cable
- An AC-to-DC plug-in power supply/battery charger with integral cable; simultaneously powers the light and recharges the internal battery
- BA-5590 and similar military batteries, via an optional power cable

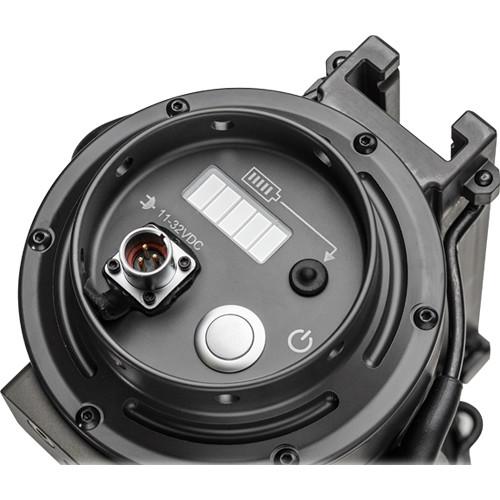

- Switching
-
- Type: Pushbutton
- Location: Rear-facing
- Momentary and constant-on modes
- Optional remote switches available
- Construction
-
- Lightweight and durable aluminum housing
- Corrosion and scratch-resistant Mil-Spec Type III hard anodized finish
- O-ring and gasket sealed, waterproof to 3.3'
- 3mm anti-reflection coated tempered glass window
- 5-level LED power indicator

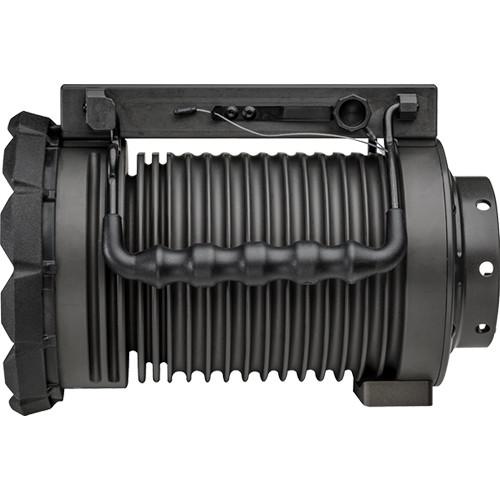

- Low-profile folding carry handle that locks in down position to prevent movement and rattling
- Integrated heavy-duty rapid attach/detach T-rail clamp permits mounting to any weapon or vehicle fitted with a T-rail

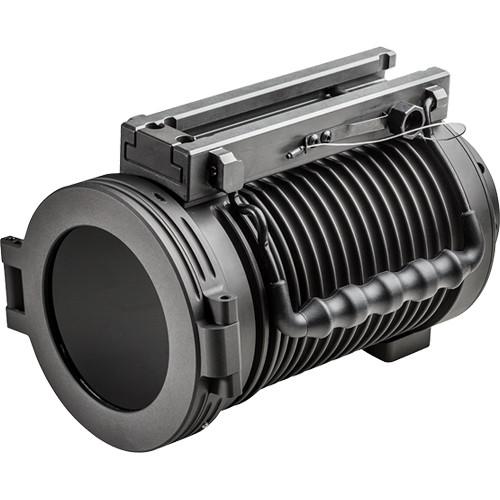

- Optional removable screw-on colored filters, or optional semi-permanent swing-open colored filters

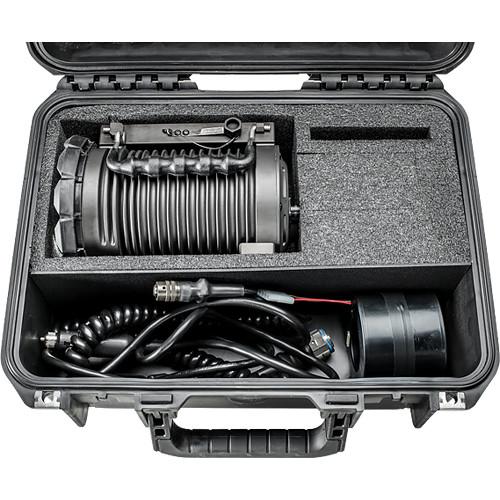

UPC: 084871321068 In the Box SureFire HellFighter 5 WeaponLight and Searchlight 12 VDC Car/Vehicle Plug Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SureFire HellFighter 5 WeaponLight and Searchlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSureFire HF5 Specs | Illumination Source | Incandescent High Intensity Discharge (HID) lamp | | Output | 4,500 lumens | | Power | Integrated li-ion rechargeable battery
11 - 32 VDC | | Runtime | 80 min max, using internal Li-ion battery | | Mount | T-rail clamp for optional rail/mounting accessories | | Construction | Aluminum alloy | | Weatherproofing | Waterproof, submersible to 3.3' / 1 m | | Dimensions | 8.1 x 4.5" / 20.6 x 11.4 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 12.2 x 9.8 x 9.3" |
