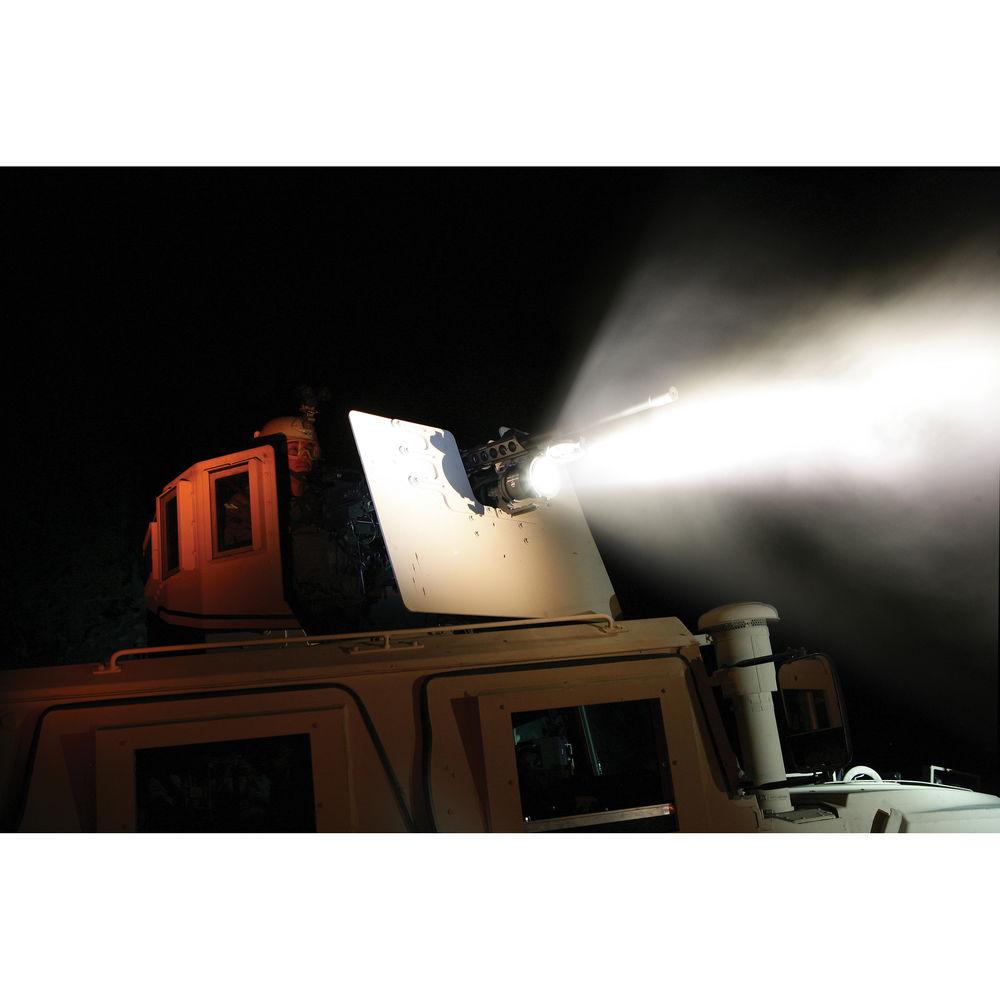

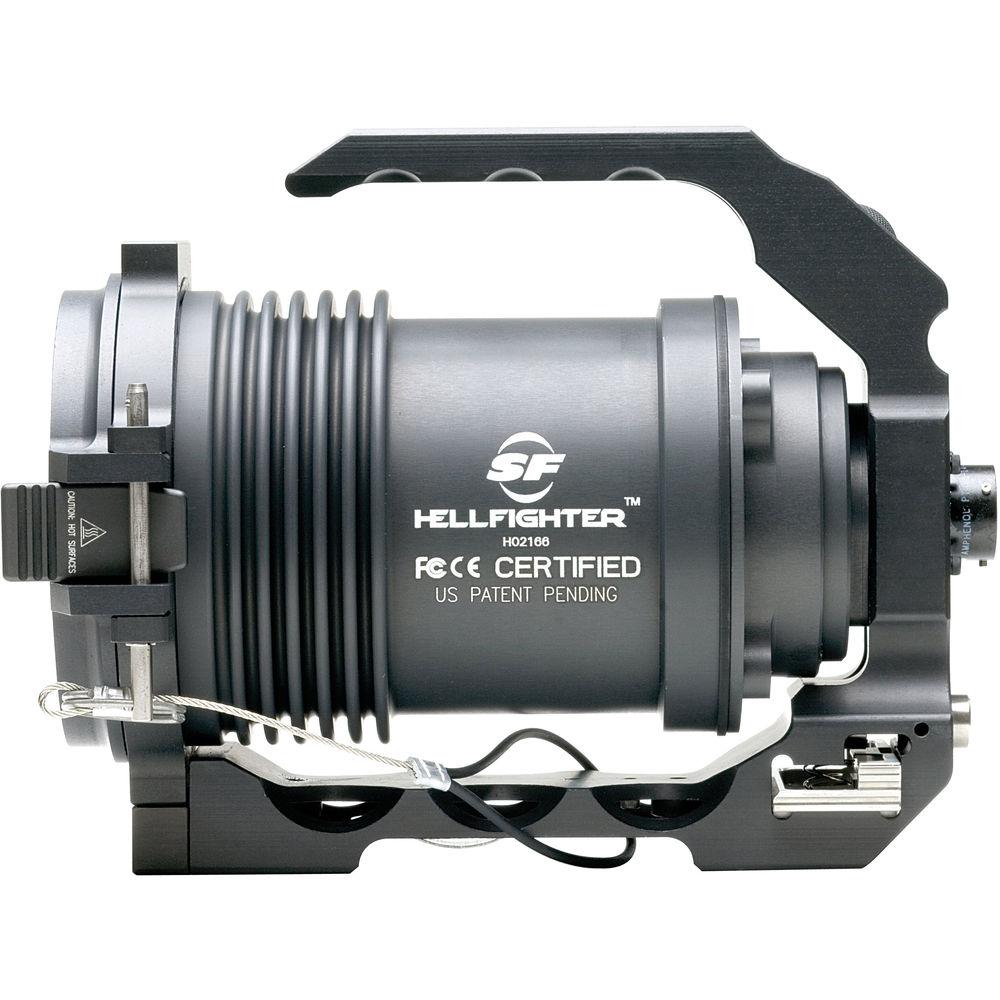

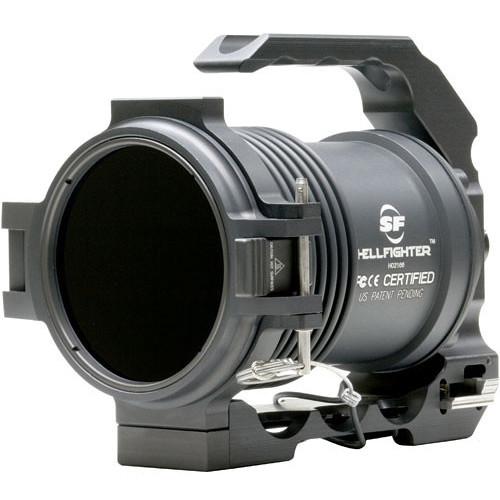

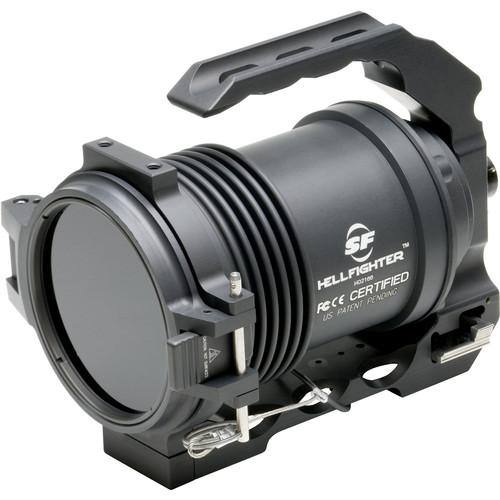

Product description The HellFighter Searchlight from SureFire is a high-intensity discharge arc lamp that delivers 3000 lumens and can be mounted on a machine gun or vehicle or used as a handheld searchlight. It comes with an infrared filter for use with night vision devices. Power for the Hellfire comes from two 5590 military batteries, but the light can also be powered by a 12 VDC vehicle battery using the included 10' adapter cable. Momentary and constant-on switches are located on the back of the light and on the grip. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARazwytvefttutrv), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - IR Filter for night vision compatibility
- Carry handle allows use as handheld searchlight
- Weatherproof quick-attach 12V power supply socket
- 5mm multi-coated Pyrex window protects reflector and HID lamp
- Weatherproof, lockable hardshell Storm case with formed foam insert
- Precision reflector provides long center beam reach and peripheral light
- Aluminum body with Type III hard anodizing & weatherproof seals
- Runs on two 5590 batteries or 12V auto battery connected via the 10' cable with adapter
- Mounts on .50 caliber machine gun with proprietary T-slot base attached
- Can also be used as a vehicle-mounted or handheld spotlight
- Momentary and constant-on switches on light body and handle
In the Box SureFire HellFighter Searchlight with IR Filter IR Filter Waterproof Hard Case 10' DC Power Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SureFire HellFighter Searchlight with IR Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSureFire HellFighter Specs | Lamp Type | Philips 35W D1S HID lamp | | Maximum Output | 3000 lumens | | Runtime | 2 x 5590 military batteries: approximately 8 hours
Auto Battery: Continuous | | Construction | Aluminum, hard-anodized Mil-Spec Type III | | Waterproofing | Weather-resistant | | Battery Type | 2 x 5590 15V 7.5 Ah military batteries | | Cable Length | 10' / 3 m | | Dimensions | Length: 8.0" / 20 cm | | Weight | 4.6 lb / 2.1 kg |
