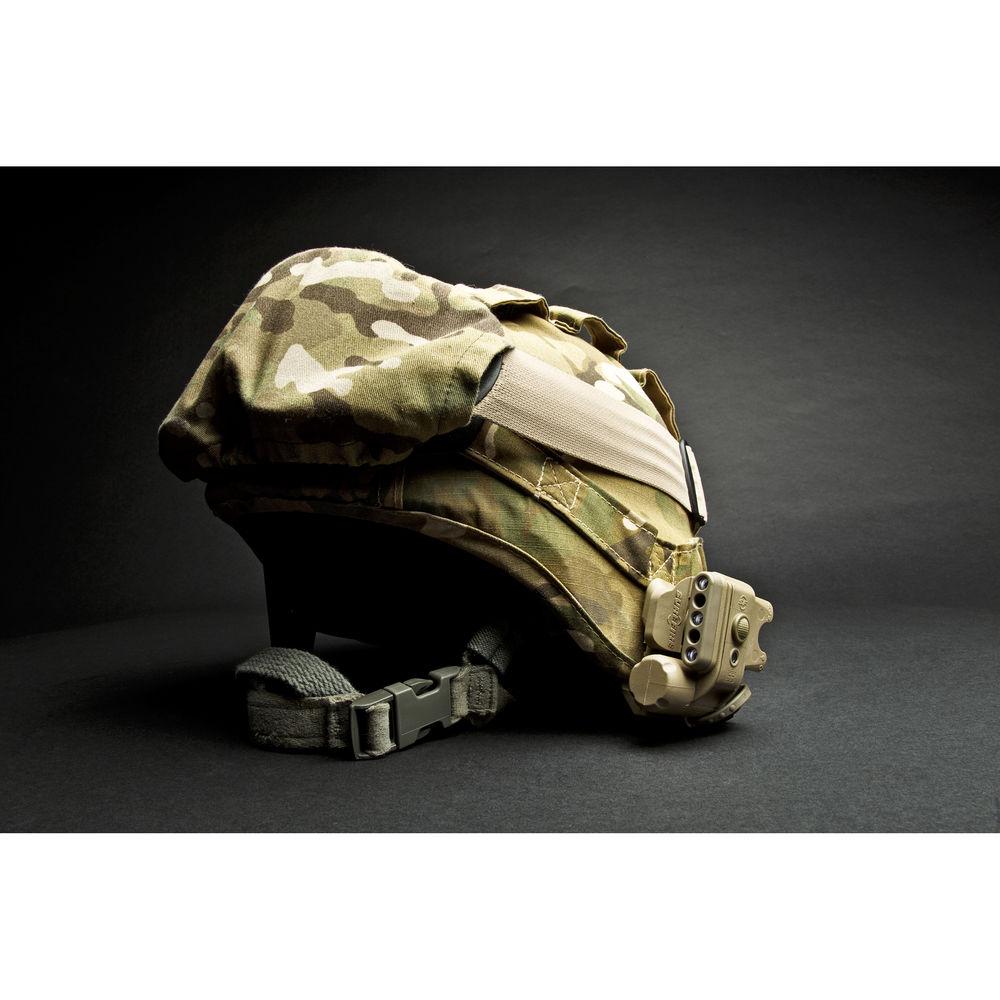

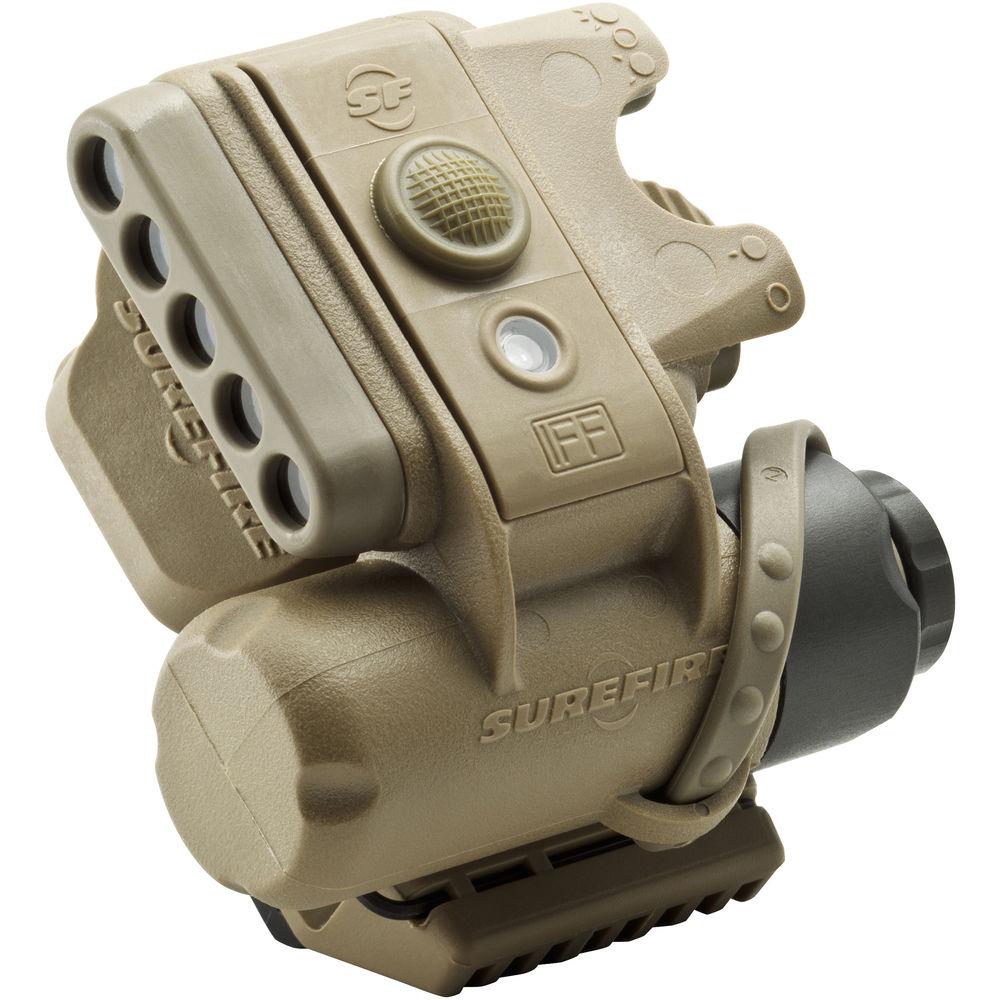

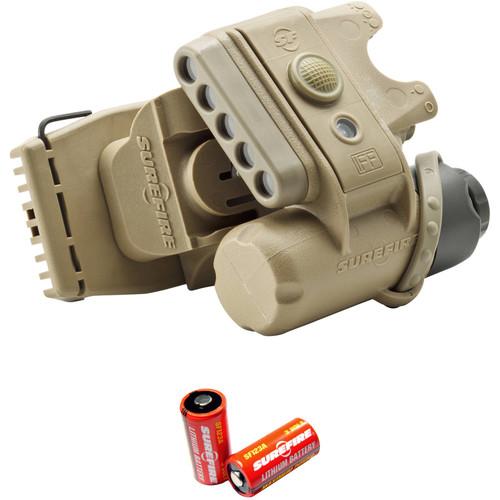

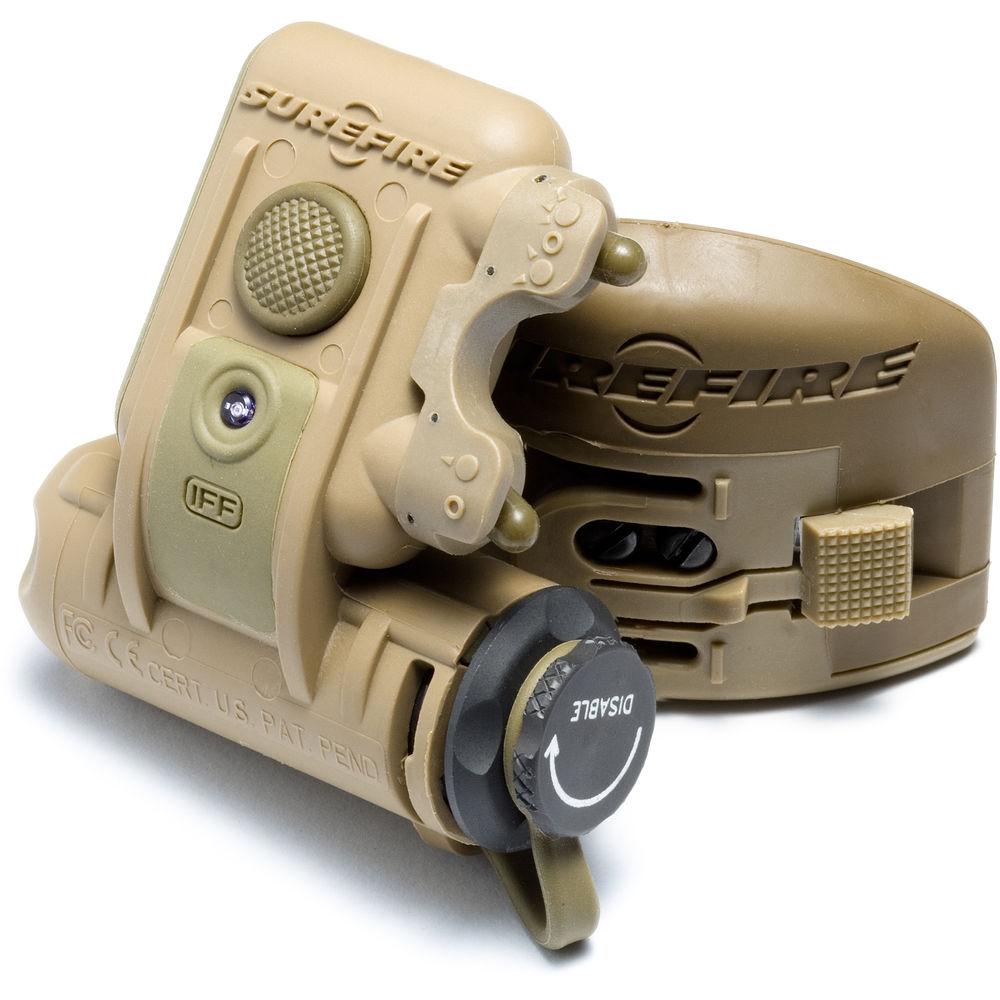

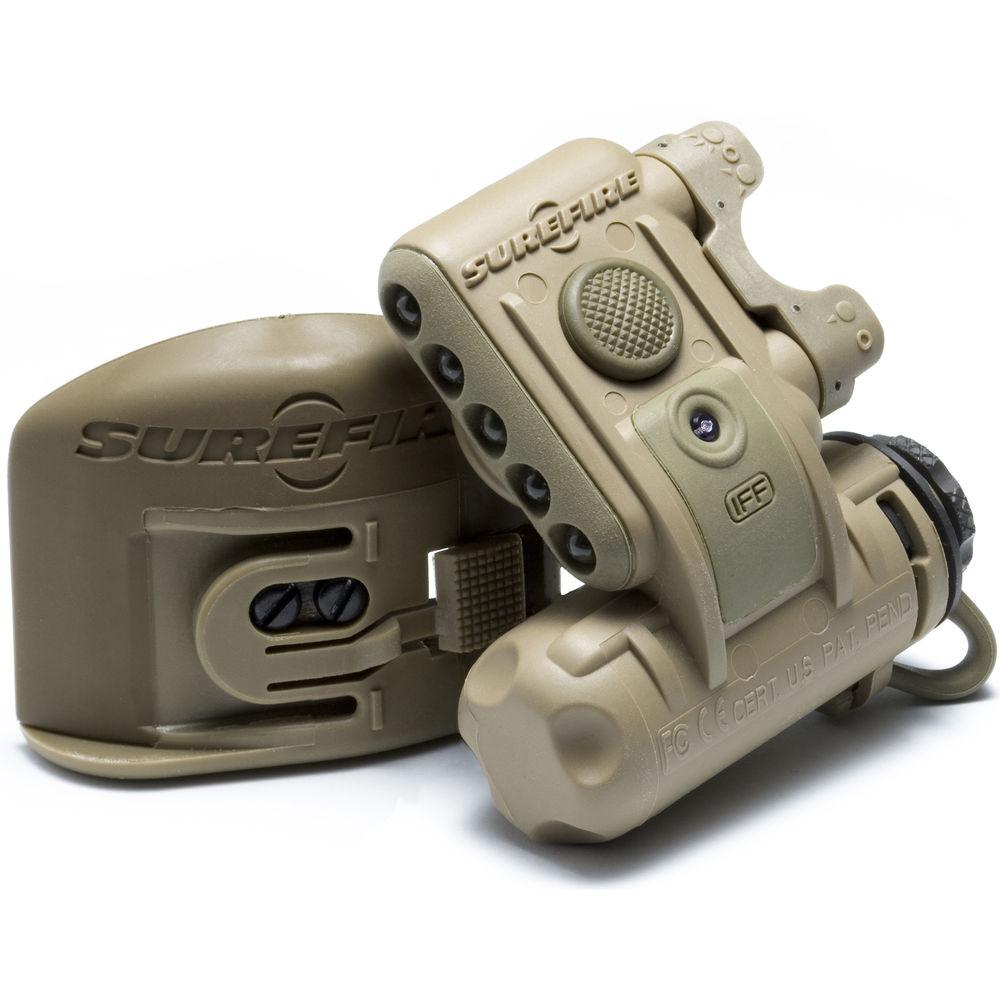

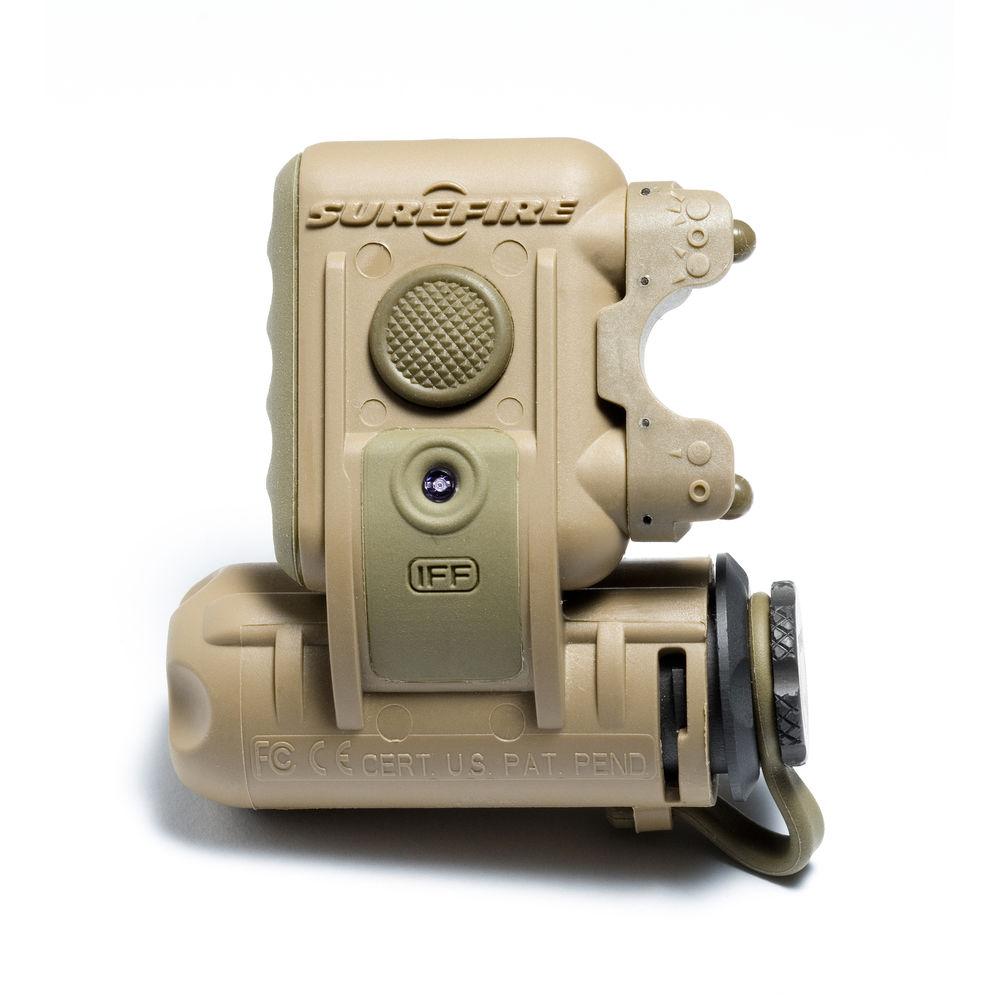

Product description The desert tan HL1-A Dual Output White/Blue LED Helmet Light from SureFire is a versatile hands-free light that provides an IR Identify Friend or Foe (IFF) beacon for identification to friendly forces using NVDs. The light allows the use of three white LEDs offering up to 19.2 lumens for tasks, or two blue LEDs with a maximum output of 2.5 lumens for a reduced light signature.The light output is controlled using two toggle switches. The first switch turns the IR IFF beacon on and off. A second switch controls the white or blue light and turns them off. A pressure switch on the face of the light controls the intensity of the light chosen. Pressing the button cycles through the low, medium, and high levels. Built for durability, the light is O-ring and gasket sealed to be waterproof.The HL1-A attaches to any Modular Integrated Communications Helmet (MICH) via a mount with 20 preset positions, which provide 360° rotation capability. An integrated quick release tab makes it easily removable for servicing or transferring to other helmets. - Light Performance
-
- White light: low output of 1.4 lumens, medium output of 5.0 lumens, high output of 19.2 lumens
- Blue light: low output of 0.3 lumens, medium output of 0.8 lumens, high output of 2.5 lumens
- Three white LEDs for tasks, reading, and general purpose
- Two blue LEDs for a low signature while doing close work
- One IR LED blinks for identification by friendly-forces using NVDs and acts as an IFF beacon
- Switching
-
- Location: back of light and face
- Type: two multi-position toggles, one pressure
- Toggle #1: turn IR IFF beacon On/Off
- Toggle #2: turn on either white or blue light and turn it off
- Pressure switch: cycle through the output intensity levels
- Construction Details
-
- Hands-free operation
- Fiberglass reinforced nylon polymer and neoprene
- Waterproof, O-ring and gasket sealed
- Twenty-position MICH helmet mount offers 360° rotation
UPC: 084871110464 In the Box SureFire HL1-A Dual Output White/Blue LED Helmet Light (Desert Tan) Limited Lifetime Warranty
Includes Free Table of Contents
|
Upload User Manual
Have you got an user manual for the SureFire HL1-A Dual Output White Blue LED Helmet Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSureFire HL1-A-TN Specs | Illumination Source | 3 x White LEDs2 x Blue LEDs 1 x Infrared IFF LED | | Output Range | White
Low: 1.4 lumens
Medium: 5.0 lumens
High: 19.2 lumens
Blue
Low: 0.3 lumens
Medium: 0.8 lumens
High: 2.5 lumens
Infrared IFF Beacon
1.7 mW | | Battery | 1 x 123A | | Runtime | White
Low: 48 h
Medium: 28 h
High: 6 h
Blue
Low: 96 h
Medium: 48 h
High: 20 h
Infrared IFF Beacon
120 h | | Construction | Fiberglass-reinforced nylon polymer and neoprene | | Waterproofing | Waterproof, O-ring and gasket sealed | | Dimensions | 2.6 x 2.2 x 1.3 (6.6 x 5.6 x 3.3 cm), including mount | | Weight | 3.1 oz (88 g), with battery and mount | | | | Package Weight | 0.38 lb | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 2.5" |
