User Manual for SureFire M600IB Scout Light IntelliBeam LED WeaponLight Click to enlarge the picture
Contents of the user manual for the SureFire M600IB Scout Light IntelliBeam LED
- Product category: Weapon & Tactical Lights SureFire
- Brand: SureFire
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SureFire Weapon & Tactical Lights
|
User manual for the SureFire M600IB Scout Light IntelliBeam LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SureFire product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SureFire user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SureFire product will considerably shorten its lifespan!
|

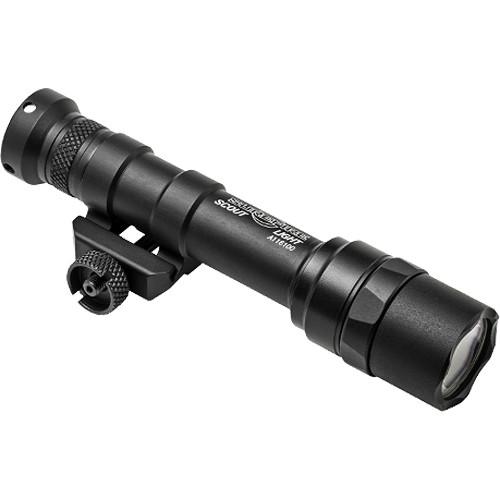

Product description SureFire's iconic light gets and upgrade in the M600IB Scout Light IntelliBeam LED WeaponLight. Outfitted with an active sensor and microprocessor, the IntelliBeam system continuously monitors and measures the ambient light and distance to where the beam is aimed and automatically adjusts the output, between 100 and 600 lumens, to provide the optimum amount of light without blinding back splash. A factory-focused Total Internal Reflection (TIR) lens optimizes the light's throw and produces a beam with a bright center, and a dimmer peripheral ring without holes or hotspots. Its digitally-regulated output is designed to provide consistent beam intensity throughout the life of the battery.Its integrated Picatinny/Weaver rail mount is equipped with a convenient thumbscrew, so no tools are needed to install and remove it. The Scout Light's lightweight aluminum housing is anodized with a Type III hard coat for abrasion- and corrosion-resistance, and gasket-sealed for weatherproof performance - making this tactical accessory ready for just about any situation. - Performance
-
- Low: 100 lumen
- High: 600 lumen
- Single white LED emitter
- Total Internal Reflection (TIR) lens system produces a smooth pre-focused visible beam of light without holes or hotspots; beam has a large center of bright light and long throw, with a generous spill to maintain situational awareness
- Proprietary IntelliBeam system uses an active sensor and microprocessor to continuously monitor and measure the ambient light and distance to where the beam is aimed, and automatically adjusts the output to an optimal level, between 100 and 600 lumens, to avoid blinding back-splash or over-saturation
- Digitally-regulated output maintains consistent beam intensity throughout life of battery
- Switching
-
- Type: Pushbutton
- Location: Tailcap
- Momentary and constant-on modes
- Shrouded tailcap helps prevent accidental activation
- Lockout feature prevents accidental activation during transport and storage, or when strict light discipline needs to be observed
- Construction Details
-
- 1.37" diameter bezel
- Lightweight aluminum housing
- Scratch and corrosion-resistant black Type III hard-anodized finish
- O-ring and gasket sealed for weather-resistance
- Impact-resistant tempered window
- Picatinny rail mount with thumbscrew for tool-free installation
- Runs on two included CR123A batteries
- Weight: 6.2-ounces, with batteries
UPC: 084871325745 In the Box SureFire M600IB Scout Light IntelliBeam LED WeaponLight (Black) 2 x CR123A Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SureFire M600IB Scout Light IntelliBeam LED WeaponLight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSureFire M600 Specs | Illumination Source | 1 x White LED | | Output Range | Low: 100 lumens
High: 600 lumens | | Battery | 2 x CR123A batteries | | Runtime | Low: 5.0 h
High: 1.5 h | | Mount | Picatinny/Weaver | | Dimensions | Bezel: 1.37" / 3.5 cm
Length: 5.8" / 14.7 cm | | Weight | 6.2 oz / 175.8 g, with battery | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 10.4 x 3.6 x 3.6" |
