User Manual for SureFire M603V Vampire Scout Light Visible IR LED Weaponlight with Remote Switch and Thumbscrew Mount Click to enlarge the picture
Contents of the user manual for the SureFire M603V Vampire Scout Light Visible
- Product category: Weapon & Tactical Lights SureFire
- Brand: SureFire
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SureFire Weapon & Tactical Lights
 |
User manual for the SureFire M603V Vampire Scout Light Visible contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SureFire product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SureFire user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SureFire product will considerably shorten its lifespan!
|

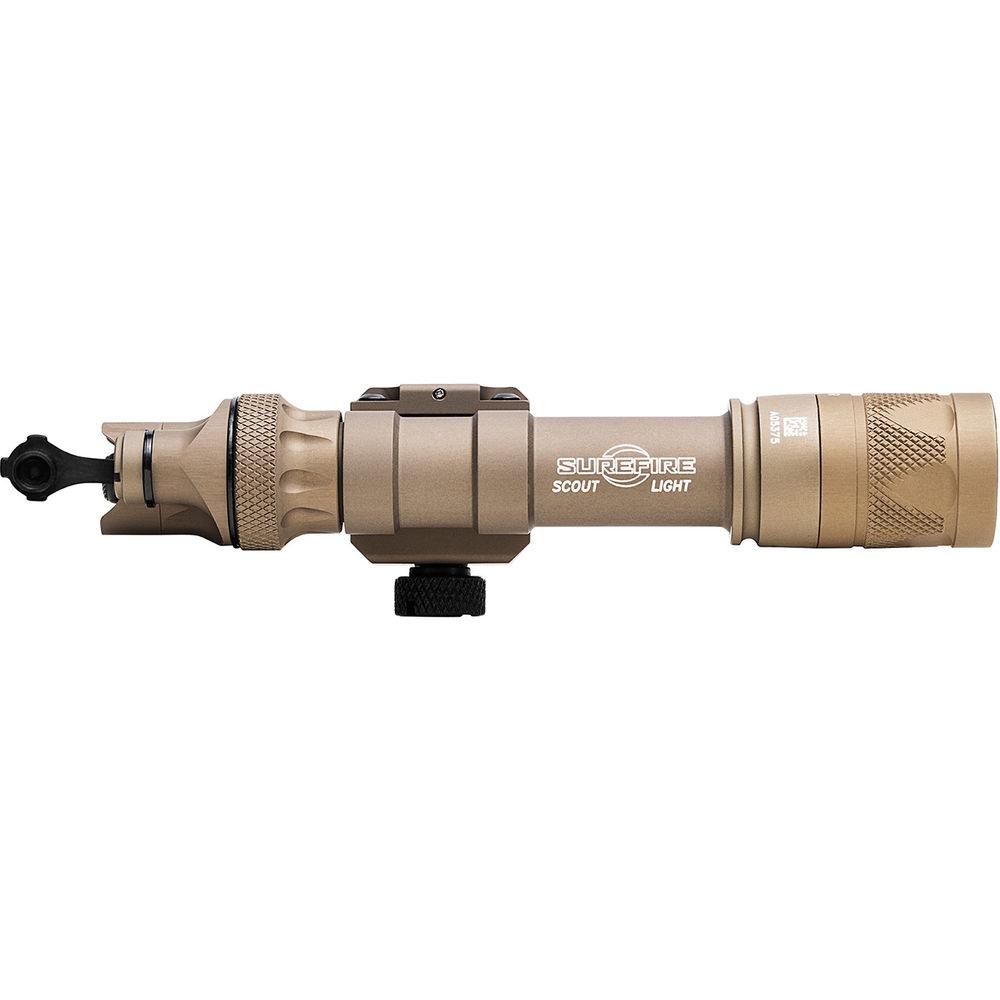

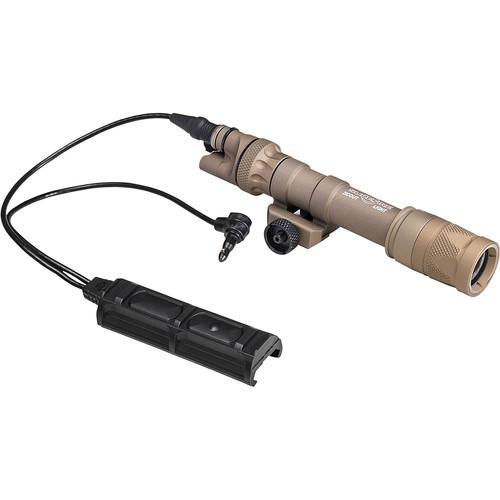

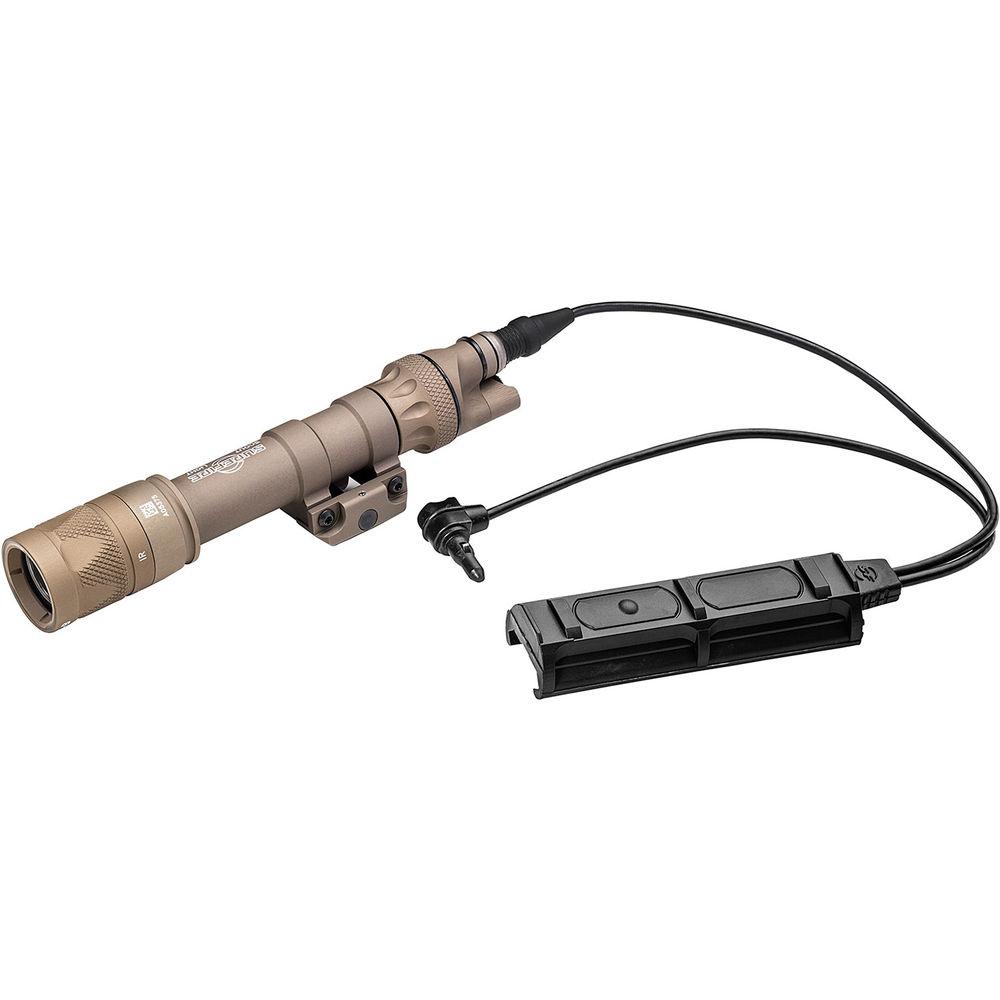

Product description Designed to offer versatility and durability to tactical professionals, SureFire's tan M603V Vampire Scout Light Visible/IR LED Weaponlight is outfitted with a 350-lumen output white light LED and a 120mW, 860nm invisible infrared (IR) LED. This dual output capability allows its use in conventional and stealth operations, with switching from IR to visible light accomplished with a twist of its self-locking selector on the bezel. A factory-focused Total Internal Reflection (TIR) lens optimizes the visible light's throw and produces a beam with a bright center, and a dimmer peripheral ring without holes or hotspots. Its regulated output is designed to maximize battery life and provide consistent beam intensity throughout the life of the battery.This configuration of the Scout Light can be activated using the DS-SR07-D-IT remote pressure pad switch. Two cables with separate touch pads on the remote switch are used to independently activate the light and an optional EOTech ATPIAL Target Pointer/Illuminator/Aiming Laser. The system enables fingertip activation of two different accessories while in the firing position. An integrated push-button switch on the tailcap provides a redundant switch for the light in the event of a failure of the cable or remote pressure pad. Its lightweight aluminum housing is anodized with a Type III hard coat for abrasion and corrosion-resistance, and gasket-sealed for weatherproof performance - making this tactical accessory ready for just about any situation or condition. - Performance
-
- Dual output: Visible and Infrared (IR)
- 350 lumen white-light output
- 120mW, 860nm invisible IR output
- Total Internal Reflection (TIR) lens system produces a smooth pre-focused visible beam of light without holes or hotspots; beam has a large center of bright light and long throw, with a generous spill to maintain situational awareness
- IR LED output is compatible with most NVD devices and scopes and provides a wide area of invisible illumination
- Rotating self-locking selector on the bezel changes output from visible to IR LED, eliminating the need for accessory filters that can get lost or broken
- Digitally-regulated output maintains consistent beam intensity throughout life of battery
- Switching
-
- Type: Pushbutton and dual-activation remote cable touchpad
- Location: Tailcap, and 7" cable for precise placement based on personal shooting style
- Momentary-on only for remote touchpad
- Momentary and constant-on switch on tailcap provides switch redundancy

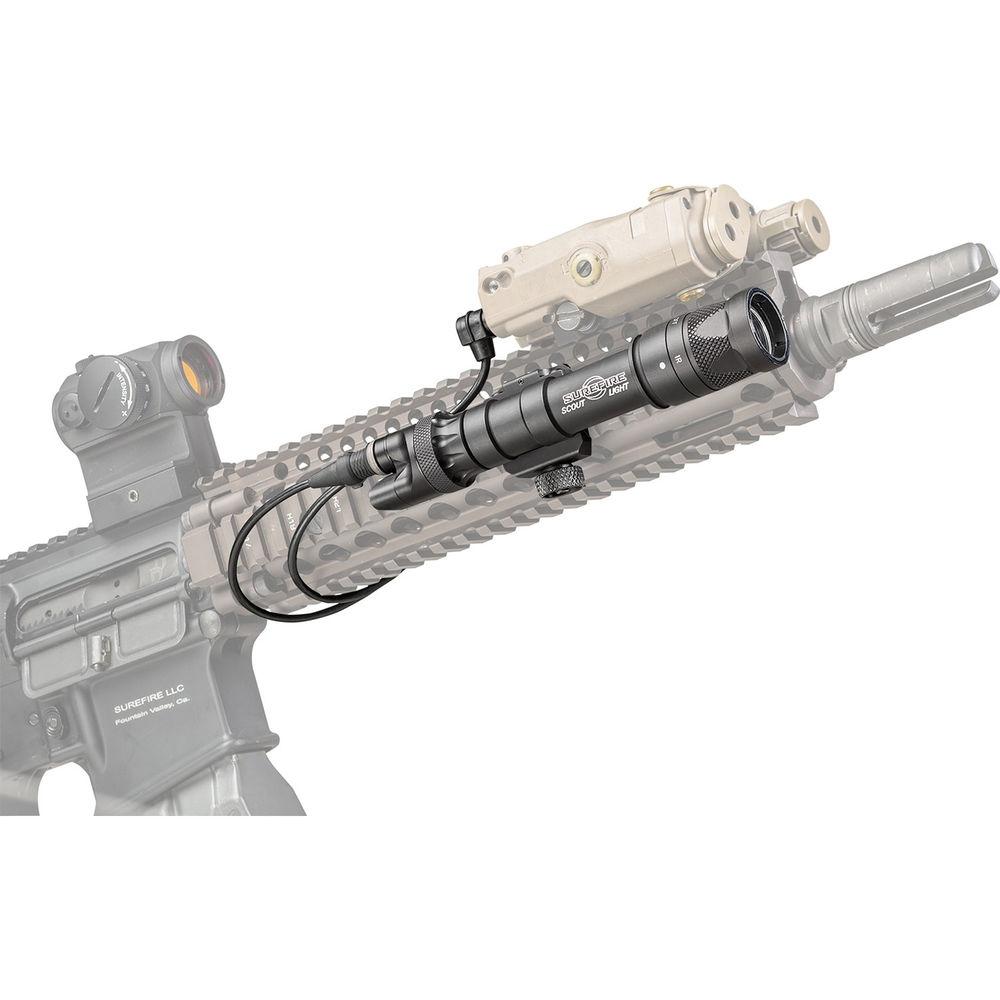

- Dual cables: One connects to the Scout Light with redundant pushbutton tailcap switch - One compatible with the EOTech ATPIAL (Advanced Target Pointer/ Illuminator/ Aiming Laser) - allowing for independent activation of two separate accessories on one switch
- System disable to prevent accidental activation during transport and storage, or when strict light discipline must be maintained
- Construction Details
-
- Lightweight aluminum housing
- Scratch and corrosion-resistant tan Type III hard-anodized finish
- O-ring and gasket sealed for weather-resistance
- Tempered impact-resistant glass lens window
- Tool-free thumbscrew Picatinny/Weaver rail mount
- Powered by two CR123A lithium batteries
- Weight: 7.4 ounces with batteries
UPC: 084871326315 In the Box SureFire M603V Vampire Scout Light Visible/IR LED Weaponlight with Remote Switch and Thumbscrew Mount (Tan) DS-SR07-D-IT Remote Switch Assembly for Weapon Light + Laser (Black) eafvucrrbx Thumbscrew Picatinny/Weaver Rail Mount 2 x CR123A Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SureFire M603V Vampire Scout Light Visible IR LED Weaponlight with Remote Switch and Thumbscrew Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSureFire M603V-TN Specs | Illumination Source | 1 x White LED
1 x 860nm infrared (IR) LED | | Output Range | 350 lumen, white light
120 mW | | Battery | 2 x CR123A lithium | | Runtime | 2.5 h, max | | Mount | Picatinny rail | | Dimensions | Bezel: 1.06" / 2.69 cm
Length: 6.1" / 15.6 cm | | Weight | 7.4 oz / 209.8 g, with batteries | | | | Package Weight | 0.09 lb | | Box Dimensions (LxWxH) | 10.4 x 3.7 x 3.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
